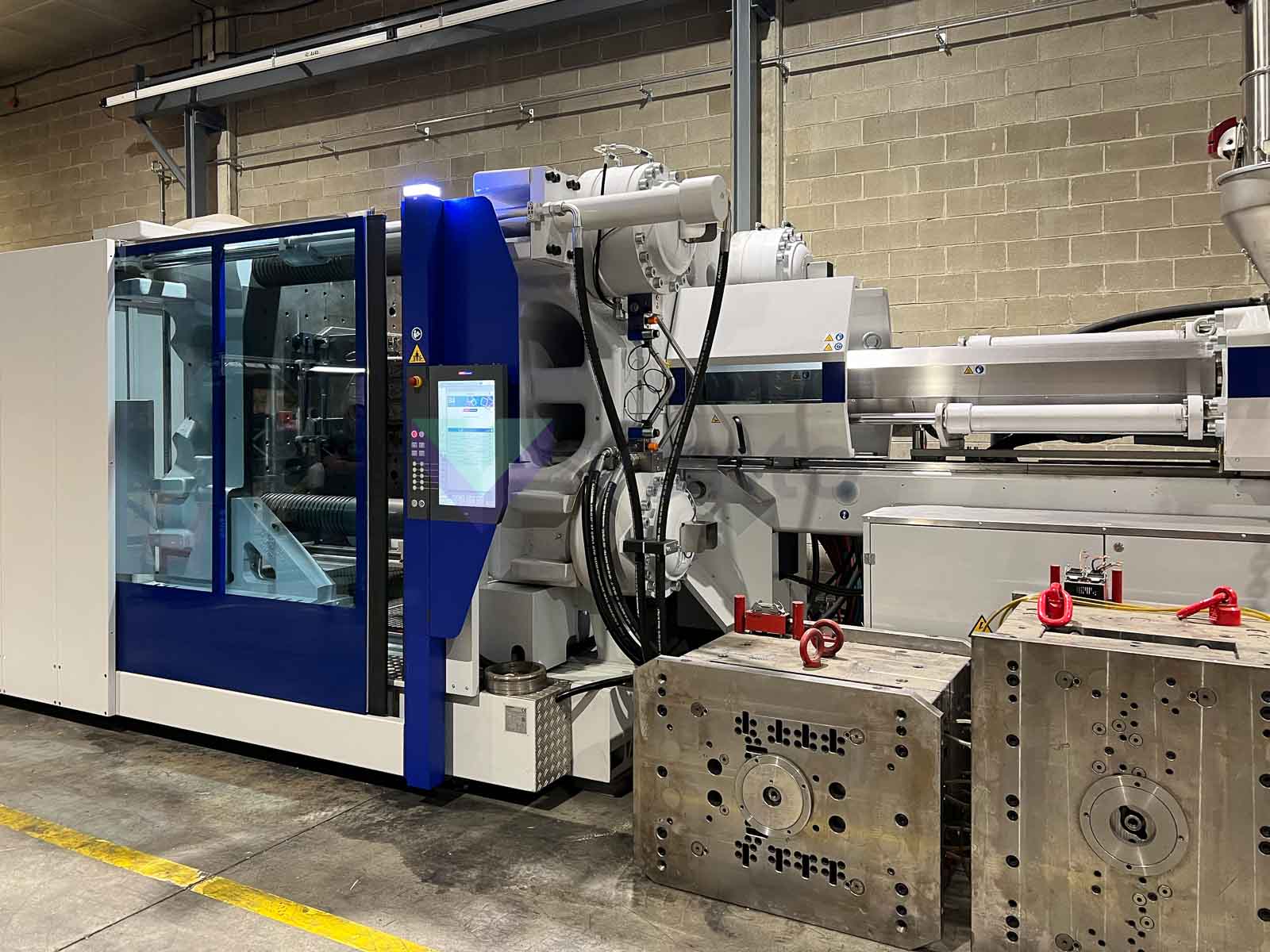

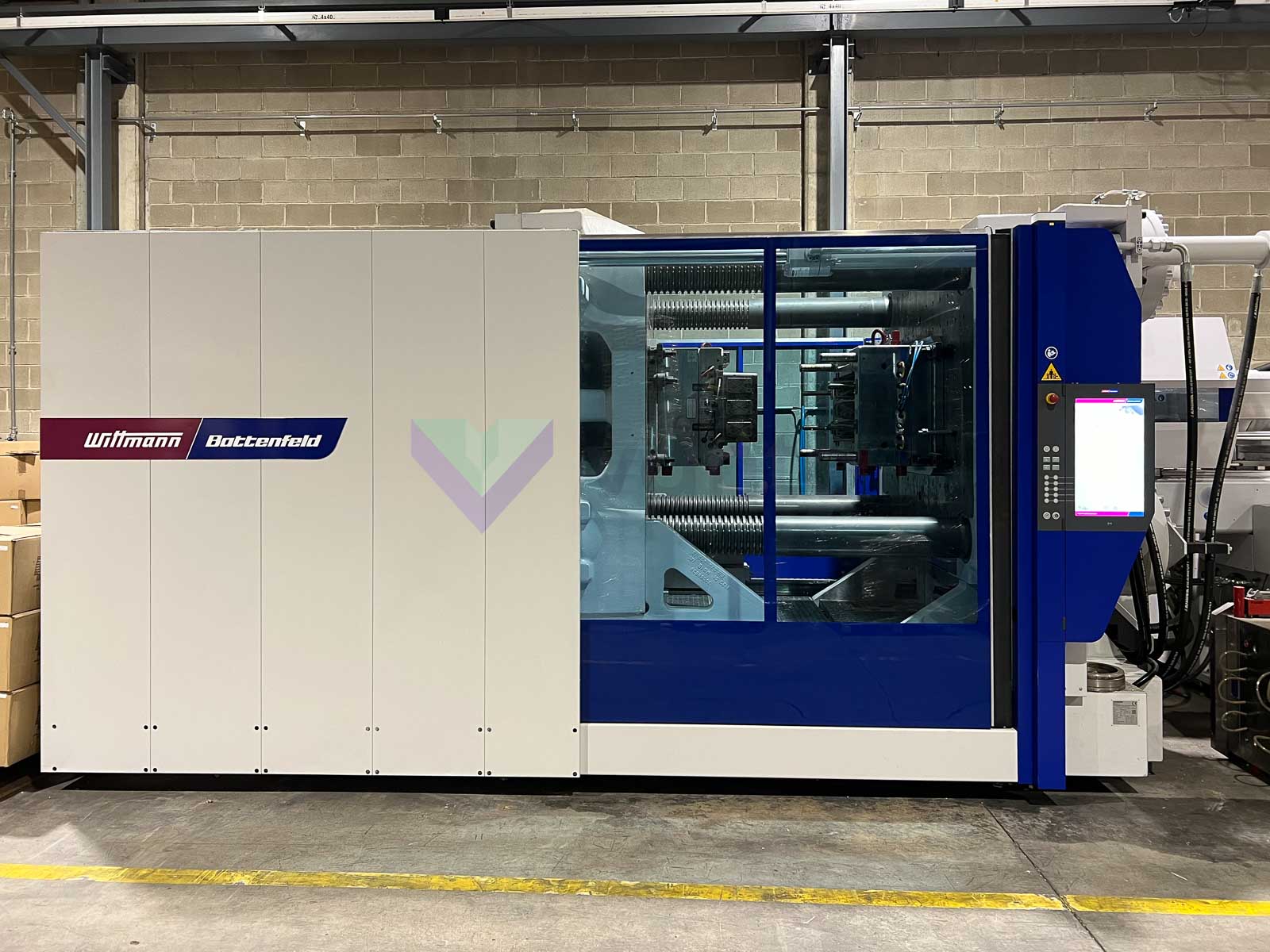

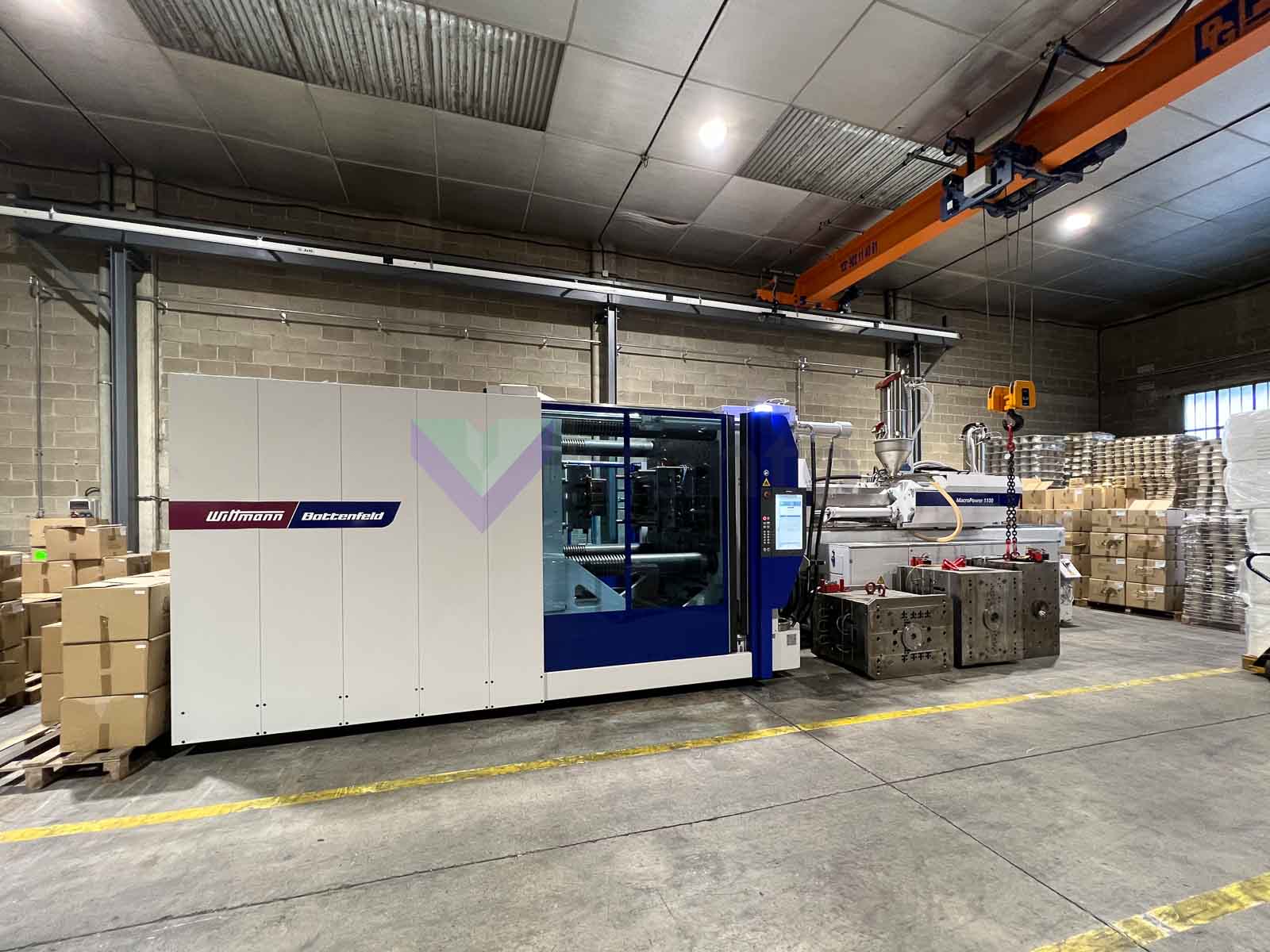

WITTMANN BATTENFELD

MacroPower 1100 / 8800

1100t injection molding machine

Category 1000t or more Injection moulding machines
Condition Used
Year 2019
Availability Sold
ID 10954
Sold

Screw diameter105 mm
Clamping force11.000 kN

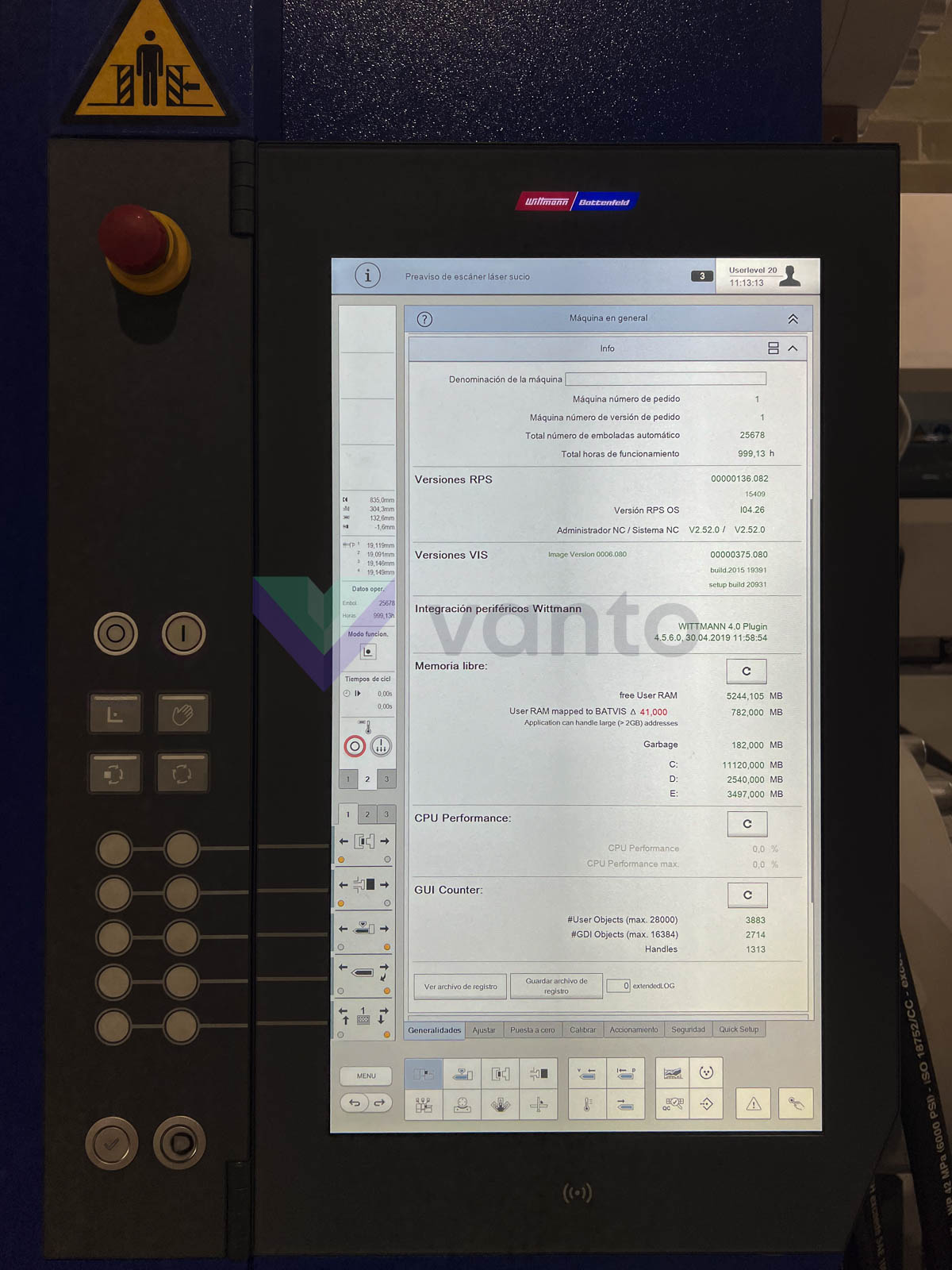

ControlUNILOG B8
Core pulls2
Daylight between platens max2.400 mm
Dimensions (long x wide x high)10.100 x 3.400 x 2.700 mm
Distance between tie-bars (h x v)1.450 x 1.100 mm
Dry cycle time4.0 - 770 sec/mm
Ejector stroke / force max.300 / 165 mm / kN
Heating zones7
Injection volume4.545 cm³
Mold opening force300 kN
Mould height max1.200 mm
Mould height min600 mm
Mould opening stroke max1.800 mm
Nozzle stroke / force max.950 / 129 mm / kN
Nozzle stroke max525 mm
Operating hours0
Power: installed max53,9 kW
Screw L/D ratio22
Screw speed159 rpm
Weight35.200 kg

No videos available

WITTMANN BATTENFELD MacroPower 1100 / 8800 Official Catalogue View PDF
