TRUMPF

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

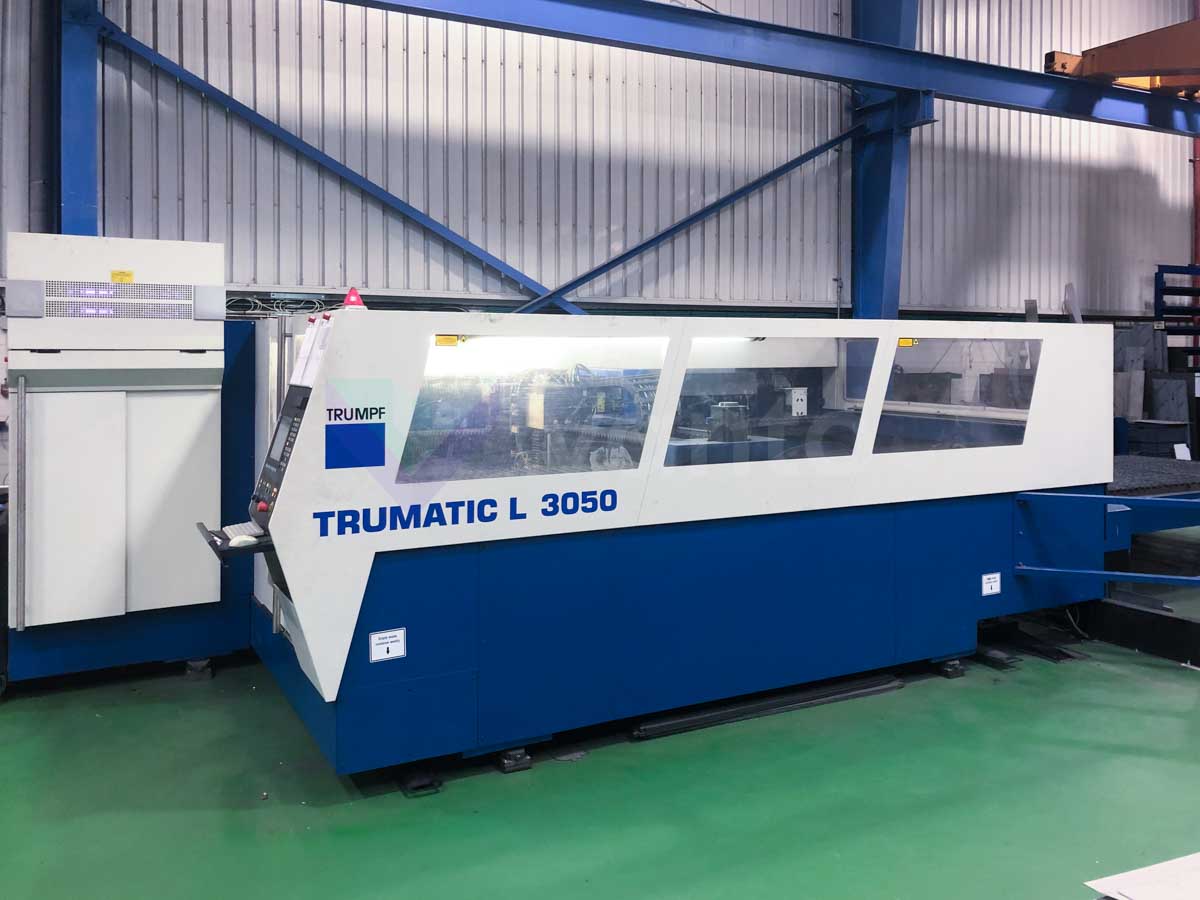

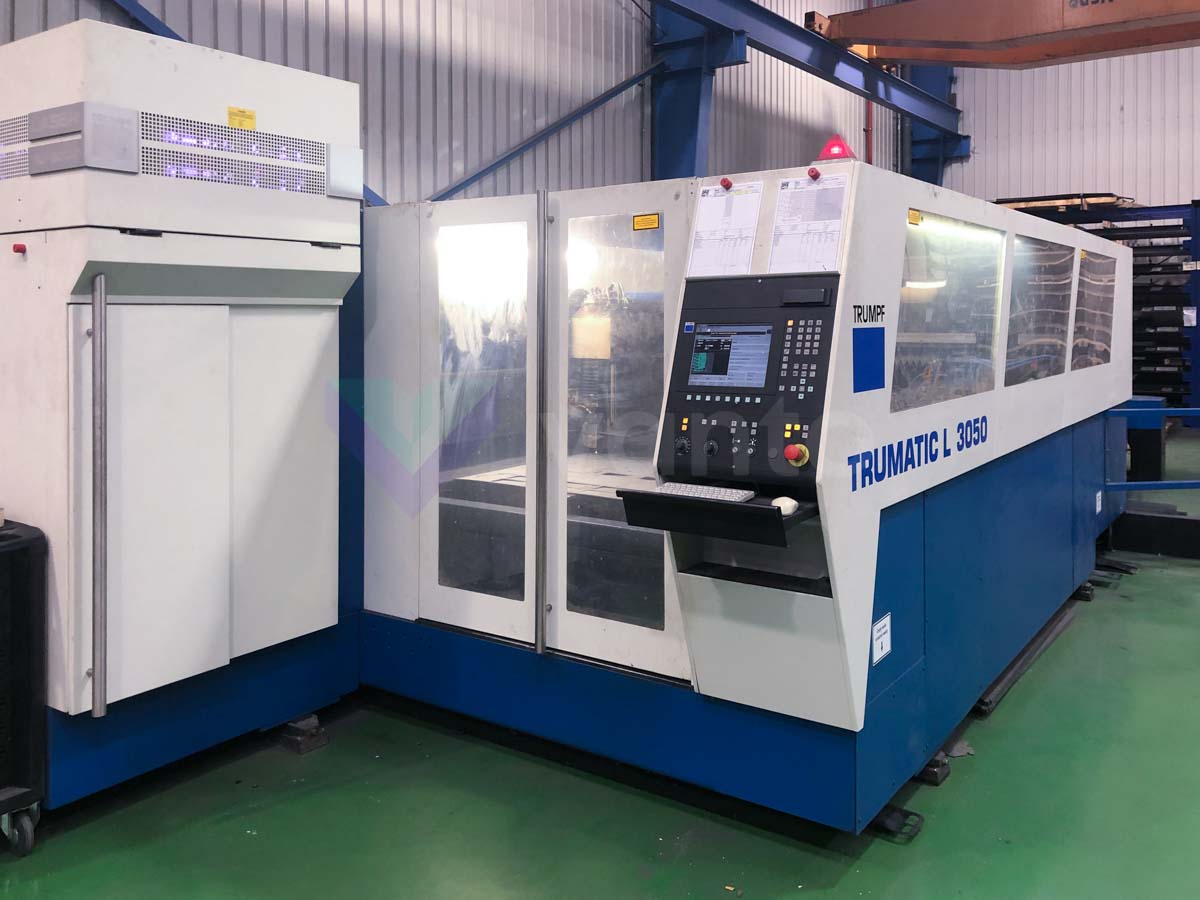

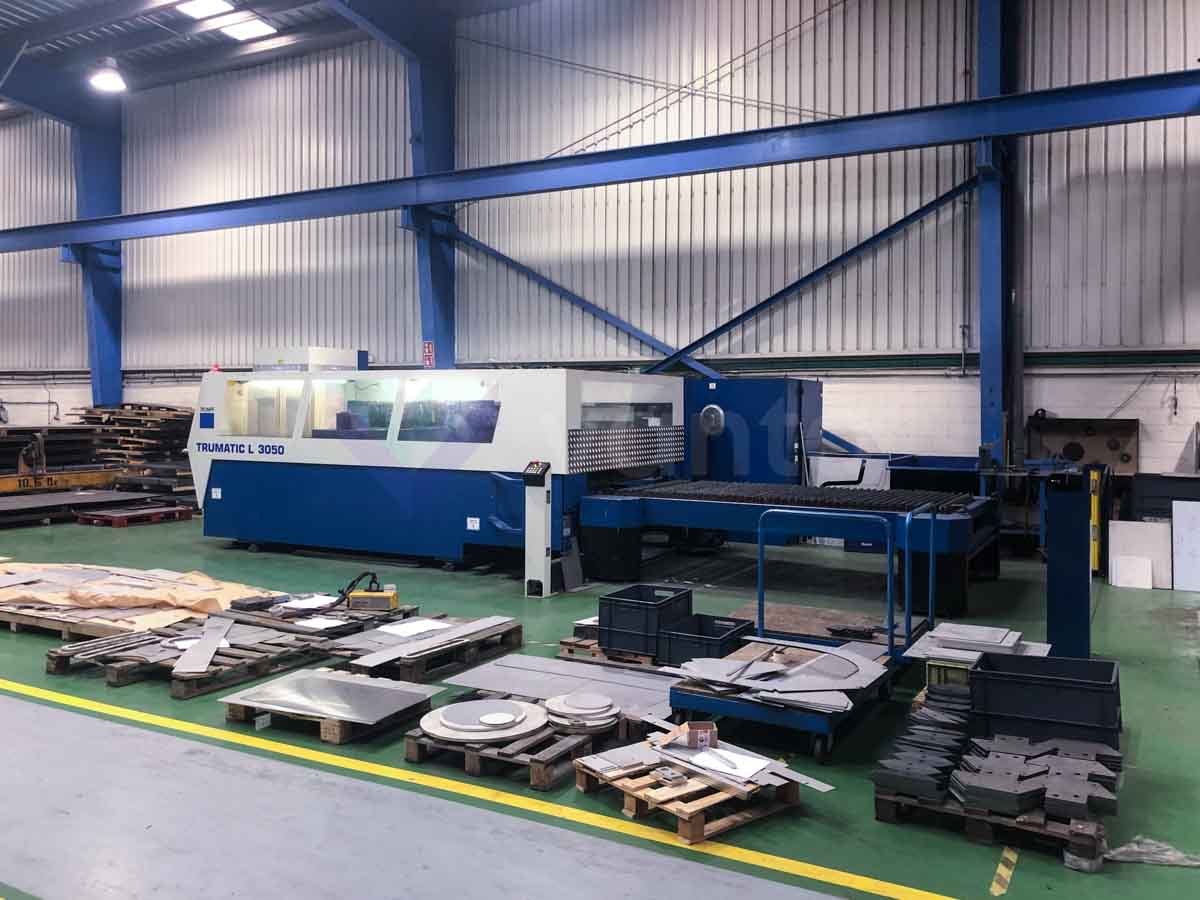

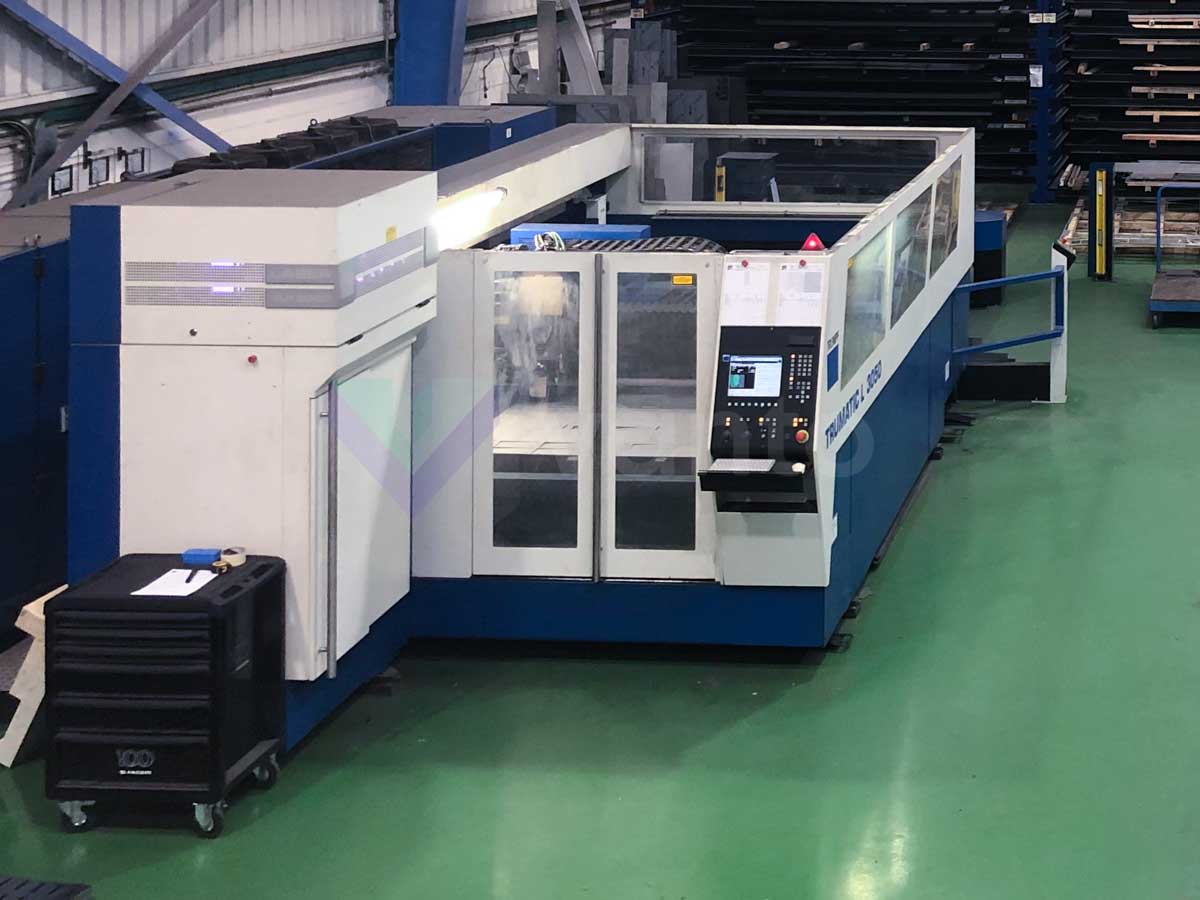

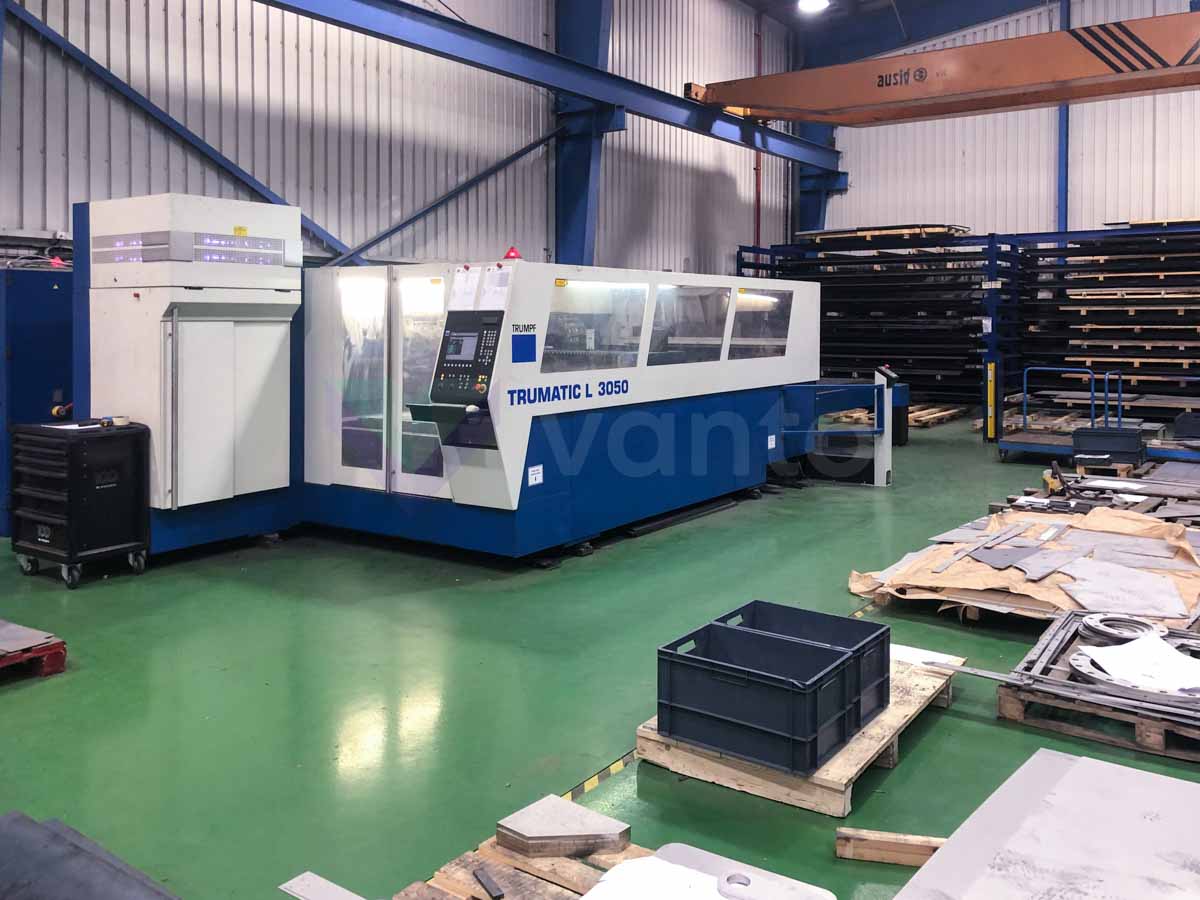

TRUMATIC L3050

Laser cutting machine (CO2)

Category	2D Laser Cutting Machines
Condition	Used
Year	2006
Availability	Available
ID	10196

Isaac Mateo

+34 932 711 191

+34 652 098 501

Maximum material thickness stainless steel

0mm

Maximum material thickness mild steel

0mm

Maximum material thickness aluminium

0mm

Totally overhauled machine between 2017-2018

Beam ON Working hours	24.456 h
Consumption values CO2	1 l/h
Consumption values He	13 l/h
Consumption values N2	6 l/h
Control	SIEMENS SINUMERIK 840D
Dimensions (long x wide x high)	11.250 x 4.600 x 2.400 mm
Electric consumption entire unit	33 - 72 kW
Laser Output	6 kW
Laser Type	CO2
Machine ON Working hours	50.000 h
Max. workpiece weight	900 kg
Maximum material thickness aluminium	15 mm
Maximum material thickness mild steel	25 mm
Maximum material thickness stainless steel	25 mm
Positioning speed X/Y	200 m/min
Simultaneous positioning speed	300 X+Y m/min
Weight	12.000 kg
Working area (X x Y x Z)	3.000 x 1.500 x 115 mm
