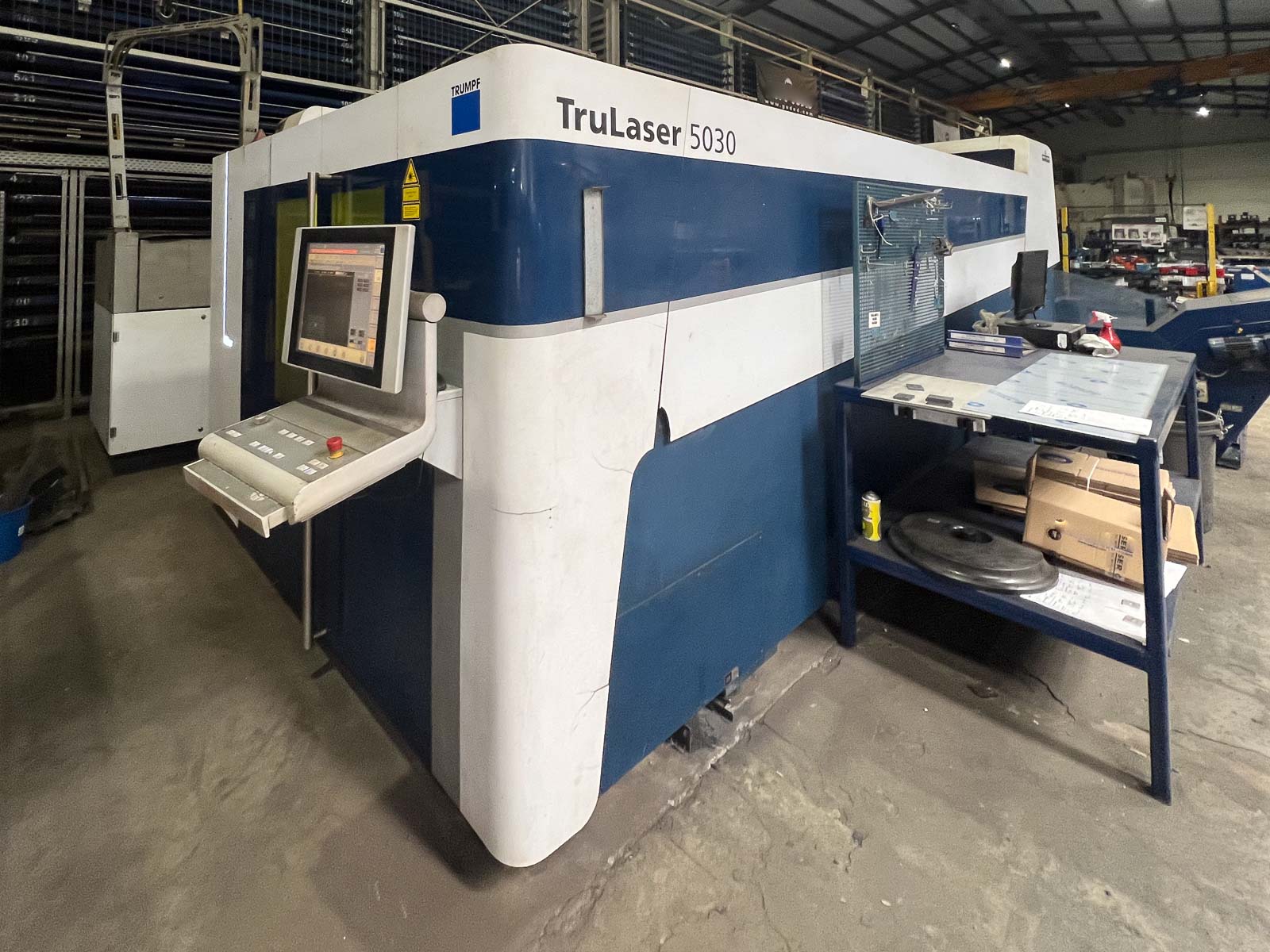

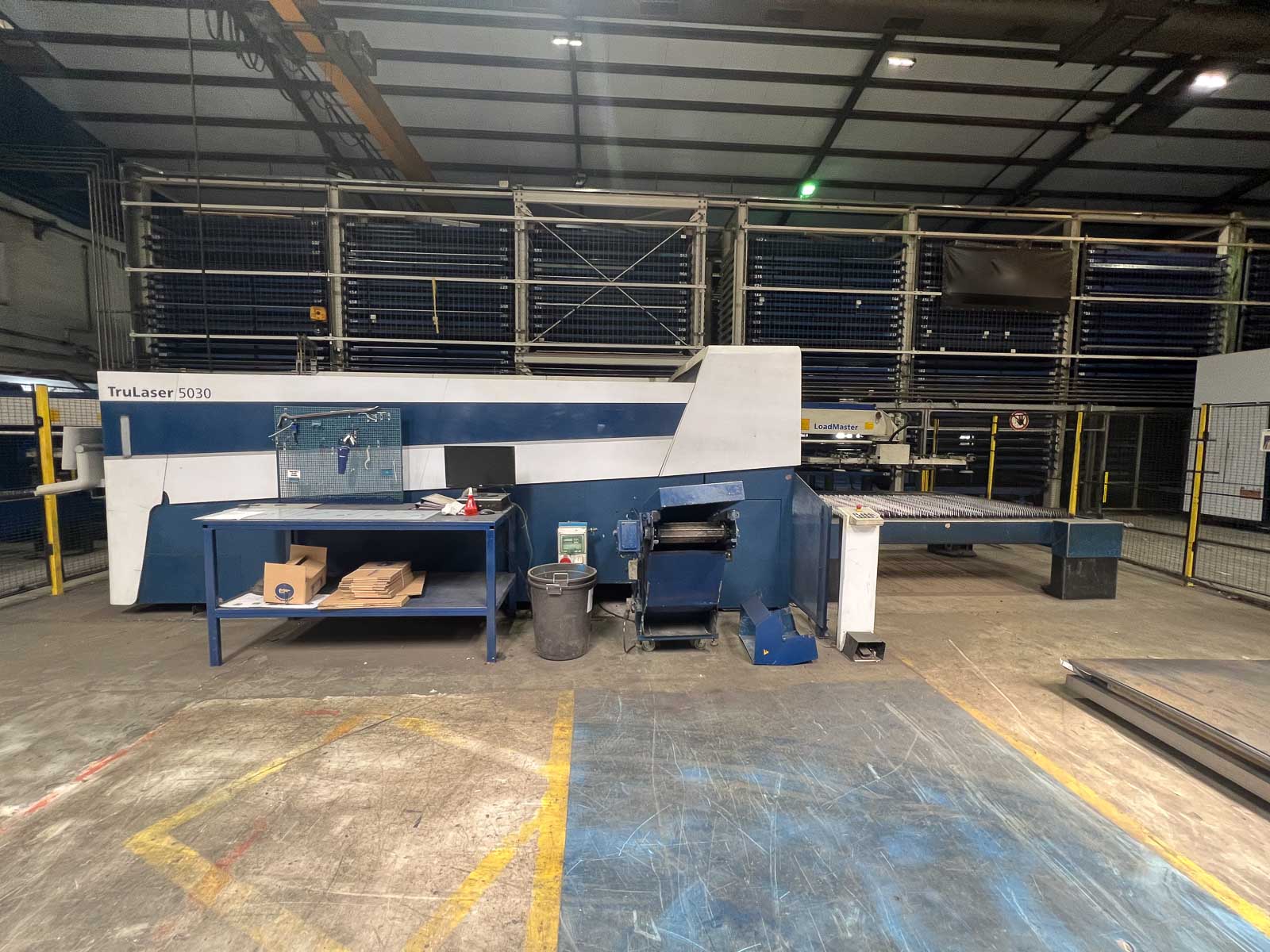

TruLaser 5030 fiber

Laser cutting machine (Fiber)

Category	2D Laser Cutting Machines
Condition	Used
Year	2012
Availability	Available
ID	11041

Isaac Mateo

+34 932 711 191

+34 652 098 501

Maximum material thickness stainless steel

0mm

Maximum material thickness cupper

0mm

Maximum material thickness aluminium

0mm

Maximum material thickness brass

0mm

Maximum material thickness mild steel

0mm

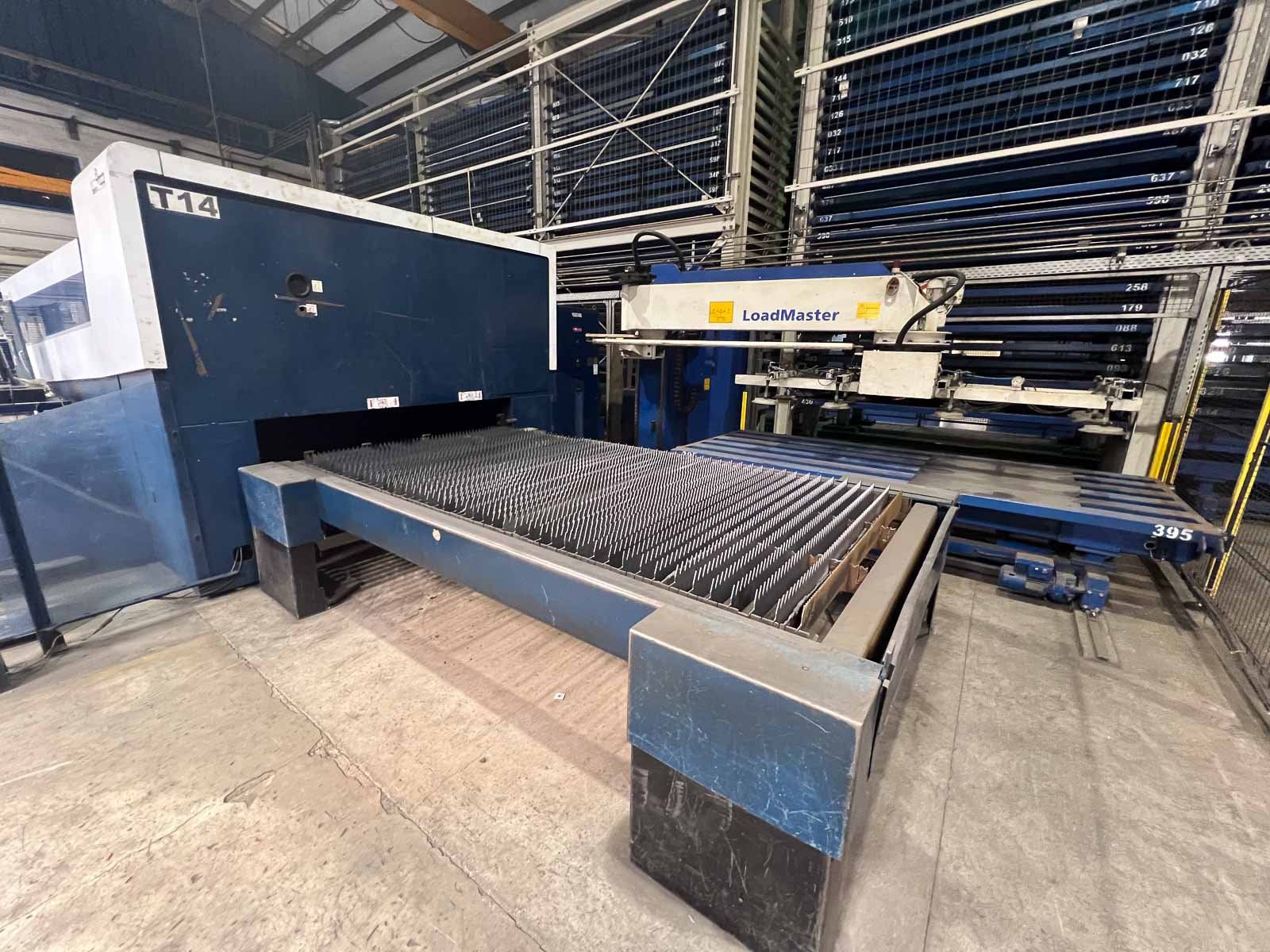

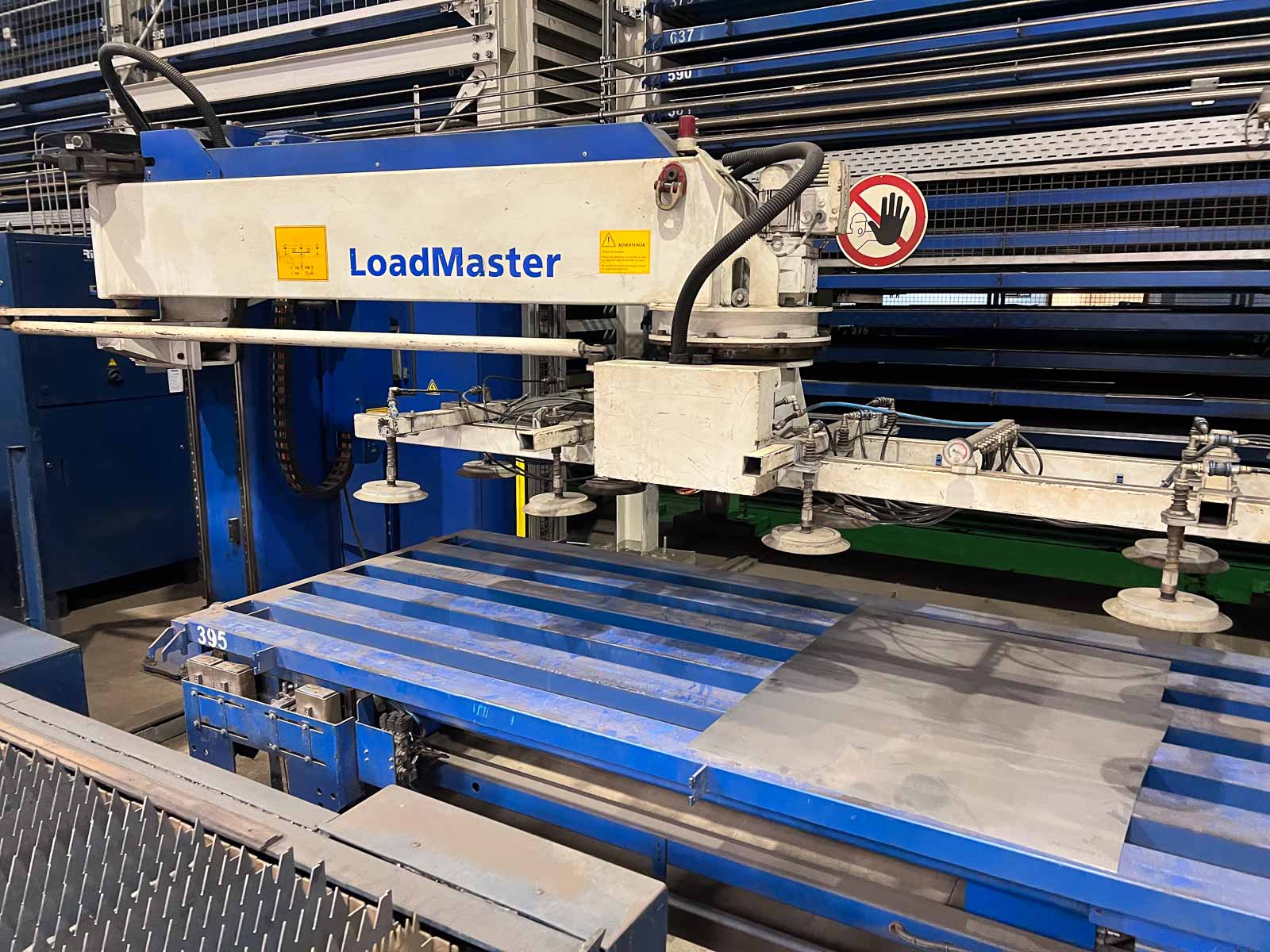

with LoadMaster

Beam ON Working hours	26.620 h

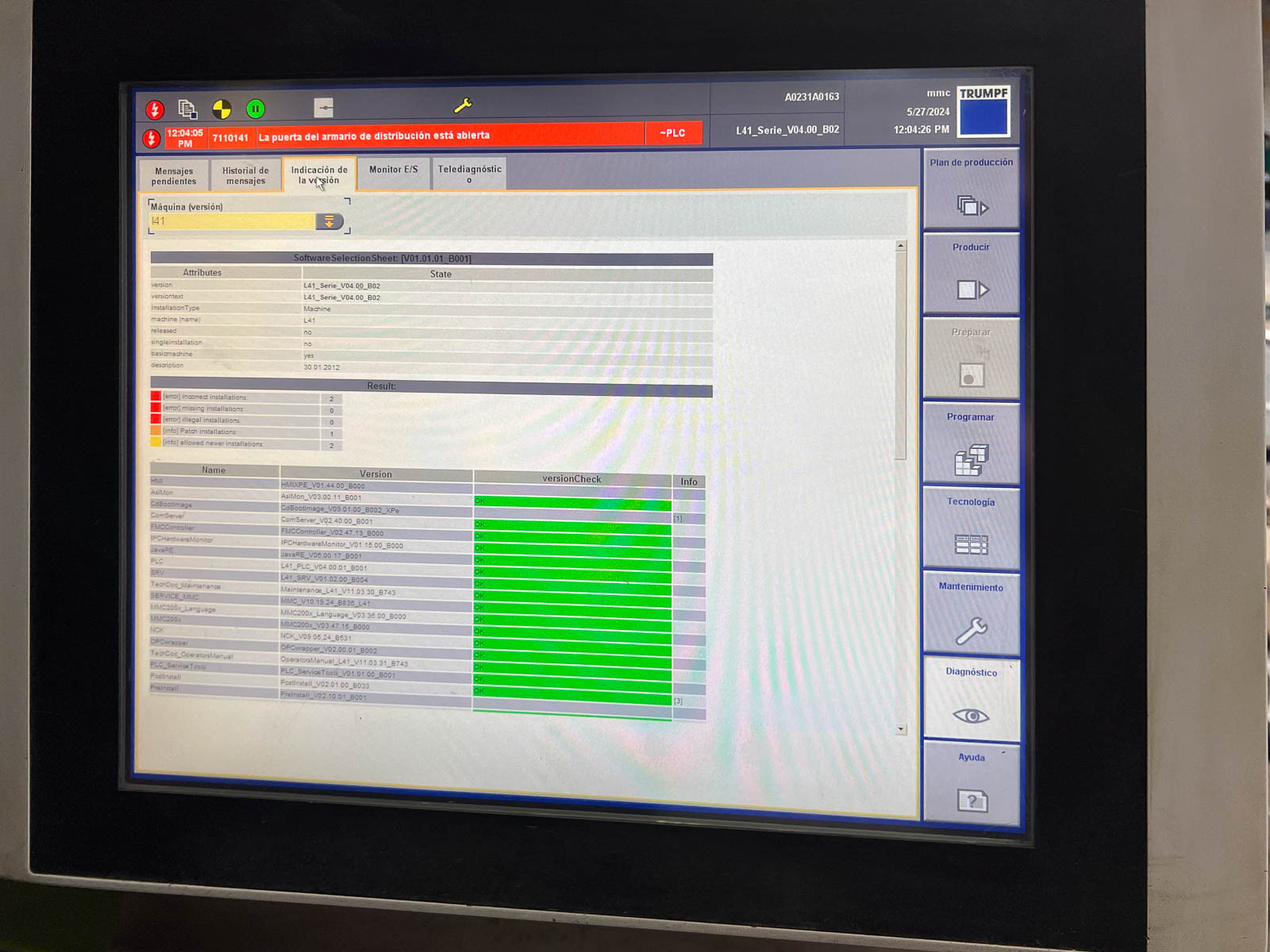

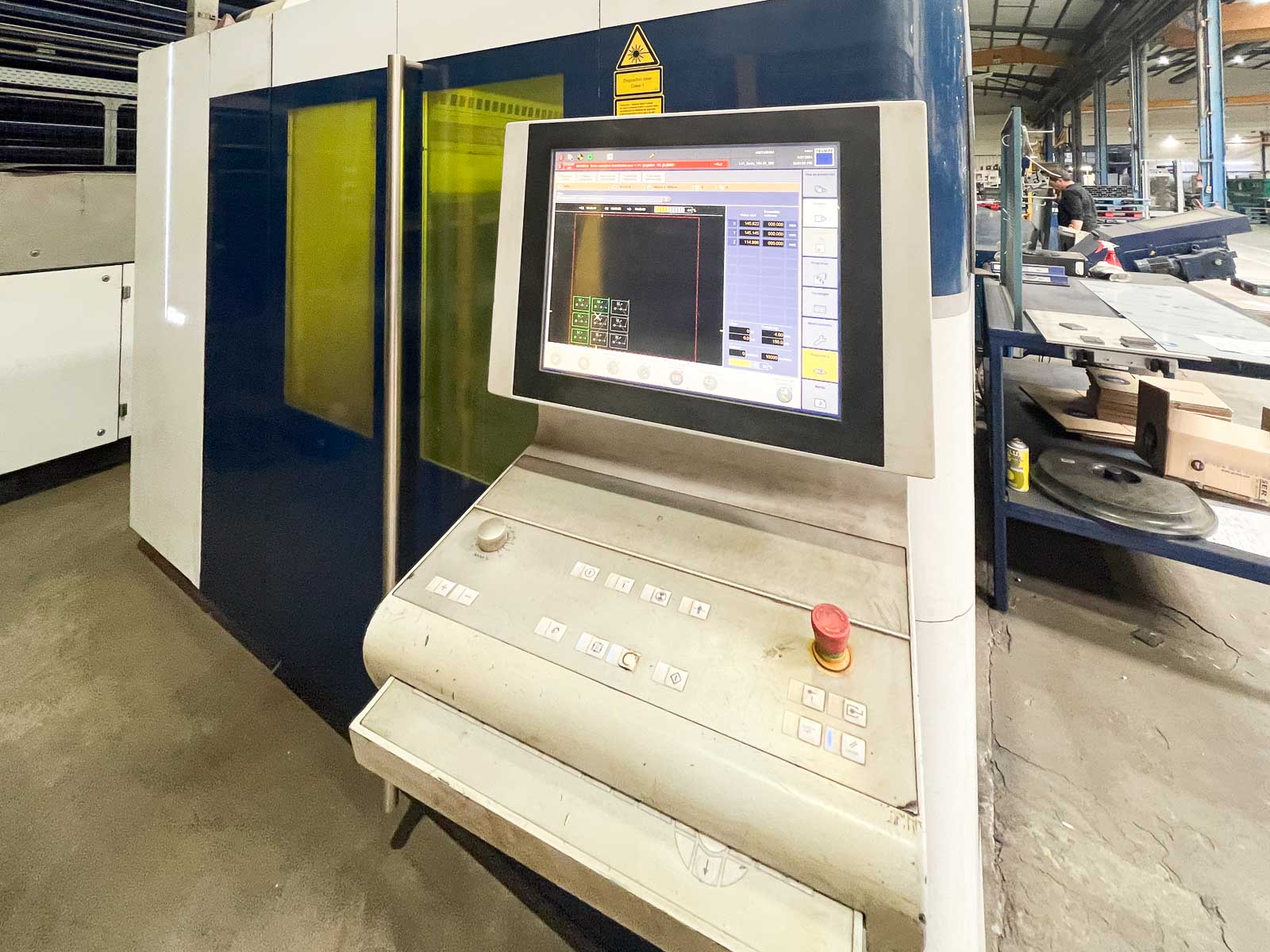

Control	SIEMENS SINUMERIK 840D
Dimensions (long x wide x high)	8.800 x 4.800 x 2.400 mm
Electric consumption entire unit	25 kW
Laser Output	5 kW

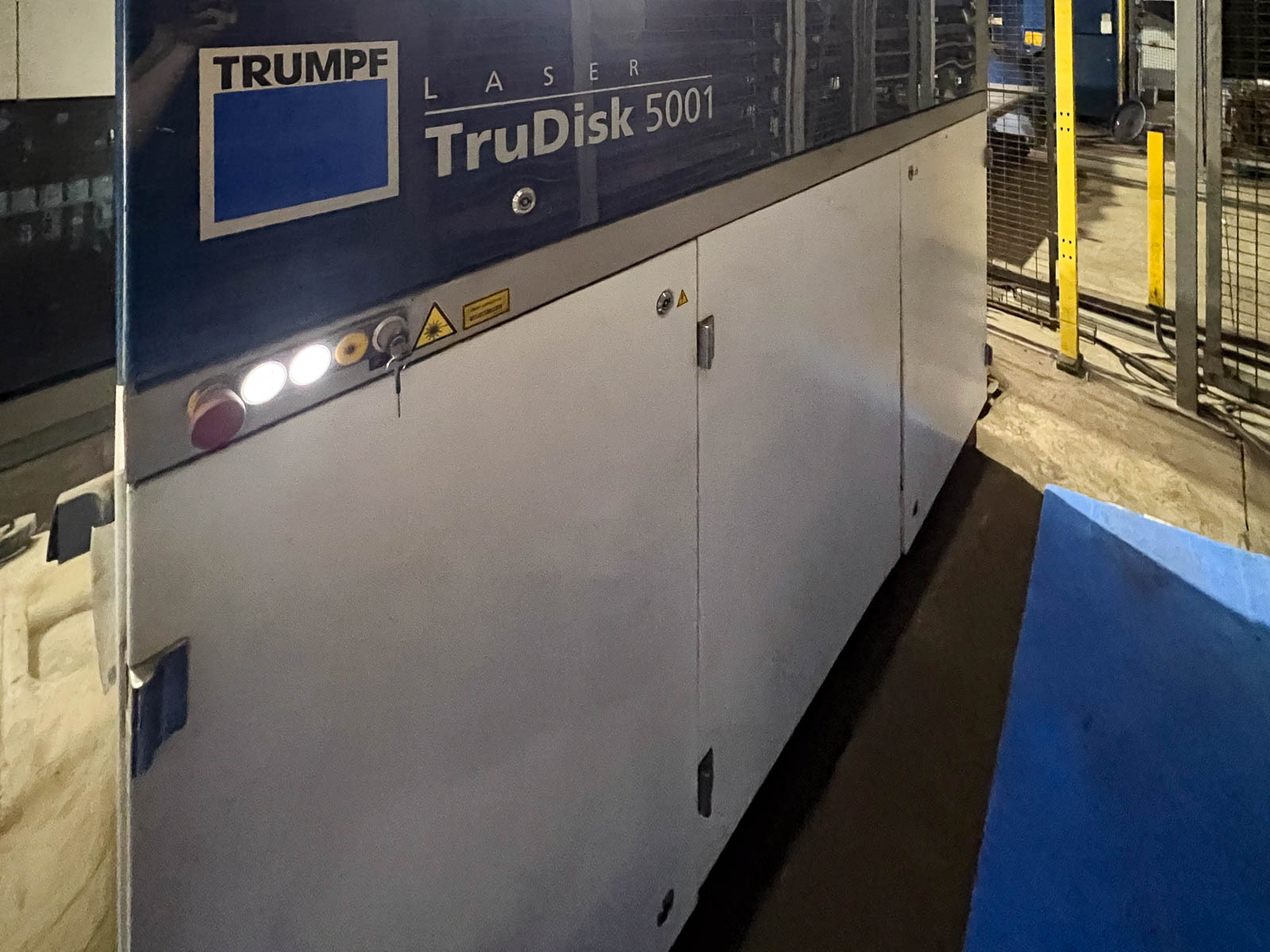

Laser Type	fiber TruDisk 5001
Machine ON Working hours	60.443 h
Max. workpiece weight	900 kg
Maximum material thickness aluminium	25 mm
Maximum material thickness brass	10 mm
Maximum material thickness cupper	10 mm
Maximum material thickness mild steel	25 mm
Maximum material thickness stainless steel	25 mm
Simultaneous positioning speed	265 X+Y m/min
Weight	12.000 kg
Working area (X x Y x Z)	3.000 x 1.500 x 115 mm
