STOPA

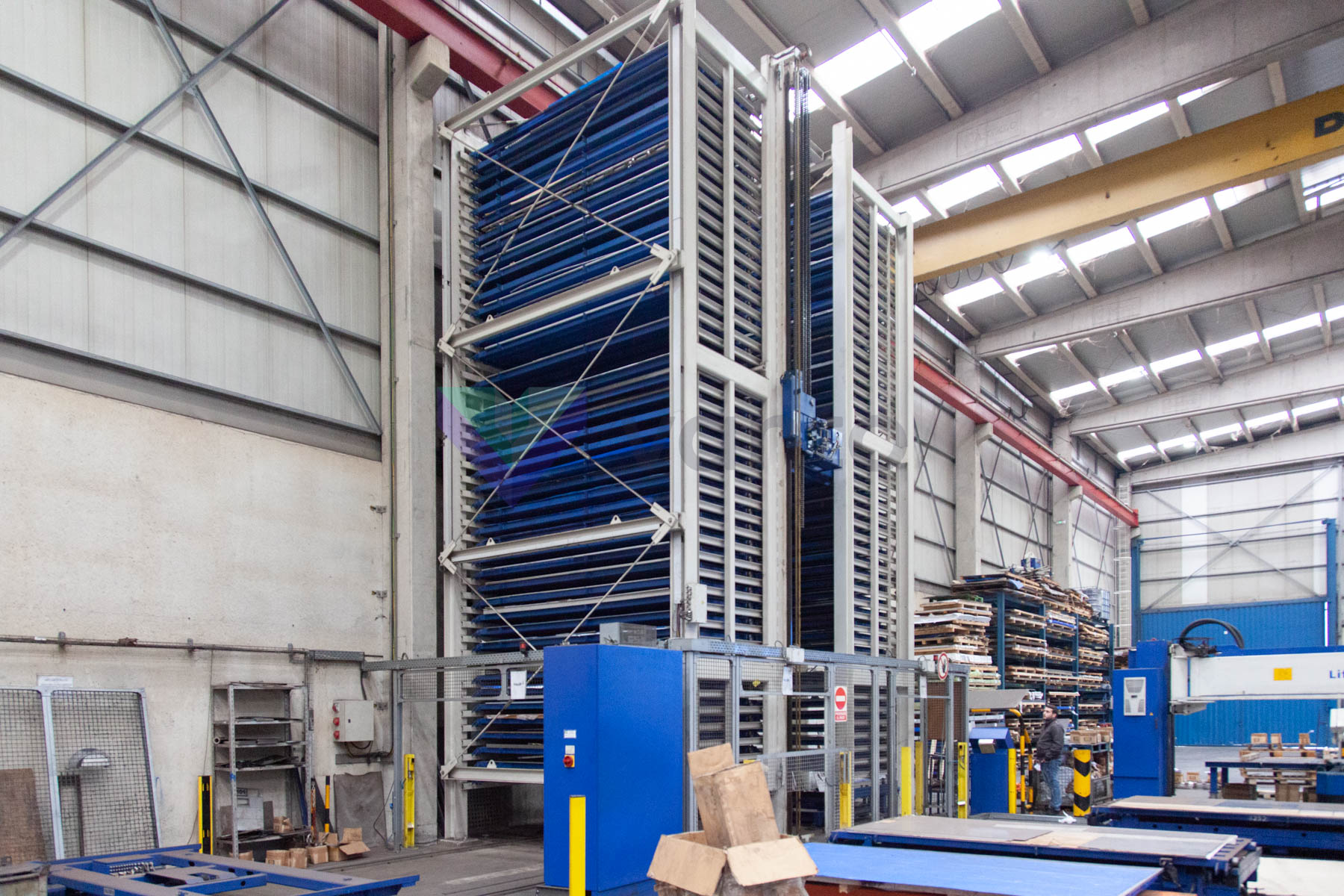

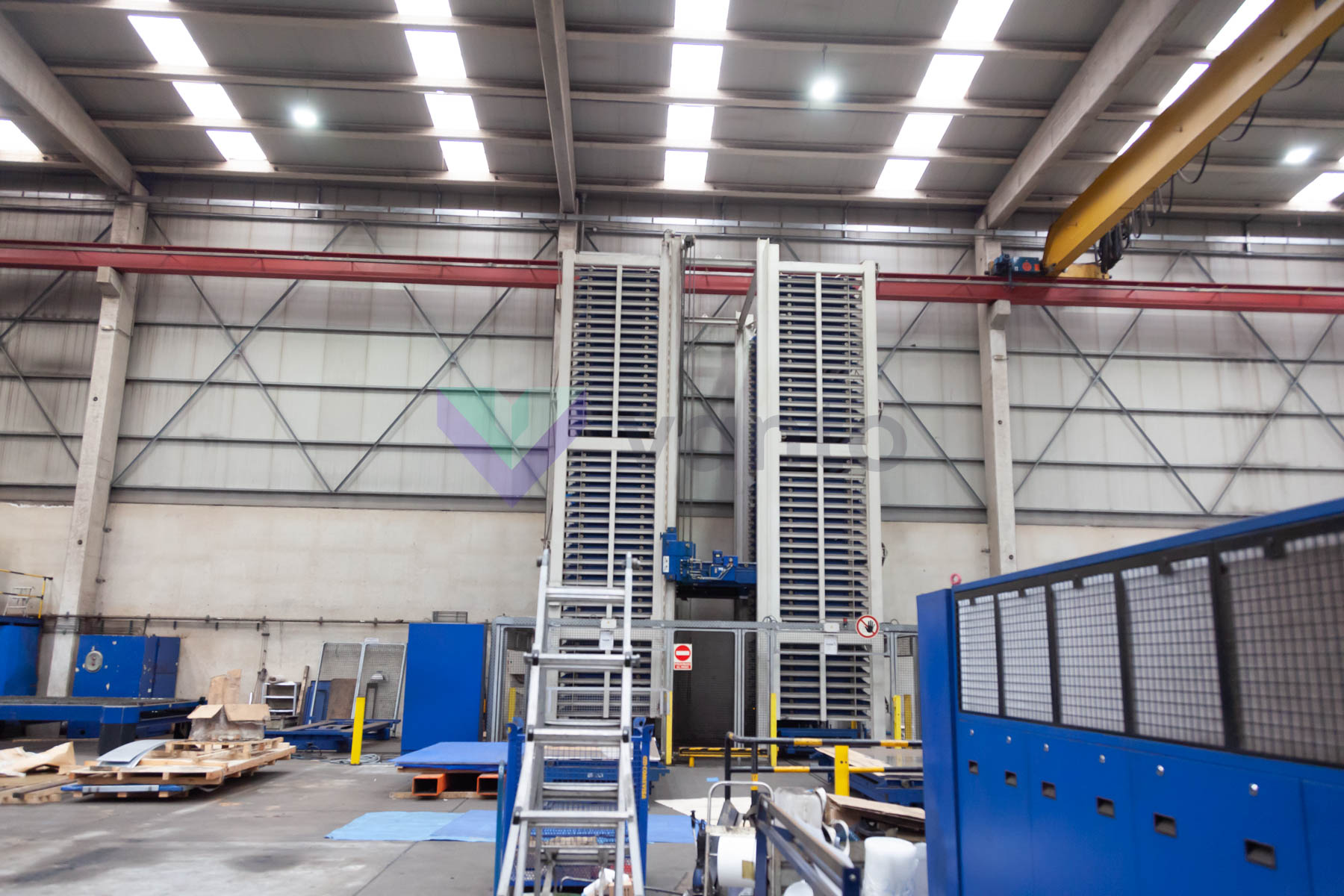

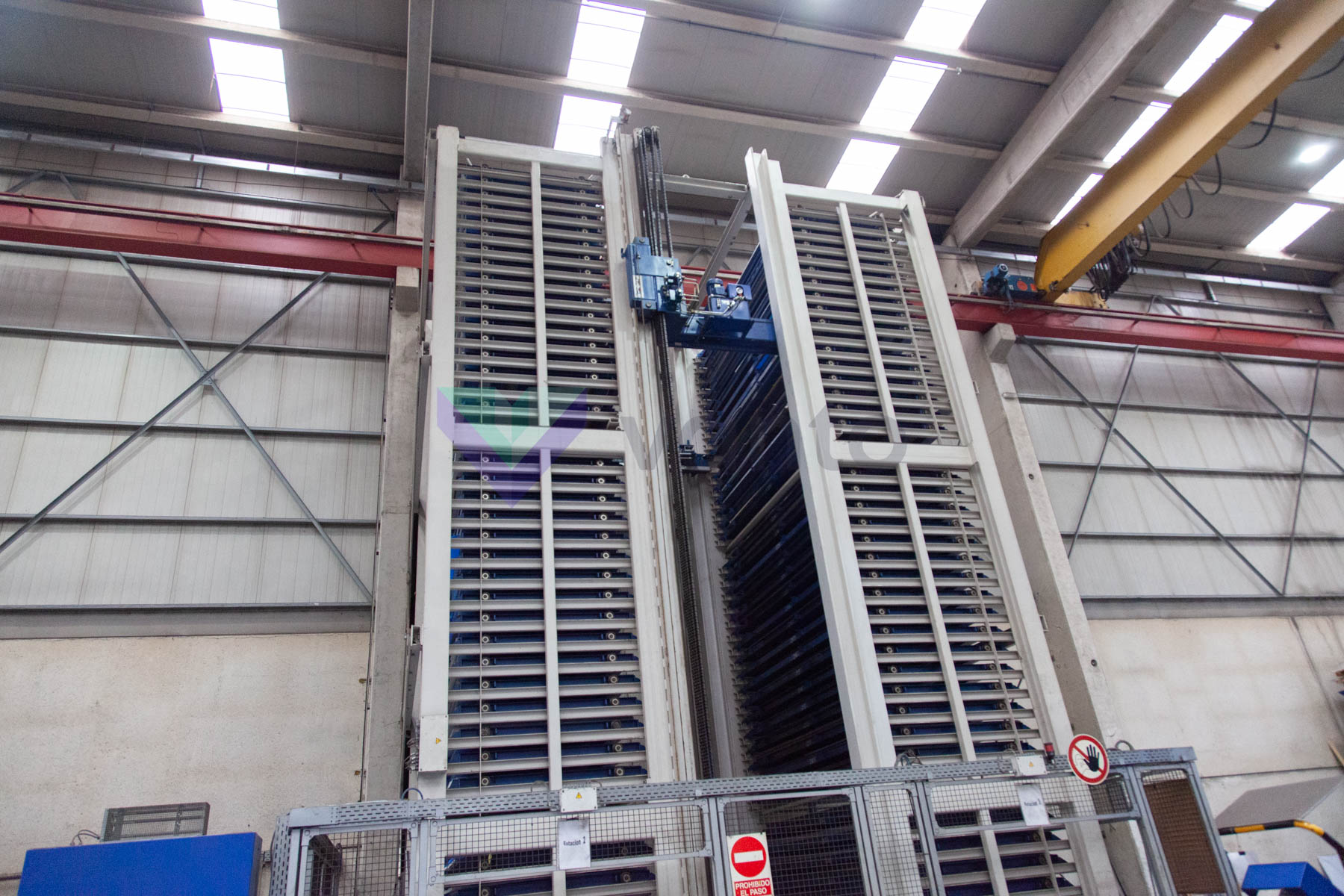

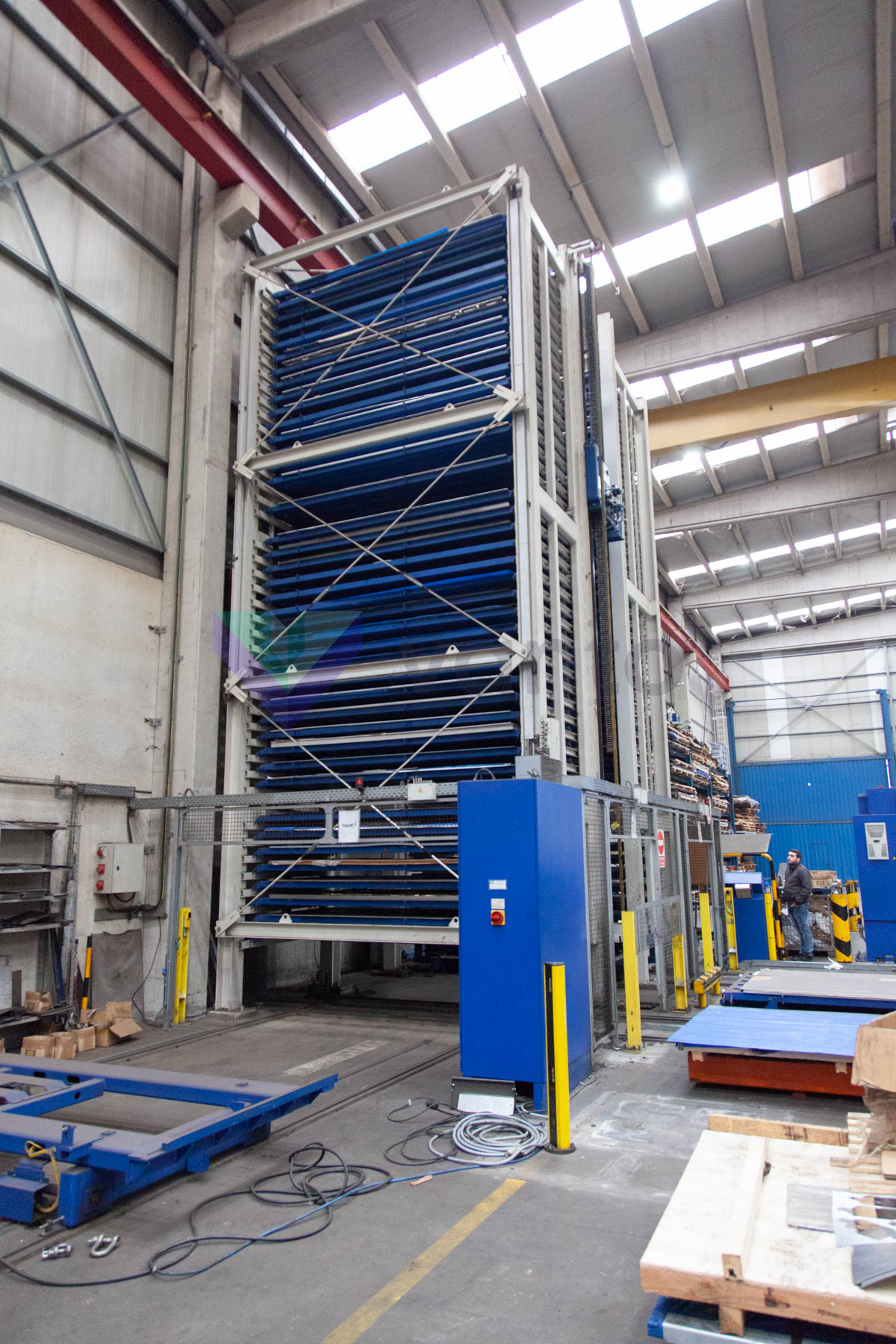

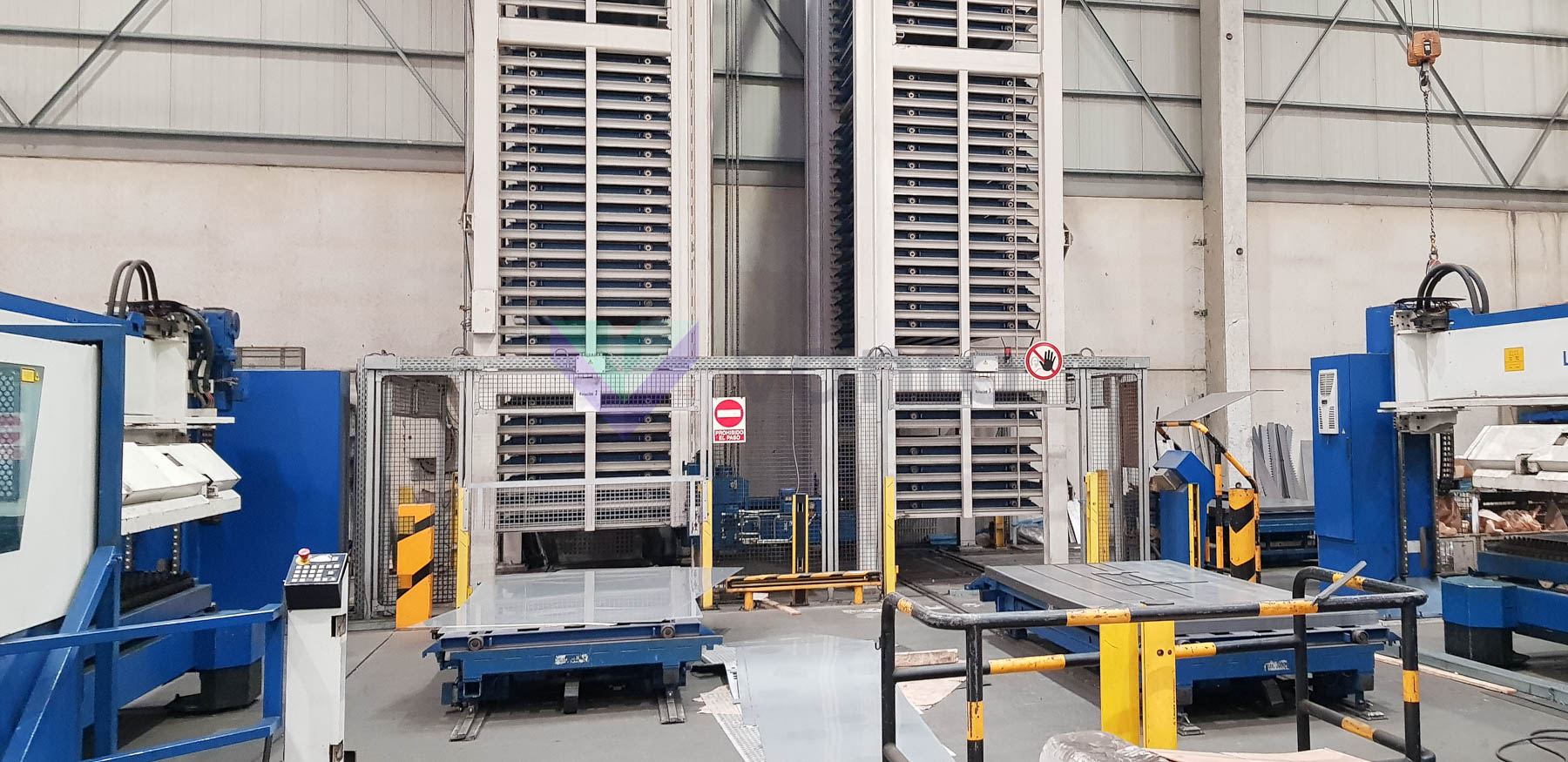

TKL warehouse with machine connection

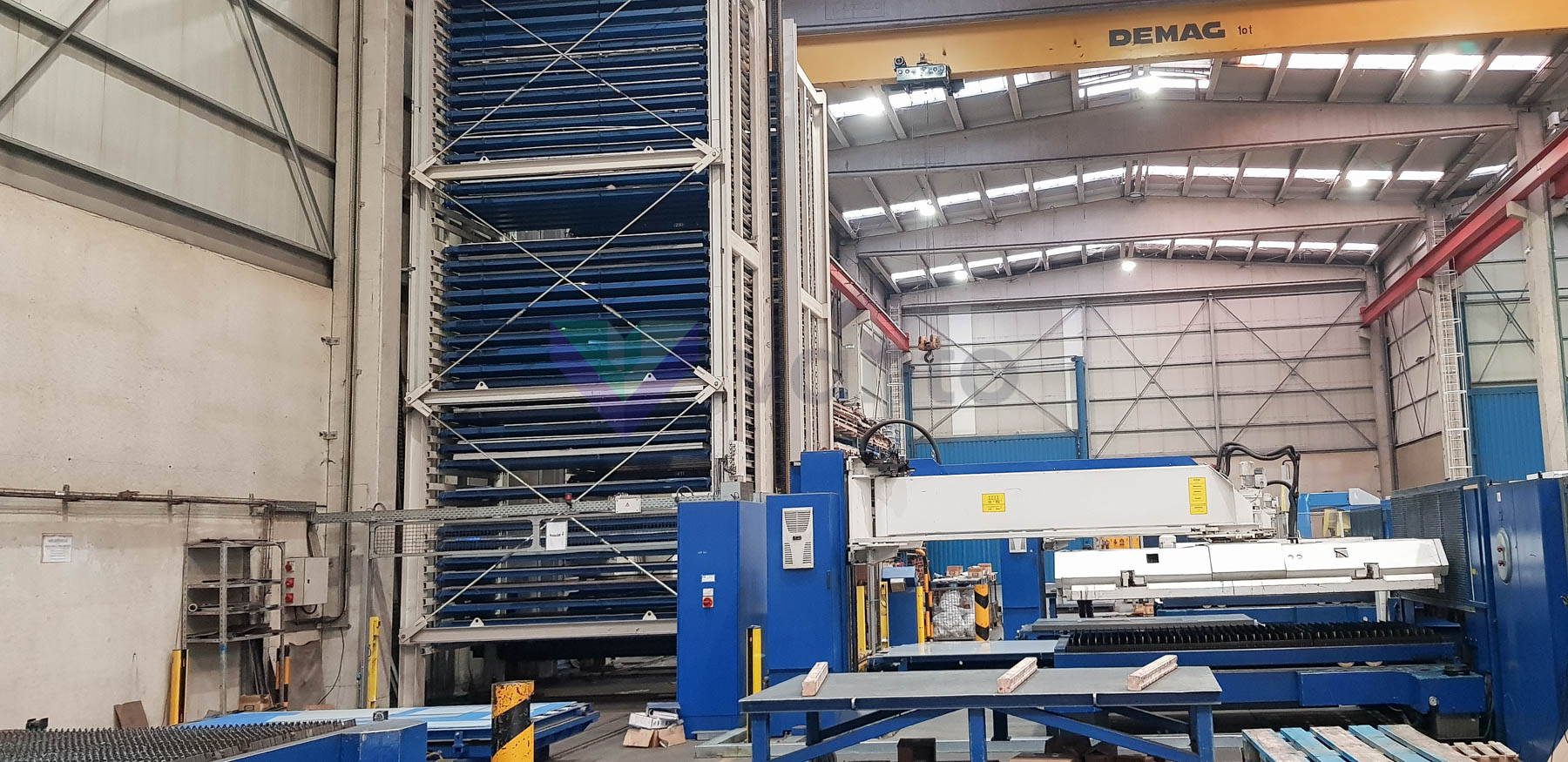

- 4 stations capable to feed 3 machines simultaneously
- Payload per pallet: max. 3,000 kg
- Useful surface of pallet: max. 1,500 x 3,000m.
- Loading height per pallet: max. 90m
- Net quantity of warehouses: 82 units.
- System height: 9,500m.
- System length: approx. 4,800m.
- System width: approx. 6,300m.

- Bookshelf control
- Double block shelving block
- Pallets: 82 Units
- Seasons:

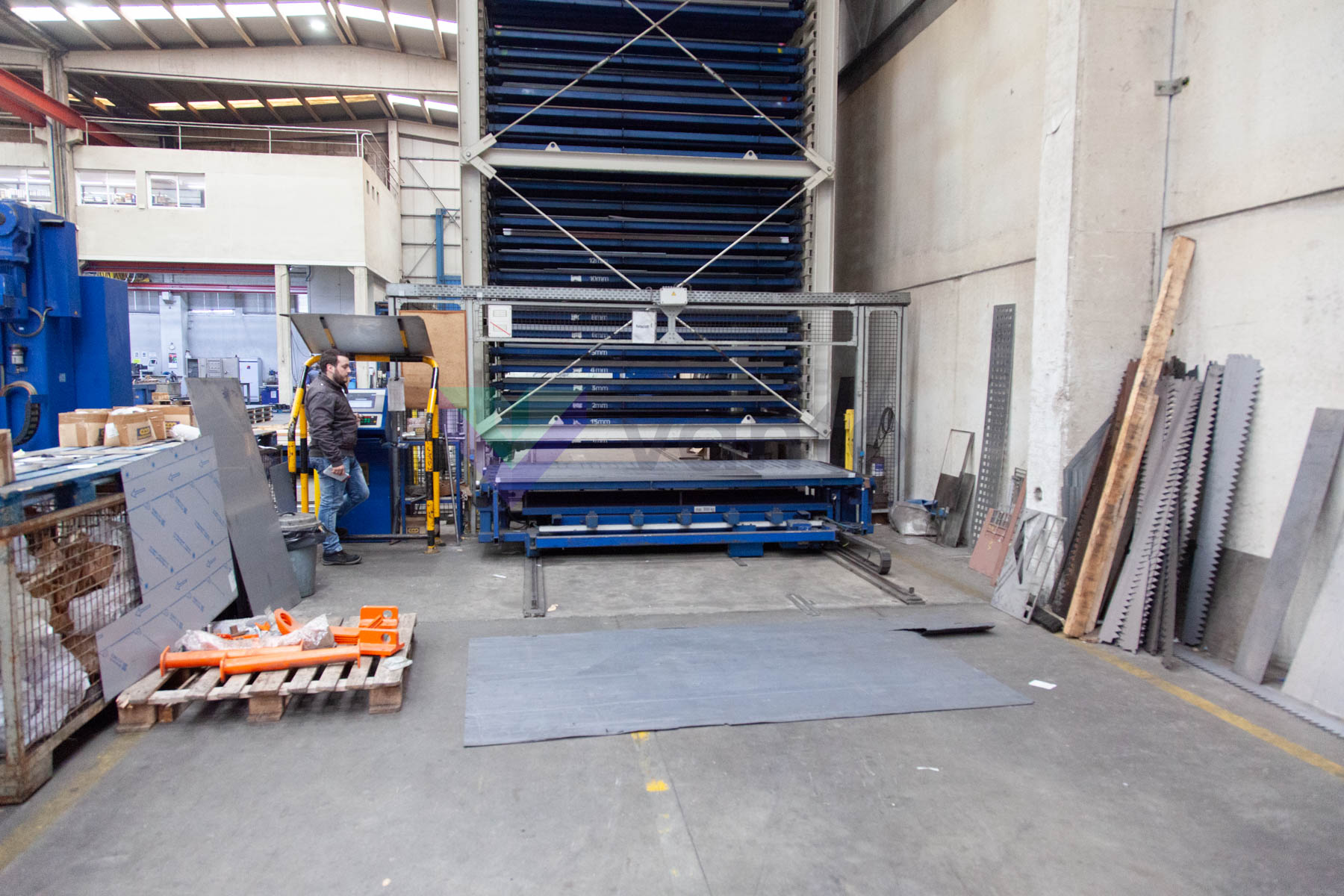

- Station 1 (front merchandise entry and exit) with scissor lift table and 8 m. of guides. Maximum loading height 90 mm

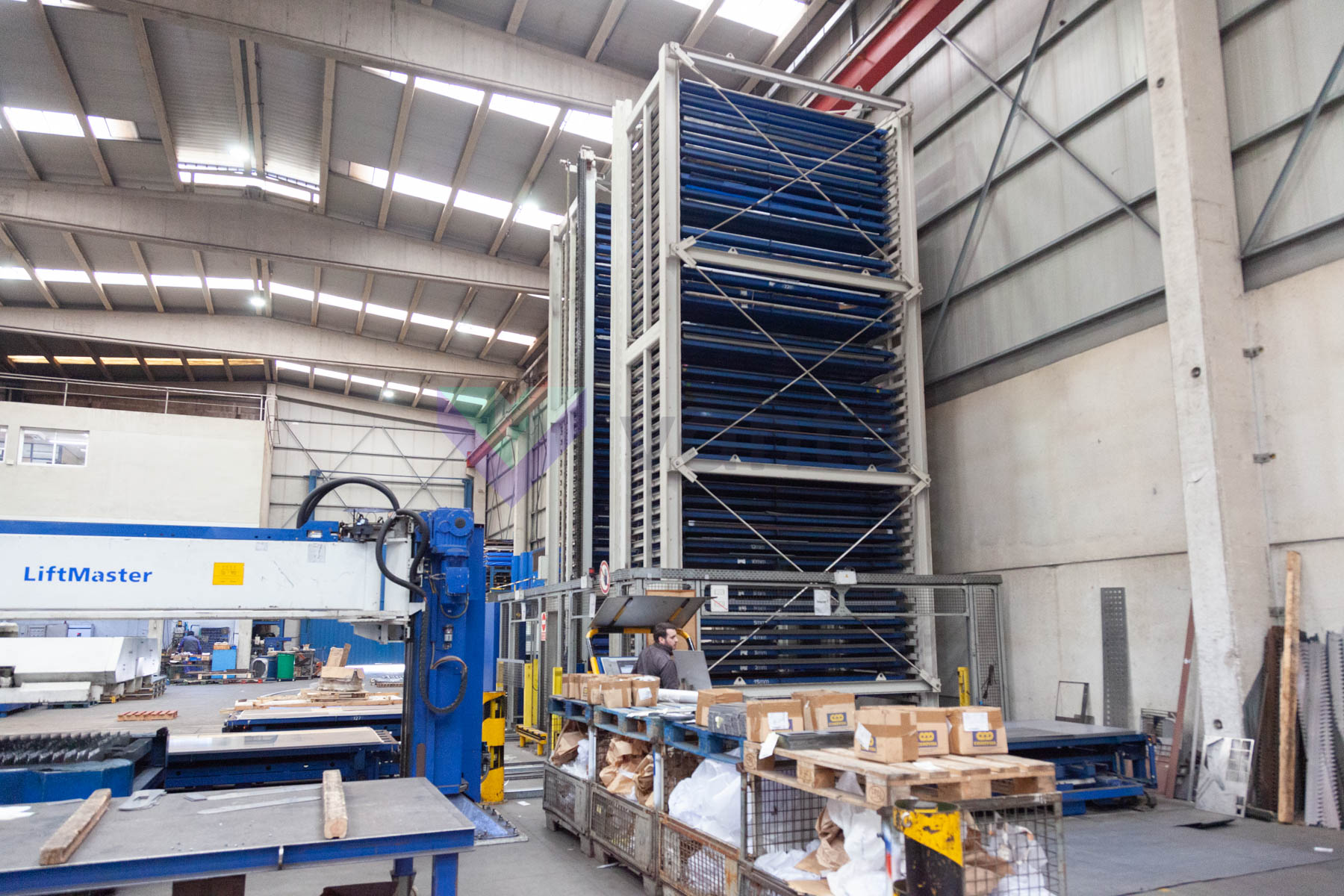

- Loading station (connection to LiftMaster longitudinally) with transport carriage and 7m of guides.
- Security device, with 24 m. of fence, 2 self-monitoring security optical barriers and 1 optical barrier for height monitoring.
- Scale system for weight determination.
- SLOT-SPS control, with industrial PC, 12-inch TFT screen and modem for system control and PC-Anywhere remote control software.
- Command on both sides.
- TC-Cell Server connection point.
- Cell Server software.
