SALVAGNINI

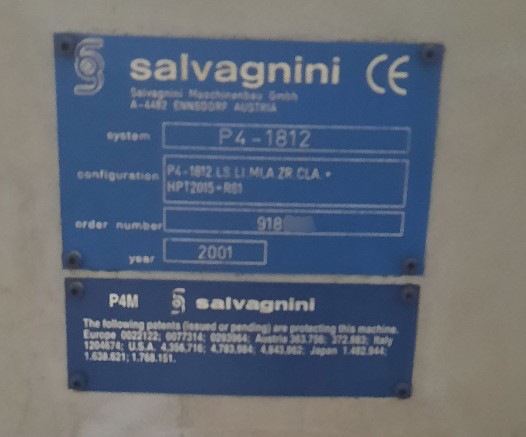

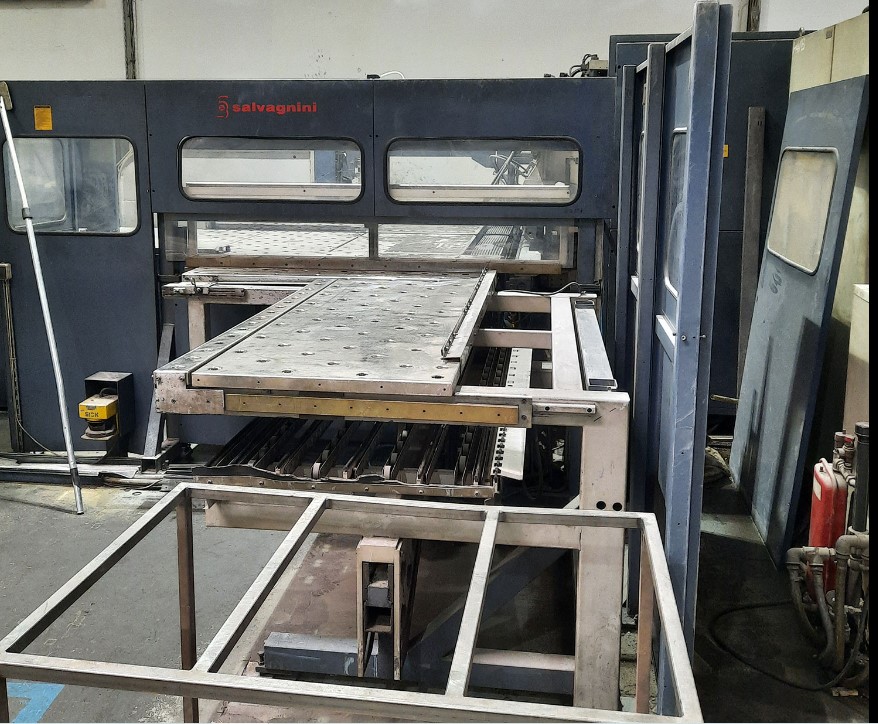

P4.1812 Servo-controlled panel bender LS Upper bending blade LI Lower Bending blade MLA.ZR Manual length Adjustment of Blankholder CLA Long Tab Bendging Unit HP12015 R81 Chiller Max. length at entrance: 1850mm. Max. width at entrance: 1500mm. Minimum length at entrance: 285mm. Minimum width at entrance: 190mm. Maximum diagonal: 2150mm. Maximum width at exit: 1500mm. Maximum reference dimension: 2000mm. Minimum sheet thickness: S min: 0,50mm. Maximum sheet thickness, Mild Steel (max. 410 N/mm2): Max: 2,00mm Maximum sheet thickness, Stainless steel (max. 600 N/mm2): Max. = 1.25mm Processing of pre-painted material Smax= 3,00mm. Maximum tool length for CLA option: 1000mm.
