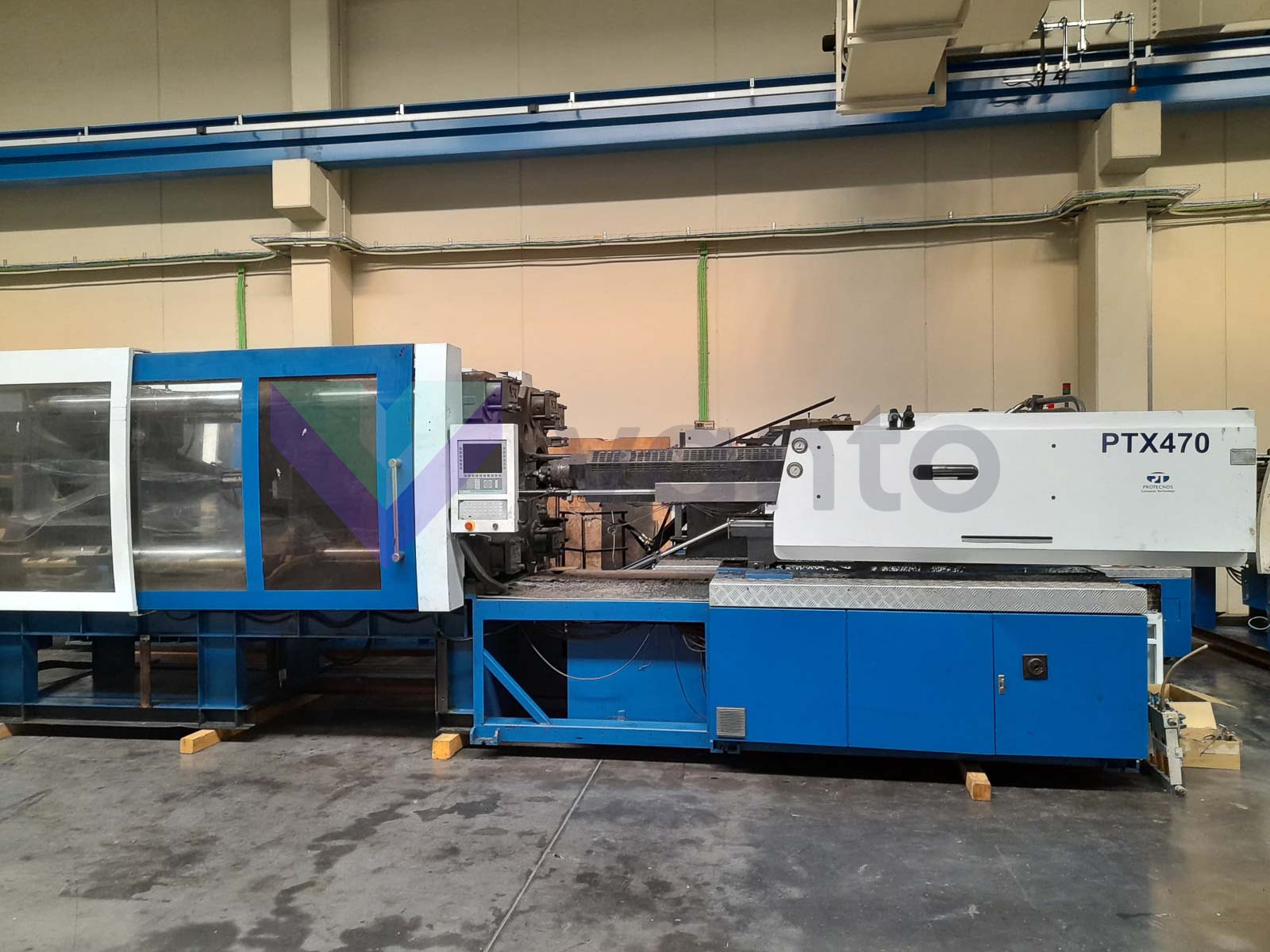

PROTECNOS

PTX470

500t injection molding machine

Category	500 to 749t Injection moulding machines
Condition	Used
Year	2015
Availability	Sold
ID	10763

Clamping force

0kN

Air Valves	2
Clamping force	5.000 kN
Core pulls	2
Dimensions (long x wide x high)	7.920 x 1.970 x 2.690 mm
Distance between tie-bars (h x v)	820 x 800 mm
Ejector stroke / force max.	200 / 120 mm / kN
Injection volume	1.959 cm³
Mould height max	830 mm
Mould height min	300 mm
Mould opening stroke max	780 mm
Oil tank capacity	660 l
Platen size (h x v)	1.180 x 1.210 mm
Screw diameter	80 mm
Screw L/D ratio	20
Shot weight max	1.763 g
Weight	19.000 kg
