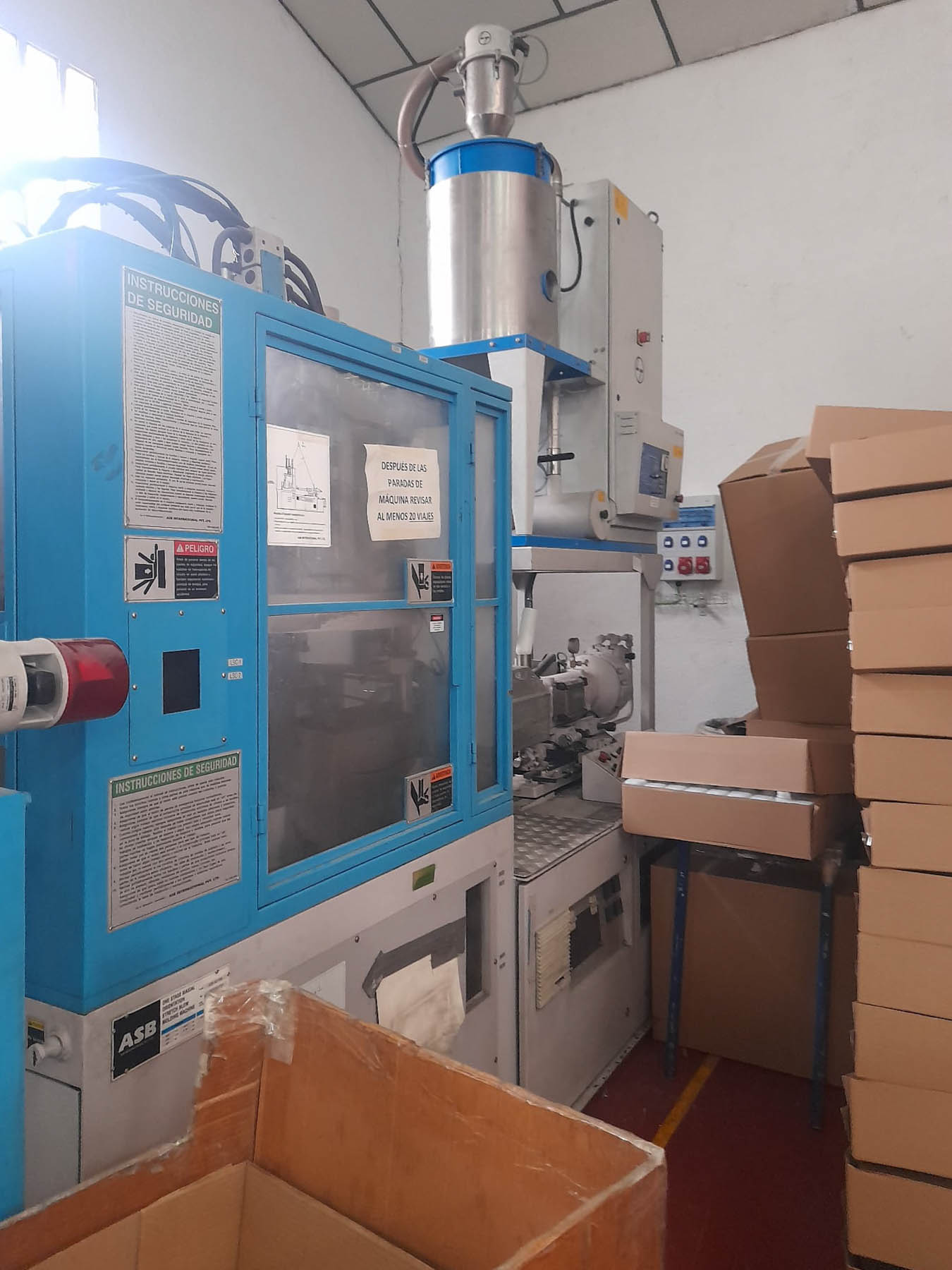

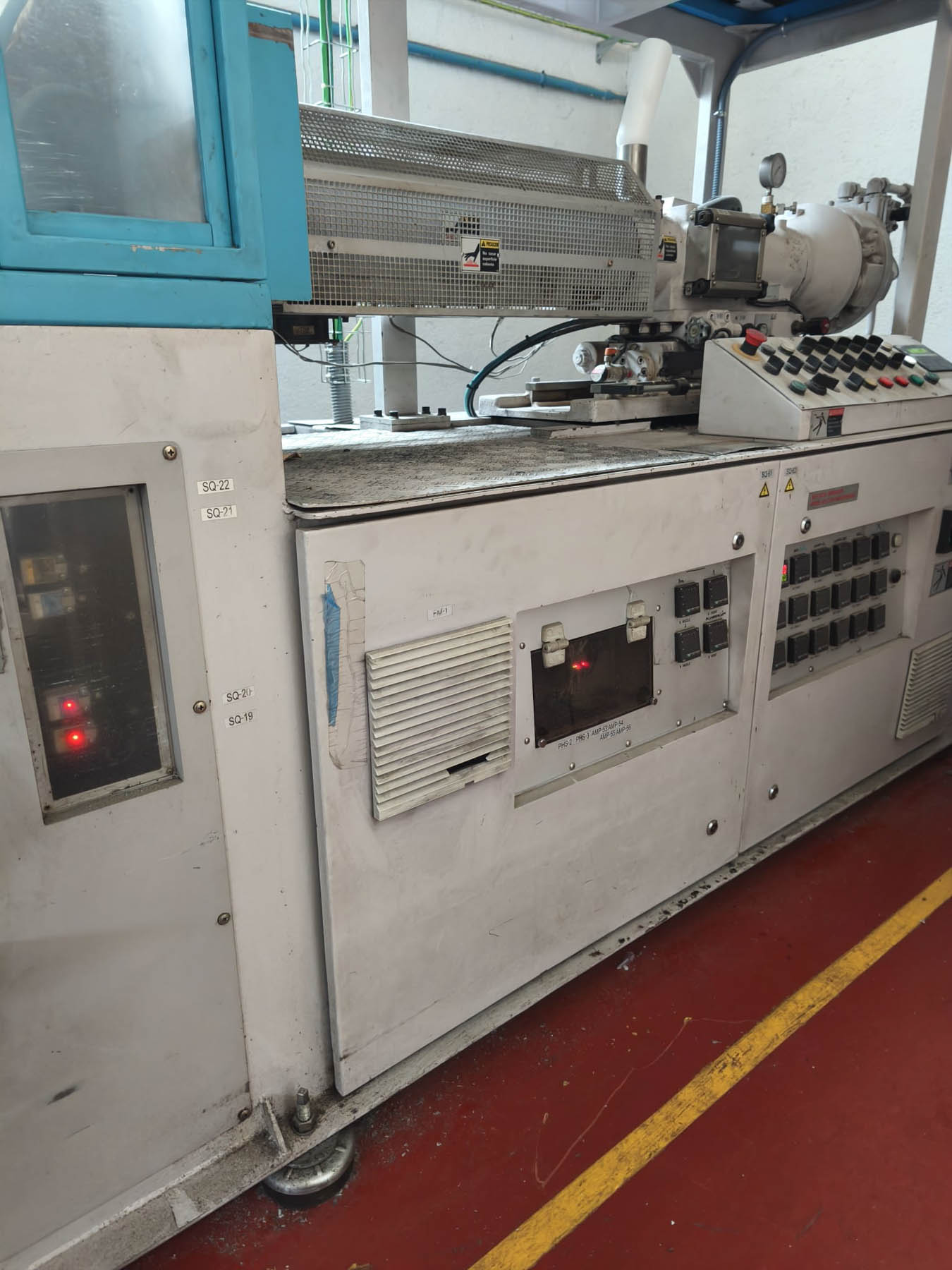

NISSEI ASB

ASB-50 MB

PET Injection stretch blow molding machine

Category	PET Injection Blow Moulding
Condition	Used
Year	2009
Availability	Available
ID	11205

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Blow Clamping Force	78 kN
Body Diameter max.	115 - 35 mm
Capacity max.	2,5 - 0,03 l
Cavity Number	1-6
Dimensions (long x wide x high)	3.768 x 1.170 x 2.910 mm
Height max.	300 - 150 mm
Injection Clamping force	60 kN
Injection volume	153*2 cm³
Neck Diameter max.	60 - 15 mm
Oil tank capacity	250 l
Operating hours
Screw diameter	44 mm
Support Ring Diameter max.	63 - 17 mm
Thread Diameter max.	63 - 17 mm
Weight	3.000 kg
Weight max.	129 - 22 g
Width Parting Line max.	145 - 35 mm

NISSEI ASB ASB-50 MB Official Catalogue	View PDF
