KRAUSS MAFFEI

KM 200-1000 C2/200

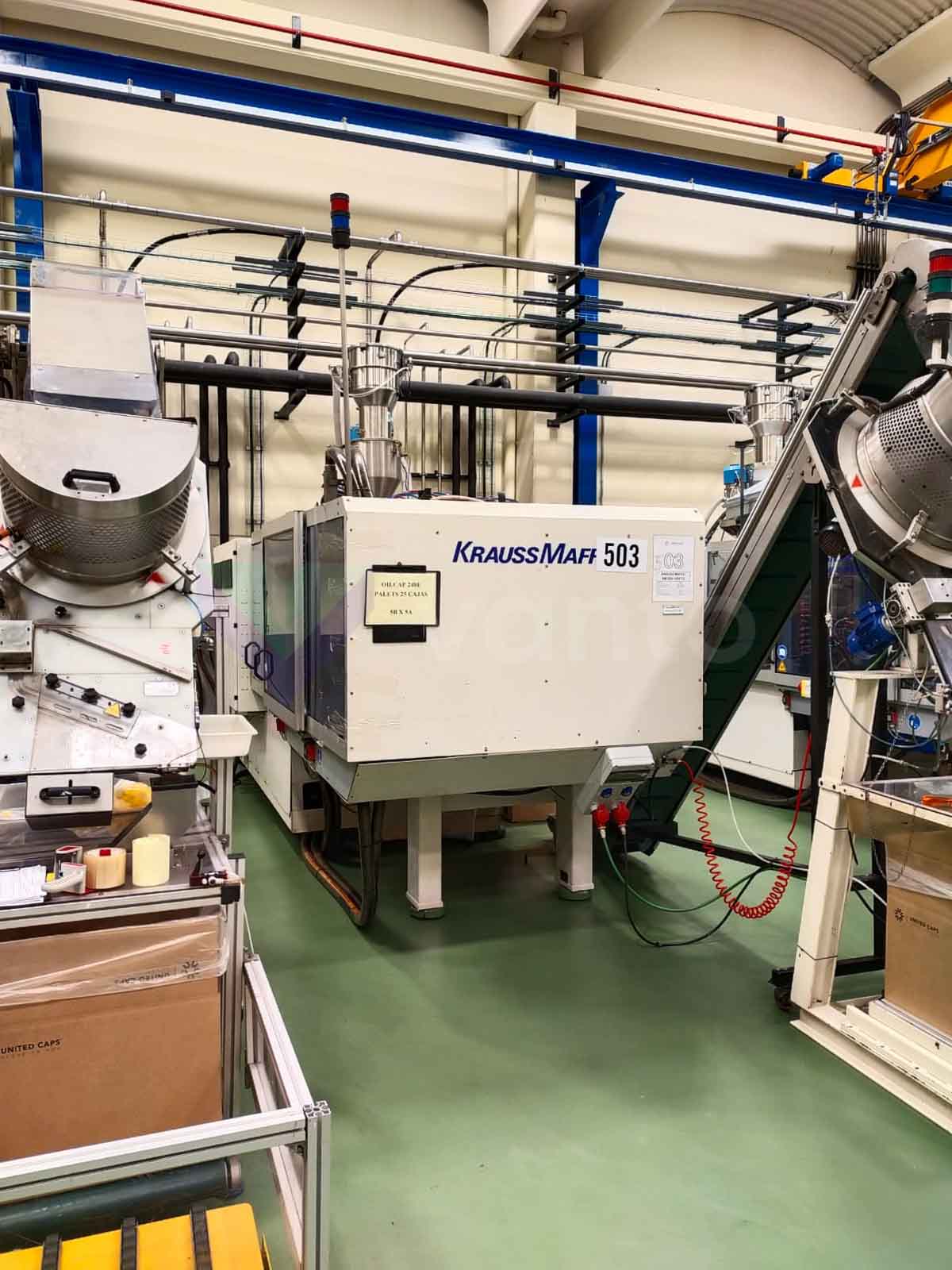

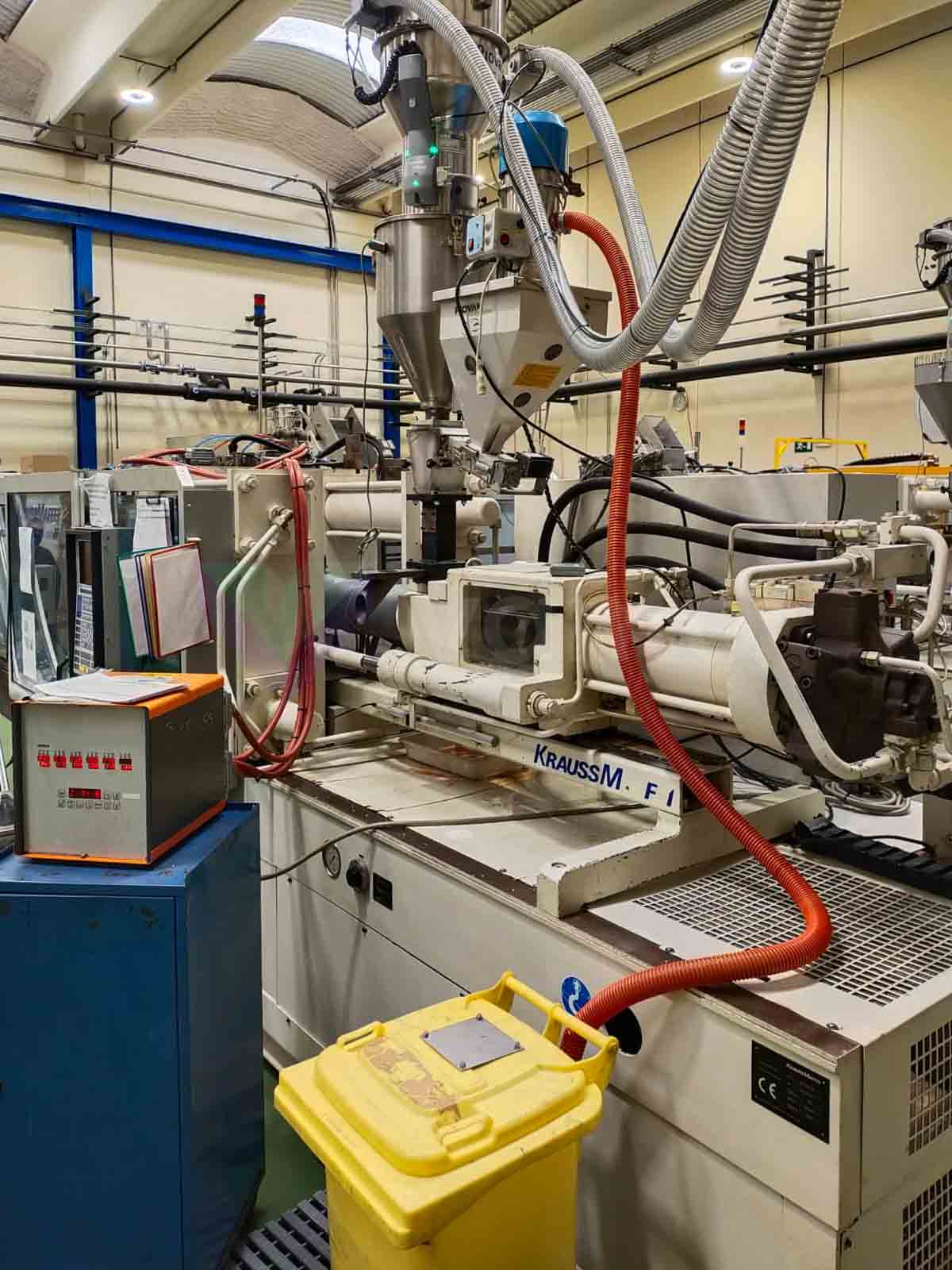

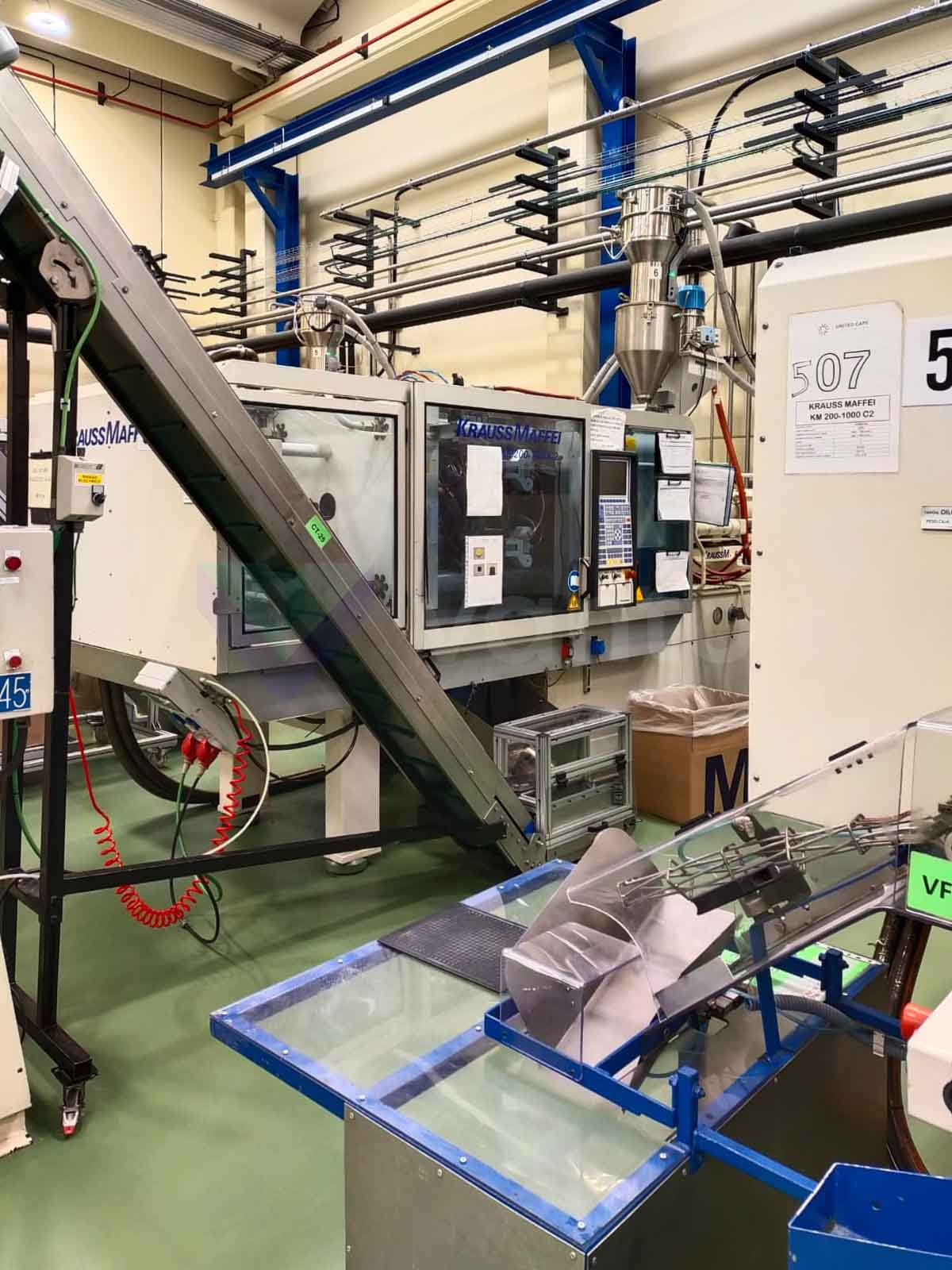

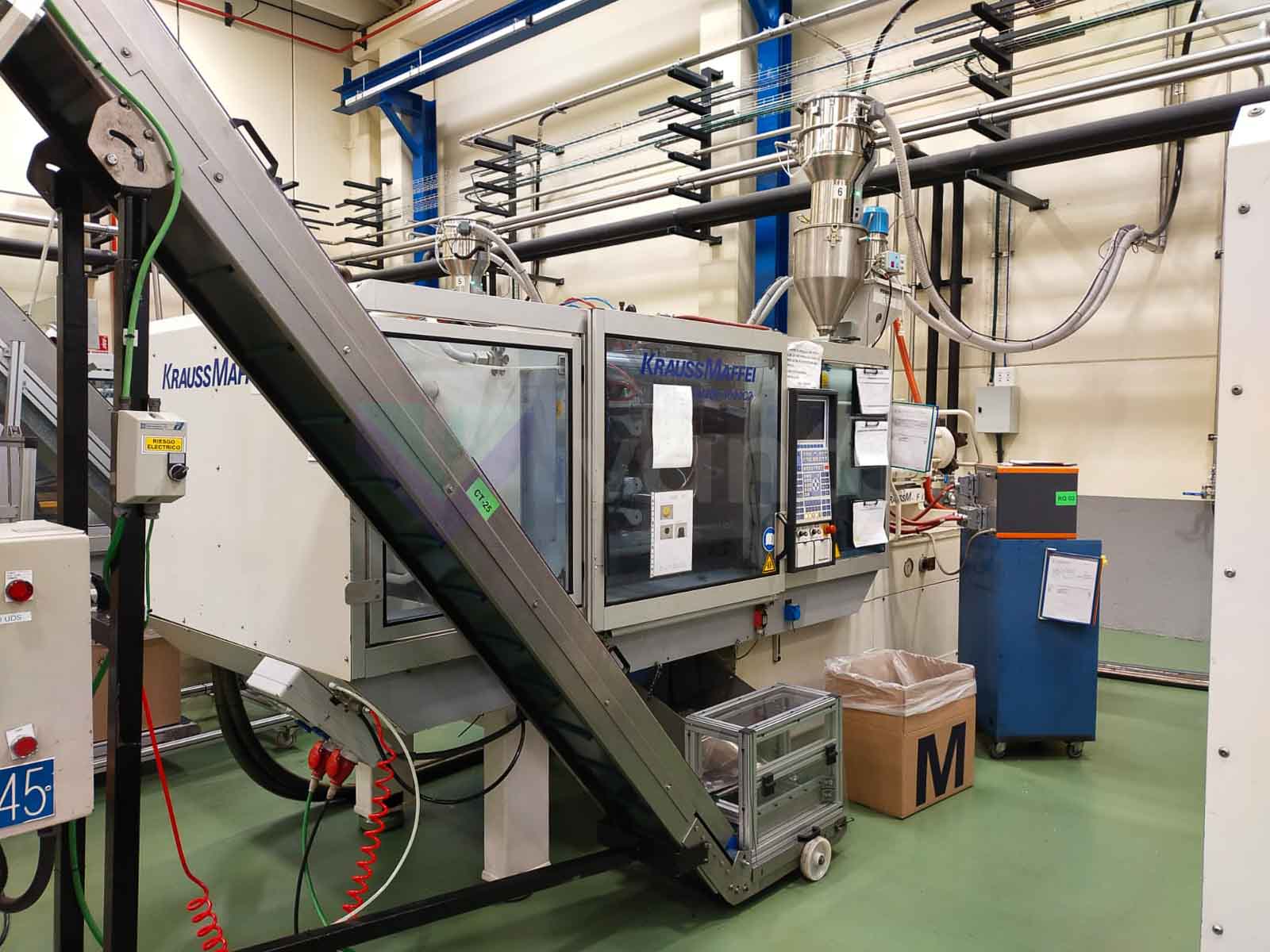

200t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2005
Availability	Sold
ID	10547

Clamping force	2.000 kN
Control	MC 4
Daylight between platens max	1.050 mm
Dimensions (long x wide x high)	5.320 x 1.900 x 2.2400 mm
Distance between tie-bars (h x v)	630 x 630 mm
Ejector force	110 kN
Injection pressure	1.904 bar
Injection rate	285 cm³/s
Injection volume	523 cm³
Mold opening force	101 kN
Mould height max	700 mm
Mould height min	350 mm
Mould opening stroke max	700 mm
Oil tank capacity	525 l
Platen size (h x v)	985 x 985 mm
Power: installed max	37 + 19 kW
Screw speed	278/398 rpm
Shot weight max	476 g
Weight	9.500 kg
