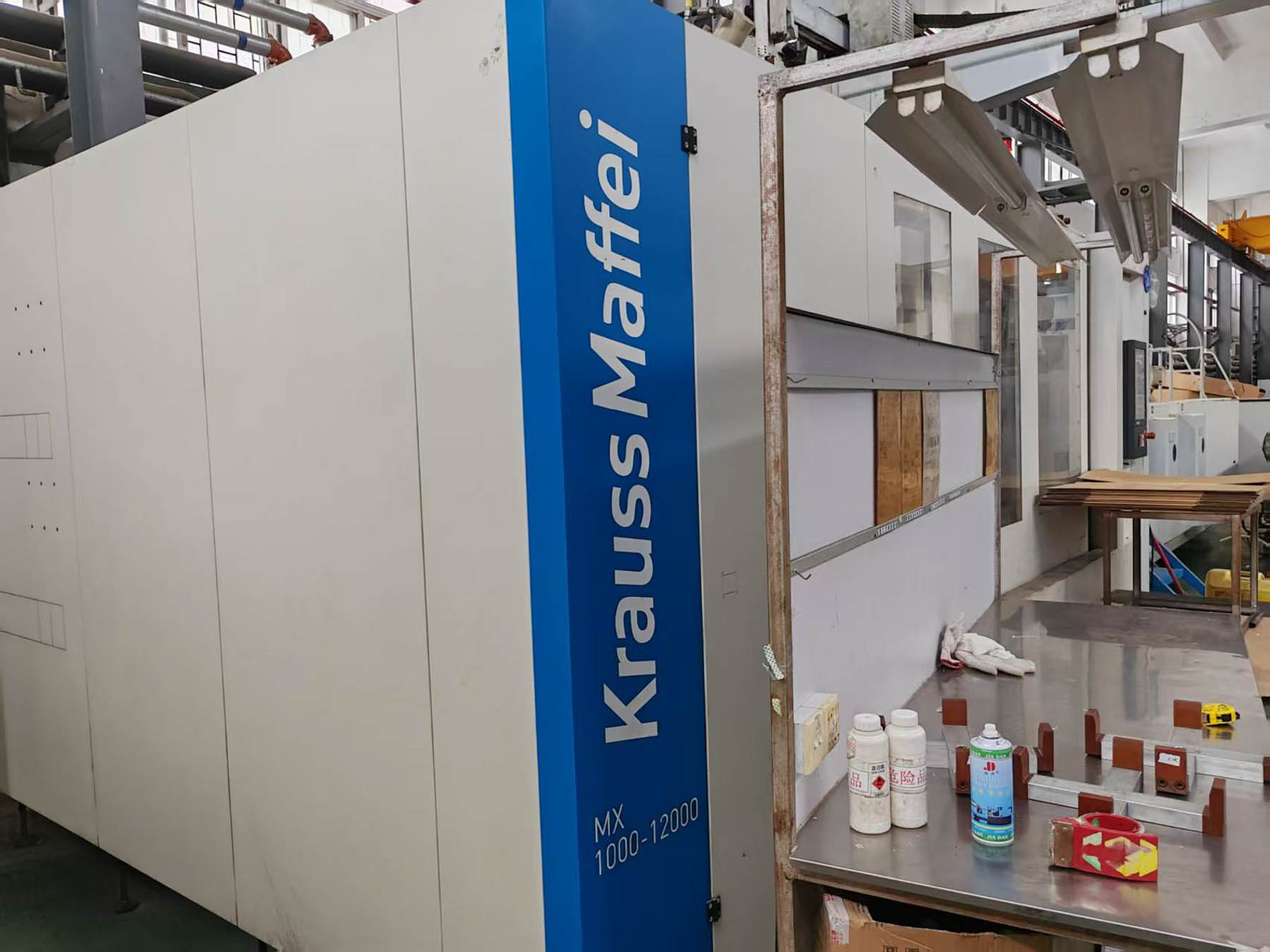

KRAUSS MAFFEI

KM 1300-12000 MX

Injection molding machine 1300t

Category 1000t or more Injection moulding machines
Condition Used
Year 2010
Availability Sold
ID 10364
Sold

Screw diameter0 mm
Air Valvesyes
Cascades / Sequential valve gatesyes
Clamping force13.000 kN
Control0
Core pullsyes
Daylight between platens max3.050 mm
Dimensions (long x wide x high)13.030 x 3.650 x 2.820 mm
Distance between tie-bars (h x v)1.570 x 1.270 mm
Ejector stroke / force max.350 / 250 mm / kN
Heating zonesyes
Injection pressure1.389 bar
Injection rate1.414 cm³/s
Injection volume8.588 cm³
Mold opening force910 kN
Mould height max1.400 mm
Mould height min700 mm
Mould opening stroke max2.350 mm
Nozzle stroke / force max.0 mm / kN
Nozzle stroke max0 mm
Oil tank capacity2.440 l
Operating hours-0
Platen size (h x v)2.210 x 1.910 mm
Power: installed max132 kW
Screw L/D ratio23
Screw speed103 / 145 rpm
Shot weight max7.815 g
Weight29.900 kg
