FINN POWER

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

C5

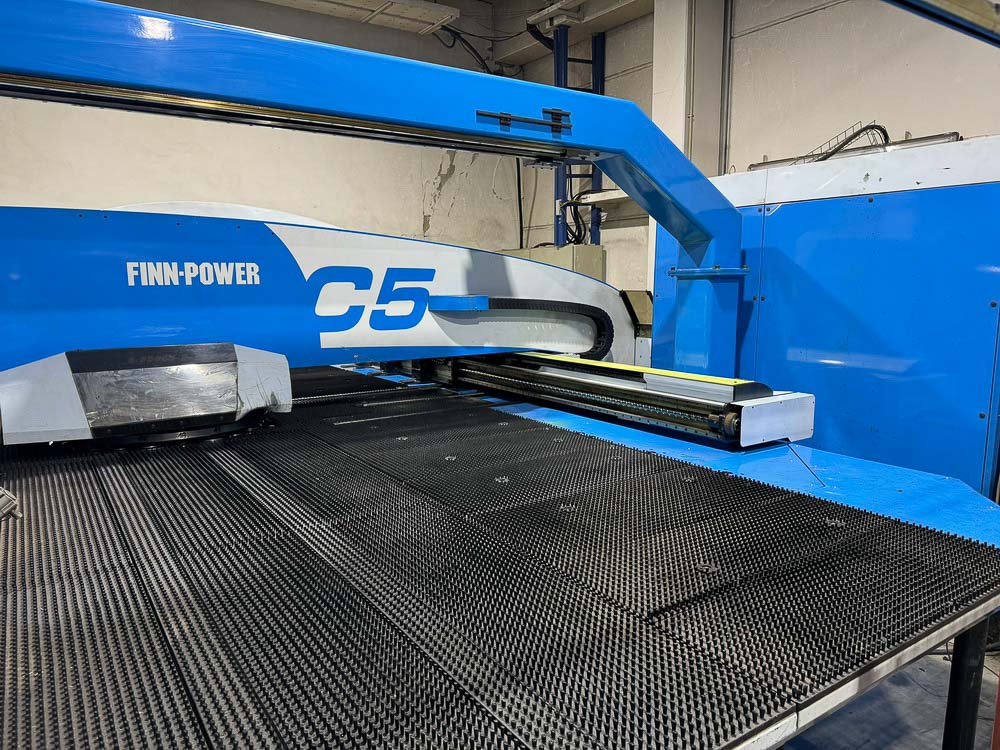

CNC punching machine

Category	Punching machines
Condition	Used
Year	2008
Availability	Sold
ID	4054

Control type	SIEMENS 850D
Axis speed [X axis] max	90 m/min
Axis speed [Y axis] max	60 m/min
Compressed air pressure min	6 bar
Dimensions (long x wide x high)	7.500 x 7.900 x 2.200 mm
Max. workpiece weight	200 kg
Number of turret stations (pcs)	20 / 200
Oil tank capacity	200 l
Power supply	35 kVA
Punch diameter max	89 mm
Punching force	300 kN
Tool rotation, max	166 r/min
Weight	10.500 kg
Working area max	2.530 x 1.270 mm

No videos available

FINN POWER C5 Official Catalogue	View PDF
