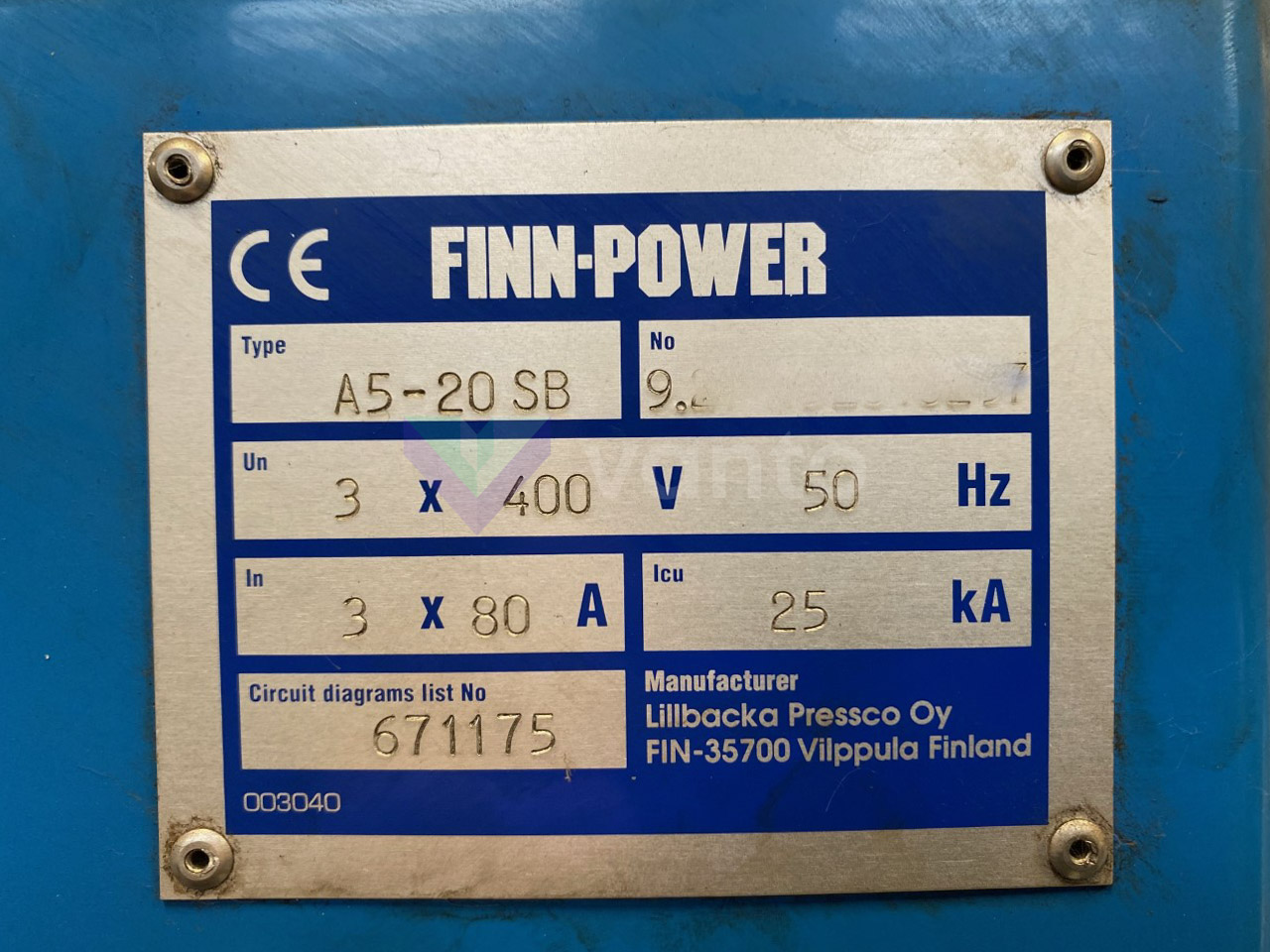

FINN POWER

A5 20

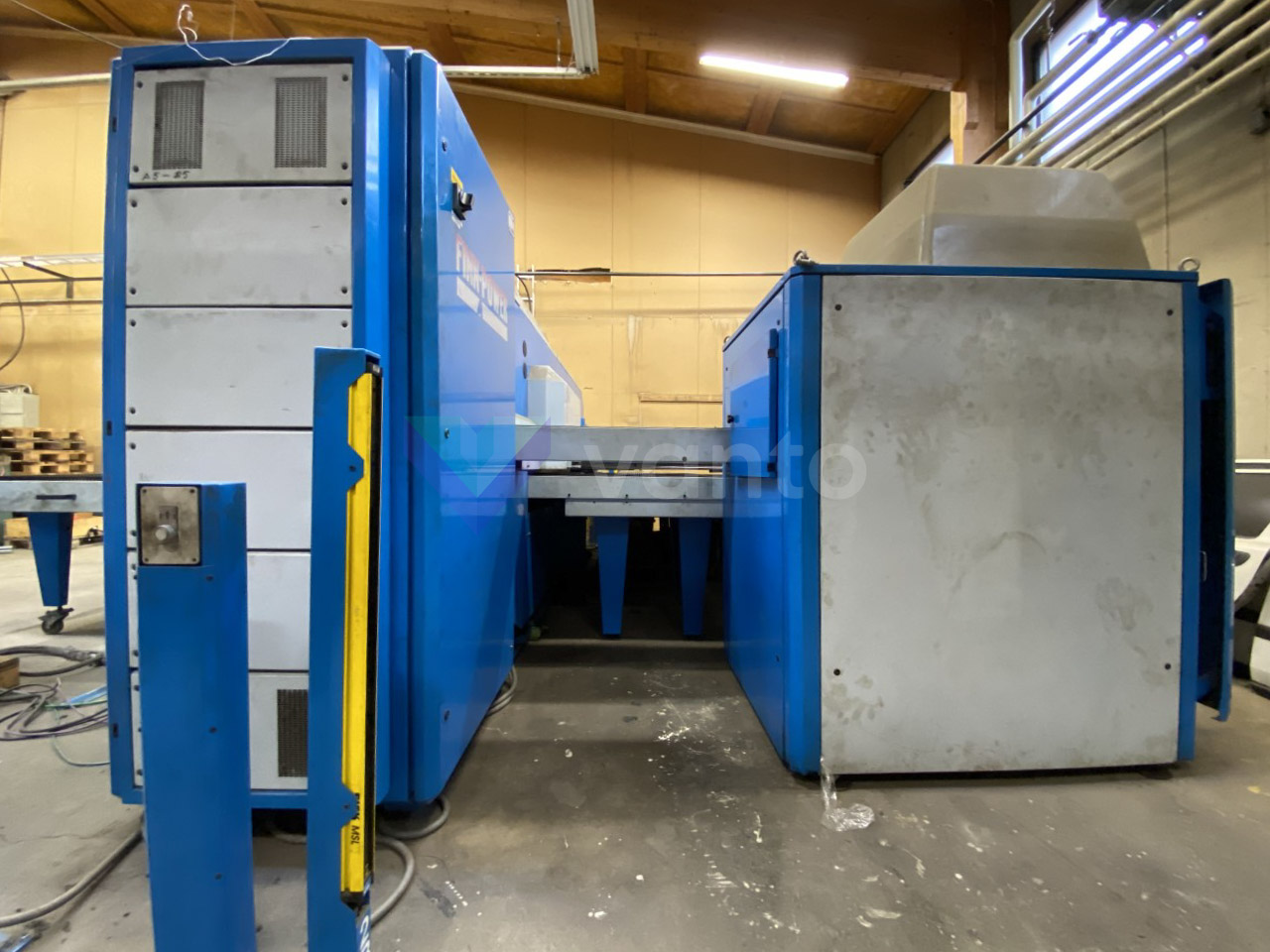

CNC punching machine

Category	Punching machines
Condition	Used
Year	1997
Availability	Sold
ID	10463

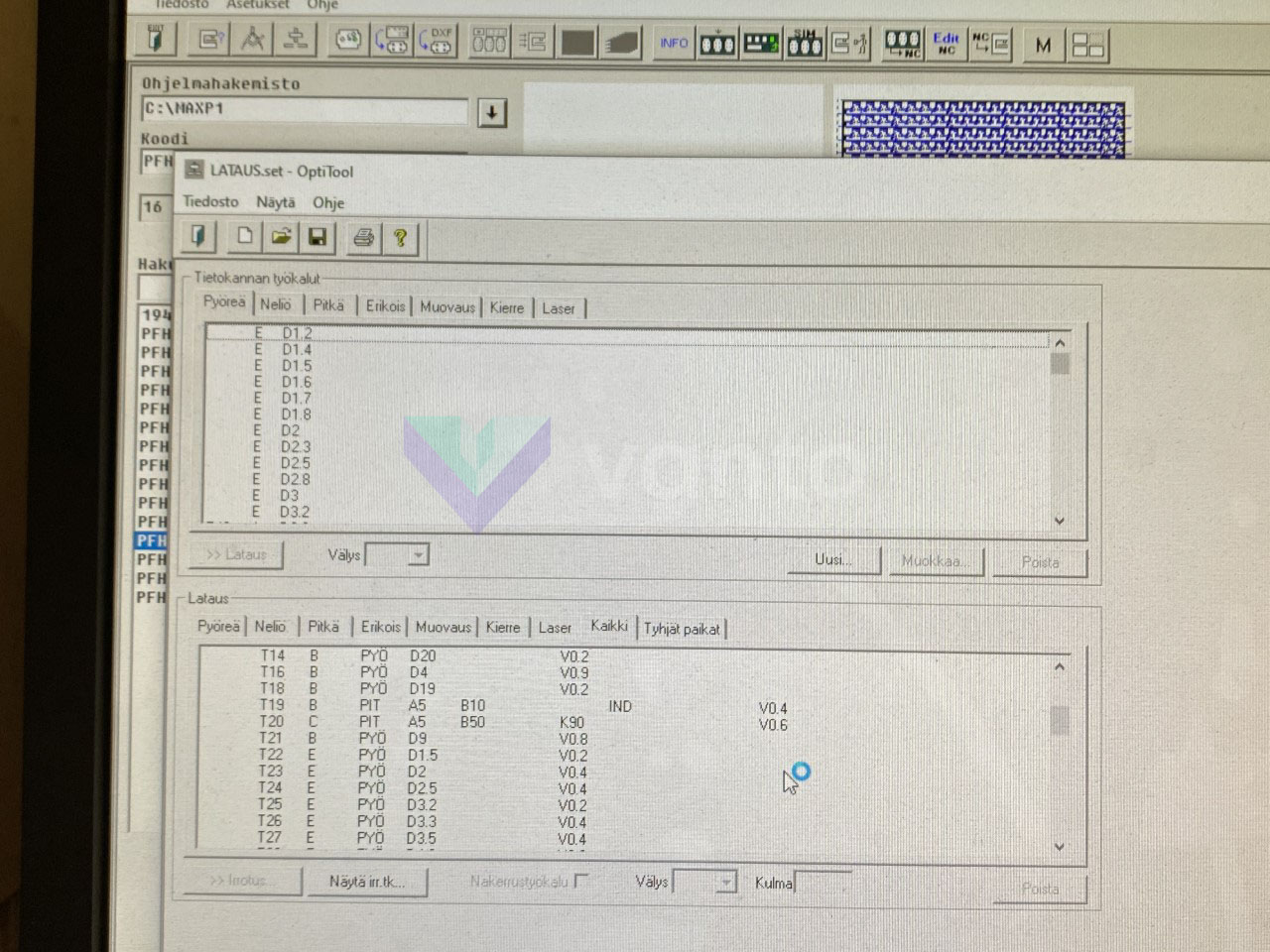

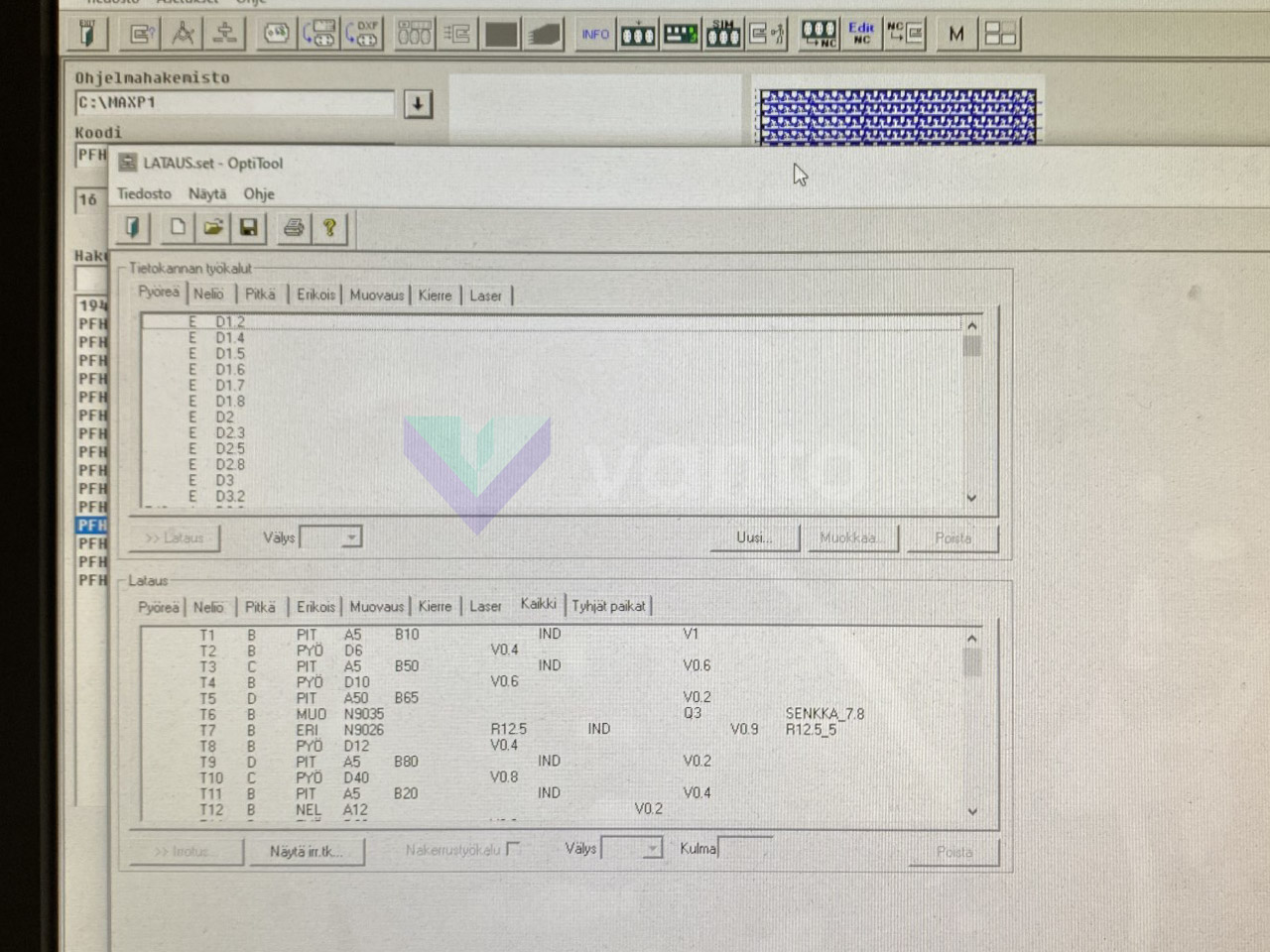

including CN Express software

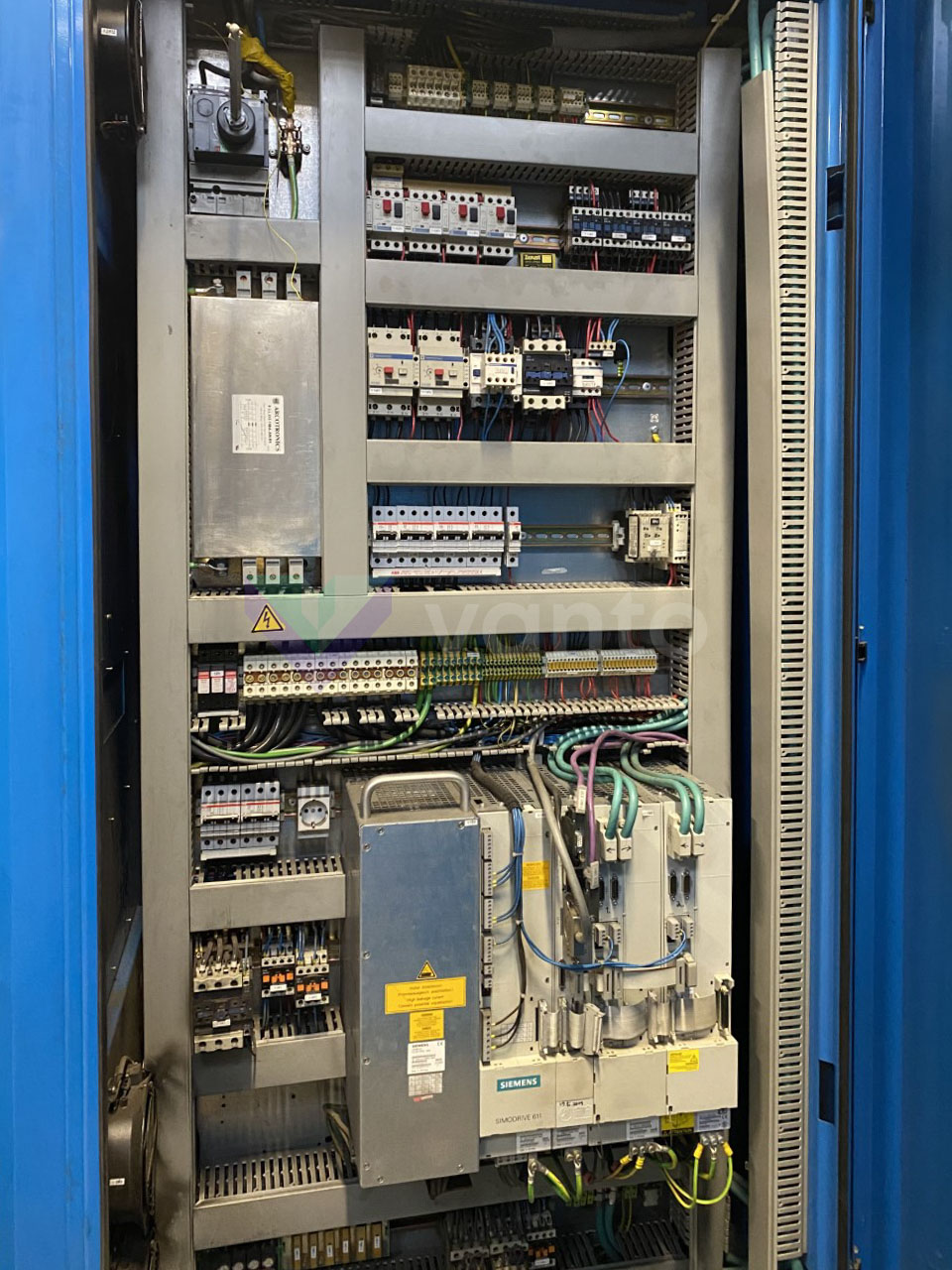

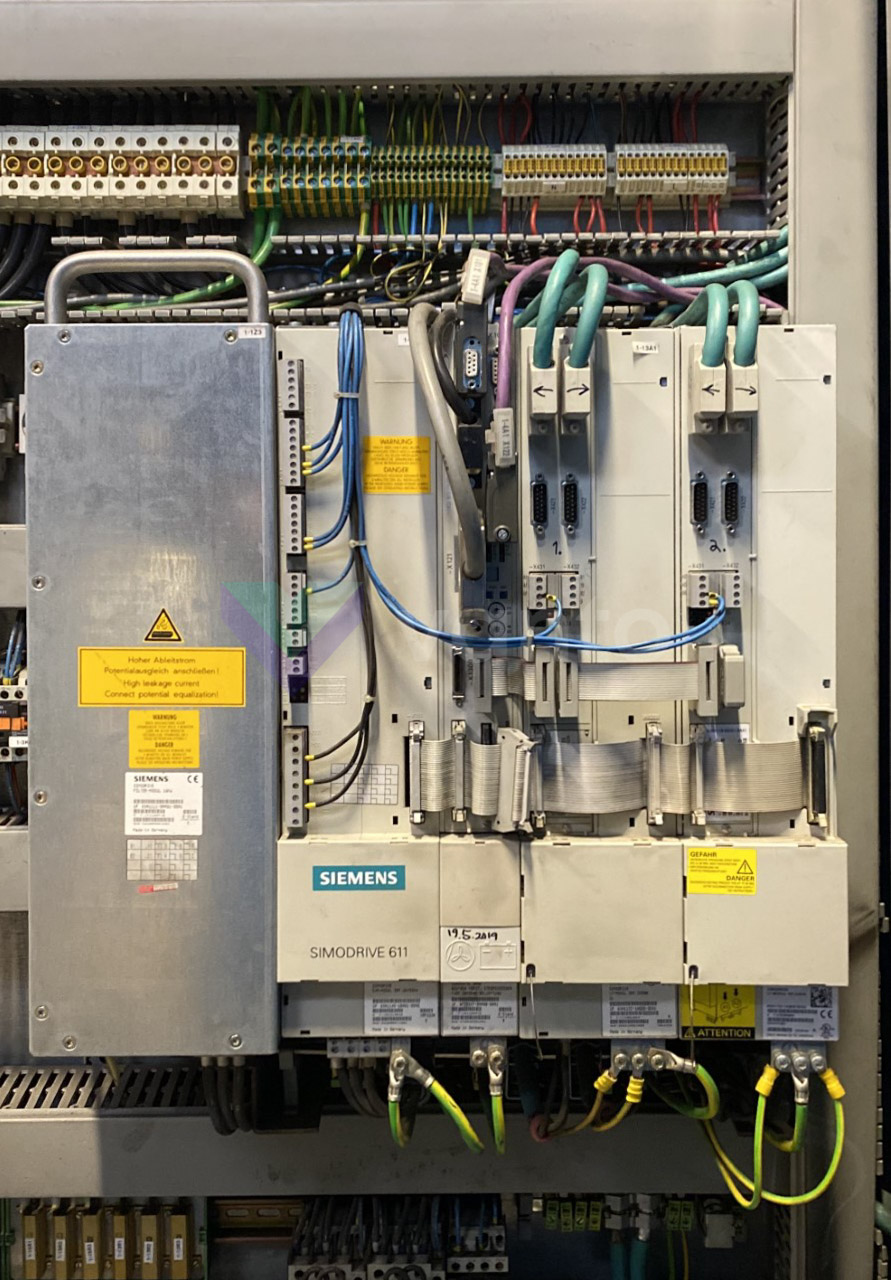

Control type	Sinumerik 840D
Axis speed [X axis] max	88 m/min
Axis speed [Y axis] max	60 m/min
Compressed air consumption max	5 l/s
Compressed air pressure min	6 bar
Dimensions (long x wide x high)	5.400 x 5.600 x 2.500 mm
Material thickness max	8 mm
Max. workpiece weight	200 kg

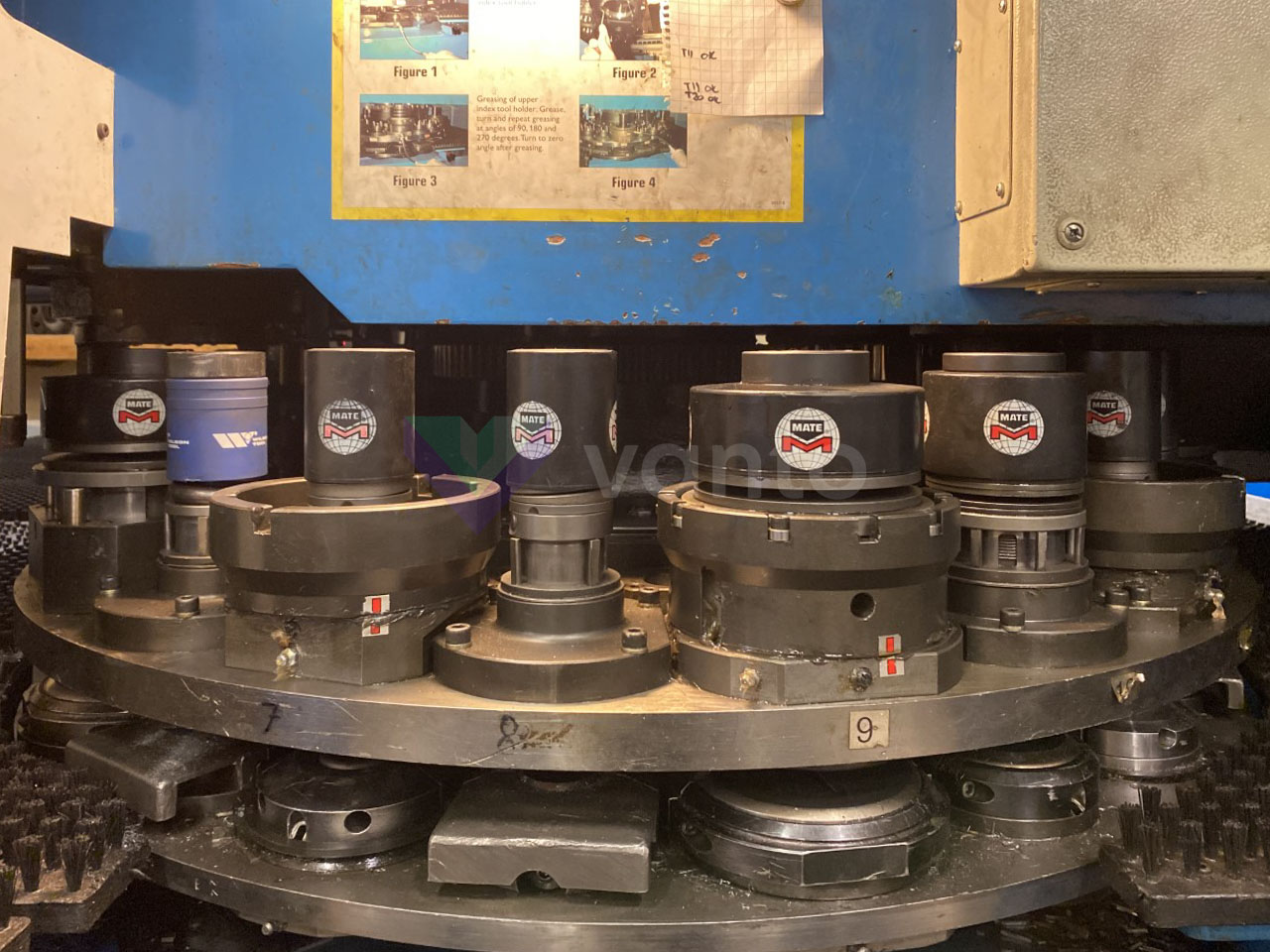

Number of turret stations (pcs)	20
Oil tank capacity	330 l

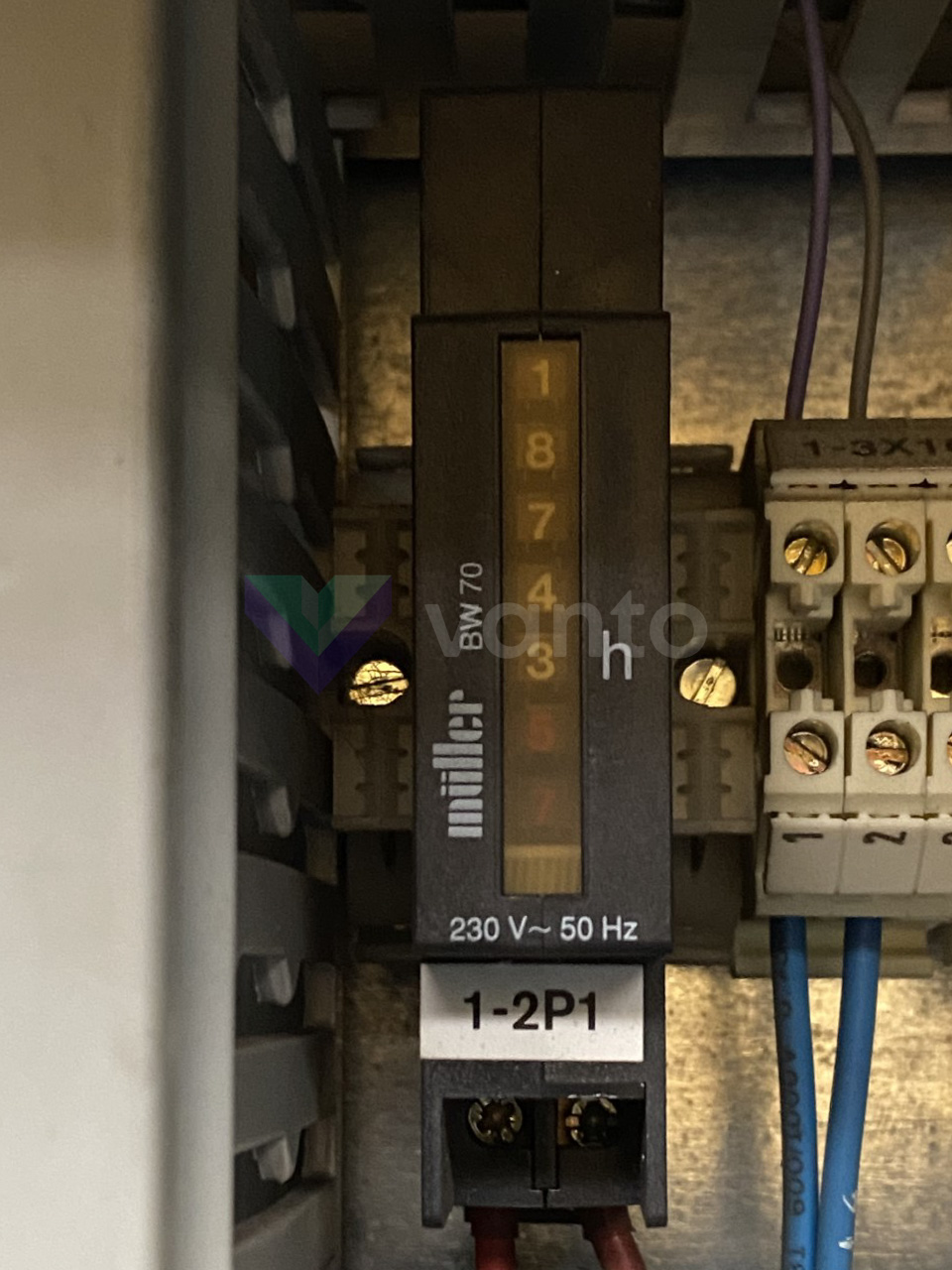

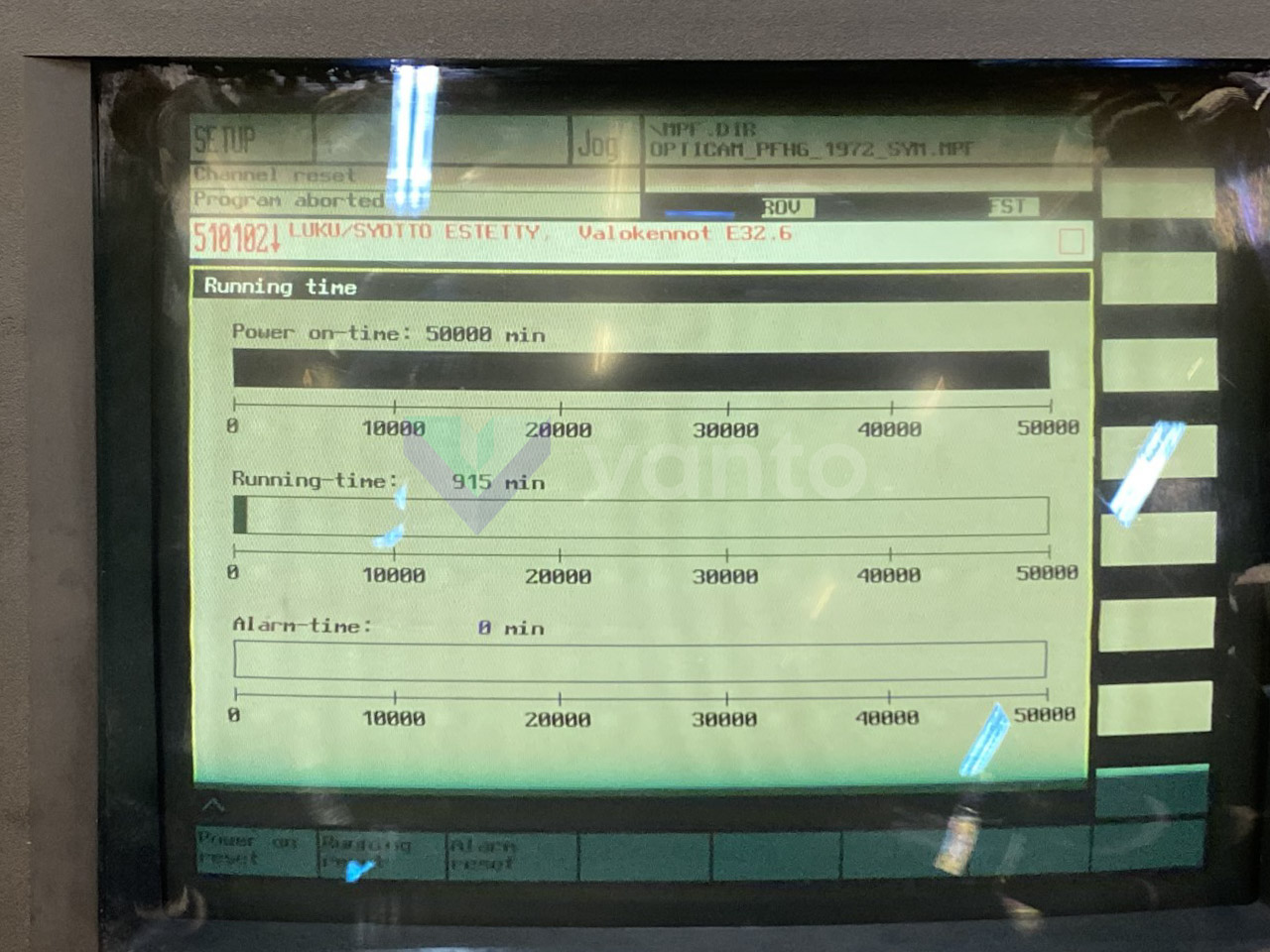

Operating hours	18.743
Power: installed max	30 kW
Punch diameter max	89 mm
Punching force	2.300 kN
Turret rotation	30 r/min
Weight	12.000 kg
Working area max	2.530 x 1.270 mm

No videos available

FINN POWER A5 20 SB Technical Specification Sheet	View PDF
