ENGEL

VICTORY VC 80 / 50 TECH PRO

50t injection molding machine

Category	10 to 99t Injection moulding machines
Condition	Used
Year	2009
Availability	Sold
ID	10571

Clamping force

0kN

including Robot and hopper dryer +loader

Clamping force	500 kN

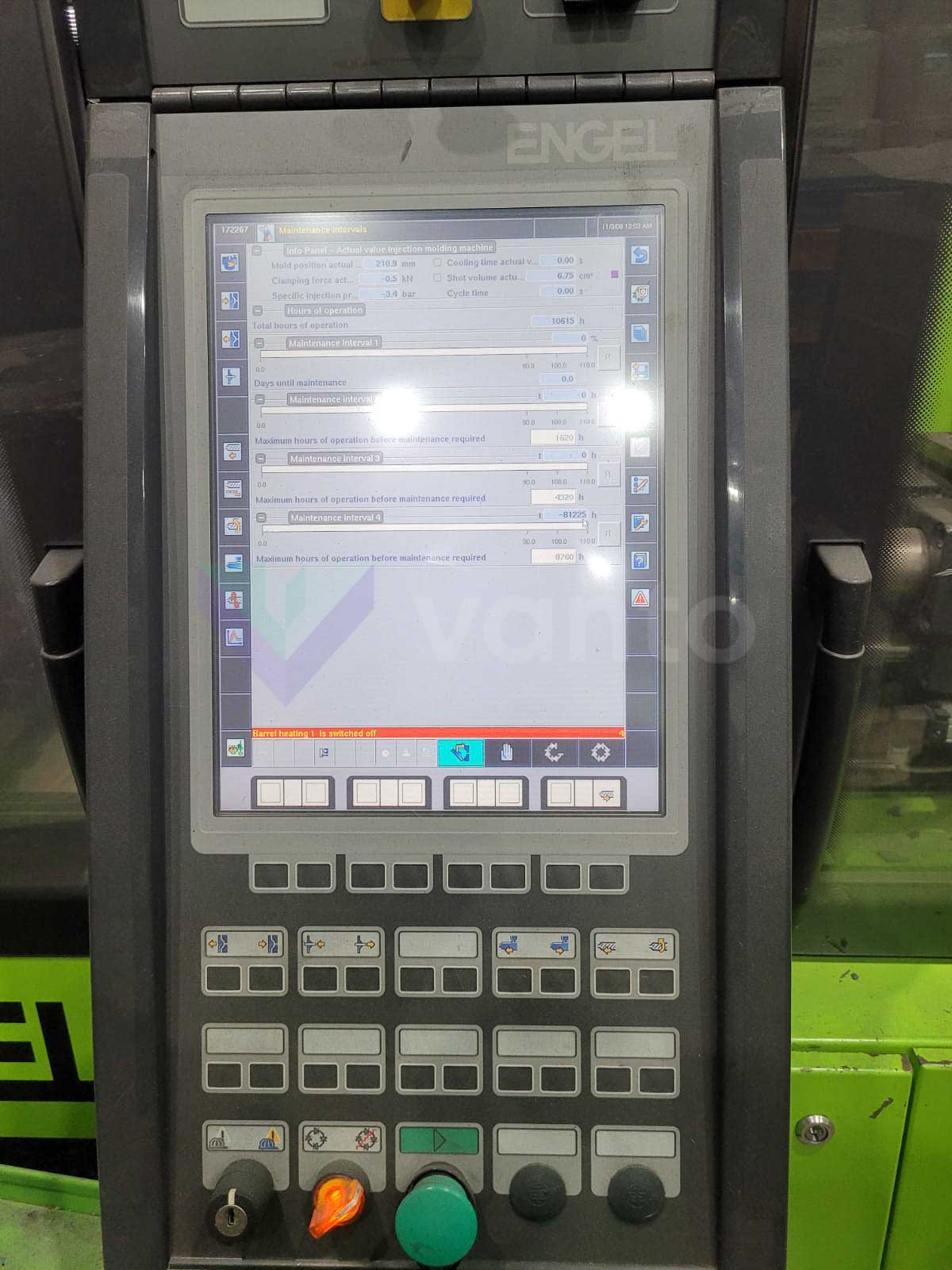

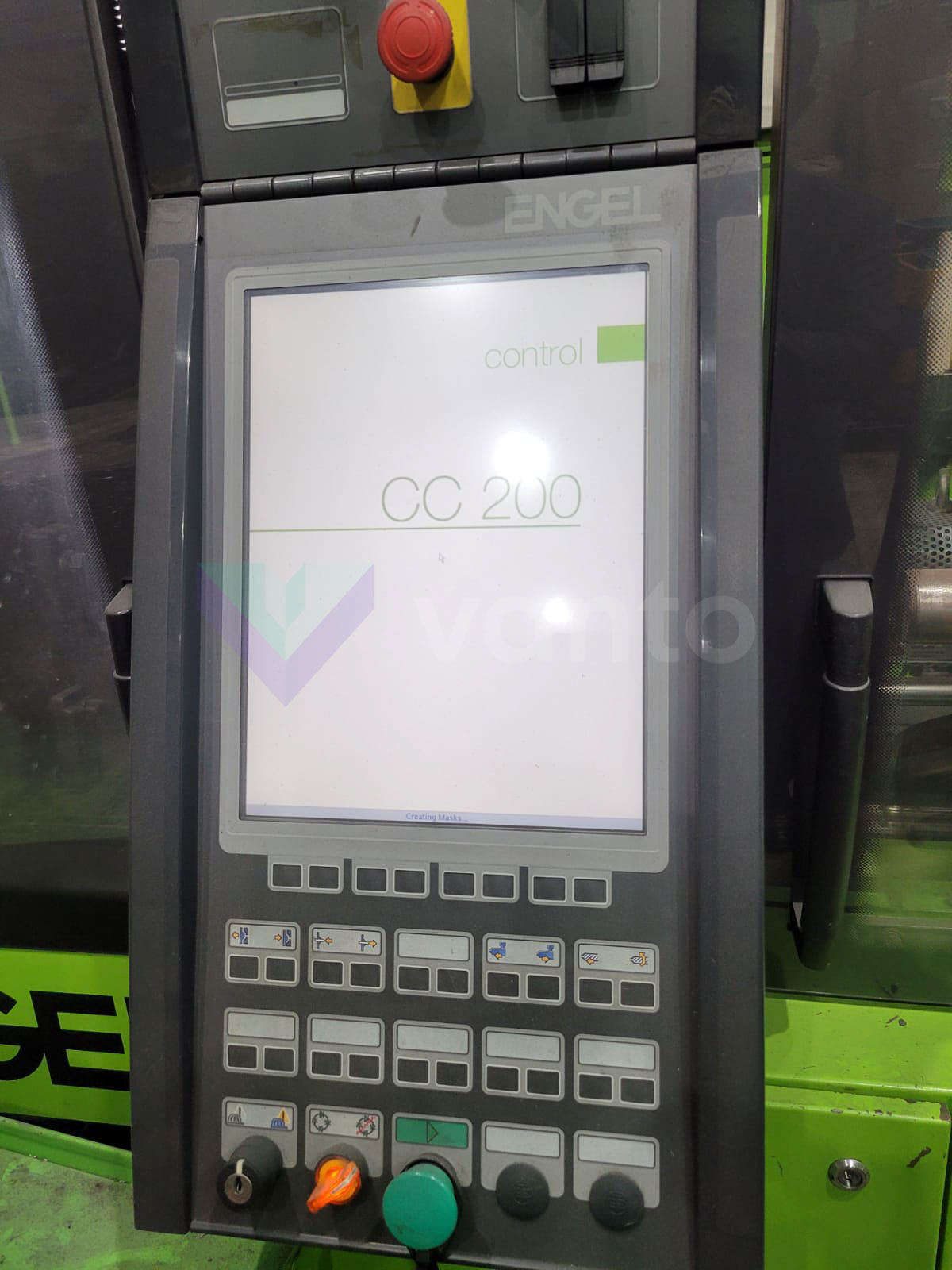

Control	CC200
Dimensions (long x wide x high)	3.400 x 1.300 x 1.800 mm
Ejector force	40 kN
Heating zones	4
Injection pressure	2.060 bar
Injection rate	78 cm³/s
Injection volume	38 cm³
Mould height min	200 mm
Mould opening stroke max	600 mm
Nozzle stroke / force max.	28 mm / kN
Nozzle stroke max	200 mm
Oil tank capacity	135 l
Operating hours	10.615
Platen size (h x v)	500 x 350 mm
Power: installed max	13 kW

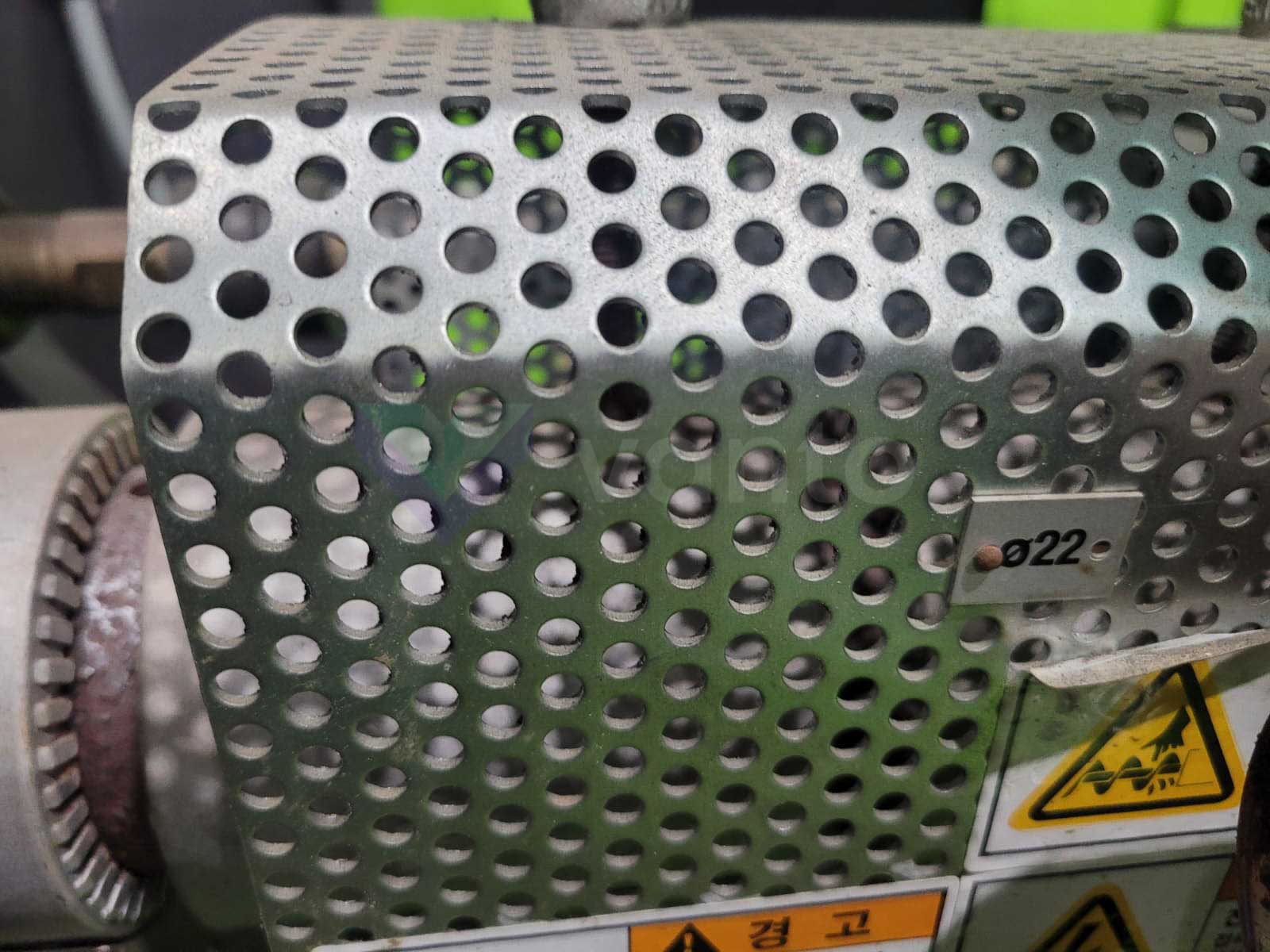

Screw diameter	22 mm
Screw L/D ratio	18,7
Screw speed	360 rpm
Shot weight max	35 g
Weight	2.700 kg
