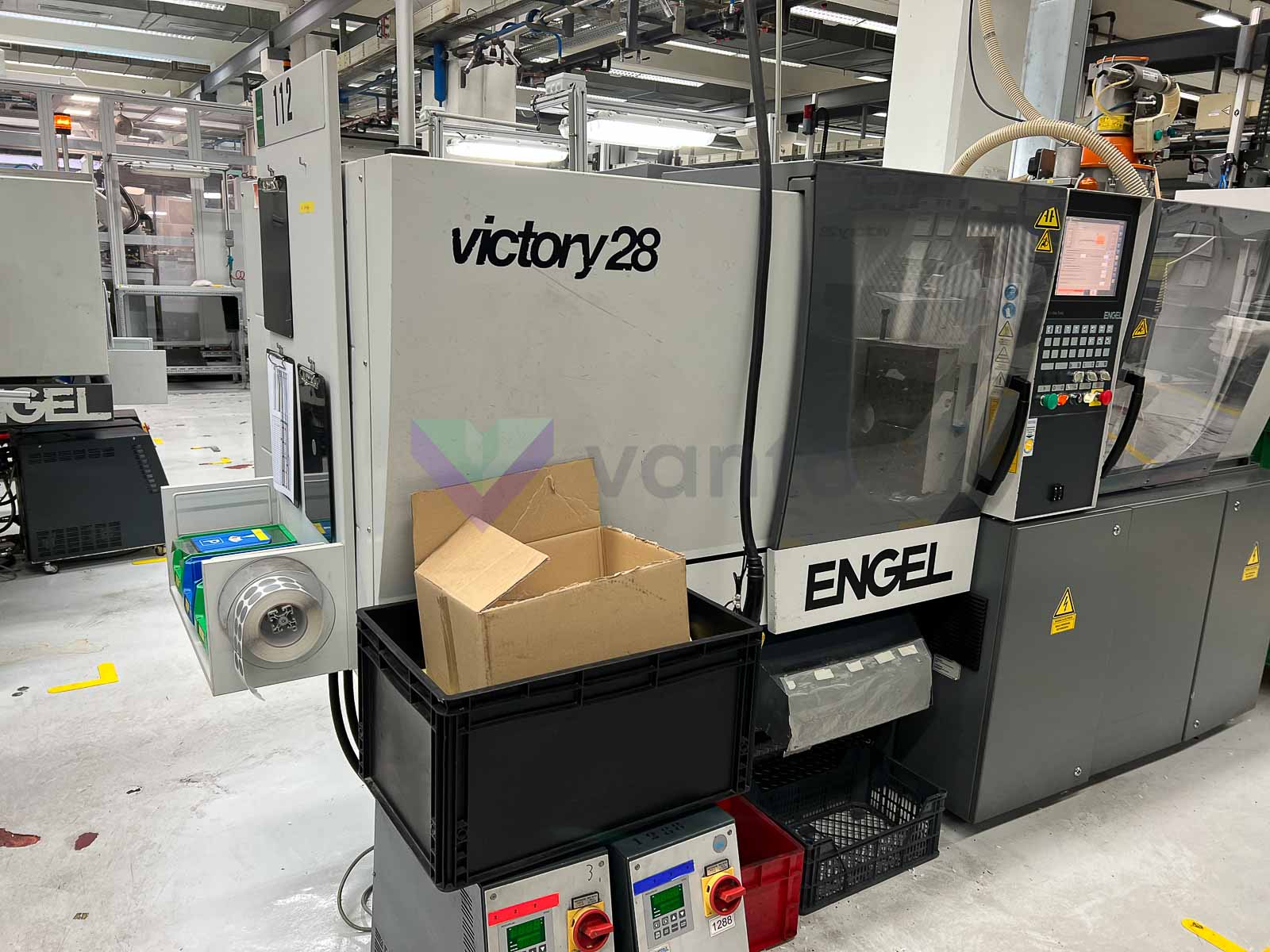

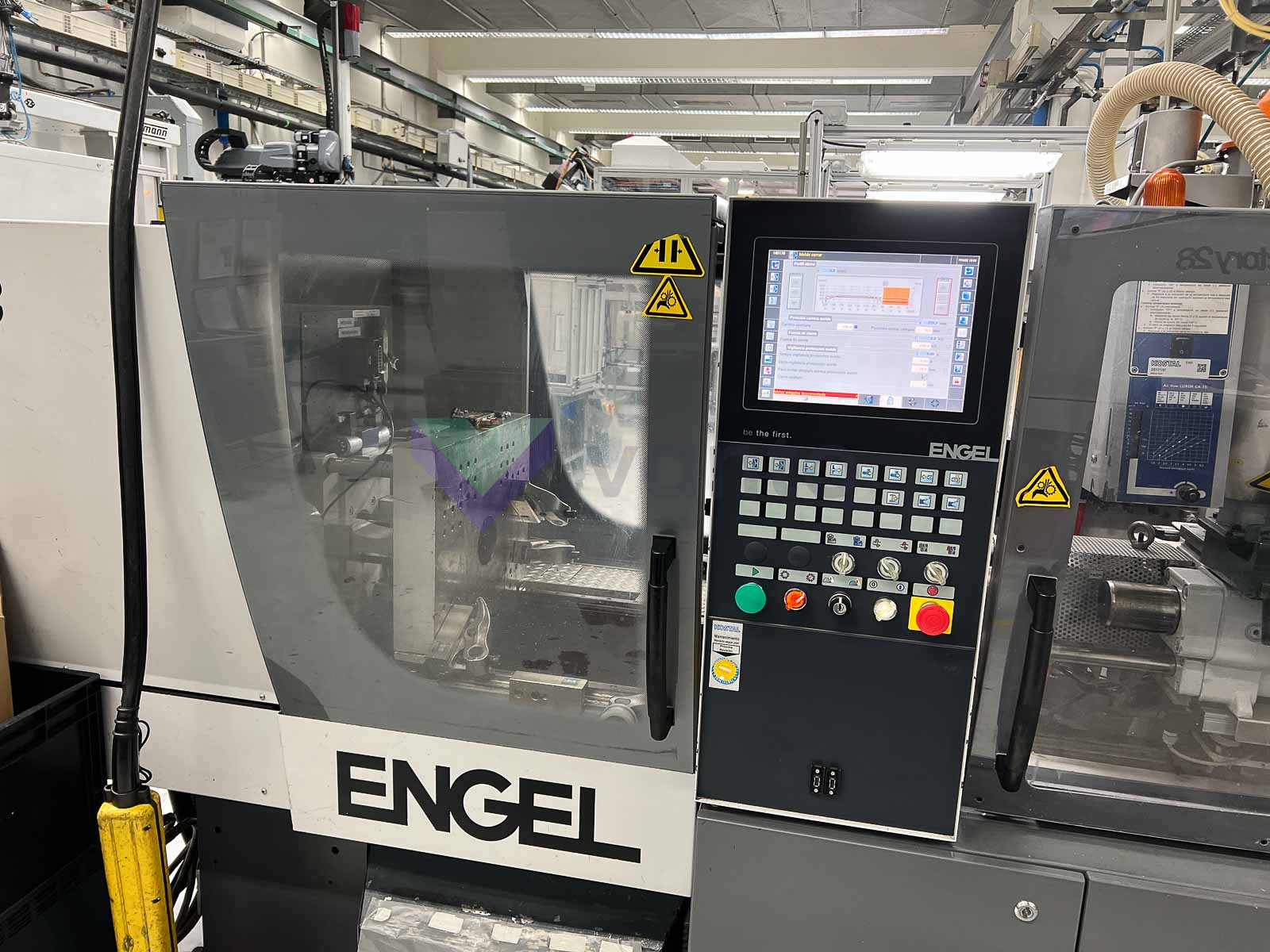

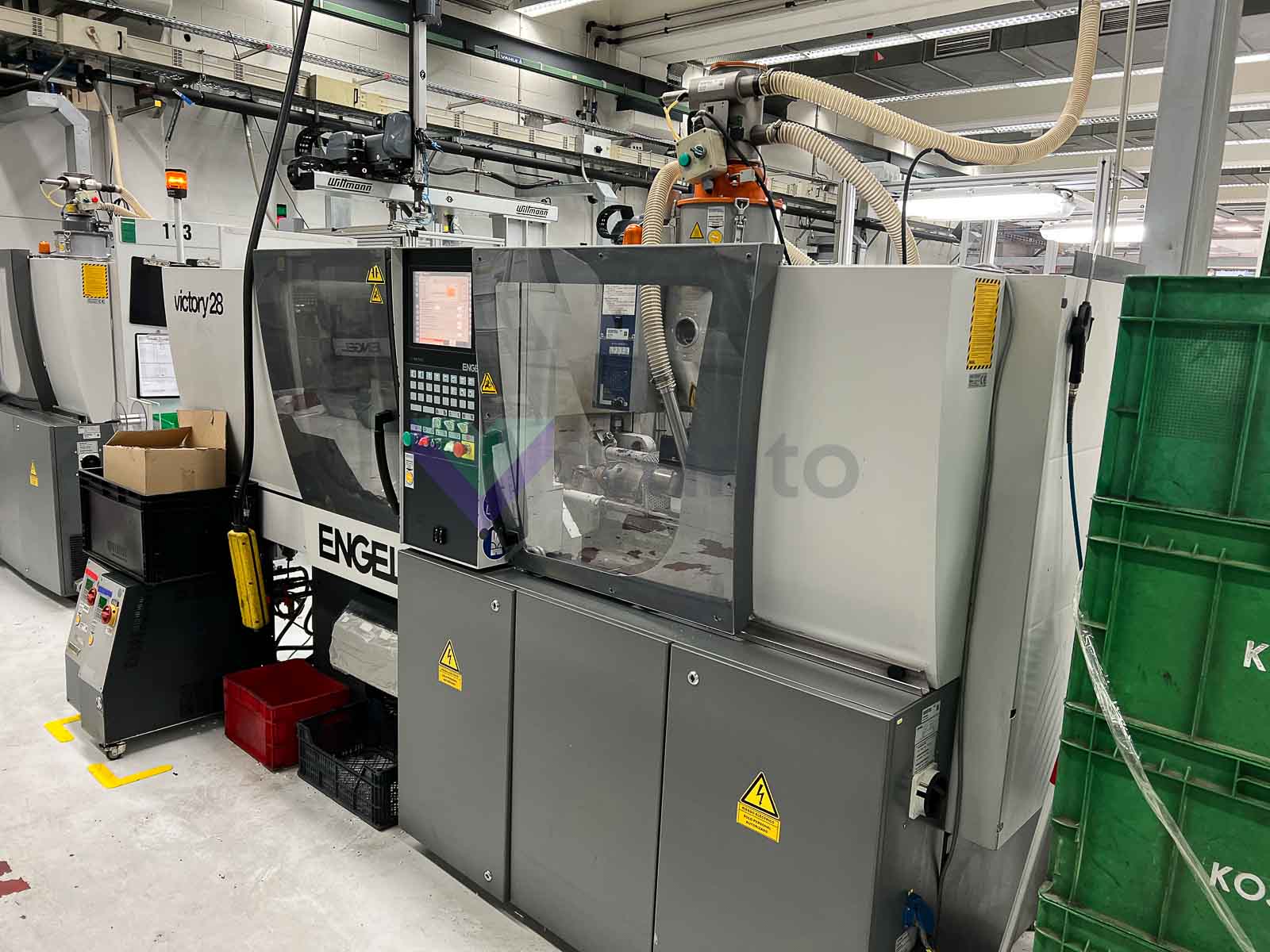

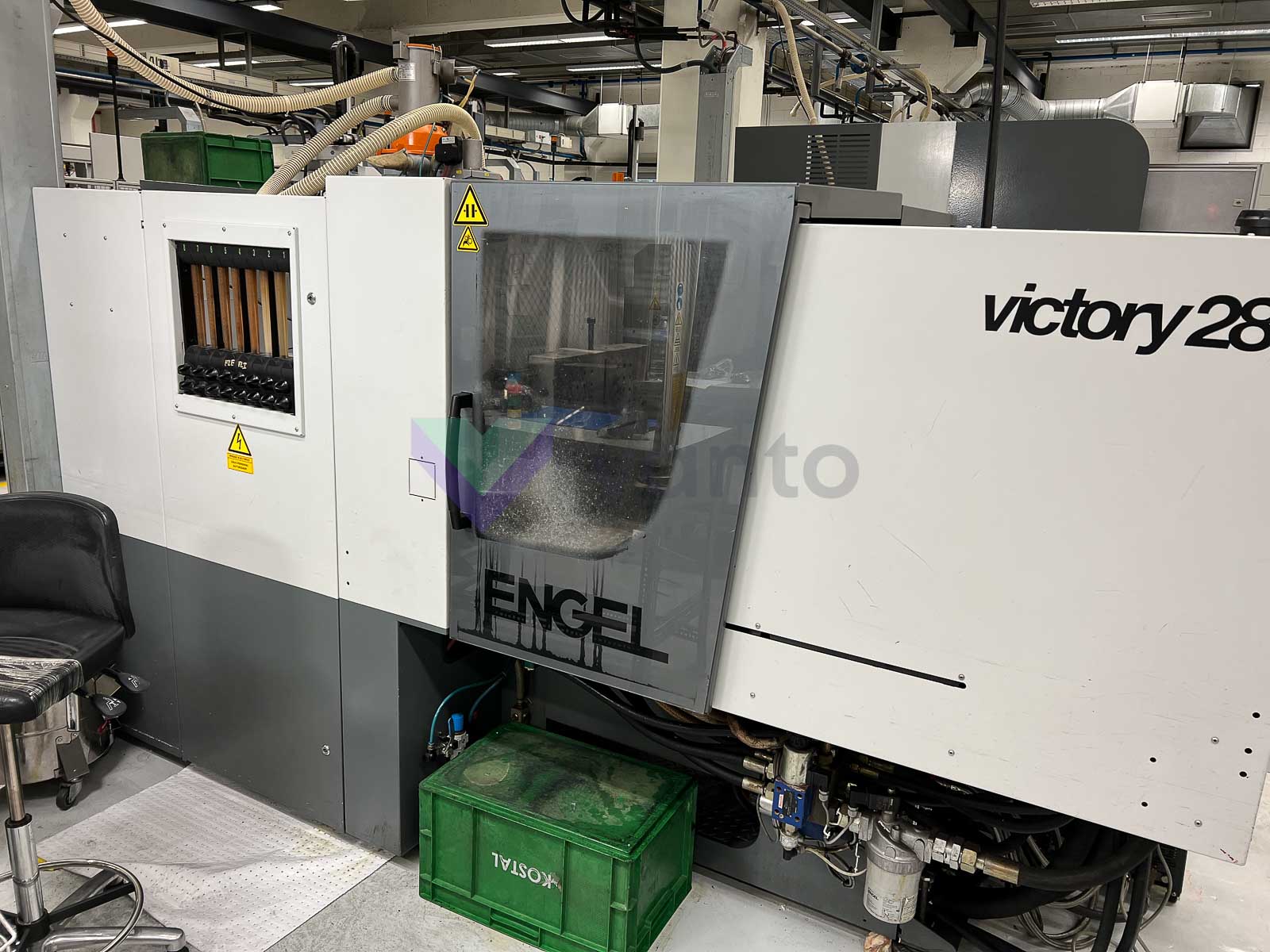

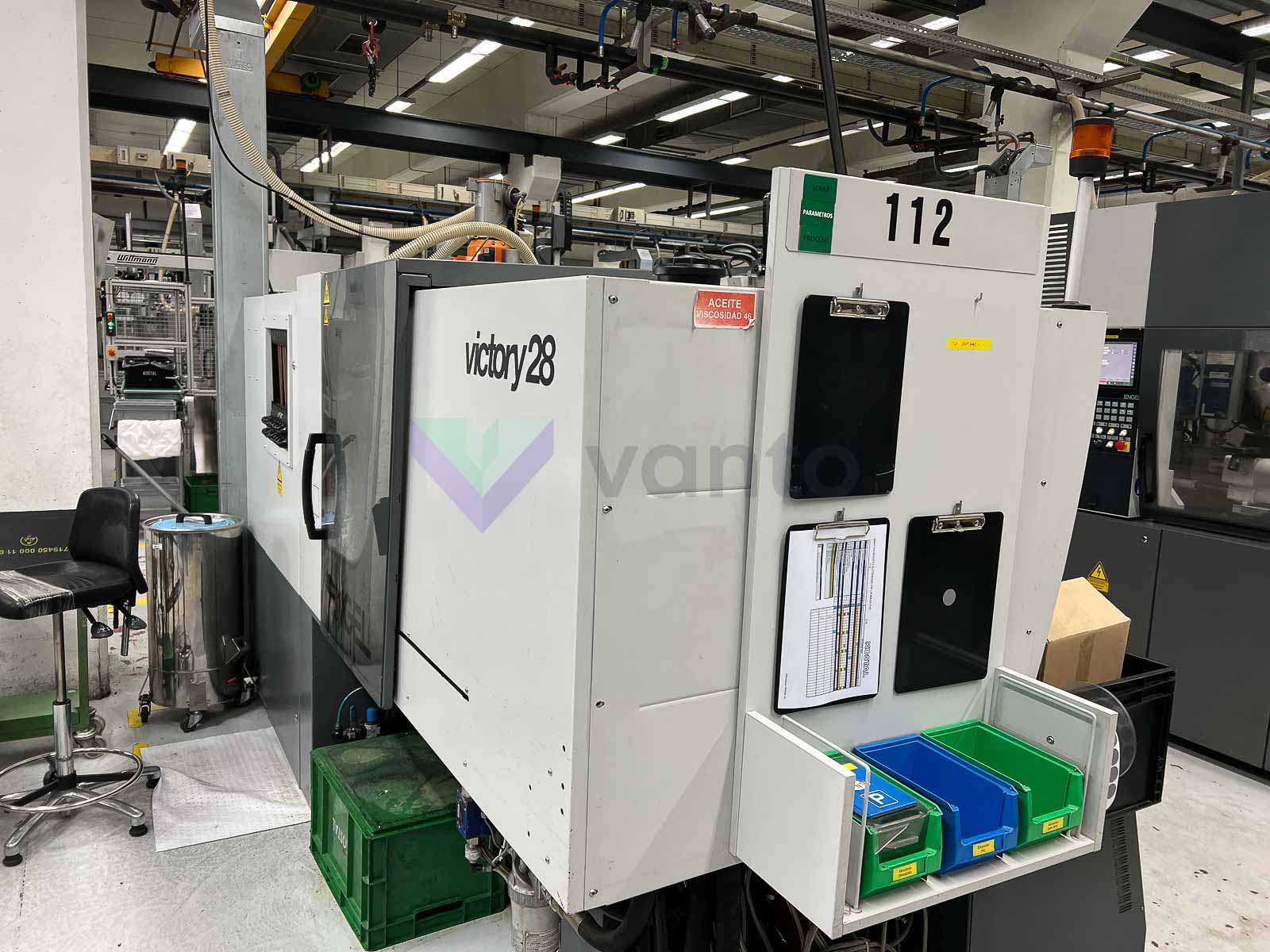

ENGEL

VICTORY VC 80 / 28 TECH

28t injection molding machine

Category	10 to 99t Injection moulding machines
Condition	Used
Year	2007
Availability	Sold
ID	10768

Clamping force

0kN

Clamping force	280 kN
Dimensions (long x wide x high)	3.300 x 1.200 x 1.800 mm
Injection pressure	1.600 bar
Injection rate	100 cm³/s
Injection volume	49 cm³
Nozzle stroke / force max.	200 / 28 mm / kN
Oil tank capacity	115 l

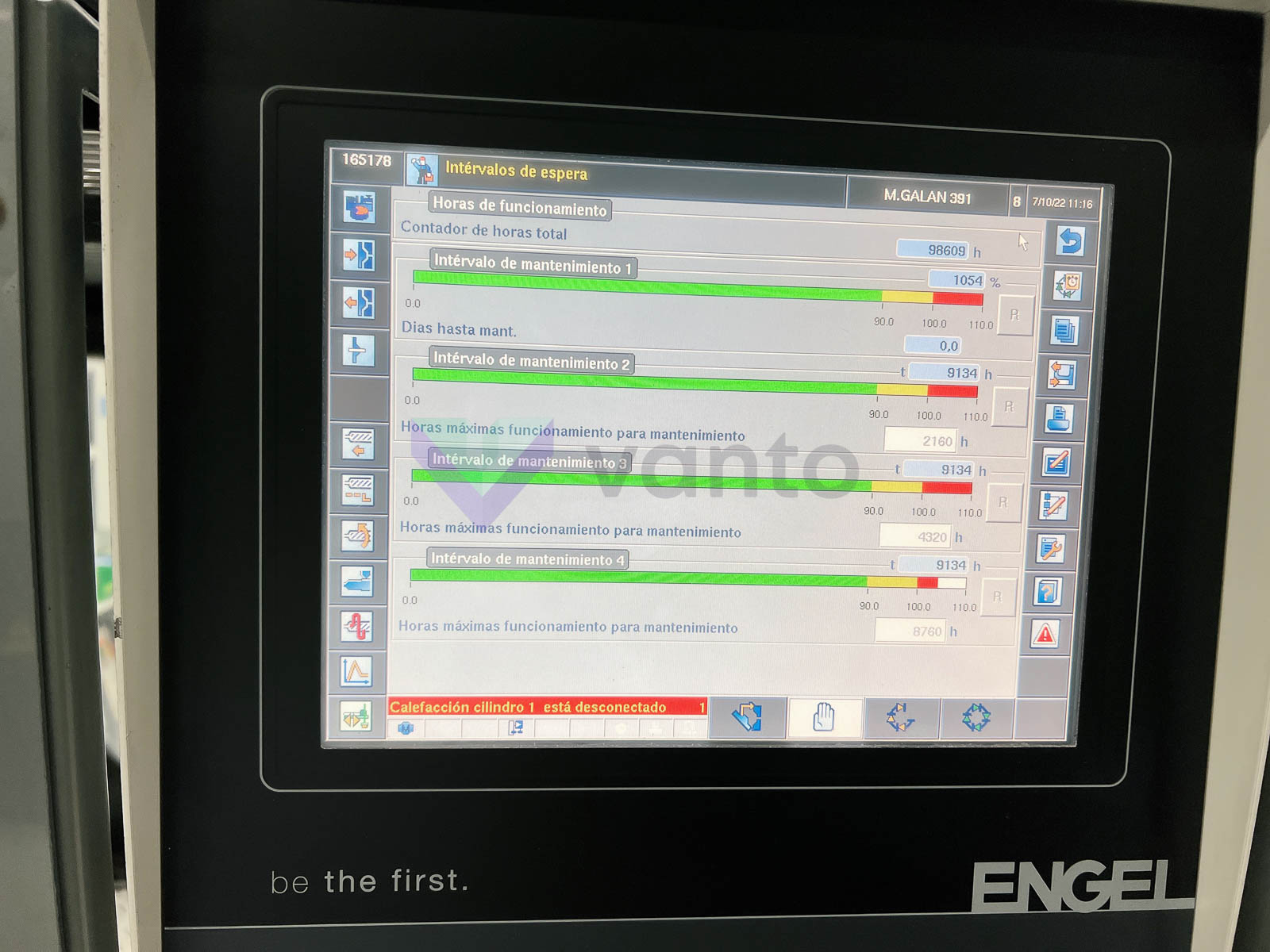

Operating hours	98.609
Platen size (h x v)	500 x 450 mm
Screw diameter	25 mm
Screw L/D ratio	16,4
Screw speed	360 rpm
Screw speed	360 rpm

ENGEL VICTORY VC 80 / 28 TECH Machine Layout	View PDF
ENGEL VICTORY VC 80 / 28 TECH Platen Layout	View PDF
