ENGEL

VICTORY VC 650 / 160 TECH PRO

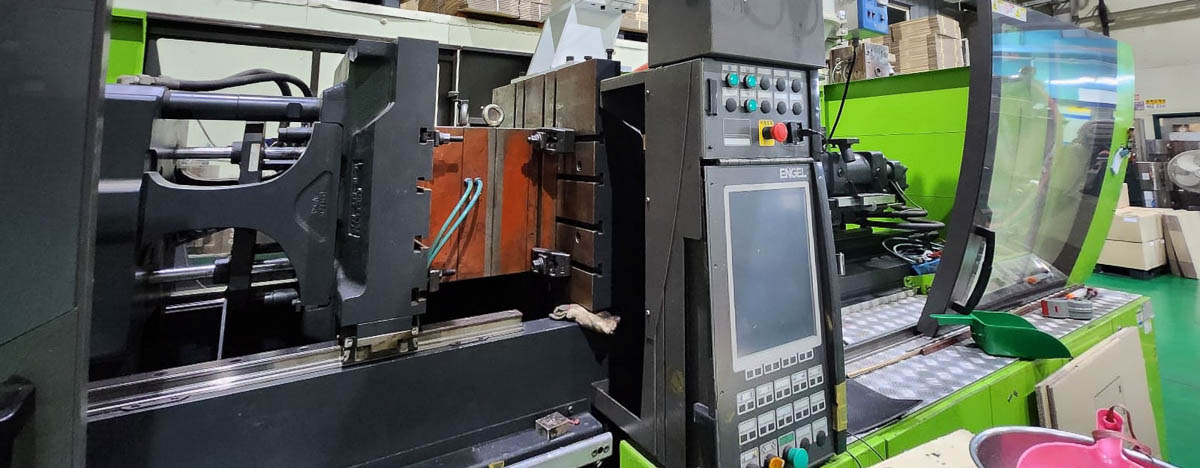

160t injection molding machine

Category 100 to 249t Injection moulding machines
Condition Used
Year 2013
Availability Available
ID 11137
Isaac Mateo
+34 932 711 191
|
+34 652 098 501
Send message
Request a quote

Clamping force1.600 kN
ControlCC200
Daylight between platens max900 mm
Dimensions (long x wide x high)5.800 x 1.700 x 2.400 mm
Ejector stroke / force max.150 / 61 mm / kN
Heating zones5
Injection pressure1.900 / 2.400 bar
Injection rate141 cm³/s
Injection volume251 cm³
Mould height max300 mm
Mould height min300 mm
Nozzle stroke / force max.300 / 52 mm / kN
Oil tank capacity460 l
Platen size (h x v)750 x 750 mm
Power: installed max15,5 + 30 kW
Screw diameter40 mm
Screw L/D ratio20
Screw speed290 rpm
Weight8.800 kg

No videos available

ENGEL VICTORY VC 650 / 160 TECH PRO Technical Specification Sheet View PDF
