VICTORY VC 500 / 120 TECH PRO

120t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2004
Availability	Sold
ID	10417

Clamping force	1.200 kN

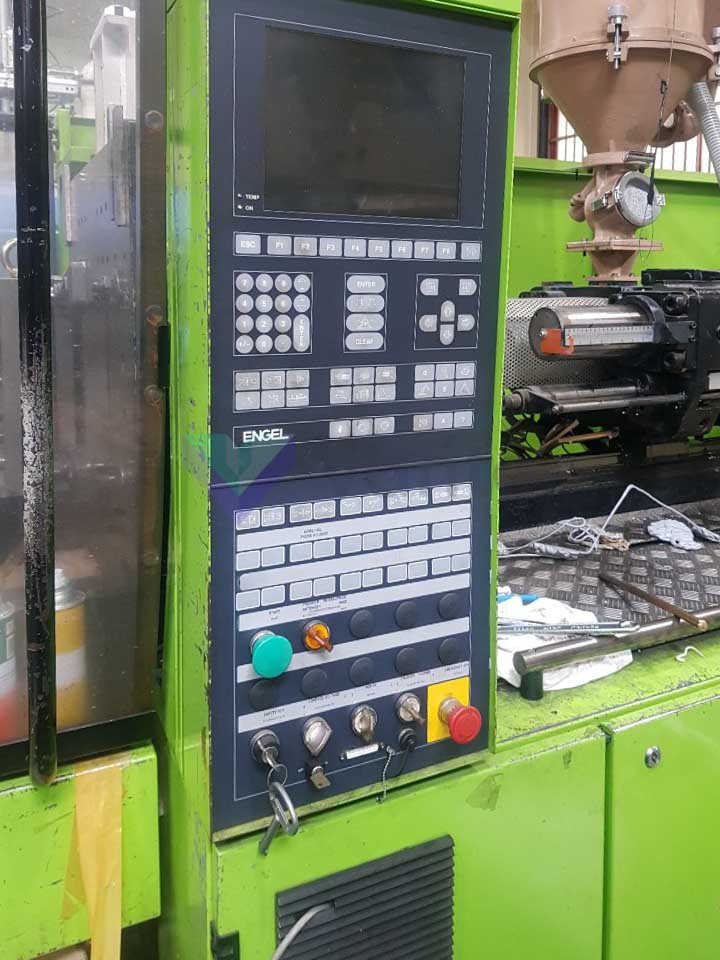

Control	CC100
Daylight between platens max	800 mm
Dimensions (long x wide x high)	4.900 x 1.400 x 2.000 mm
Distance between tie-bars (h x v)	n/a mm
Ejector stroke / force max.	130 / 40 mm / kN
Heating zones	4
Injection pressure	1.300 bar
Injection rate	198 cm³/s
Injection volume	251 cm³
Mold opening force	38 kN
Mould height min	300 mm
Nozzle stroke / force max.	300 / 50 mm / kN
Oil tank capacity	300 l

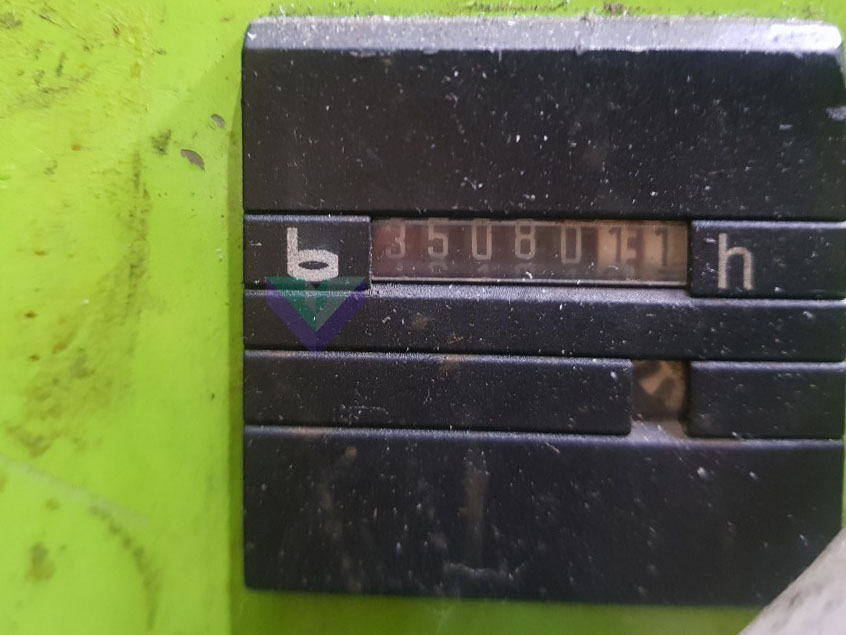

Operating hours	35.080
Platen size (h x v)	740 x 740 mm
Power: installed max	28 kW
Screw diameter	40 mm
Screw speed	400 rpm
Shot weight max	231 g
Weight	7.400 kg
