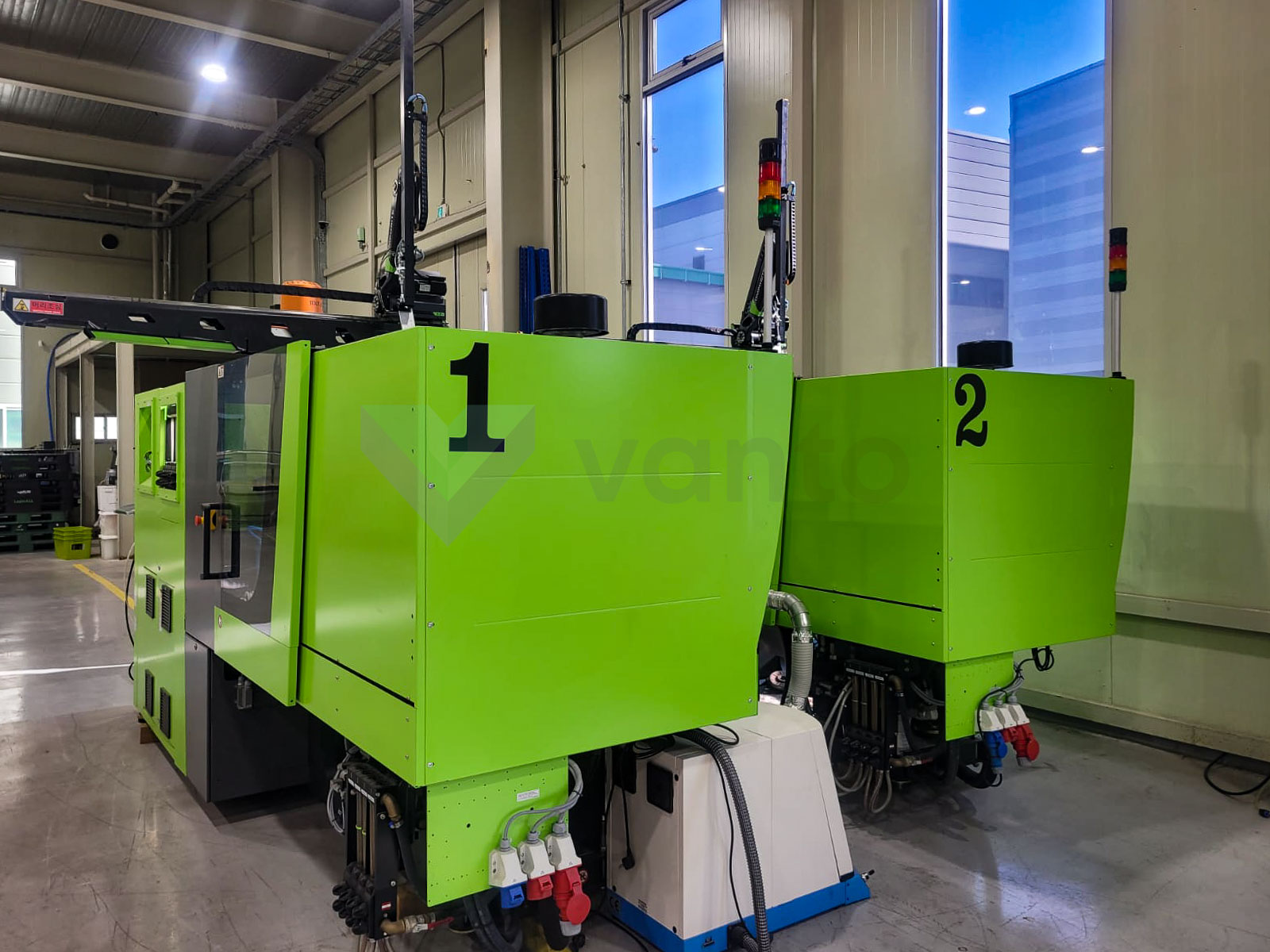

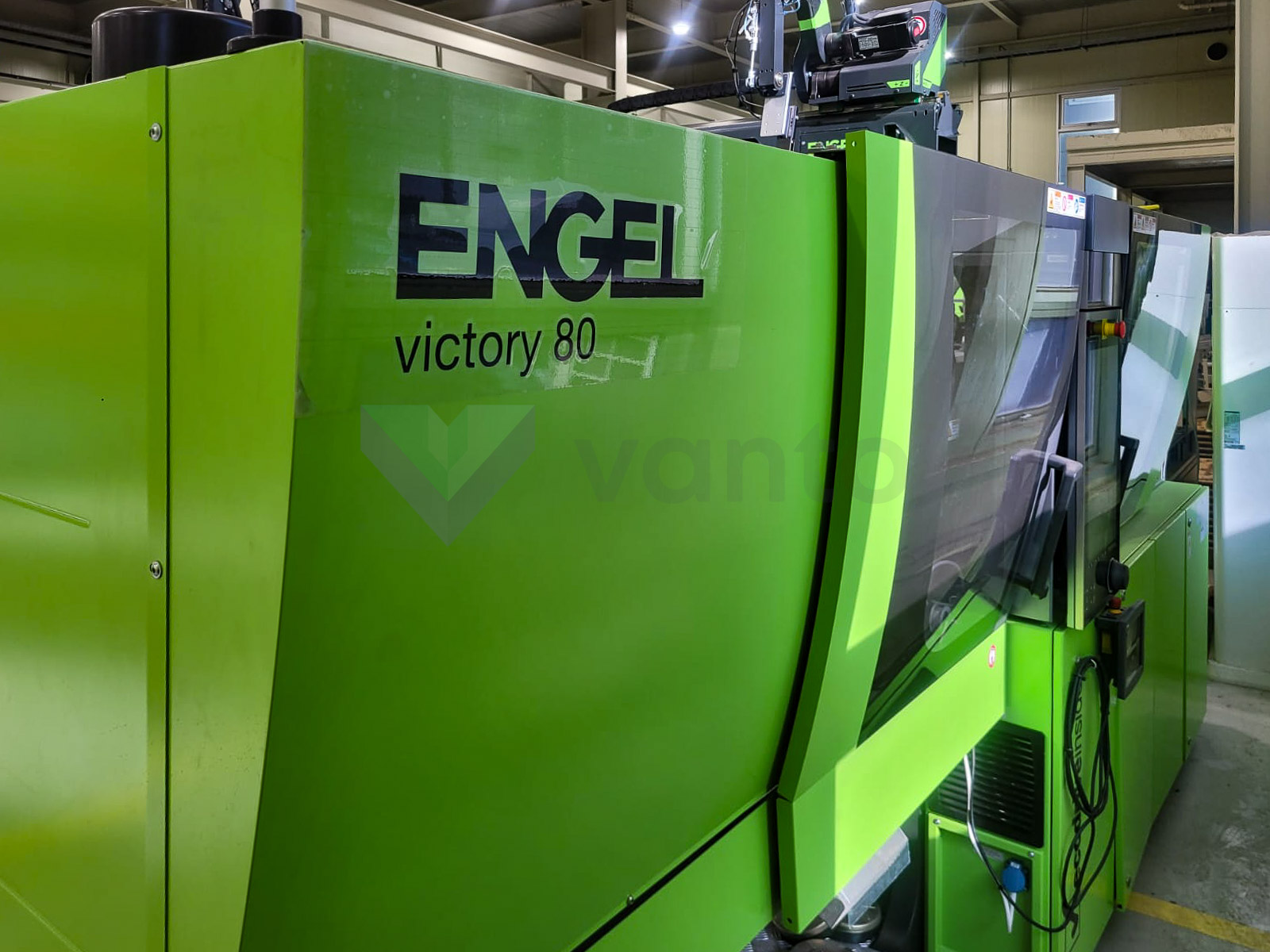

VICTORY VC 330 / 80 TECH PRO

80t injection molding machine

Category	10 to 99t Injection moulding machines
Condition	Used
Year	2018
Availability	Sold
ID	10971

Clamping force

0kN

Including:

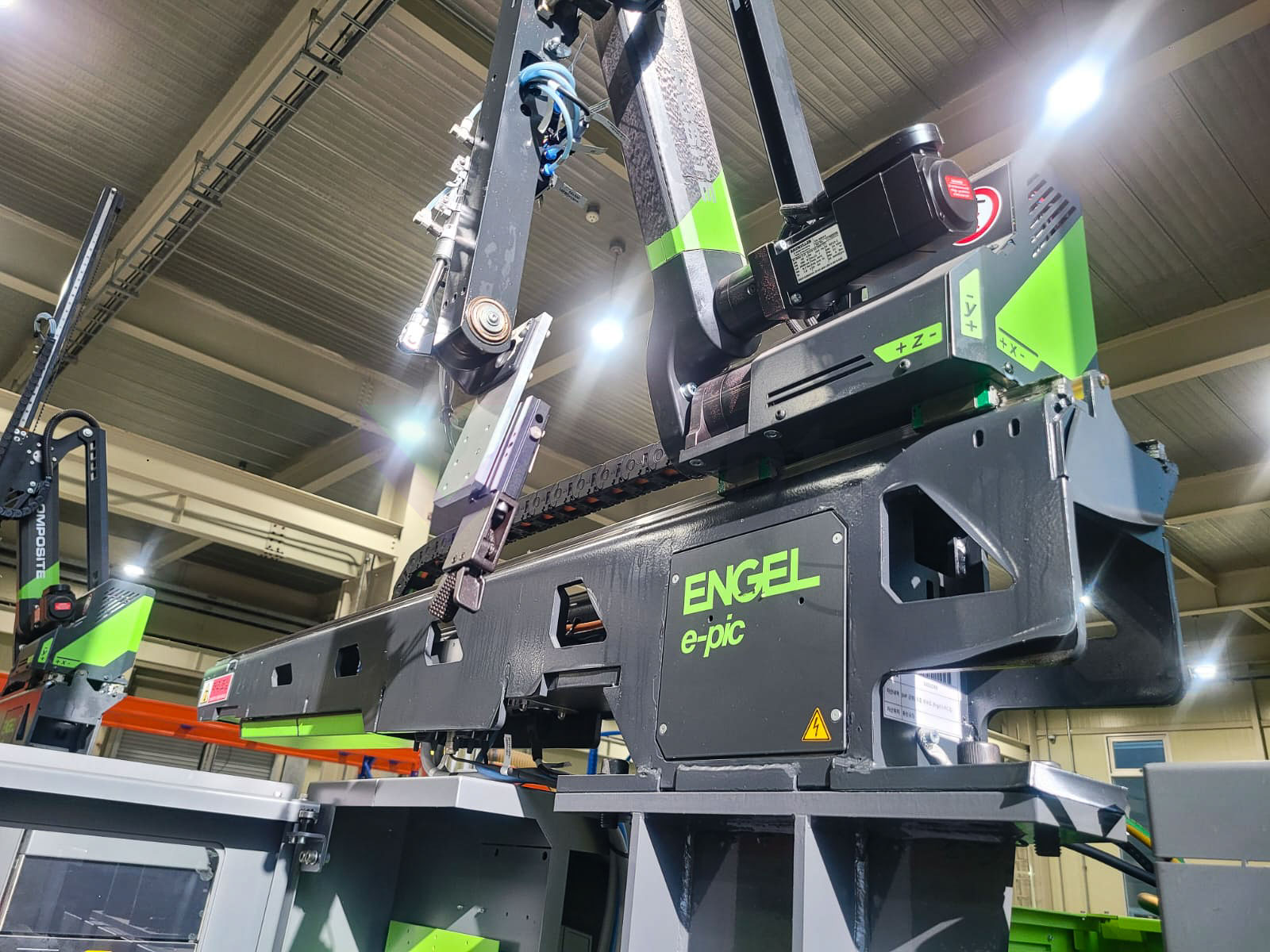

- robot WITTMANN or ENGEL
- conveyor
- hopper / loader + dryer
- mold heater
- ECODRIVE

Clamping force	800 kN
Air Valves	yes
Control	CC300
Core pullers	yes
Daylight between platens max	700 mm
Dimensions (long x wide x high)	3.940 x 1.400 x 1.800 mm
Distance between tie-bars (h x v)	n/a mm
Ejector stroke / force max.	100 / 39,8 mm / kN
Heating zones	4
Injection pressure	1.600 / 2.180 (max) bar
Injection rate	132 cm³/s
Injection volume	154 cm³
Mould height min	250 mm
Mould opening stroke max	457 mm
Nozzle stroke / force max.	300 / 48,9 mm / kN
Oil tank capacity	170 l
Operating hours	100
Platen size (h x v)	670 x 600 mm
Power: installed max	59 kW
Screw diameter	35 mm
Screw L/D ratio	20
Screw speed	400 rpm
Weight	5.300 kg
