ENGEL

VICTORY VC 330 / 80 TECH PRO

80t injection molding machine

Category	10 to 99t Injection moulding machines
Condition	Used
Year	2006
Availability	Sold
ID	10299

Clamping force

0kN

Clamping force	800 kN
Daylight between platens max	700 mm
Dimensions (long x wide x high)	3.900 x 1.500 x 2.000 mm
Ejector force	47 kN
Heating zones	4
Injection pressure	2.180 bar
Injection volume	113 cm³
Mould height max	450 mm
Mould height min	150 mm
Mould opening stroke max	450 mm
Nozzle stroke max	250 mm
Oil tank capacity	185 l

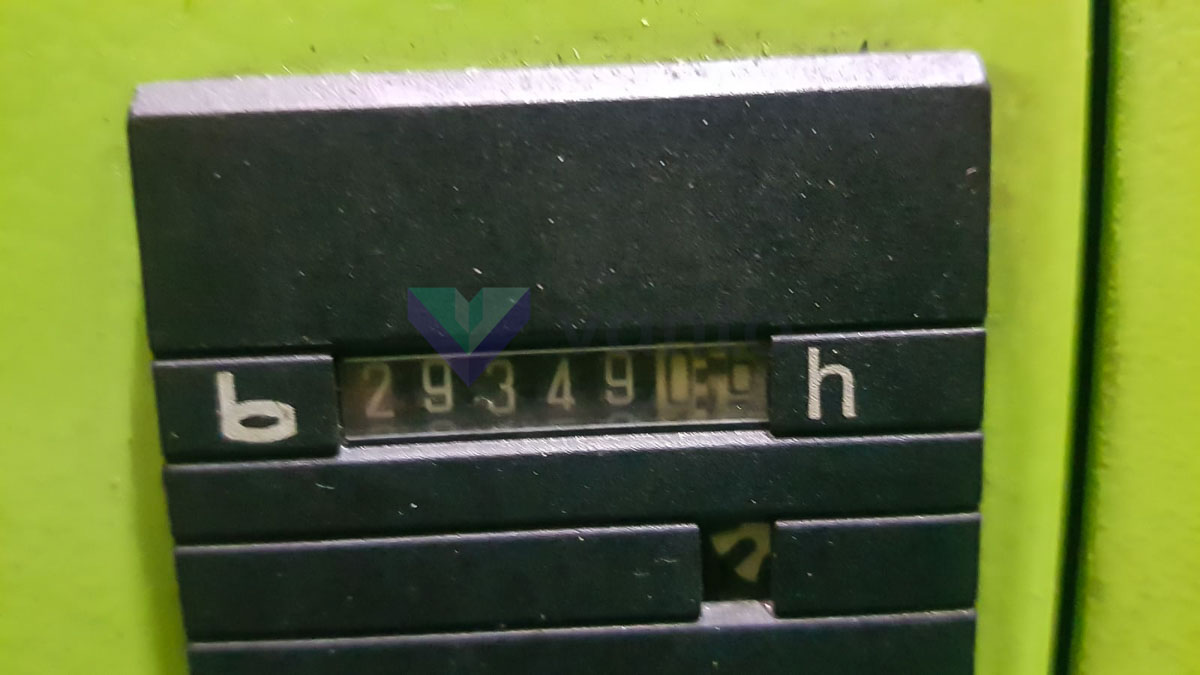

Operating hours	29.346
Platen size (h x v)	670 x 600 mm
Power: installed max	25 kW
Screw diameter	25 mm
Screw L/D ratio	23,6
Screw speed	400 rpm
Shot weight max	104 g
Weight	5.200 kg
