Sold

ENGEL

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

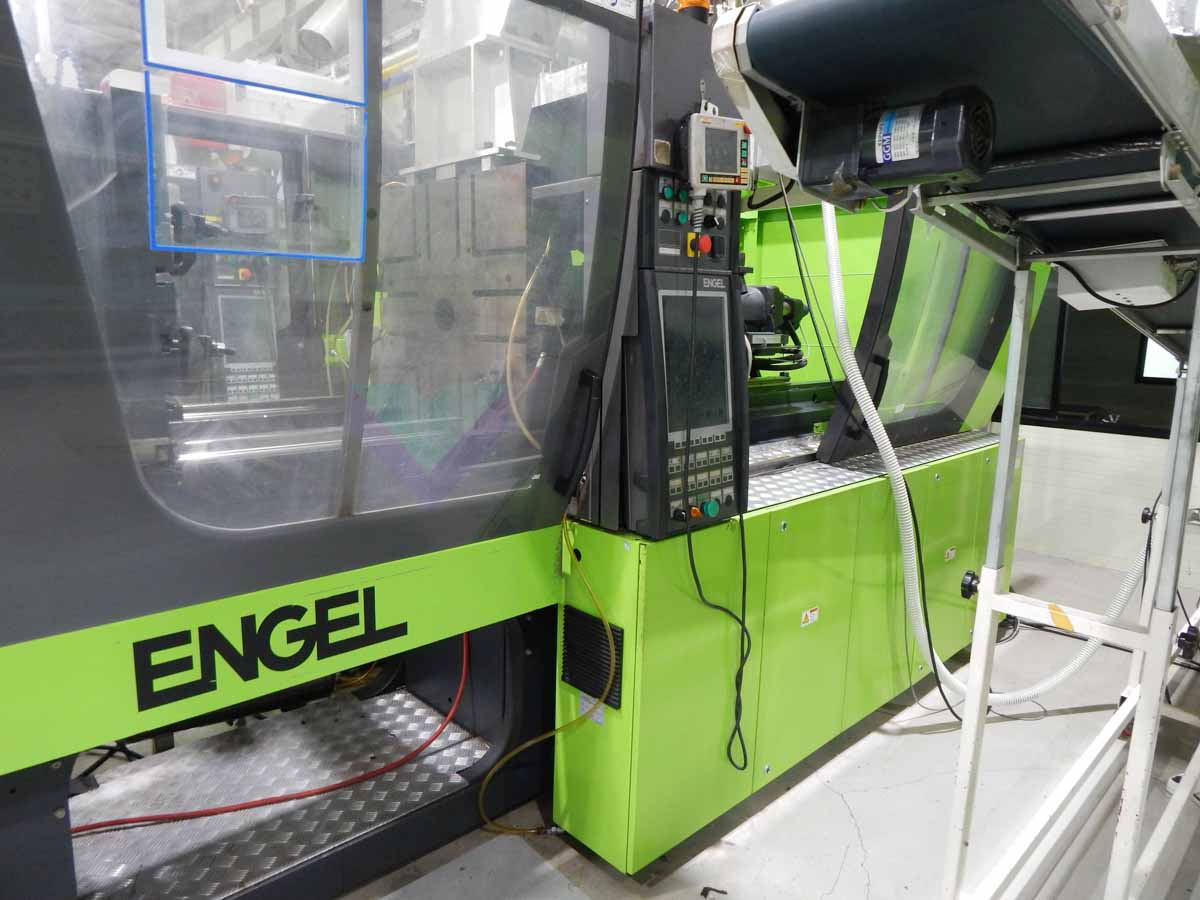

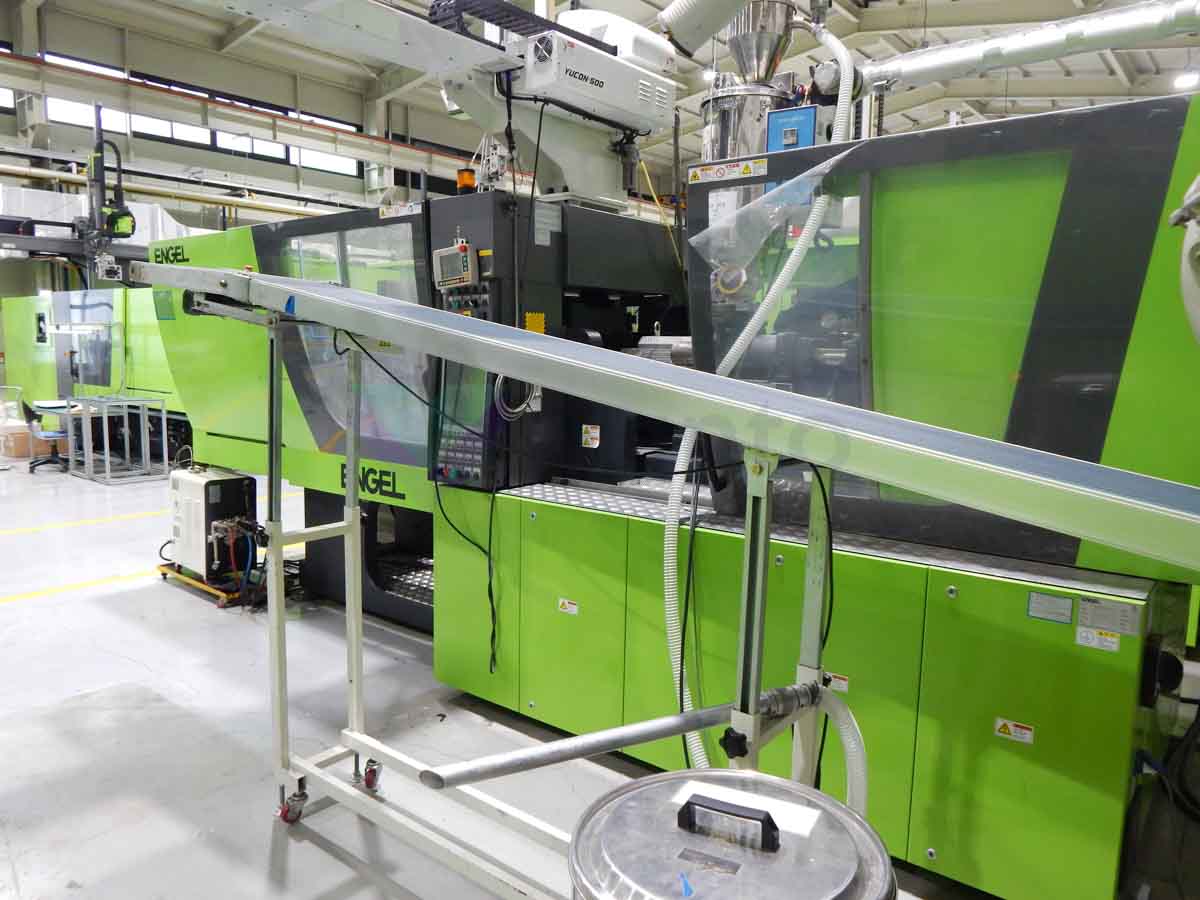

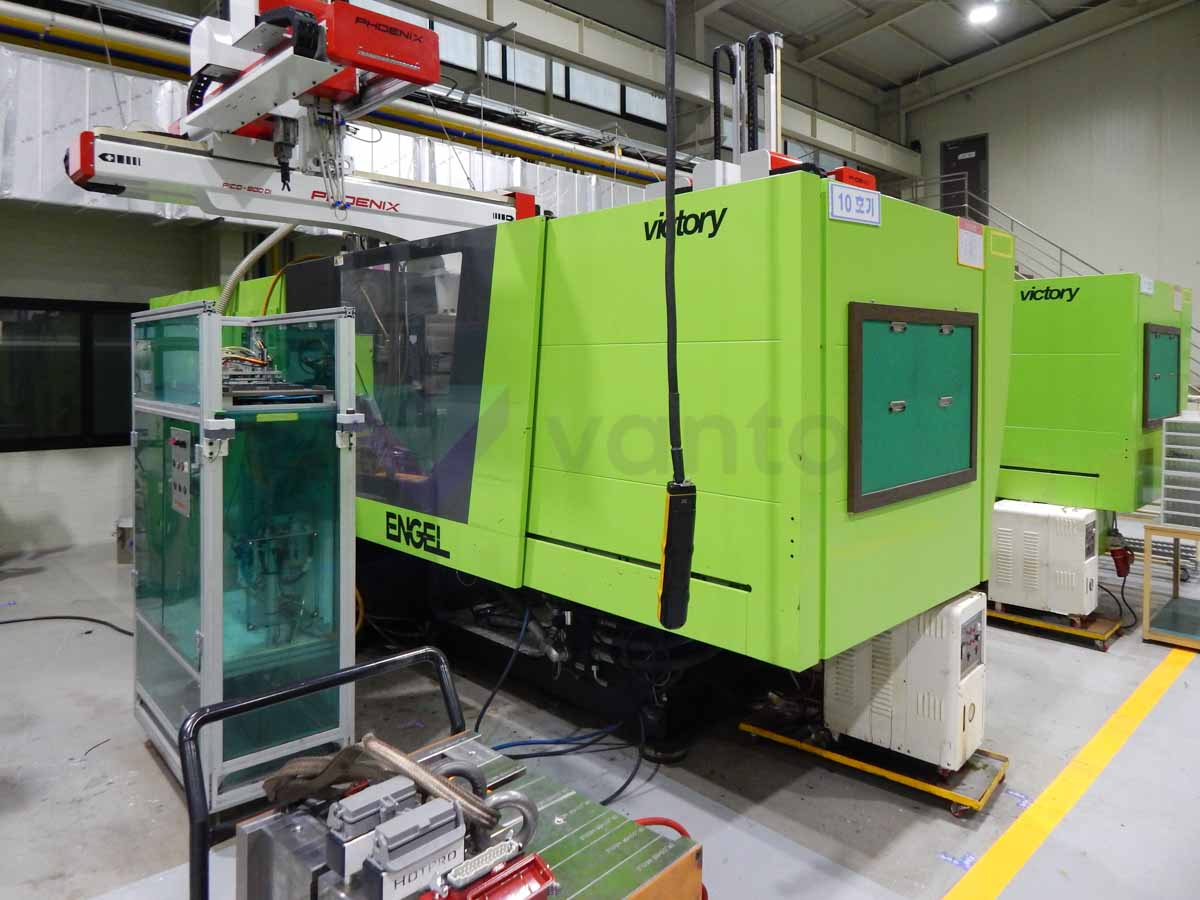

VICTORY VC 330 / 160 TECH PRO

160t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2012
Availability	Sold
ID	10192

Clamping force	1.600 kN
Control	CC200
Daylight between platens max	900 mm
Dimensions (long x wide x high)	5.800 x 1.700 x 2.400 mm
Distance between tie-bars h	550 mm
Distance between tie-bars v	550 mm
Ejector force	61 kN
Injection pressure	2.400 bar
Injection rate	111 cm³/s
Injection volume	113 cm³
Mould height max	300 mm
Mould height min	300 mm
Mould opening stroke max	600 mm
Nozzle stroke / force max.	250 / 47 mm / kN
Nozzle stroke max	160 mm
Oil tank capacity	460 l
Operating hours	28.140
Platen size h	750 mm
Platen size v	750 mm
Power: installed max	30 kW
Screw diameter	30 mm
Screw L/D ratio	23,6
Screw speed	400 rpm
Shot weight max	104 g
Weight	9.500 kg
