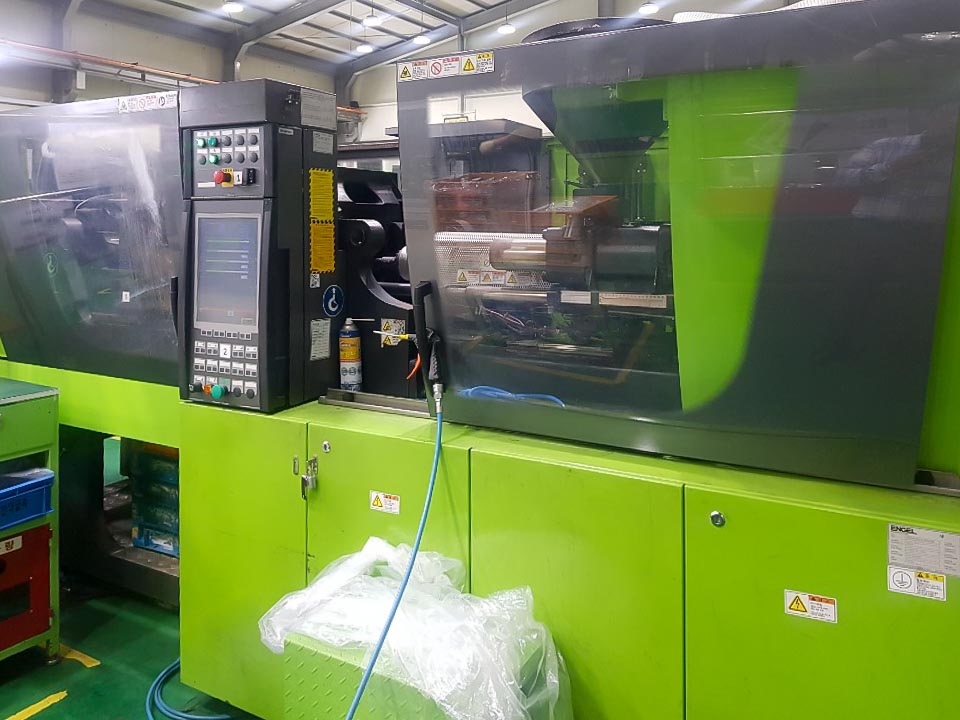

ENGEL

VICTORY VC 330 / 120 TECH PRO

120t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2014
Availability	Sold
ID	10253

Clamping force	1.200 kN
Daylight between platens max	800 mm
Dimensions (long x wide x high)	4.400 x 1.500 x 2.000 mm
Ejector force	40 kN
Injection pressure	2.180 bar
Injection rate	151 cm³/s
Injection volume	154 cm³
Mould height min	300 mm
Mould opening stroke max	500 mm
Nozzle stroke / force max.	40 mm / kN
Nozzle stroke max	160 mm
Oil tank capacity	300 l
Oil tank capacity	300 l

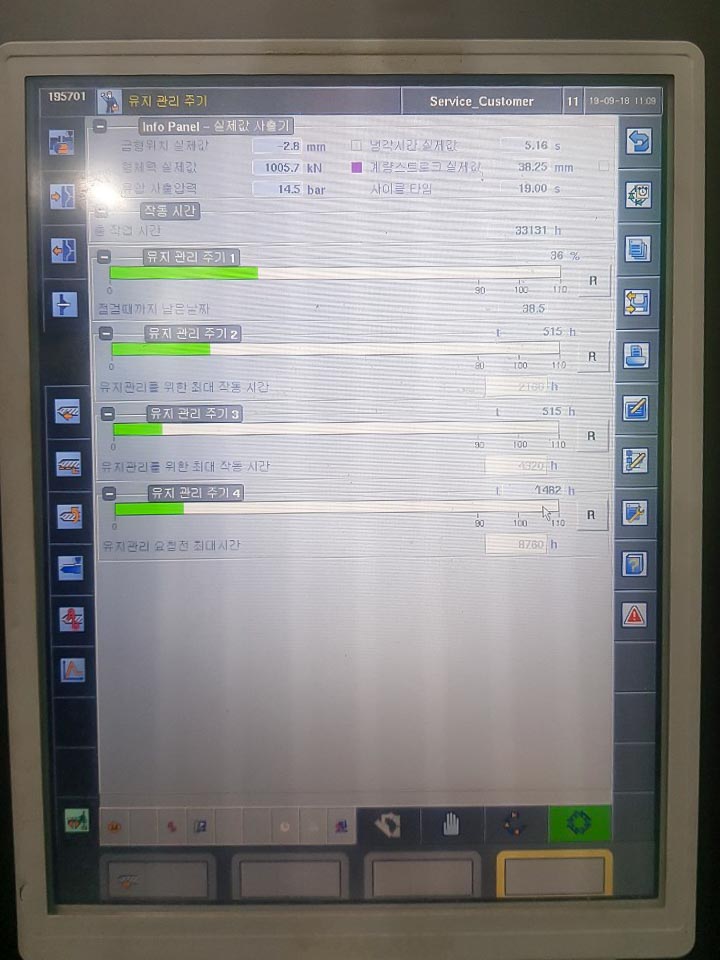

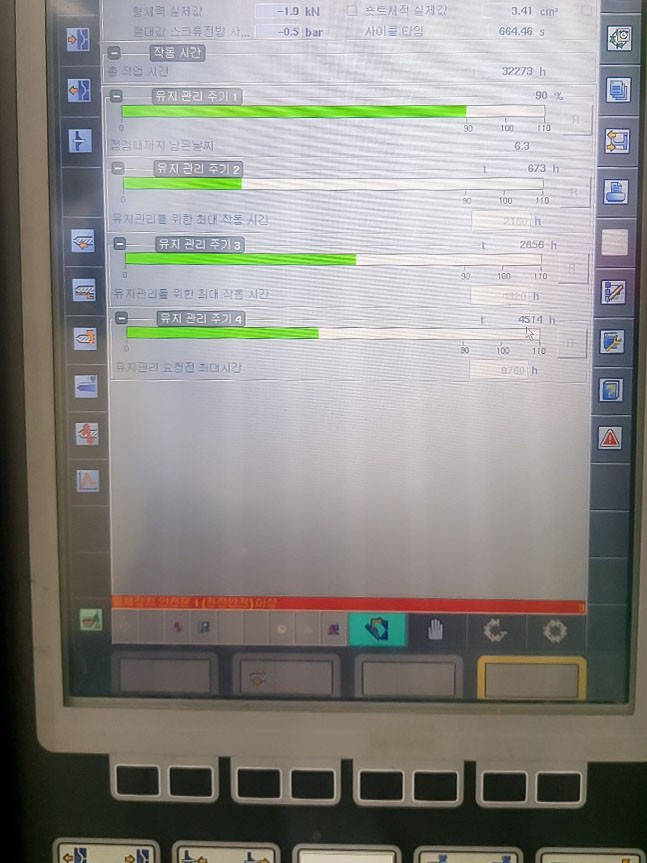

Operating hours	33.131
Platen size h	740 mm
Platen size v	680 mm
Power: installed max	25 kW

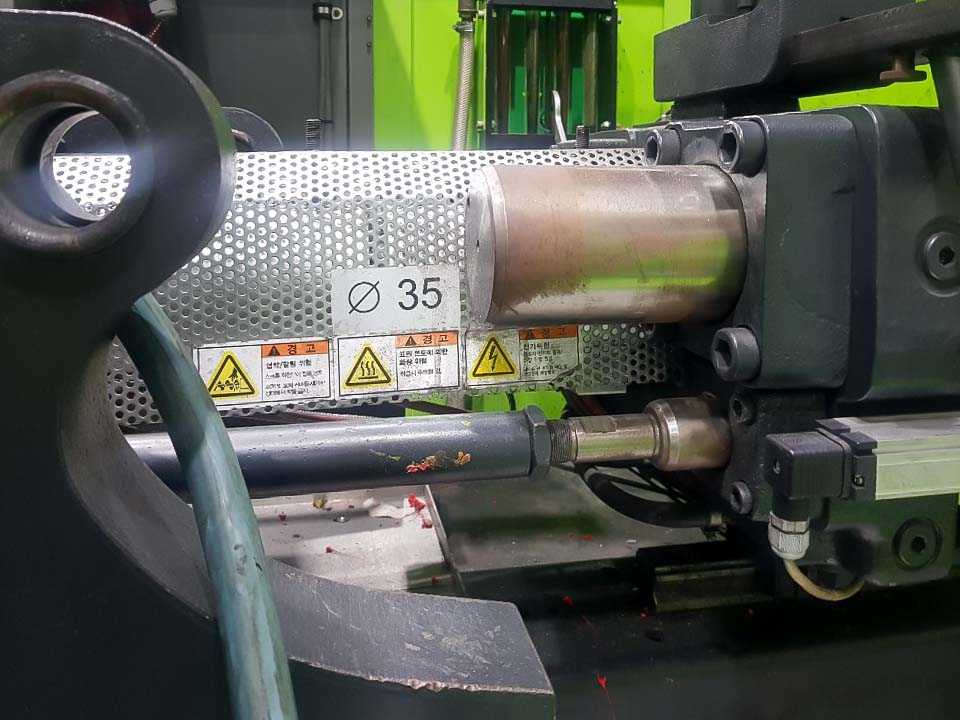

Screw diameter	35 mm
Screw L/D ratio	20
Screw speed	400 rpm
Shot weight max	142 g
Weight	7.300 kg

There are no available documents
