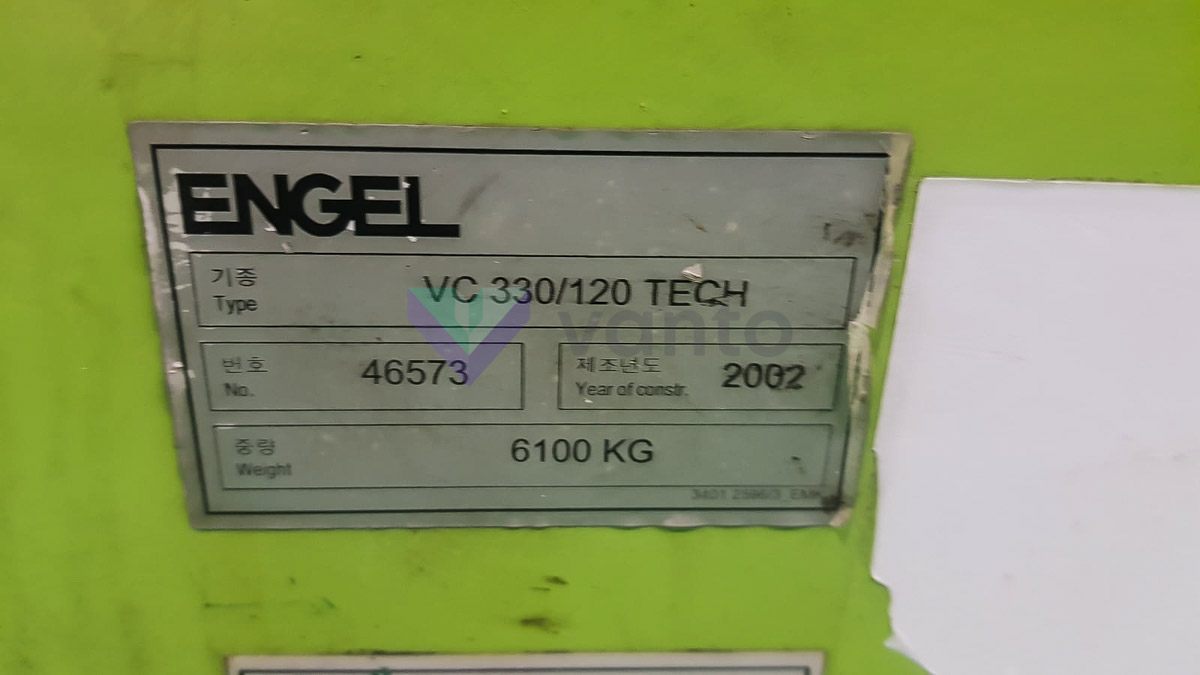

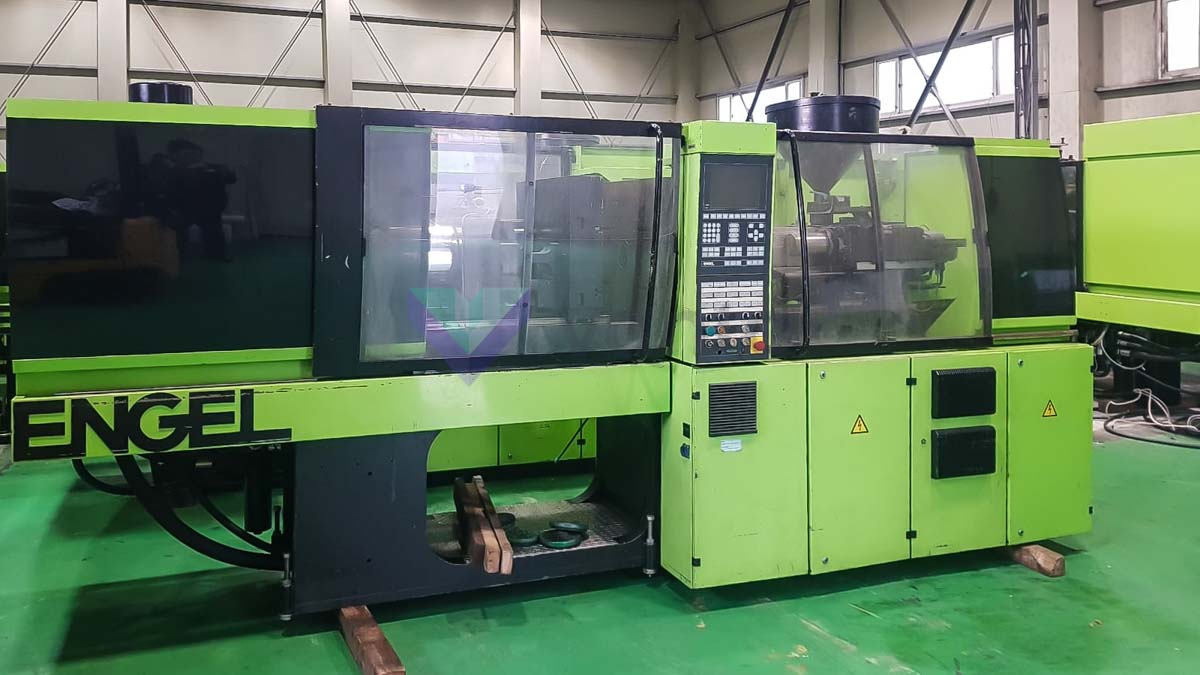

ENGEL

VICTORY VC 330 / 120 TECH PRO

120t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2002
Availability	Sold
ID	10297

Clamping force

0kN

Clamping force	1.200 kN
Daylight between platens max	800 mm
Dimensions (long x wide x high)	4.400 x 1.500 x 2.000 mm
Ejector force	47 kN
Heating zones	2
Injection pressure	2.180 bar
Injection volume	113 cm³
Mould height max	n/a mm
Mould height min	300 mm
Mould opening stroke max	500 mm
Nozzle stroke max	250 mm
Oil tank capacity	300 l

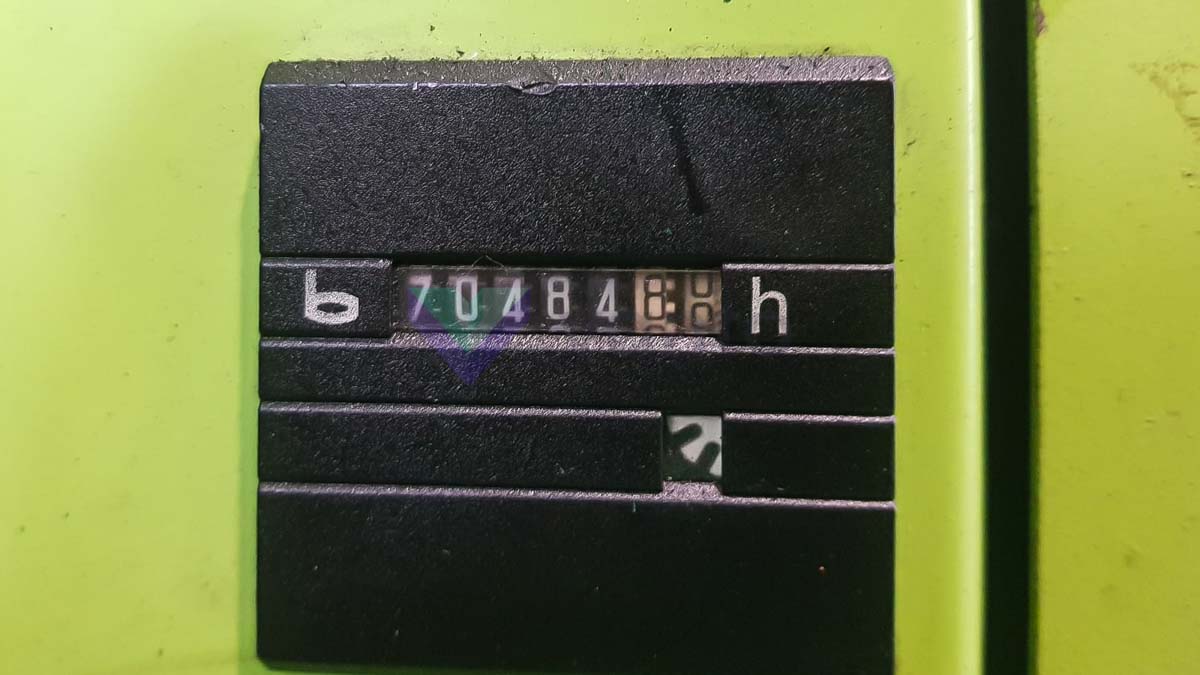

Operating hours	70.484

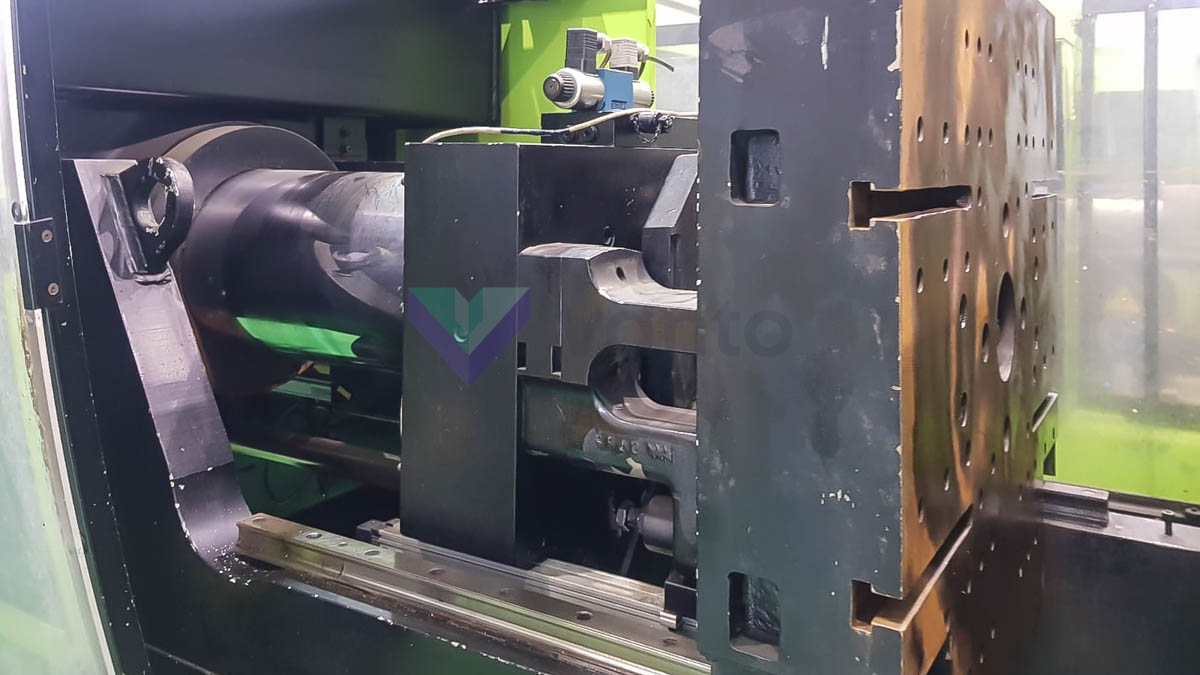

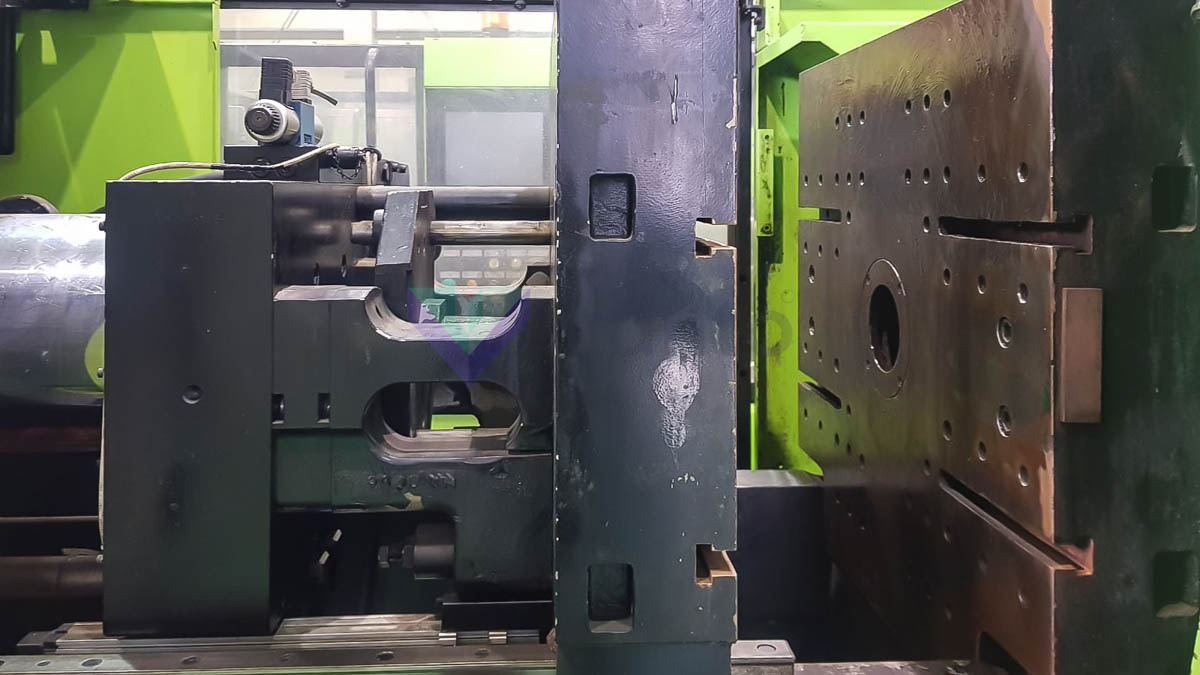

Platen size (h x v)	740 x 470 mm
Power: installed max	25 kW

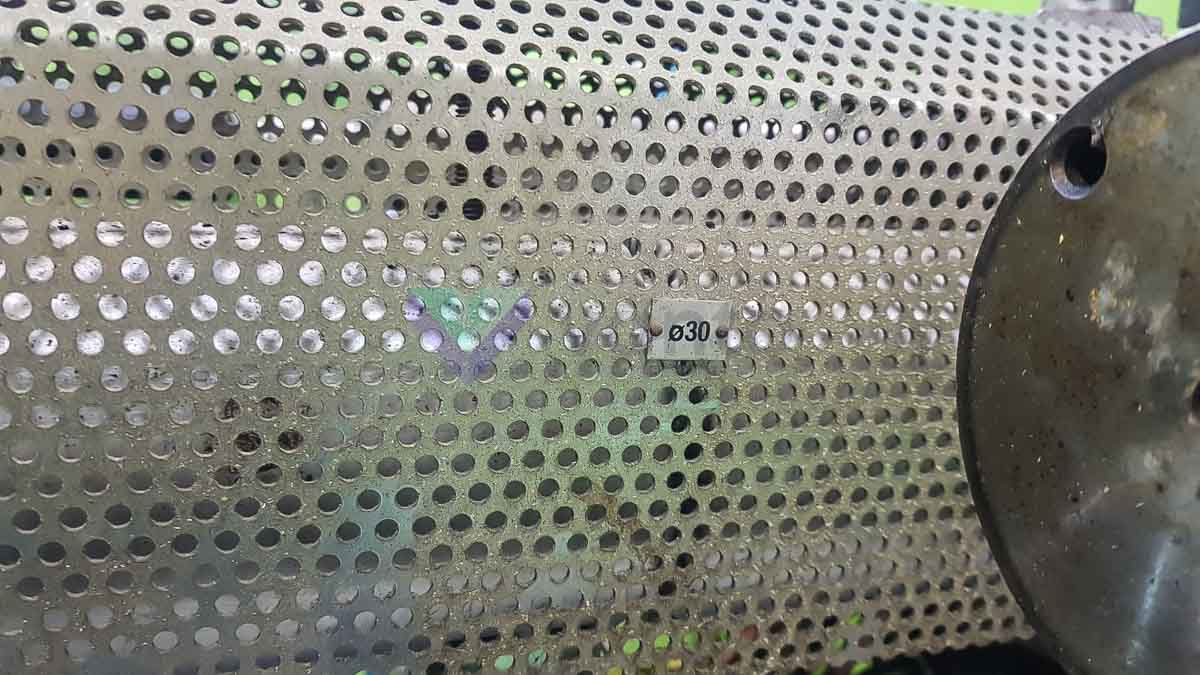

Screw diameter	30 mm
Screw speed	400 rpm
Shot weight max	104 g
Weight	7.300 kg
