ENGEL

VICTORY VC 200 / 50 TECH PRO

50t injection molding machine

Category	10 to 99t Injection moulding machines
Condition	Used
Year	2012
Availability	Sold
ID	10109

Clamping force

0kN

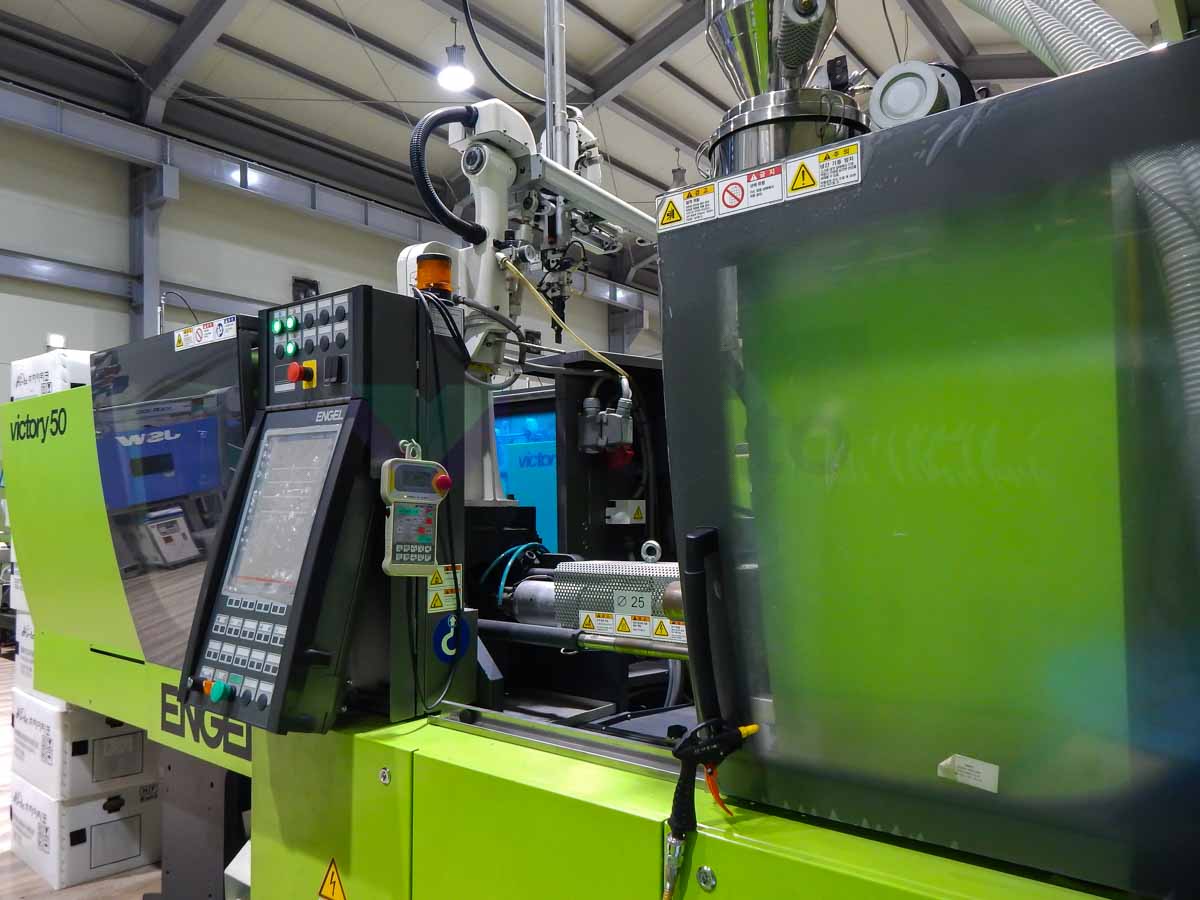

Includes ROBOT + auxiliary items

Clamping force	500 kN

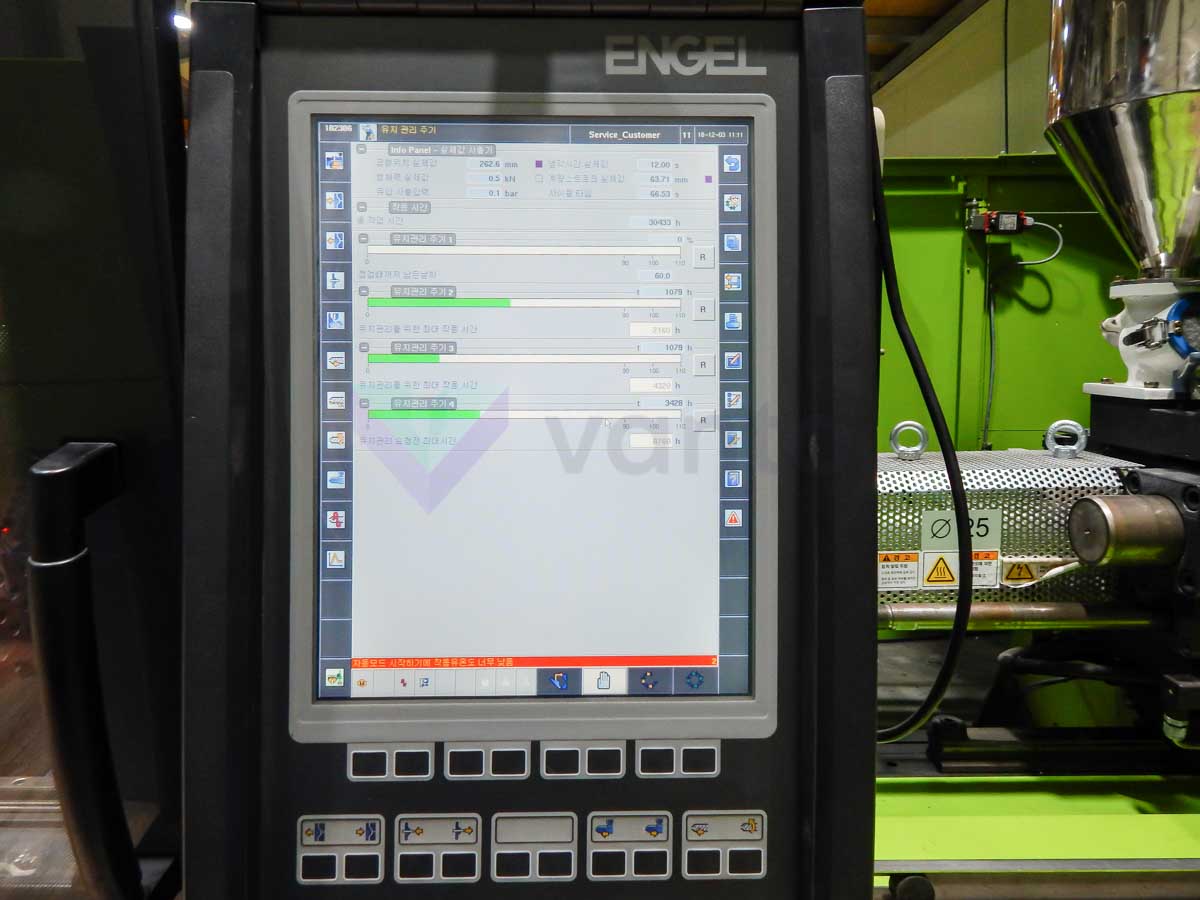

Control	CC200
Core pullers	NO
Daylight between platens max	600 mm
Ejector force	40 kN
Injection pressure	2.400 bar
Injection rate	104 cm³/s
Injection volume	69 cm³
Mould height max	200 mm
Mould opening stroke max	400 mm
Nozzle stroke / force max.	28 mm / kN
Nozzle stroke max	230 mm
Oil tank capacity	135 l
Operating hours	25.002
Platen size h	500 mm
Platen size v	450 mm

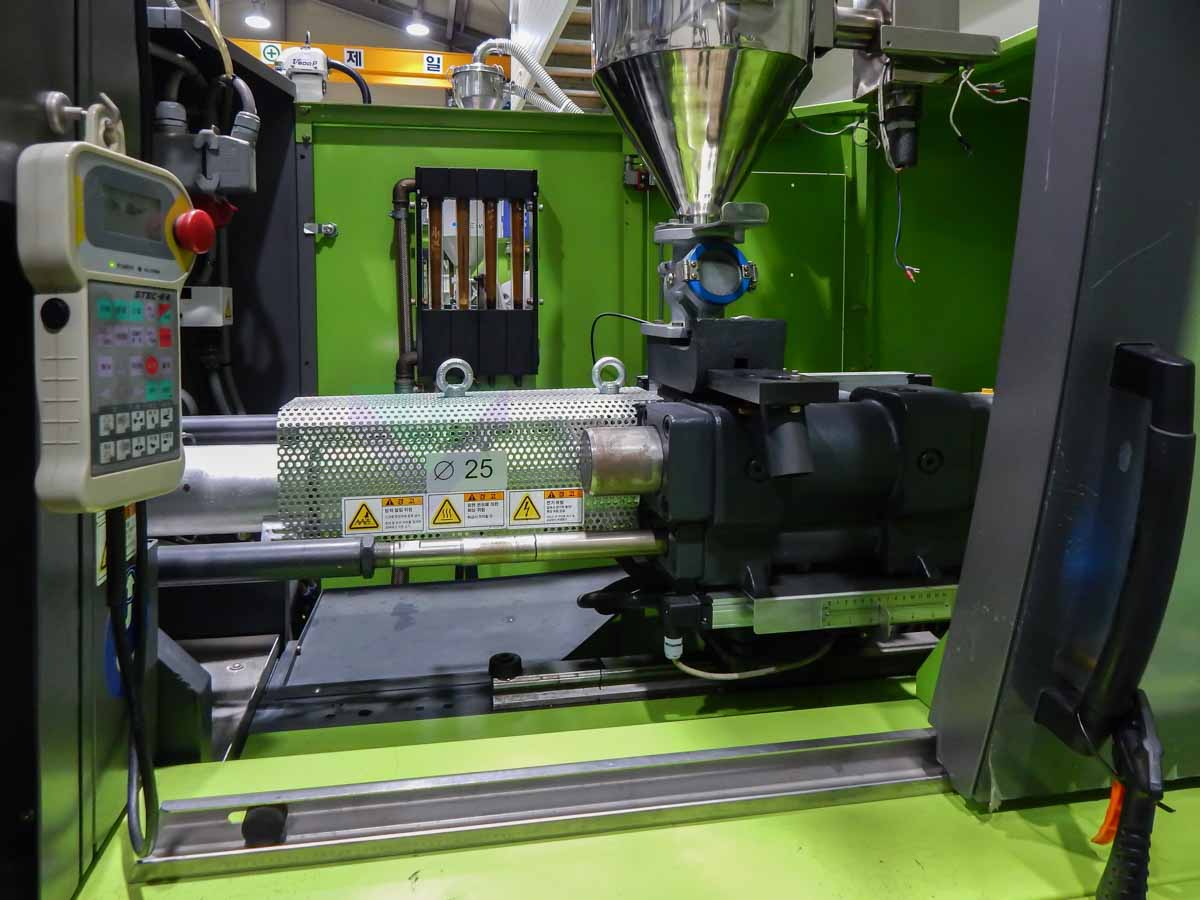

Screw diameter	25 mm
Screw L/D ratio	24,8
Screw speed	480 rpm
