ENGEL

VICTORY VC 200 / 50 TECH PRO

50t injection molding machine

Category	10 to 99t Injection moulding machines
Condition	Used
Year	2007
Availability	Sold
ID	10330

Clamping force

0kN

Clamping force	500 kN

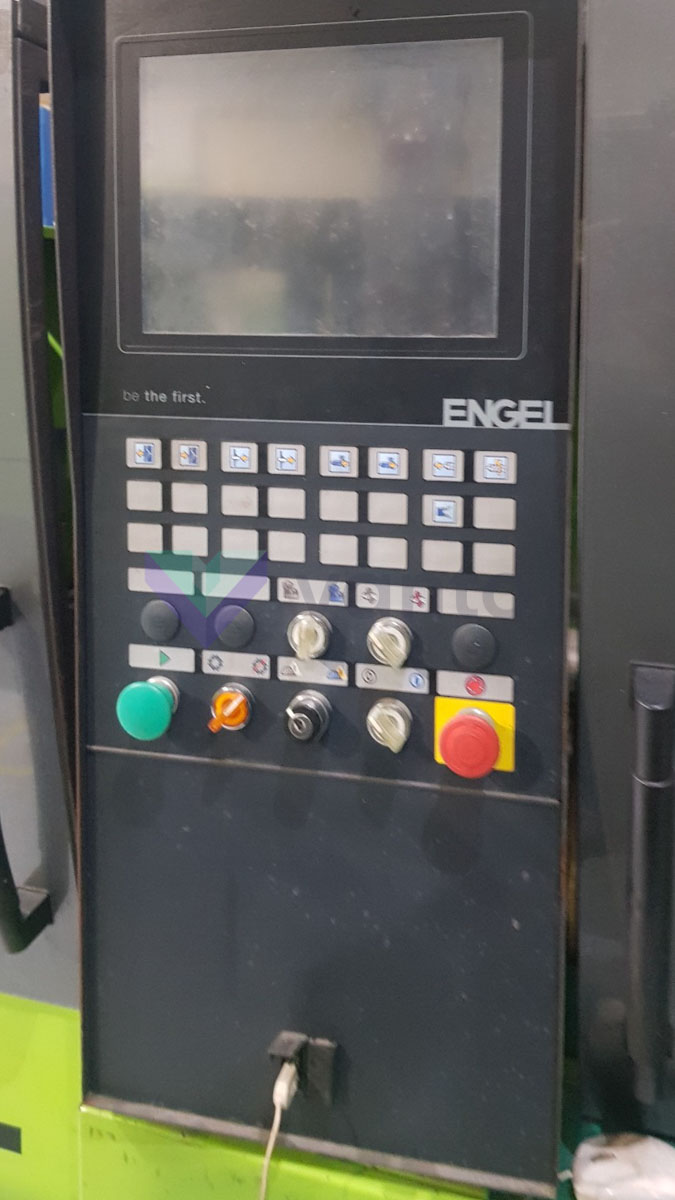

Control	CC200
Daylight between platens max	600 mm
Ejector force	40 kN
Injection pressure	1.620 bar
Injection rate	172 cm³/s
Injection volume	135 cm³
Mould height max	200 mm
Mould opening stroke max	400 mm
Nozzle stroke / force max.	28 mm / kN
Nozzle stroke max	200 mm
Oil tank capacity	135 l
Operating hours	25.000
Platen size h	500 mm
Platen size v	450 mm
Screw diameter	35 mm
Screw L/D ratio	17,3
Screw speed	480 rpm
Shot weight max	124 g

No videos available

There are no available documents
