Sold

ENGEL

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

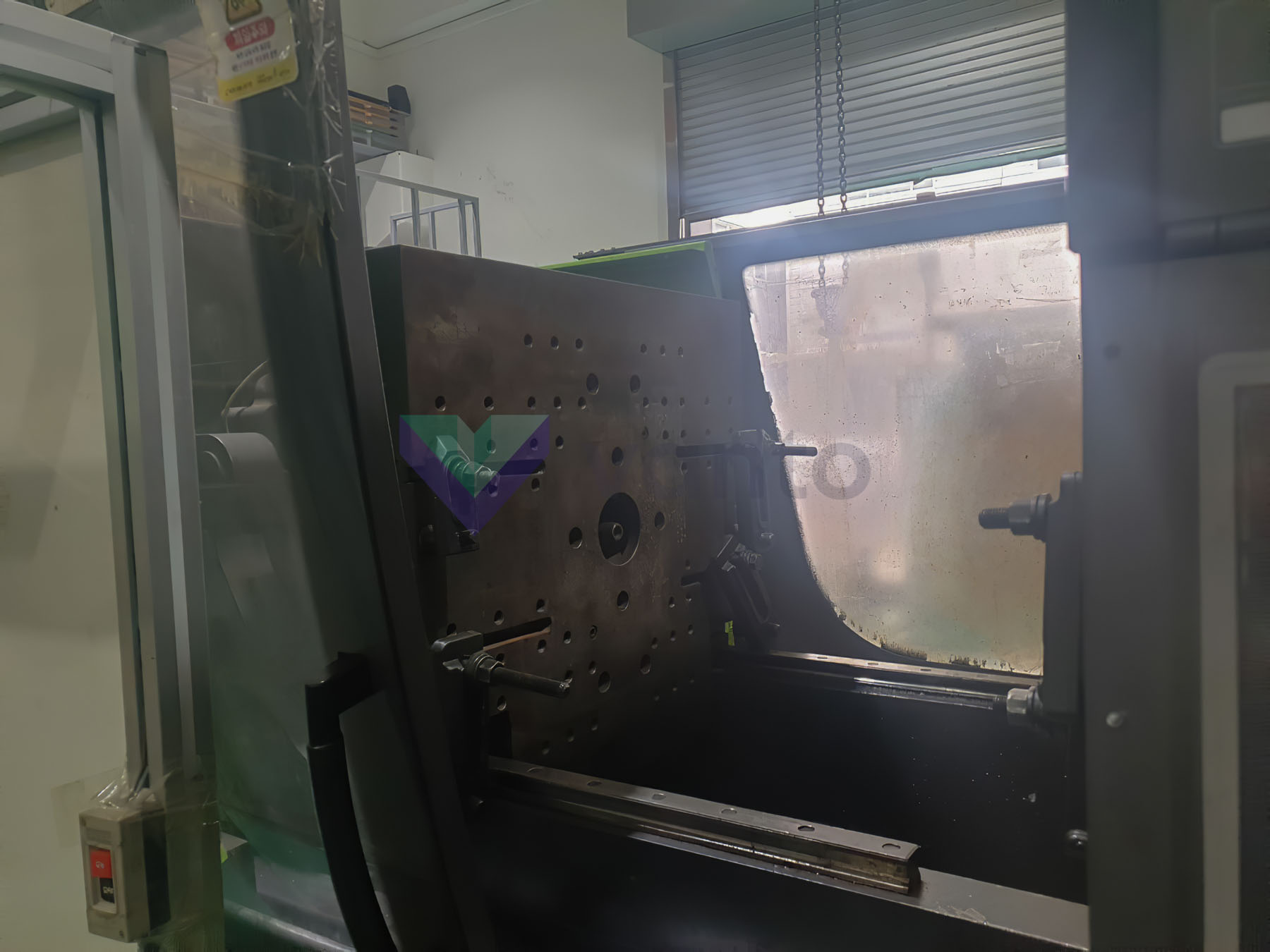

VICTORY VC 200 / 120 TECH PRO

120t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2009
Availability	Sold
ID	10380

- Double pump for high speed injection: 1.000 mm/sec
- Including, Hopper / Loader / Dryer / Mould heater y YUDO Robot EX-800sv

Clamping force	1.200 kN

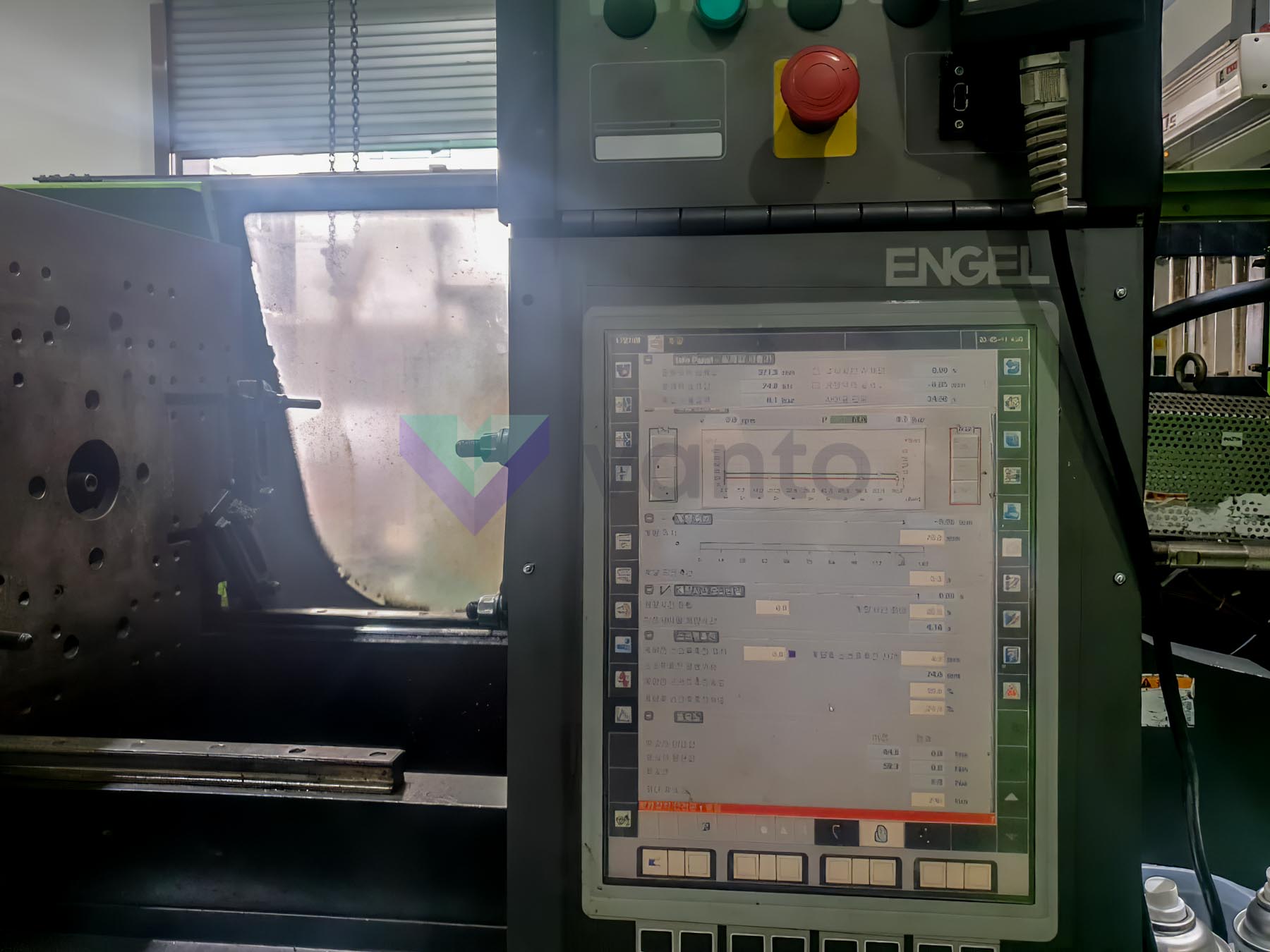

Control	CC200
Daylight between platens max	800 mm
Dimensions (long x wide x high)	4.400 x 1.500 x 2.000 mm
Ejector stroke / force max.	130 / 40 mm / kN
Injection pressure	2.400 bar
Injection rate	104 cm³/s
Injection volume	69 cm³
Mold opening force	38 kN
Mould height min	300 mm
Mould opening stroke max	500 mm
Nozzle stroke / force max.	200 / 28 mm / kN
Oil tank capacity	300 l
Platen size (h x v)	740 x 470 mm
Power: installed max	22 kW
Screw diameter	25 mm
Screw L/D ratio	24,8
Screw speed	550 rpm
Shot weight max	63 g
Weight	7.200 kg
