ENGEL

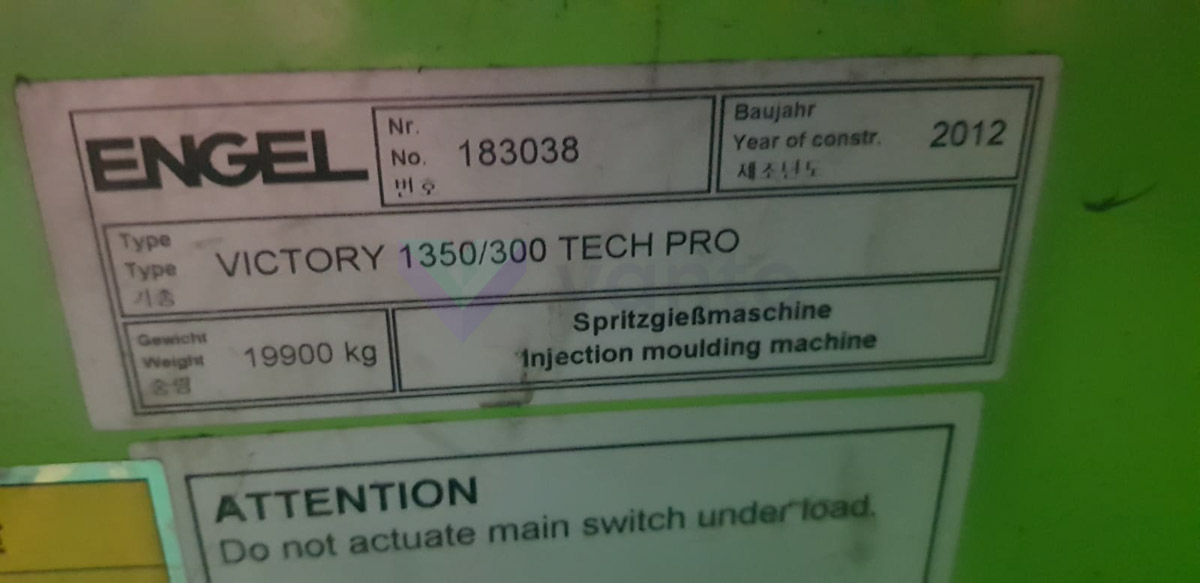

VICTORY VC 1350 / 300 TECH PRO

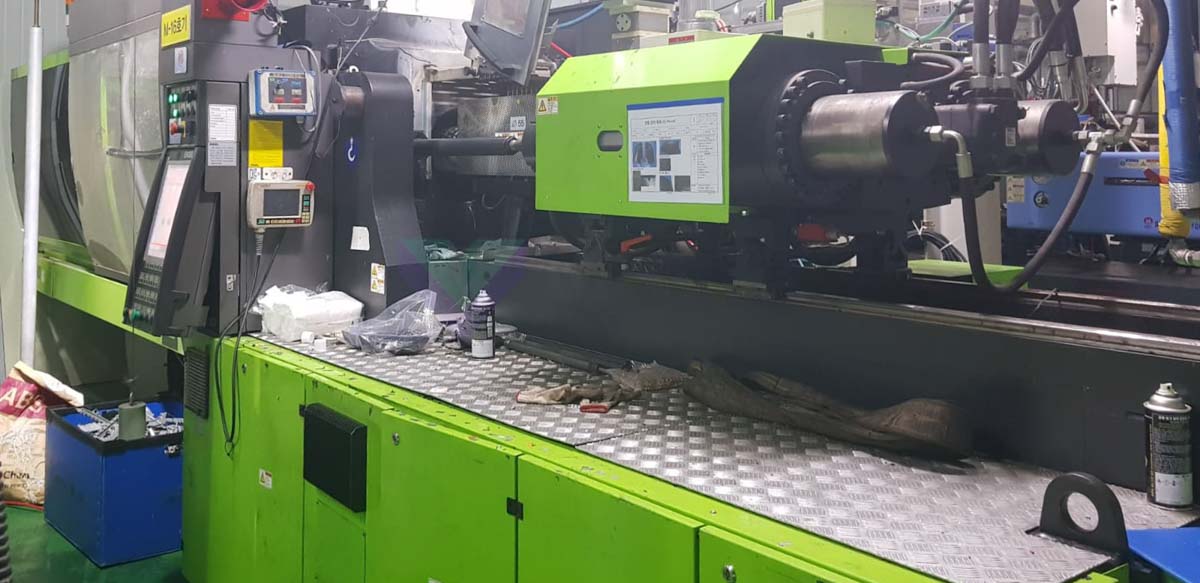

300t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2012
Availability	Sold
ID	10127

Clamping force

0kN

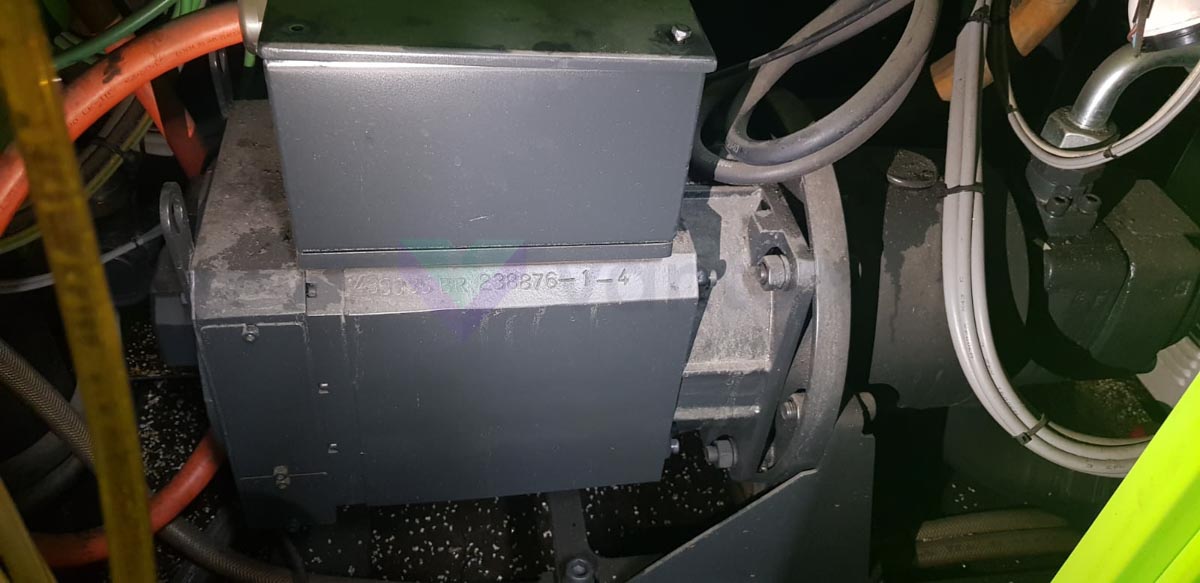

Servo motor ECO Drive

Clamping force	3.000 kN
Daylight between platens max	1.300 mm
Ejector force	90 kN
Injection pressure	2.180 bar
Injection rate	295 cm³/s
Injection volume	617 cm³
Mould height min	400 mm
Mould opening stroke max	900 mm
Oil tank capacity	870 l
Operating hours	37.423
Platen size h	1.100 mm
Platen size v	700 mm
Screw diameter	55 mm
Screw L/D ratio	20
Screw speed	226 rpm
Shot weight max	568 g

No videos available

There are no available documents
