VC VICTORY 5160/260 TECH

260t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2019
Availability	Sold
ID	10496

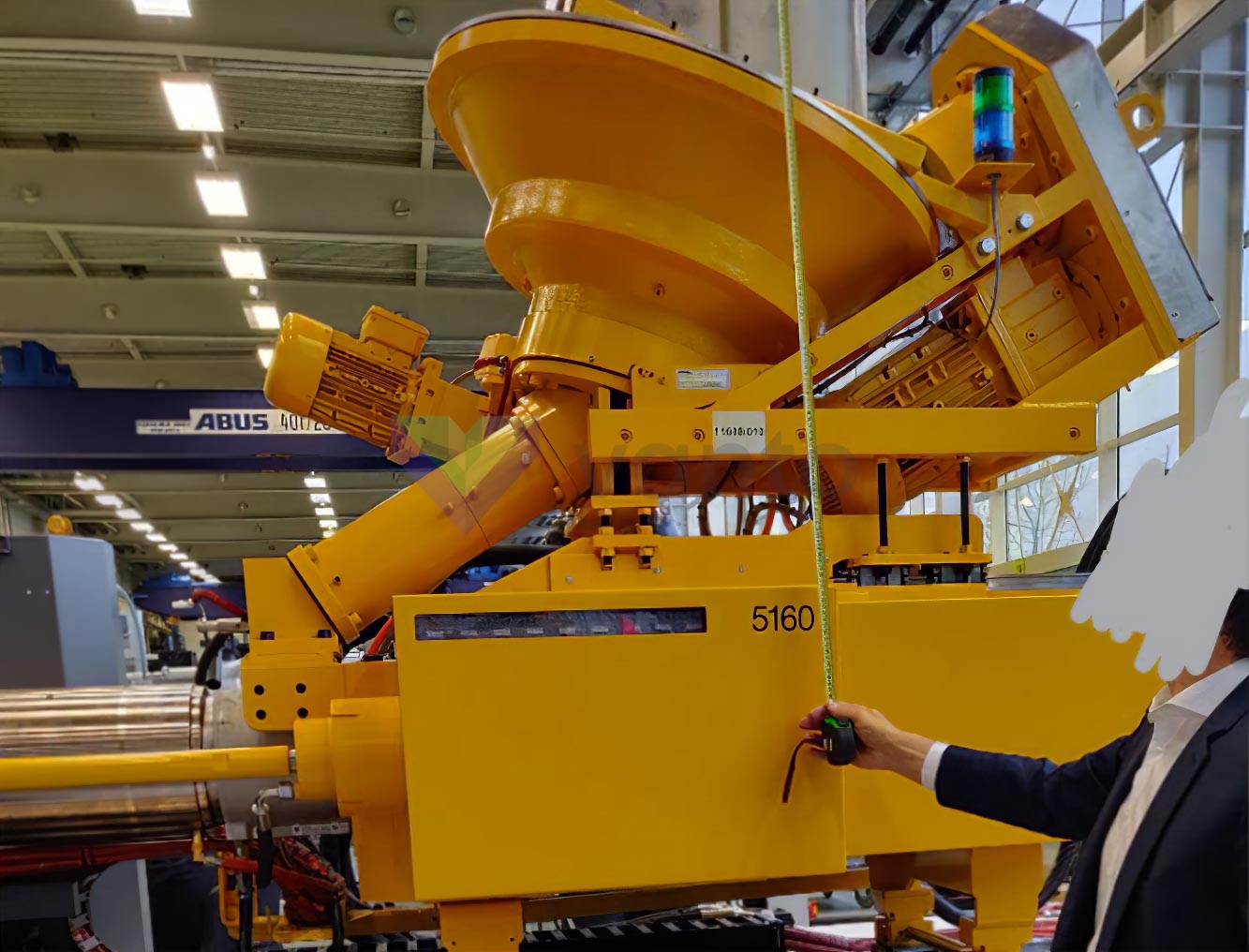

Duromer Injection Unit (it is possible to change to standard Injection Unit).

Including:
- Mould injection pressure monitoring

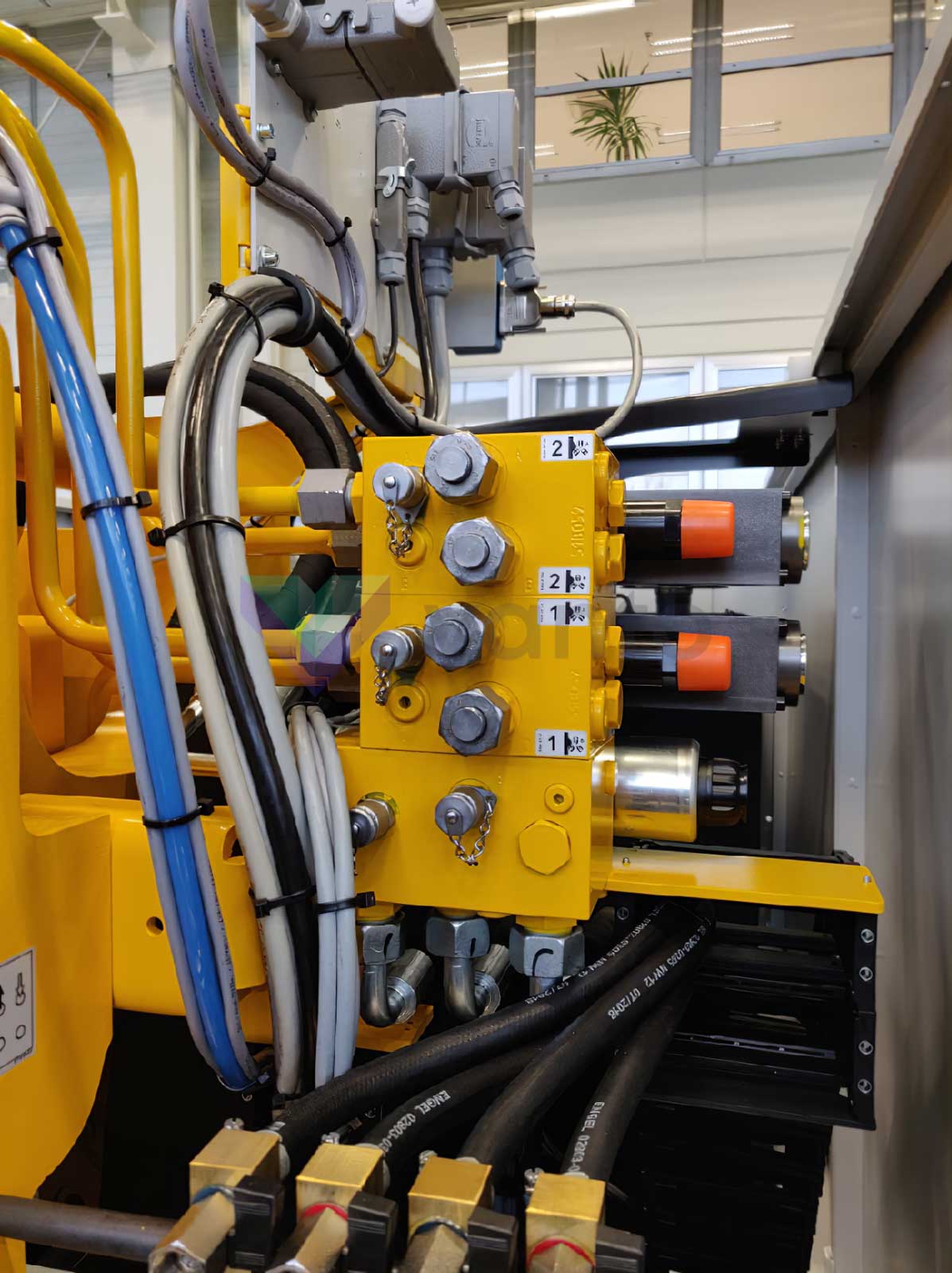

- Hydraulic and pneumatic core pullers
- Eñectric Mould heating
- Interface for temperature control units
- INtegrated cacuum pump
- Roto feeder for BMC feeding

Clamping force	2.600 kN
Control	CC300
Core pulls	yes
Daylight between platens max	1.700 mm
Distance between tie-bars (h x v)	n/a mm
Ejector stroke / force max.	700 / 150 mm / kN
Injection pressure	1.163 / 1.469 bar
Injection rate	1.022 cm³/s
Injection volume	3.550 cm³
Mould height min	800 mm
Operating hours	10

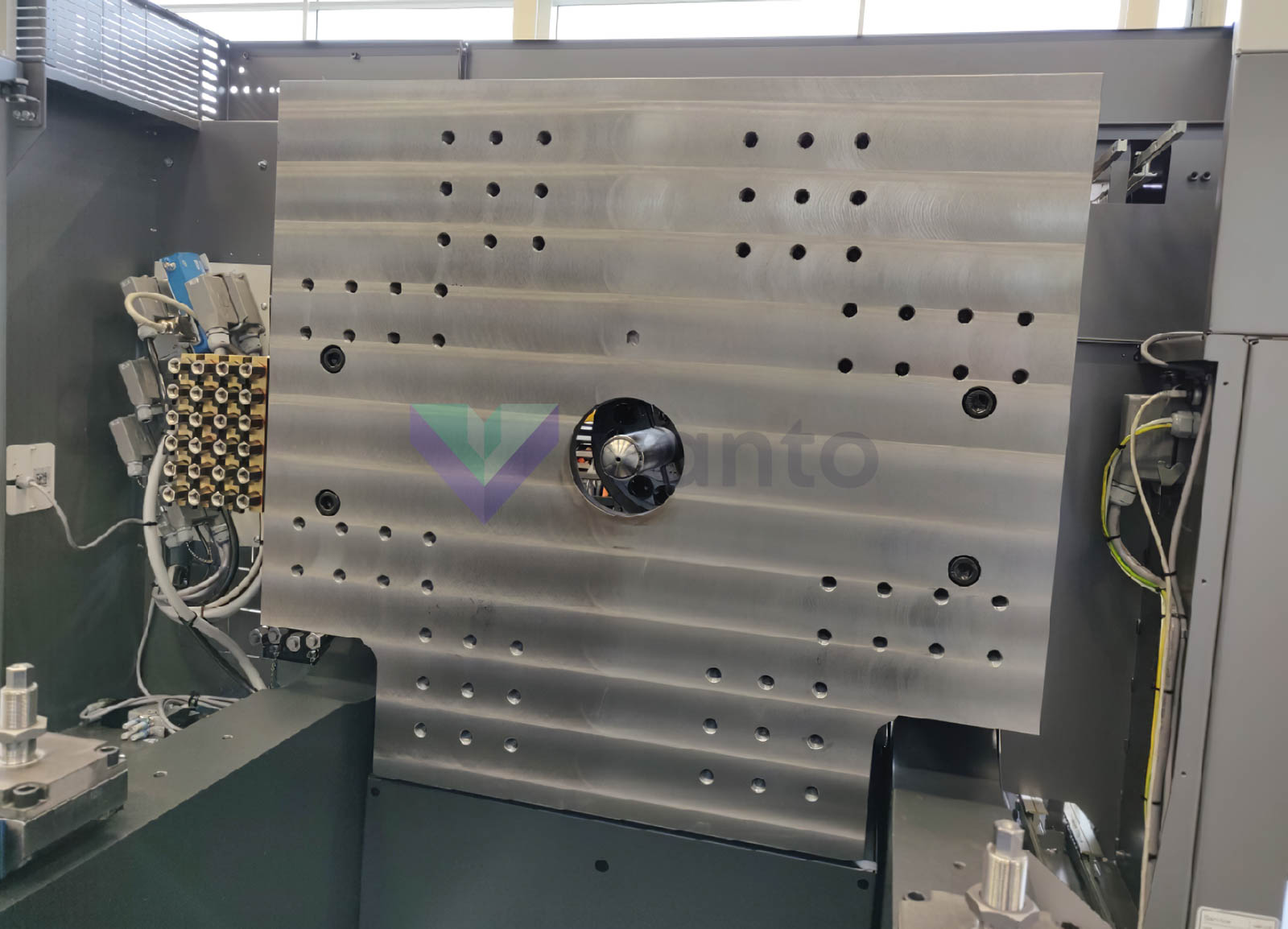

Platen size (h x v)	1.100 x 1.000 mm
Screw diameter	105 mm
Screw speed	110 rpm
