ENGEL

VC VICTORY 330 / 140 TECH PRO

140t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2019
Availability	Available
ID	11202

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Clamping force	1.600 kN

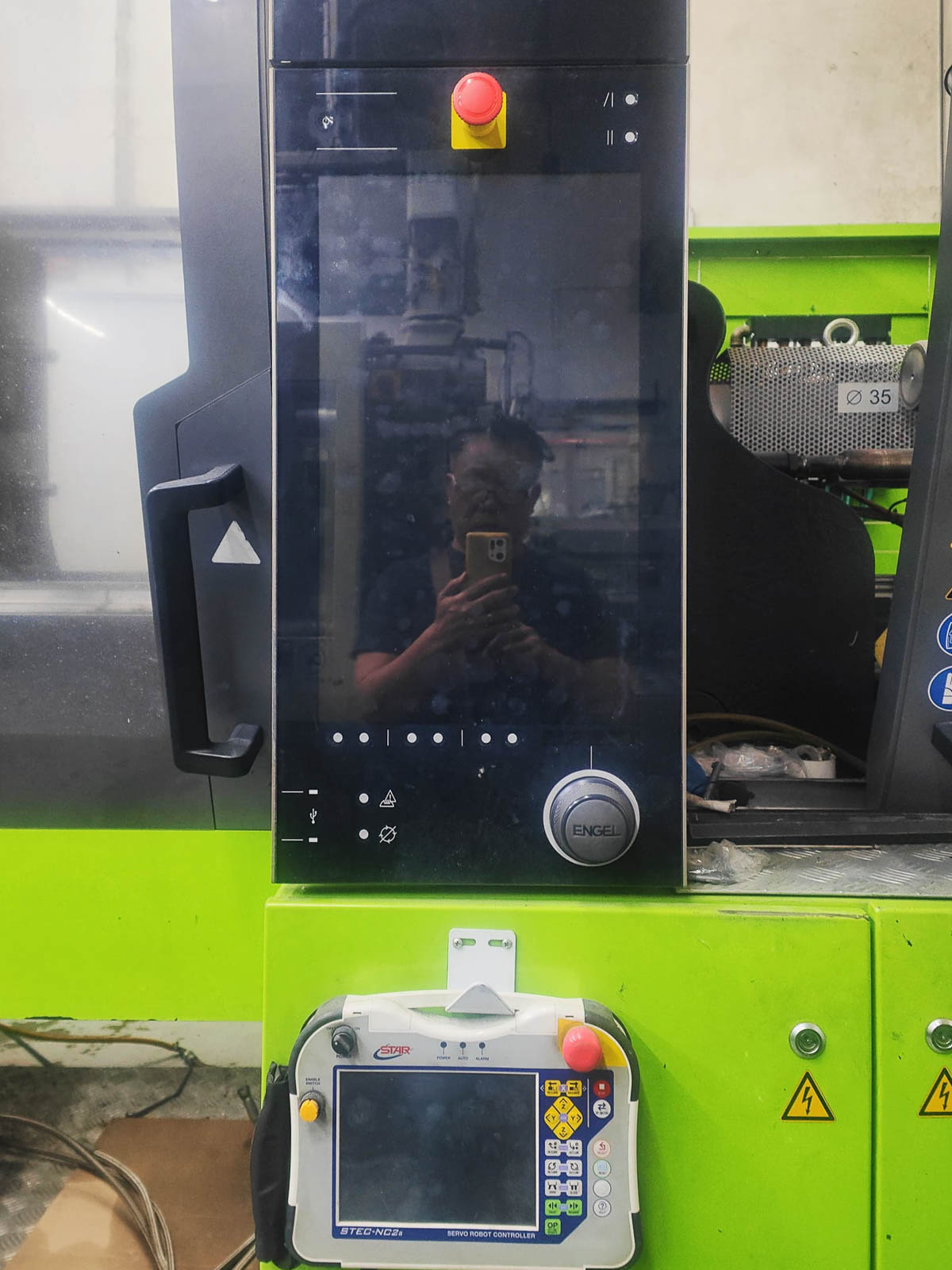

Control	CC200
Daylight between platens max	900 mm
Dimensions (long x wide x high)	5.500 x 1.700 x 2.400 mm
Ejector force	61 kN
Injection pressure	1.600 / 2.175 bar
Injection rate	151 cm³/s
Injection volume	154 cm³
Mould height max	300 mm
Mould height min	300 mm
Mould opening stroke max	600 mm
Nozzle stroke / force max.	250 / 47 mm / kN
Nozzle stroke max	160 mm
Oil tank capacity	460 l

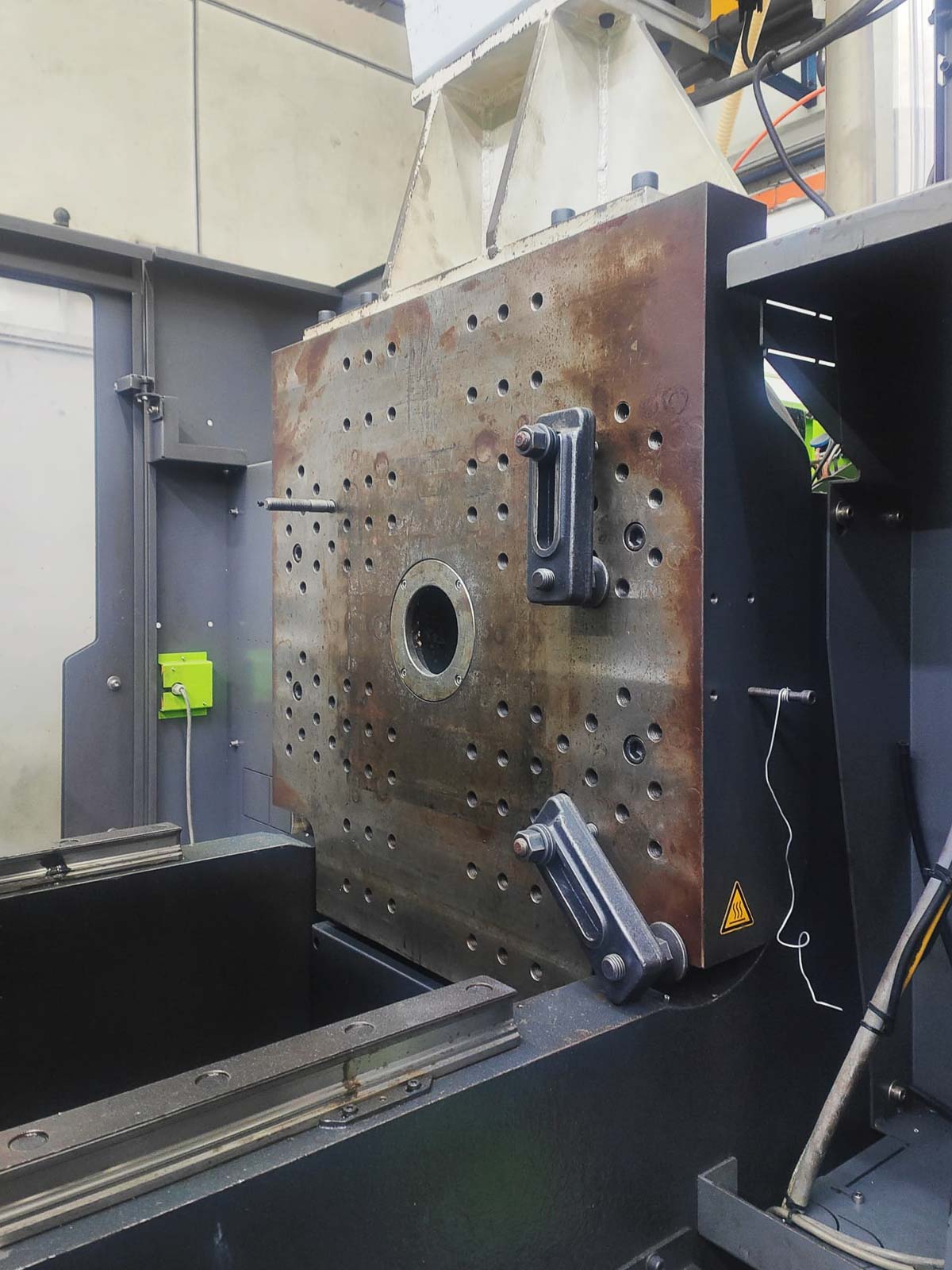

Platen size (h x v)	750 x 750 mm
Power: installed max	30 kW

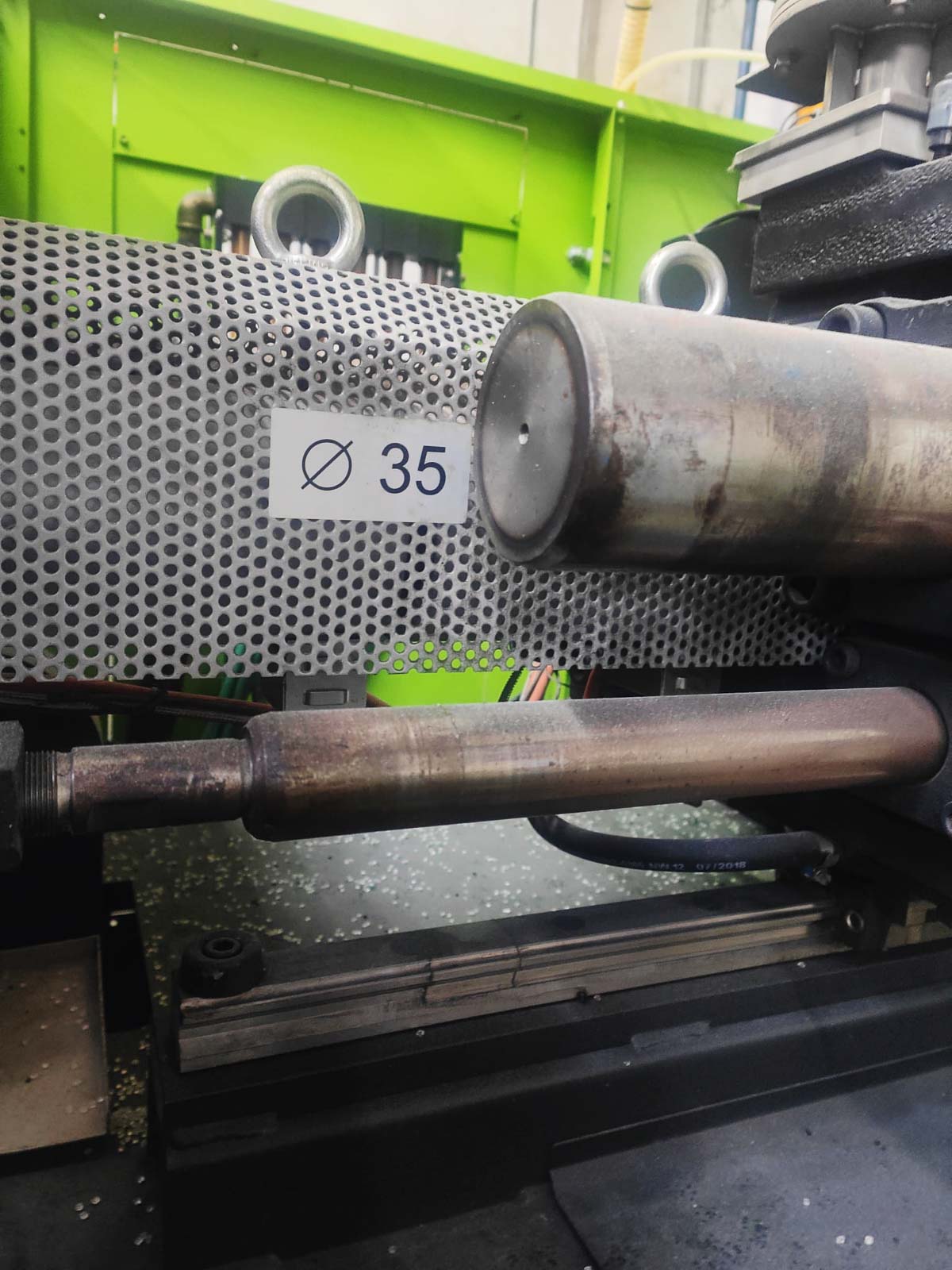

Screw diameter	35 mm
Screw L/D ratio	23,6
Screw speed	400 rpm
Shot weight max	104 g
Weight	9.500 kg
