ENGEL

ES 80 / 45 HL-Pro Series

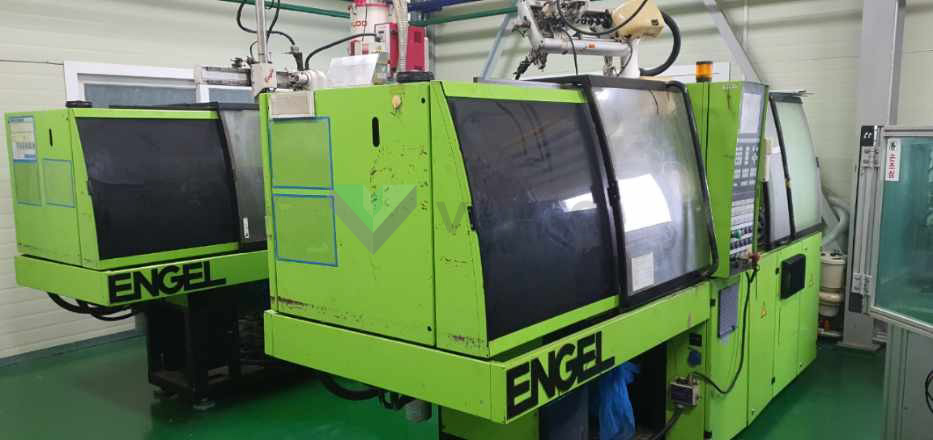

45t injection molding machine

Category 10 to 99t Injection moulding machines
Condition Used
Year 2003
Availability Sold
ID 10351
Sold
Clamping force

0kN

Clamping force450 kN
ControlCC100
Daylight between platens max530 mm
Dimensions (long x wide x high)3.300 x 1.200 x 1.800 mm
Distance between tie-bars (h x v)n/a mm
Ejector stroke / force max.400/40 mm / kN
Heating zones2
Injection pressure1.230 bar
Injection rate100 cm³/s
Injection volume49 cm³
Mold opening force16 kN
Mould height min180 mm
Mould opening stroke max350 mm
Nozzle stroke / force max.200/28 mm / kN
Oil tank capacity115 l
Operating hours10.000
Platen size (h x v)550 x 330 mm
Power: installed max7,5 kW
Screw diameter25 mm
Screw L/D ratio16,4
Screw speed360 rpm
Shot weight max45 g
Weight2.900 kg
