ENGEL

ES 2550 / 420 K

420t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2000
Availability	Sold
ID	10406

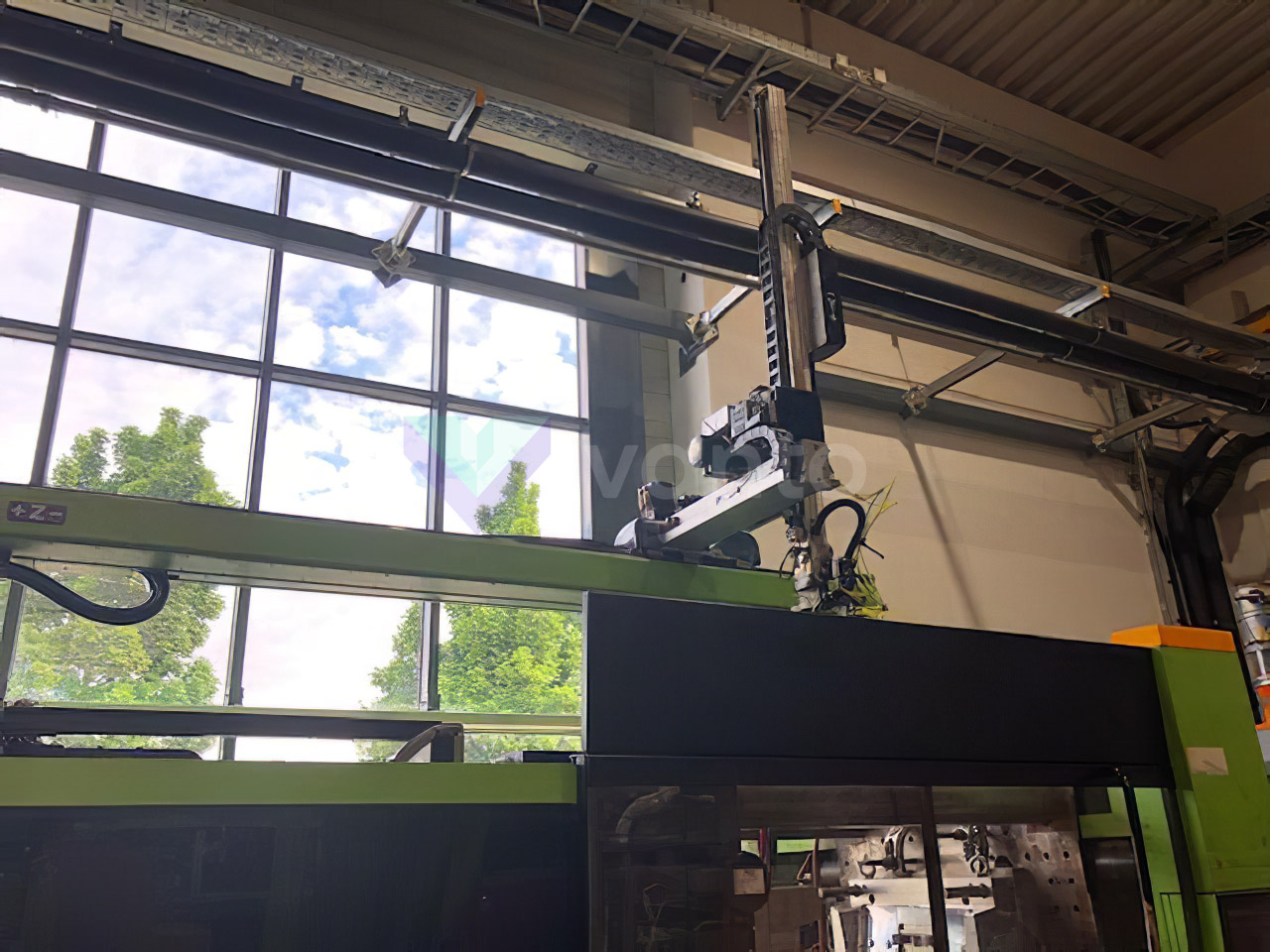

Robot ERC43 / 3-E (2001)

Air Valves	0
Cascades / Sequential valve gates	0

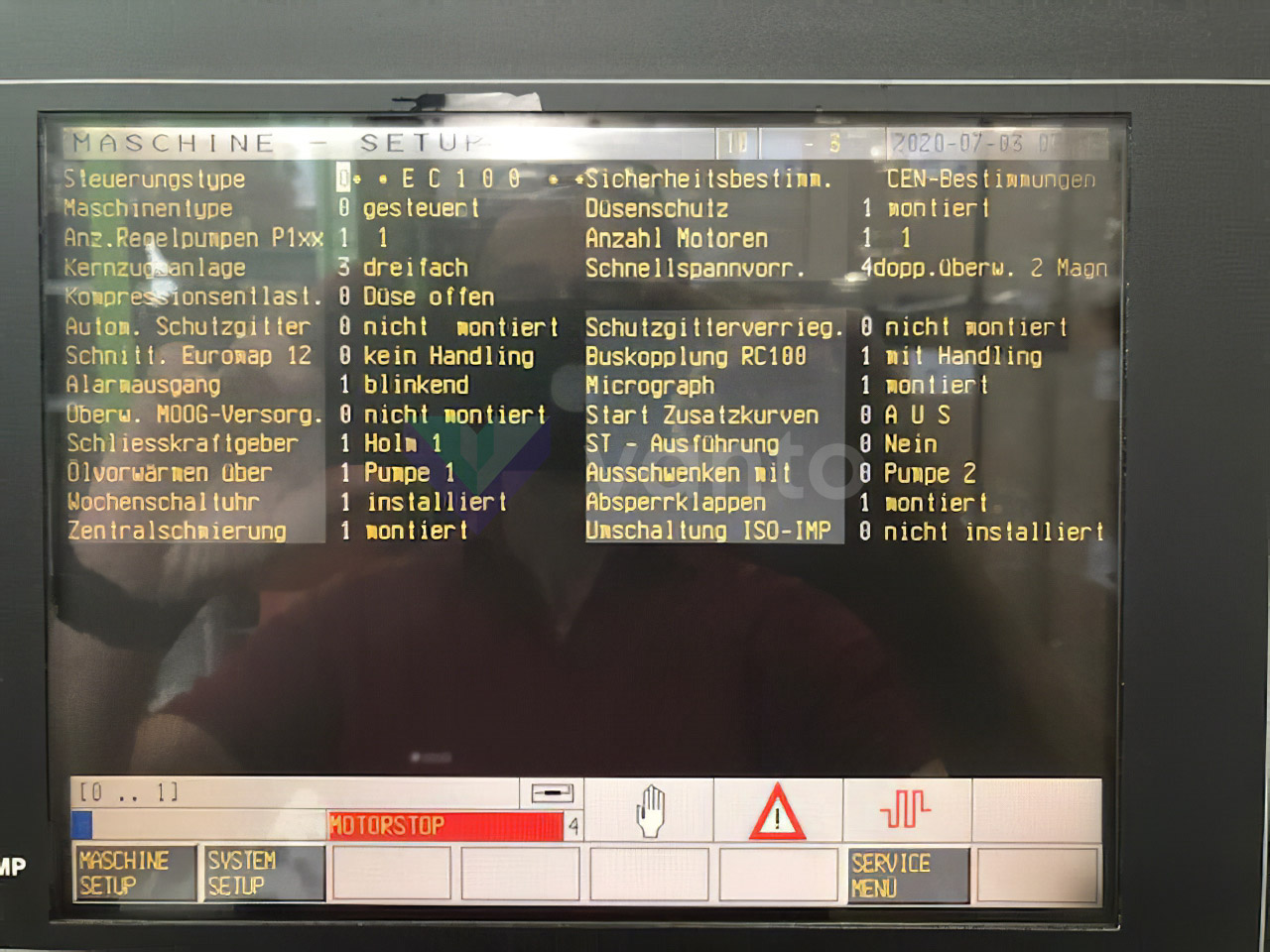

Control	CC100
Daylight between platens max	1.360 mm
Dimensions (long x wide x high)	0 mm
Distance between tie-bars (h x v)	735 x 735 mm
Heating zones	0
Injection pressure	1.820 bar
Injection rate	366 cm³/s
Injection volume	1.193 cm³
Mould height max	660 mm
Mould height min	250 mm
Nozzle stroke / force max.	500 / 110 mm / kN
Oil tank capacity	700 l
Platen size (h x v)	1.080 x 1.080 mm

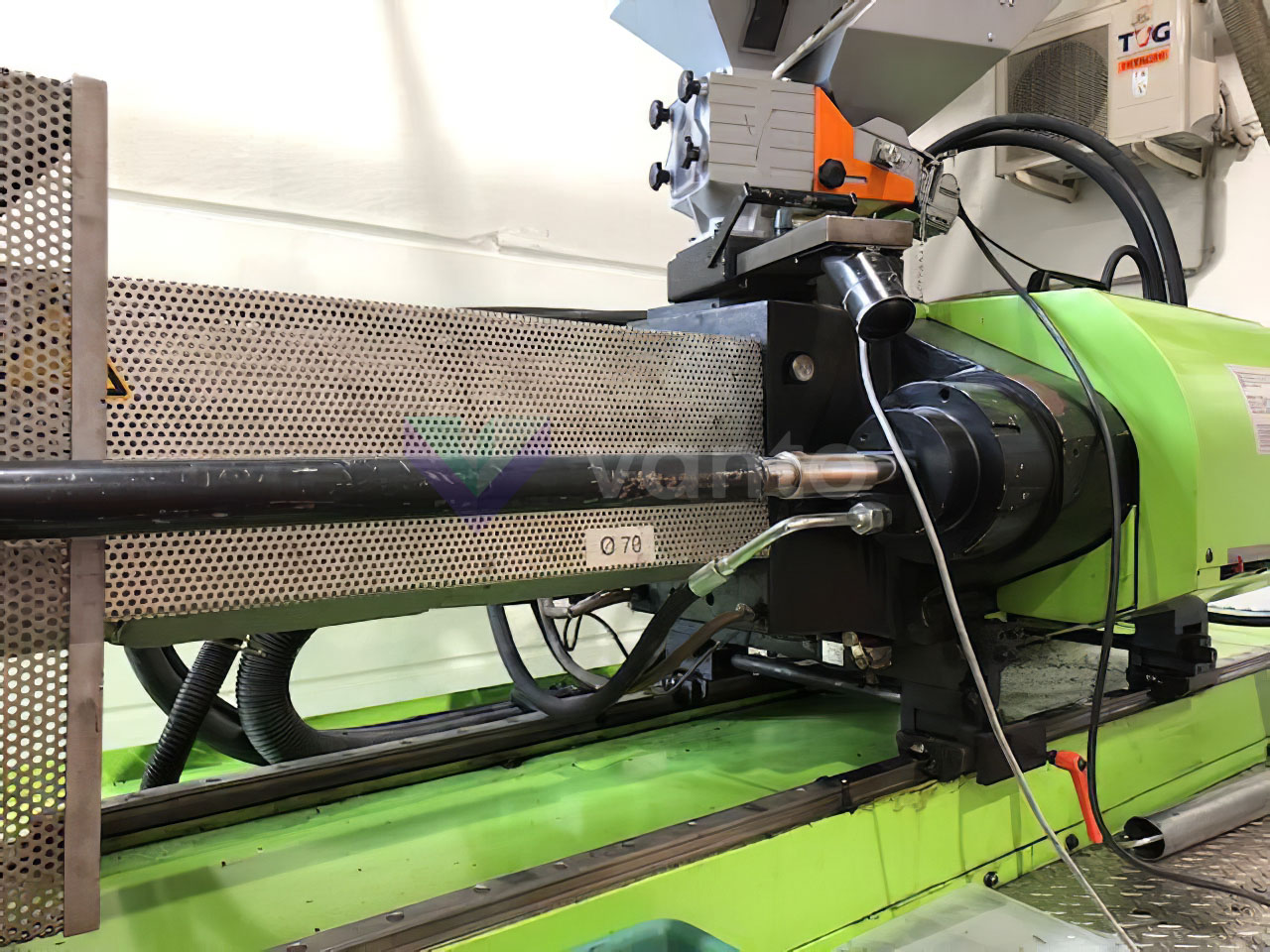

Screw diameter	70 mm
Screw L/D ratio	20
Screw speed	183 rpm
Weight	0 kg

No videos available

There are no available documents
