ENGEL

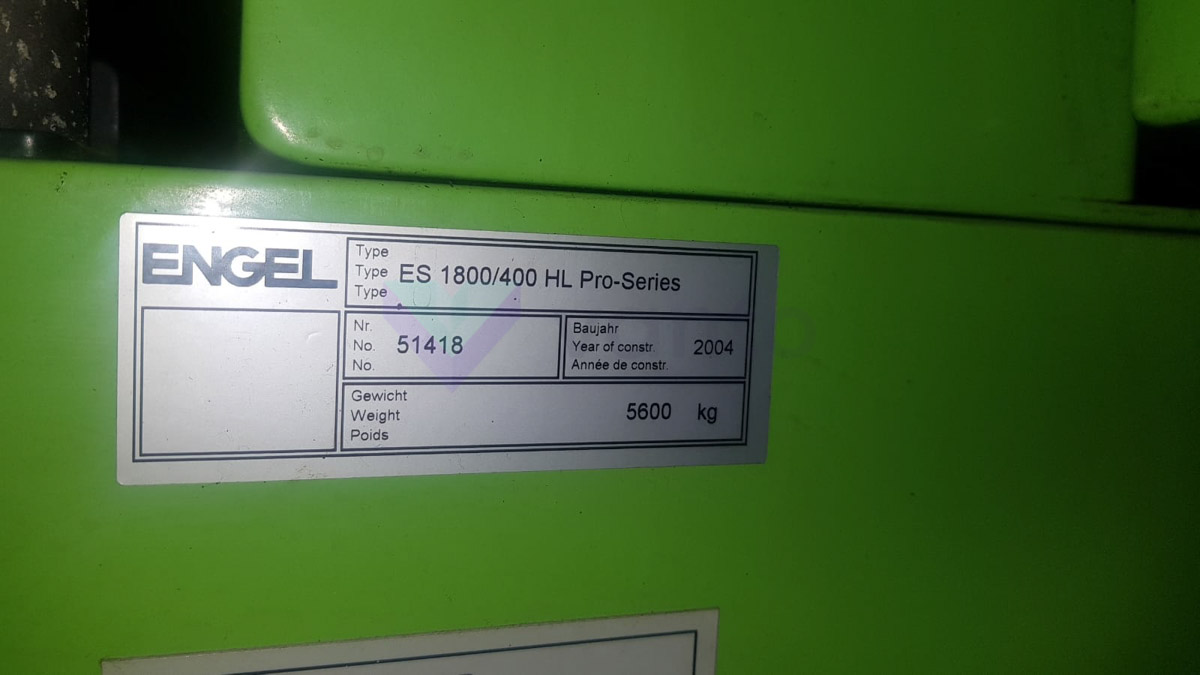

ES 1800 / 400 HL PRO SERIES

400t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2004
Availability	Sold
ID	10130

Clamping force

0kN

Clamping force	4.000 kN
Daylight between platens max	1.300 mm
Ejector force	83 kN
Injection pressure	1.735 bar
Injection rate	386 cm³/s
Injection volume	1.039 cm³
Mould height min	350 mm
Mould opening stroke max	950 mm
Nozzle stroke / force max.	110 mm / kN
Nozzle stroke max	500 mm
Oil tank capacity	980 l

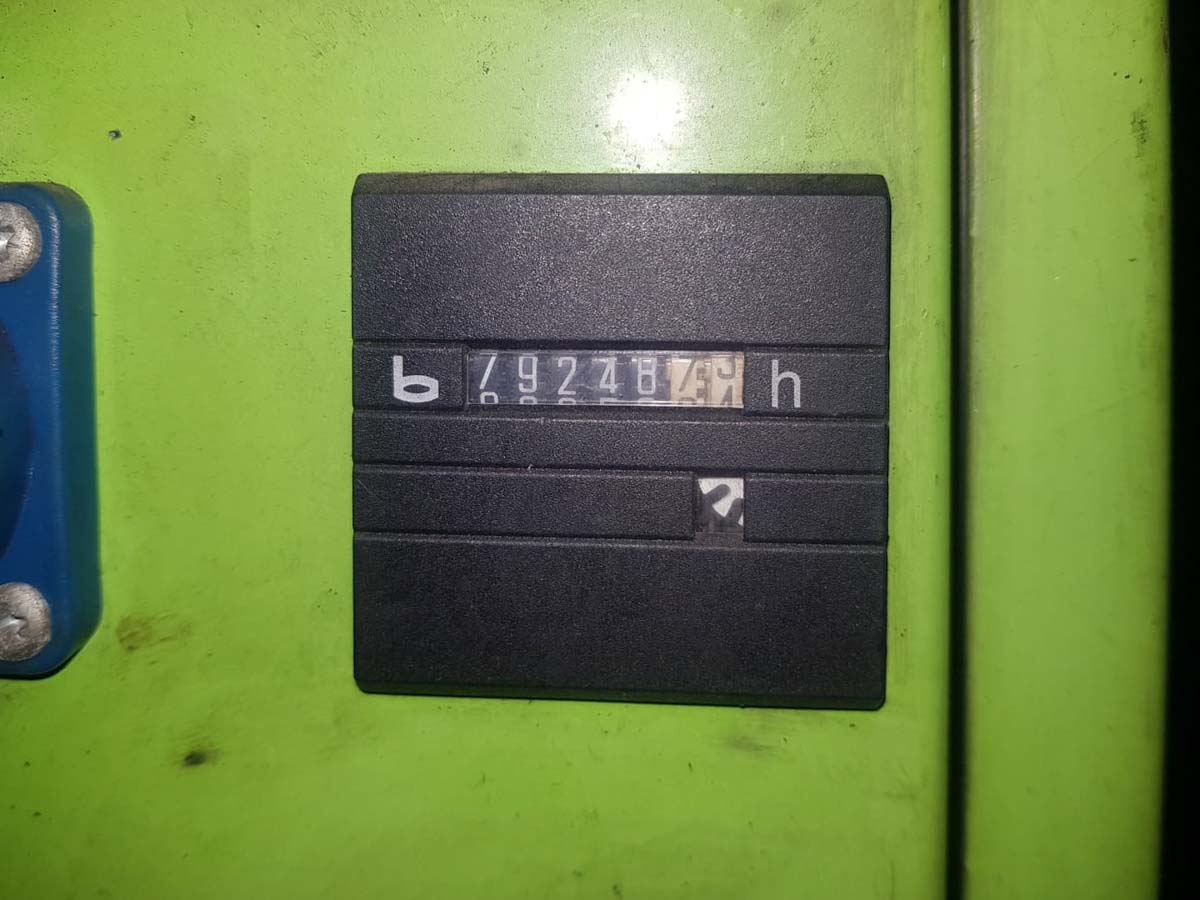

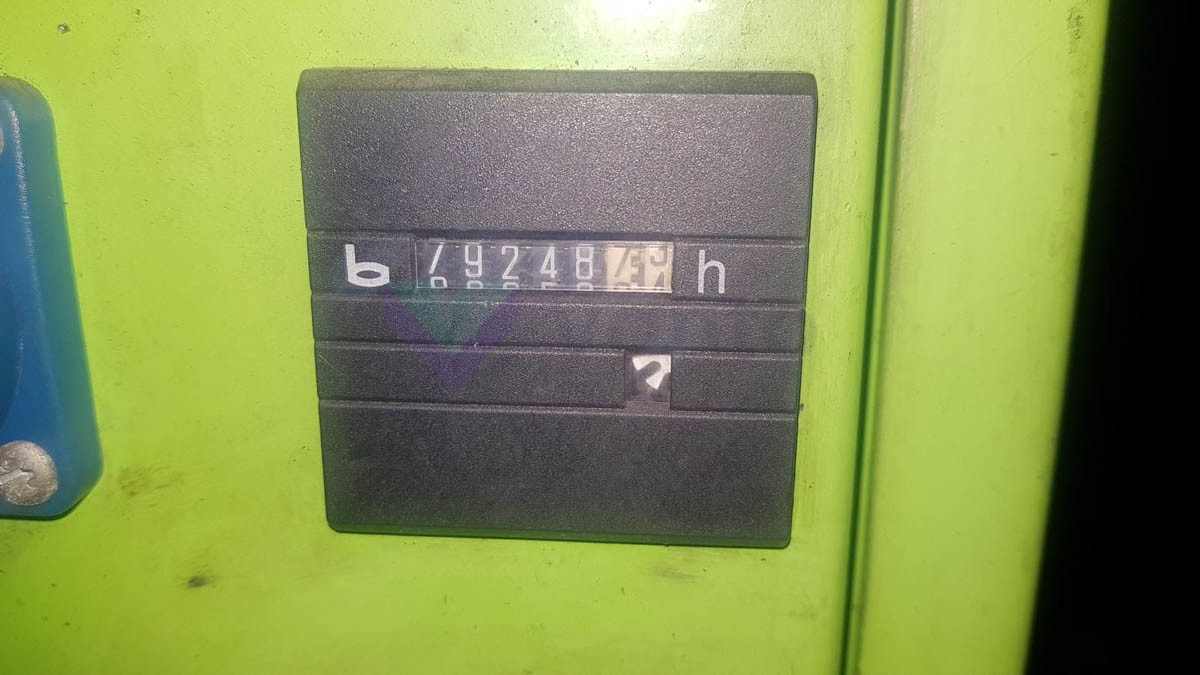

Operating hours	79.250
Platen size h	1.300 mm
Platen size v	740 mm
Screw diameter	70 mm
Screw L/D ratio	20
Screw speed	226 rpm
Shot weight max	956 g
