ENGEL

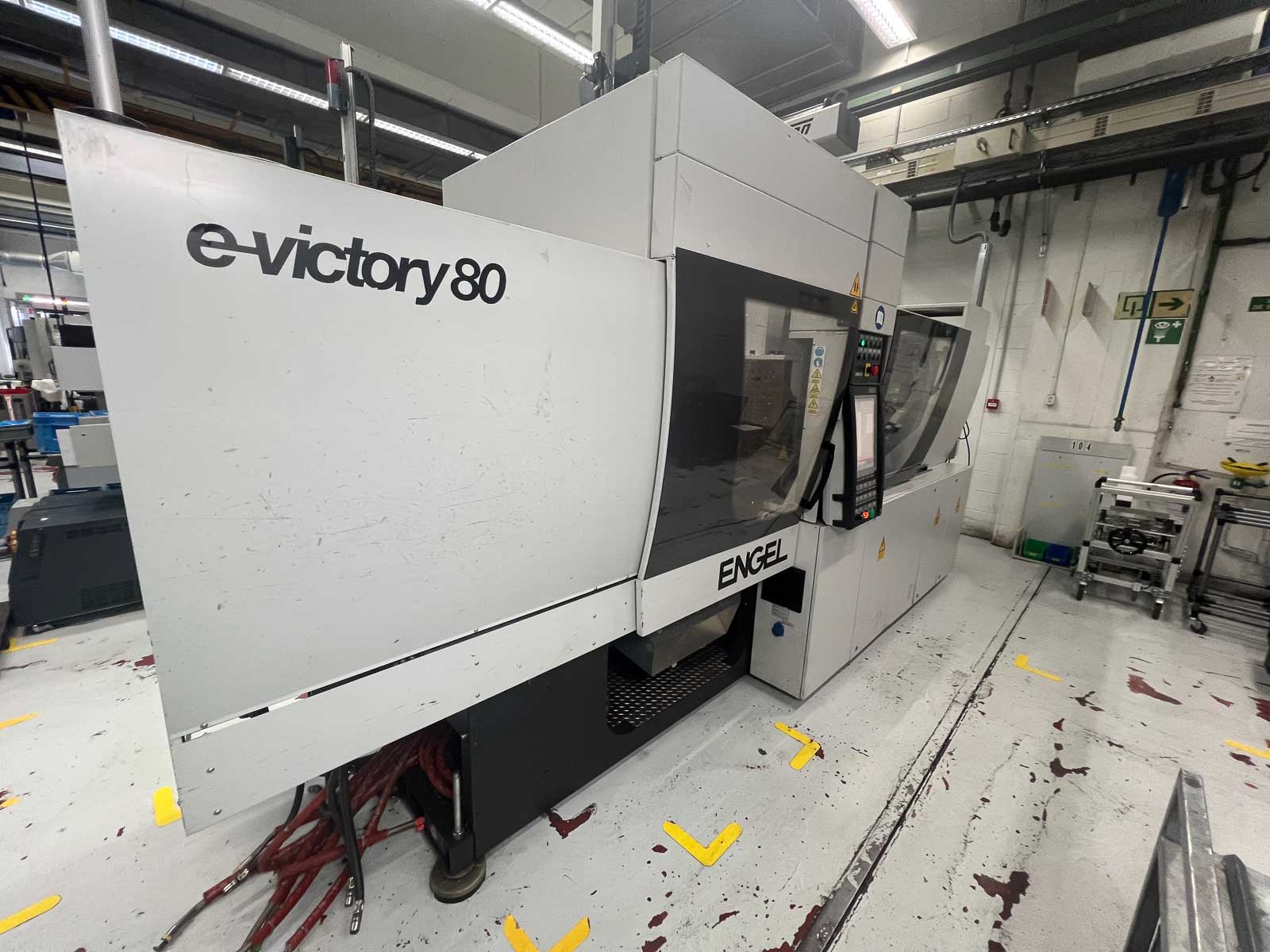

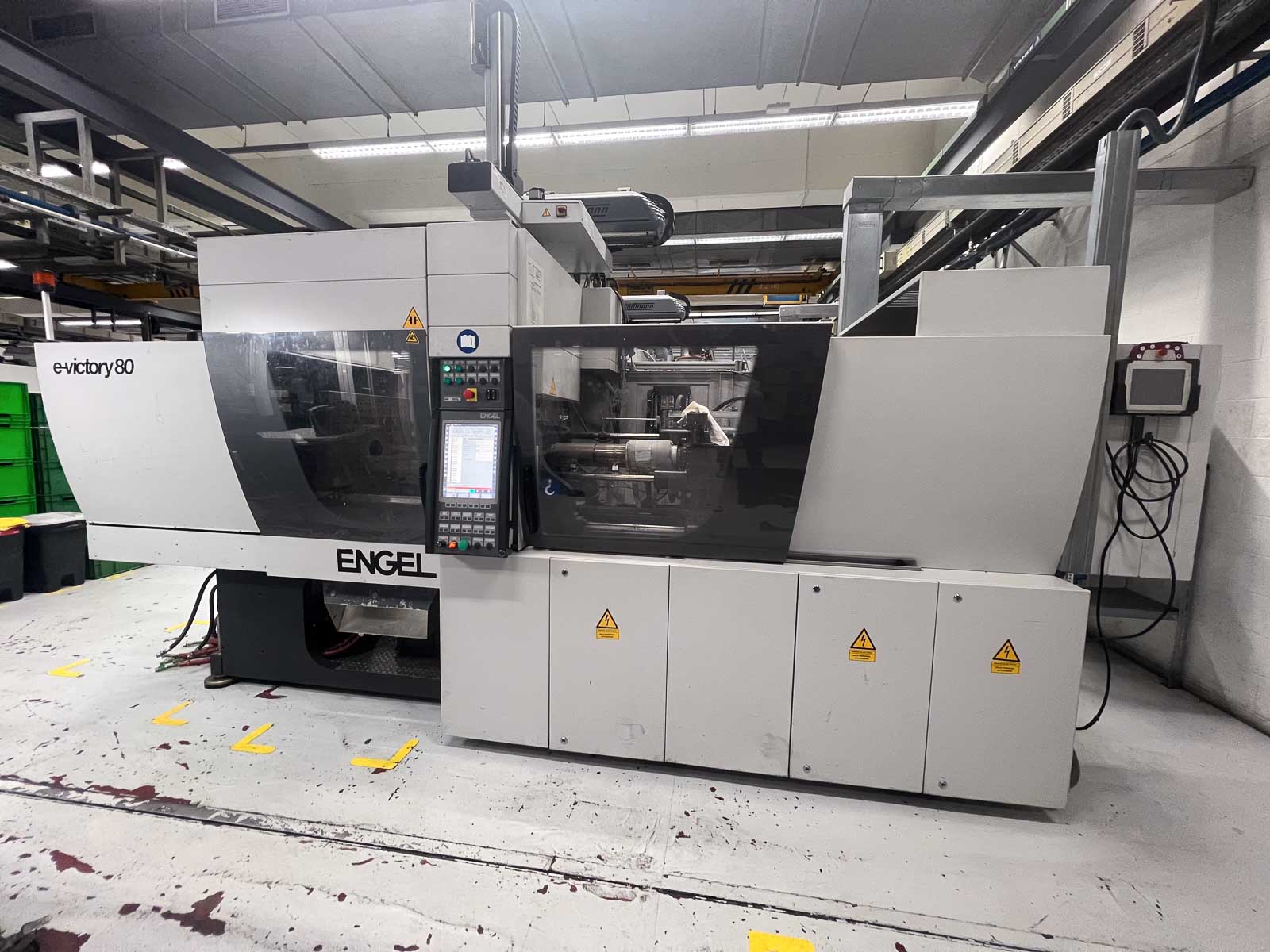

e-VICTORY VC 200 / 80

80t injection molding machine

Category	10 to 99t Injection moulding machines
Condition	Used
Year	2012
Availability	Available
ID	11238

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Clamping force

0kN

Clamping force	800 kN

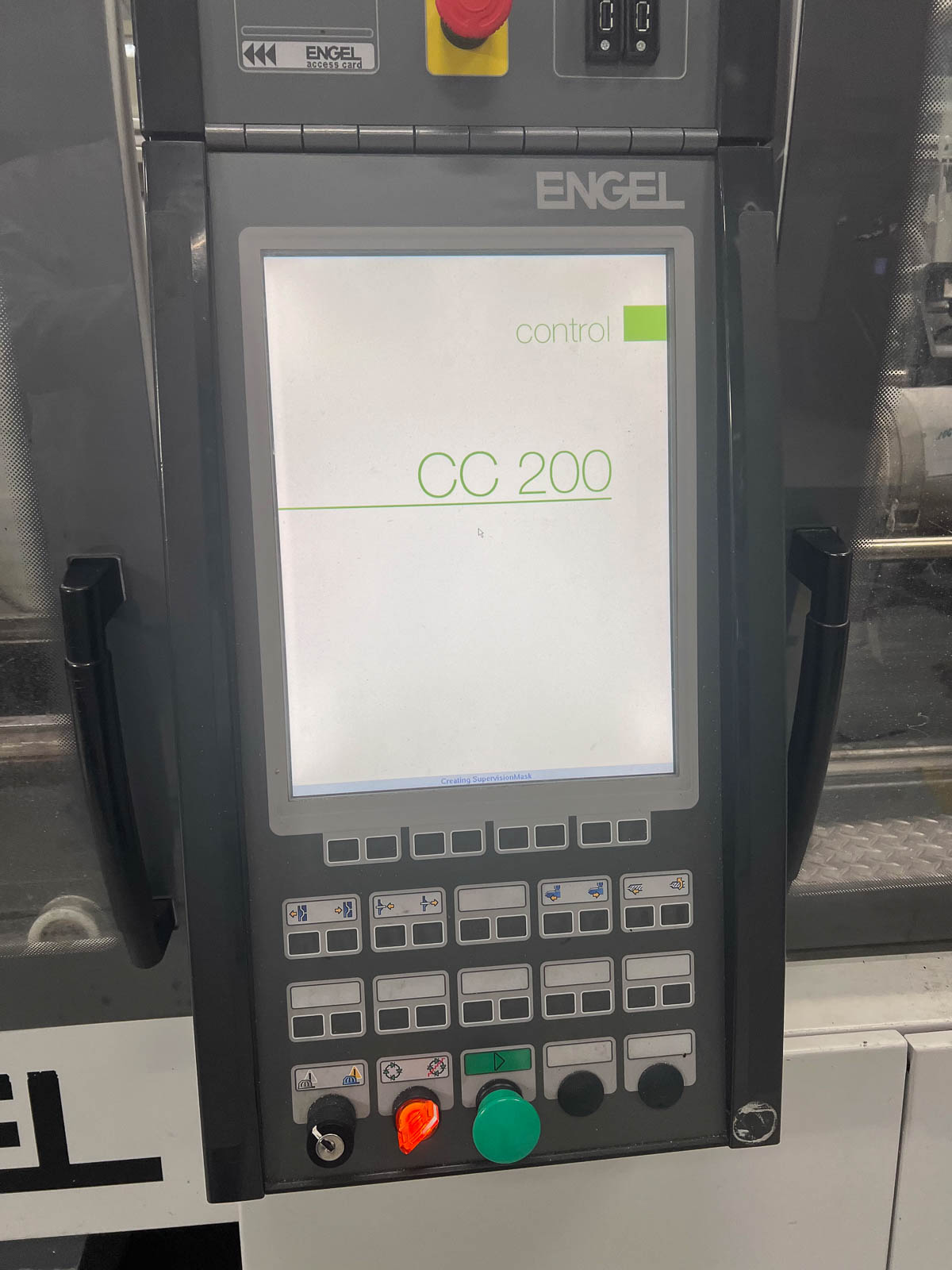

Control	CC200
Core pullers	1
Daylight between platens max	700 mm
Dimensions (long x wide x high)	4.400 x 1.400 x 2.000 mm
Ejector stroke / force max.	100 / 40 mm / kN
Heating zones	4
Injection pressure	2.400 / 2.000 bar
Injection rate	157 cm³/s
Injection volume	85 cm³
Mould height max	200 mm
Mould opening stroke max	400 mm
Nozzle stroke / force max.	250 / 40,6 mm / kN
Oil tank capacity	135 l
Operating hours	95.518
Platen size (h x v)	670 x 600 mm
Power: installed max	6,95 + 15 kW
Screw diameter	30 mm
Screw L/D ratio	24,8
Screw speed	400 rpm
Weight	5.600 kg

There are no available documents
