ENGEL

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

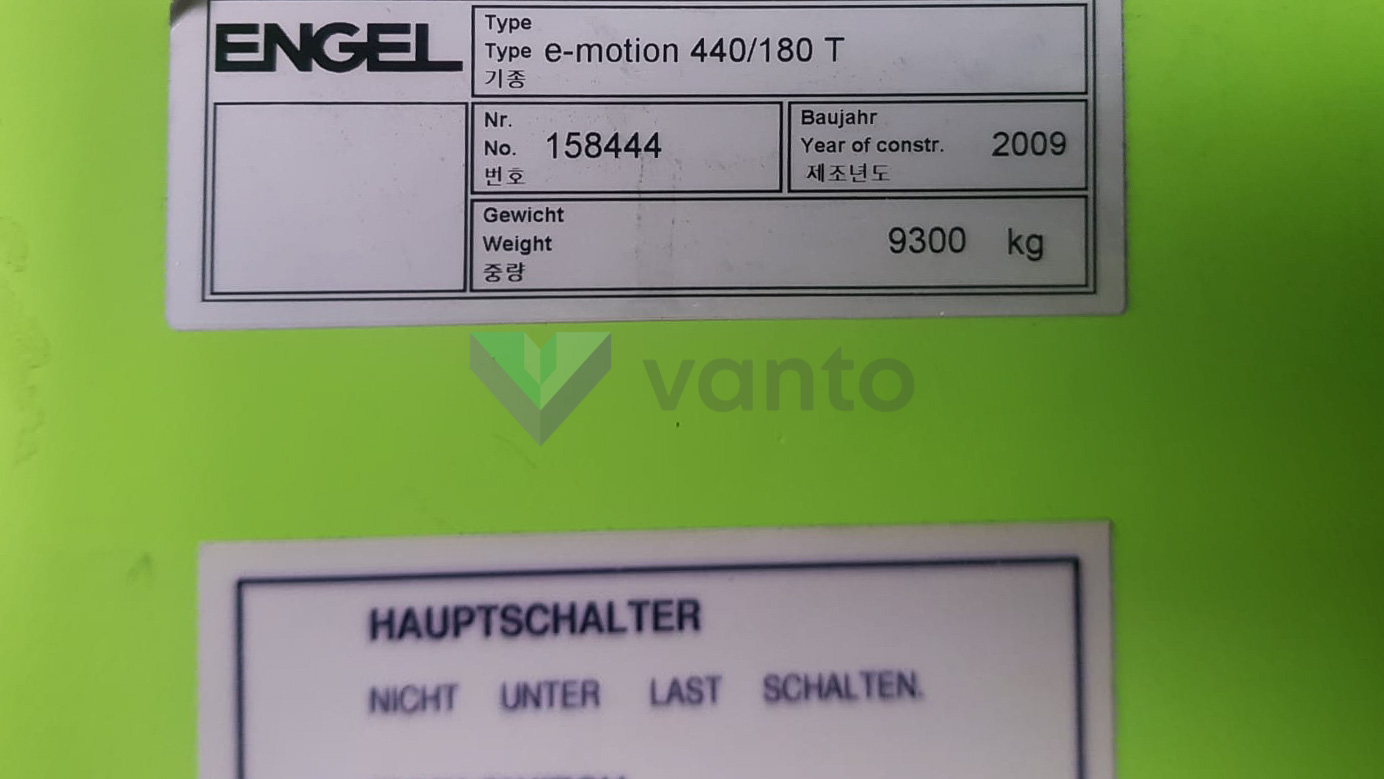

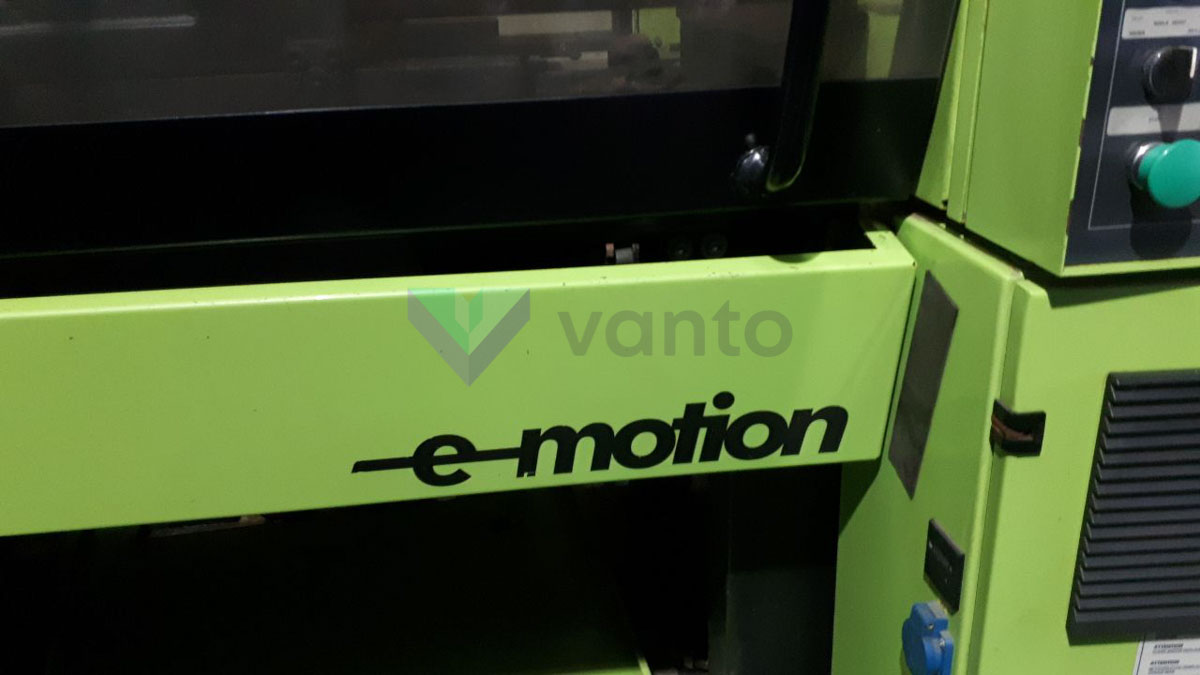

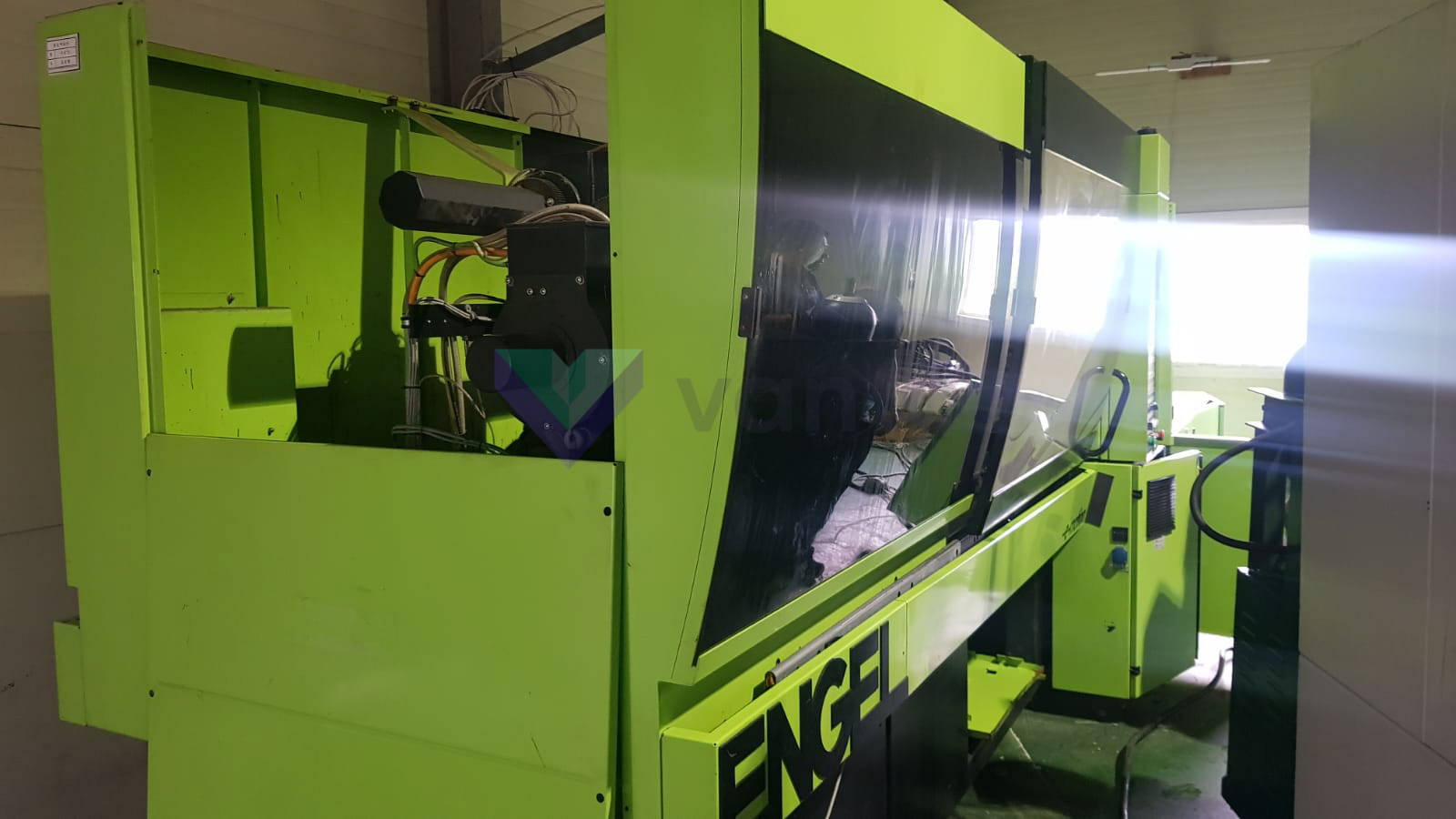

E-MOTION 440-180

180t all-electric injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2009
Availability	Sold
ID	10416

Clamping force	1.800 kN

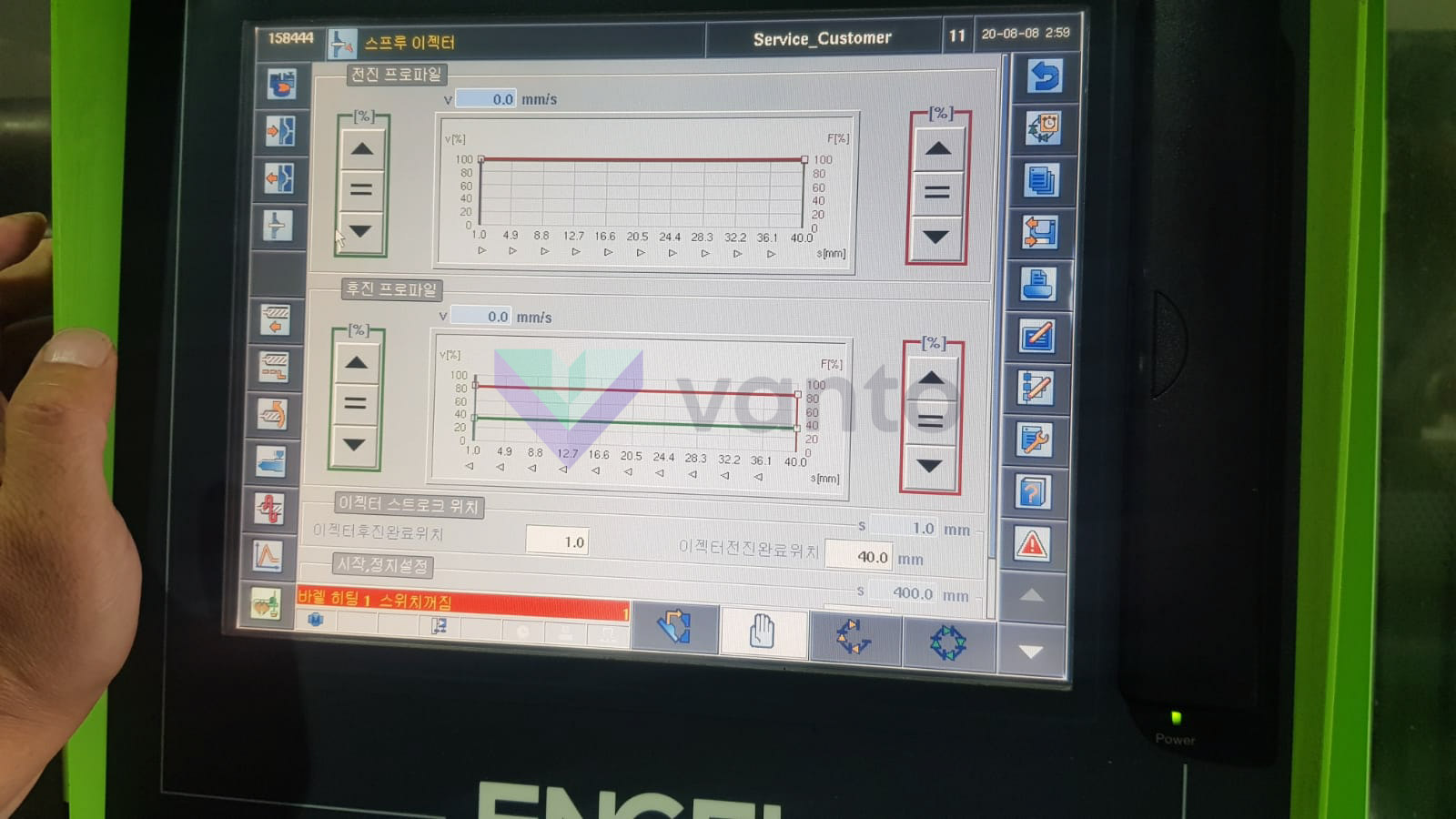

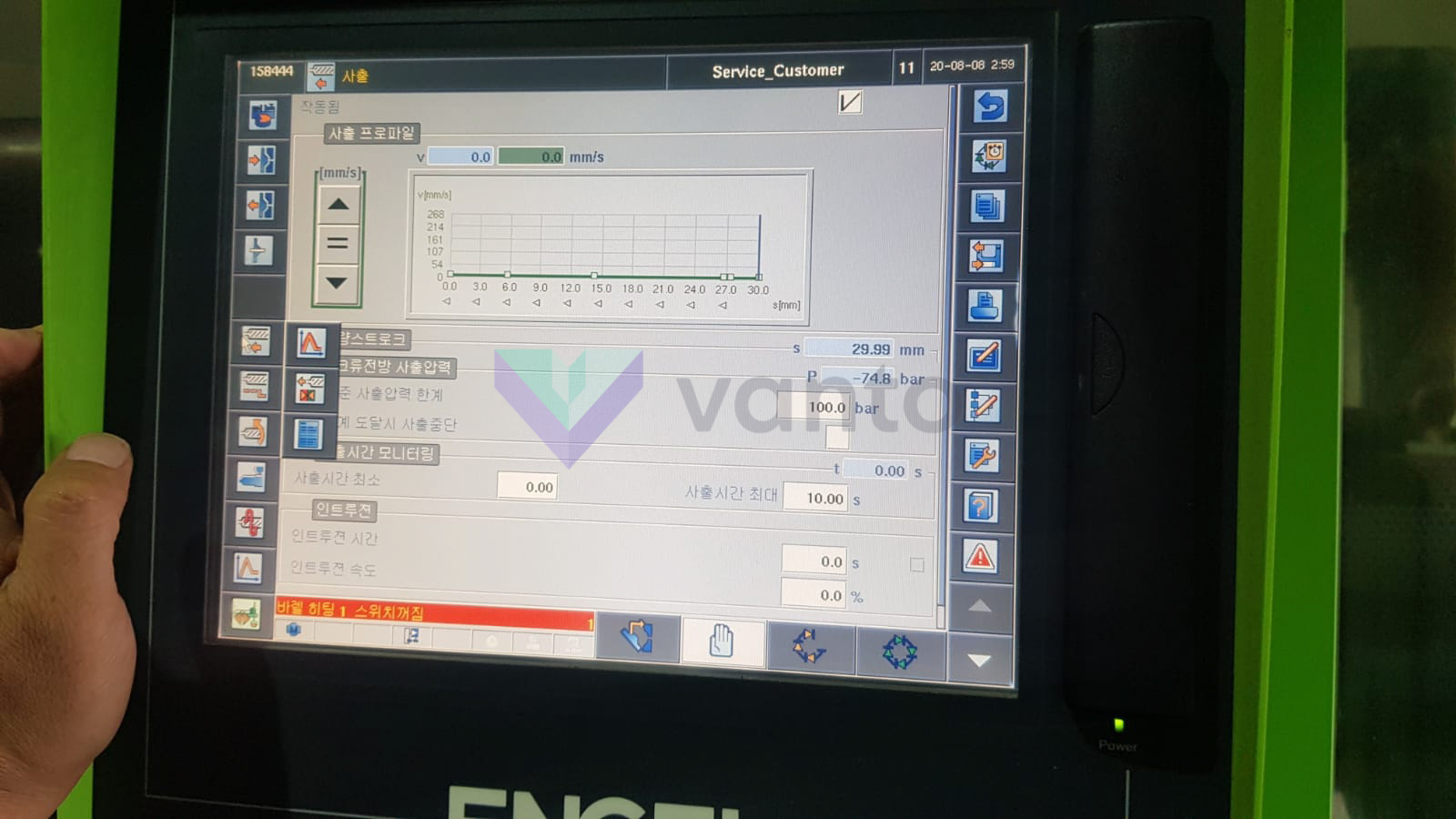

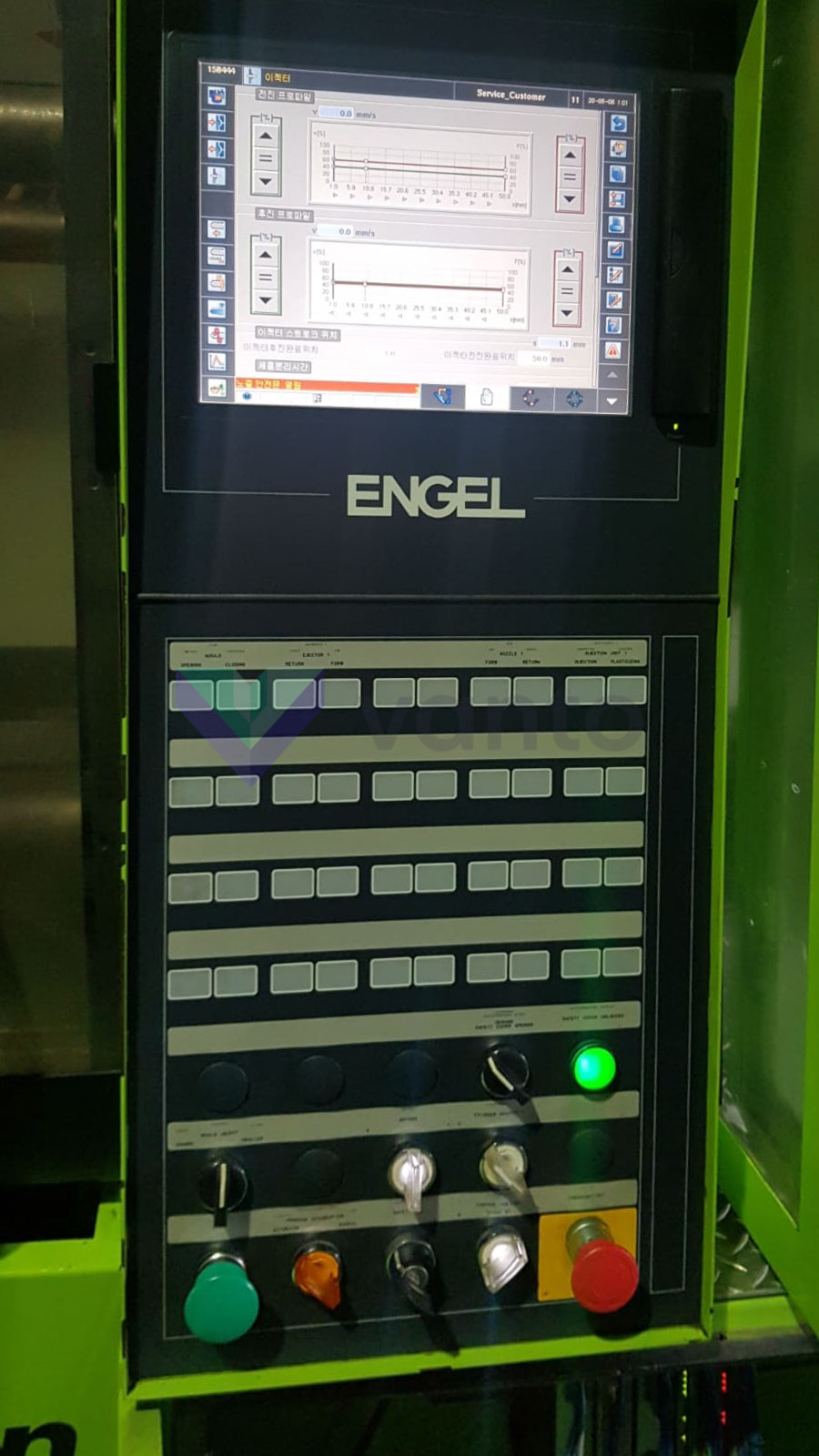

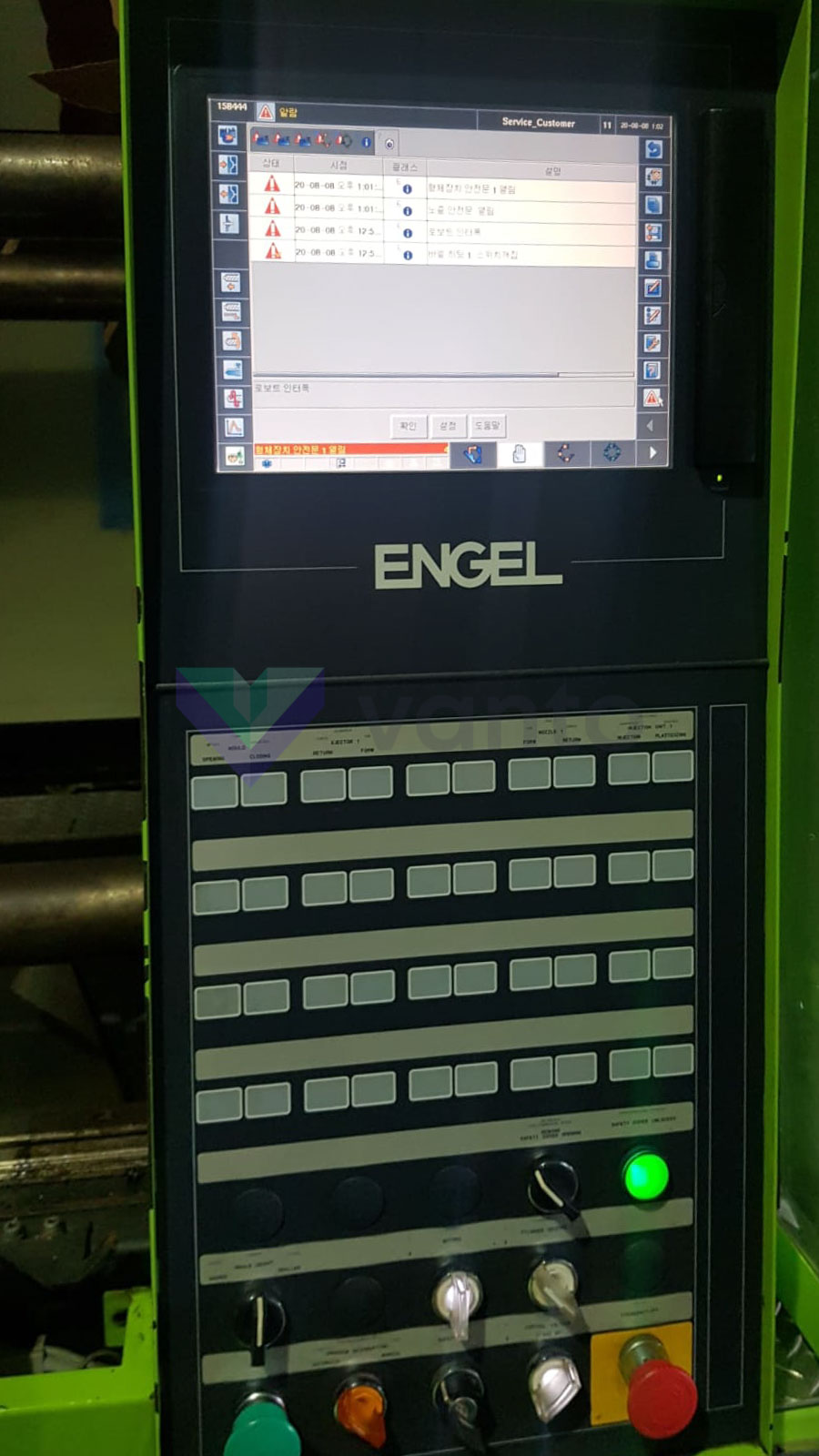

Control	CC200
Daylight between platens max	1.060 mm
Dimensions (long x wide x high)	5.600 x 1.300 x 2.000 mm

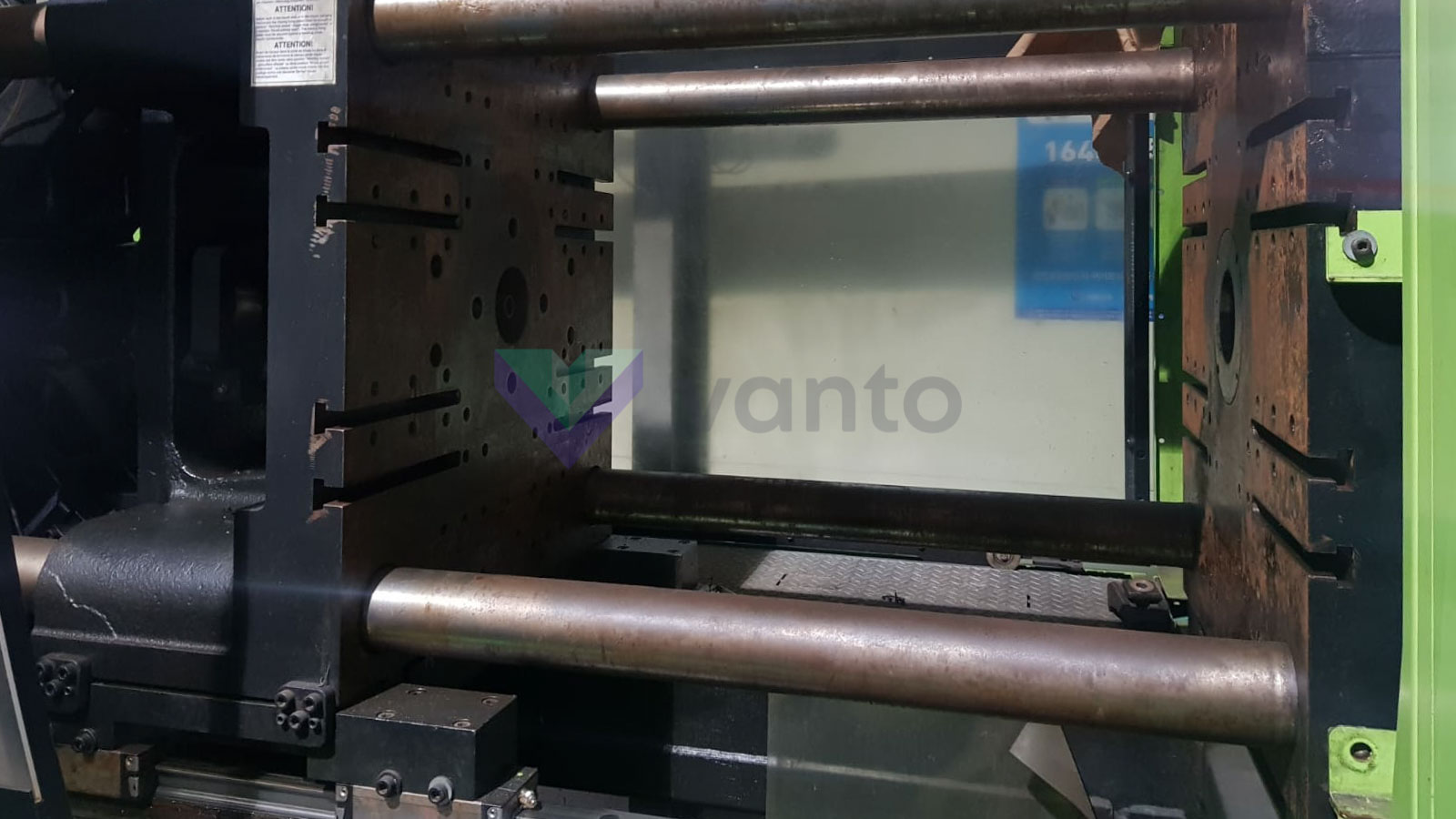

Distance between tie-bars (h x v)	520 x 520 mm
Ejector stroke / force max.	100 / 29 mm / kN

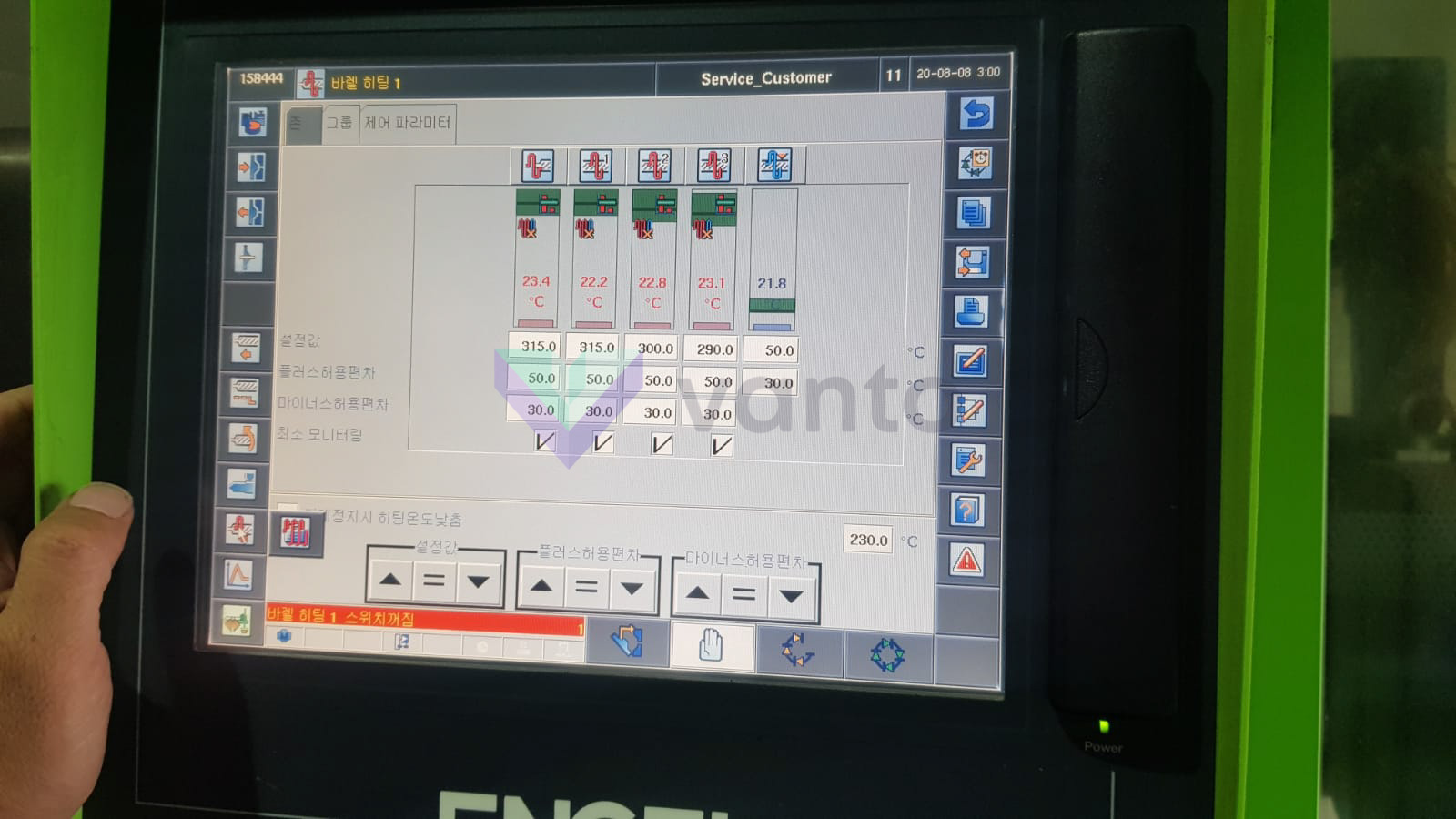

Heating zones	4
Injection pressure	2.400 bar
Injection rate	233 cm³/s
Injection volume	113 cm³
Mold opening force	180 kN
Mould height max	600 mm
Mould height min	250 mm
Mould opening stroke max	460 mm
Nozzle stroke / force max.	245 / 28 mm / kN

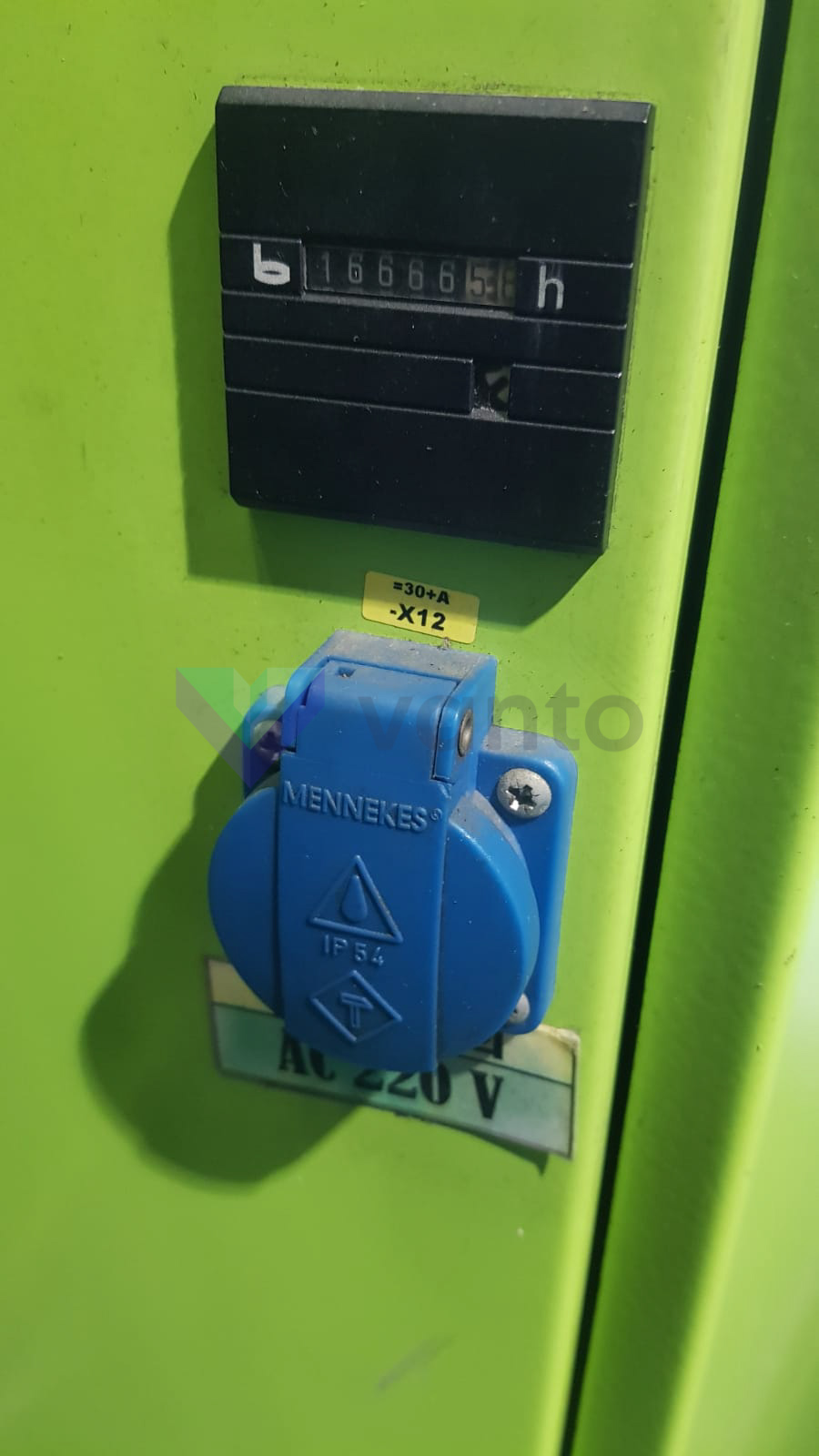

Operating hours	17.600
Platen size (h x v)	760 x 775 mm
Power: installed max	32 kW
Screw diameter	30 mm
Screw L/D ratio	23,6
Shot weight max	104 g
Weight	8.300 kg
