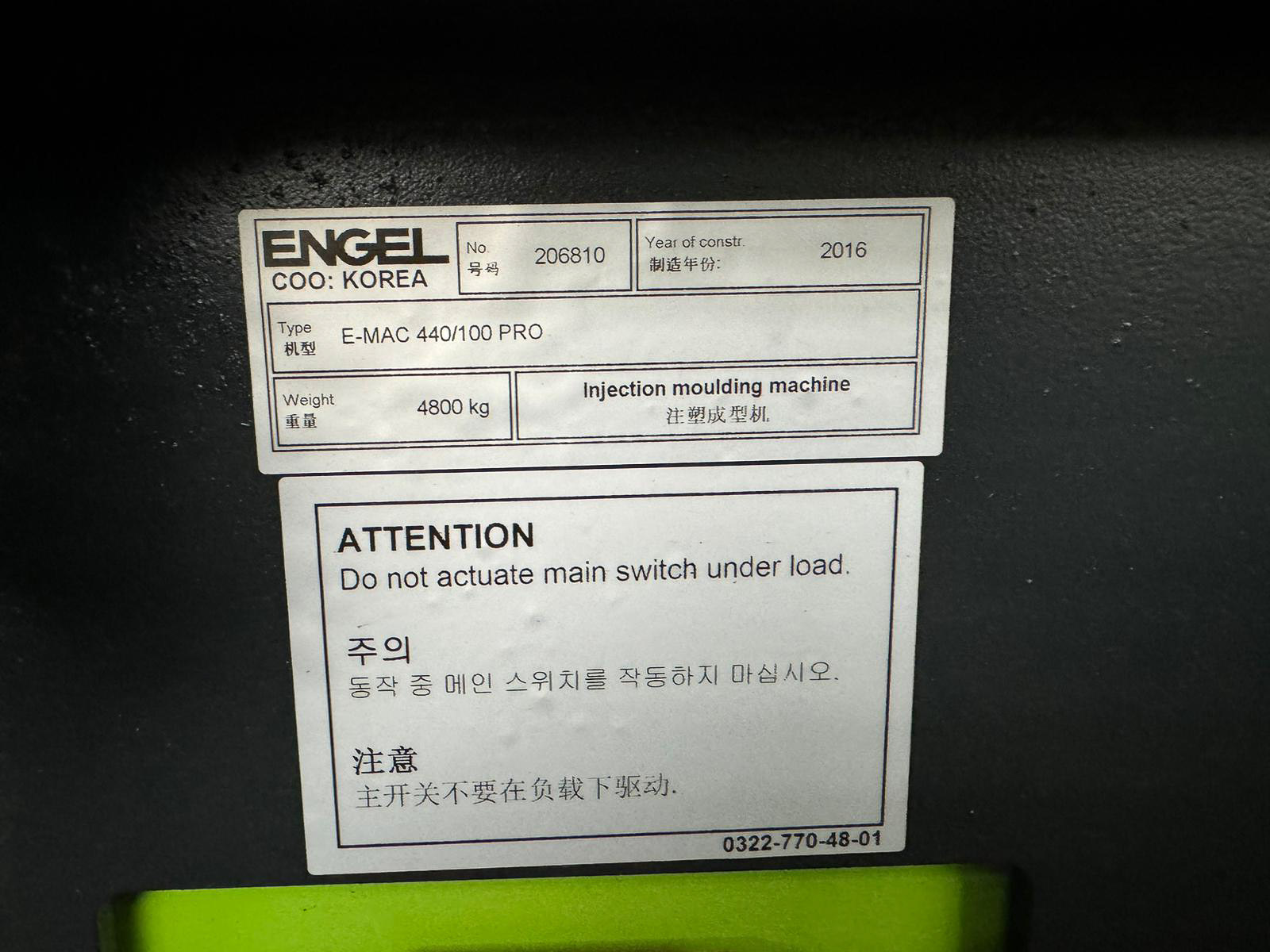

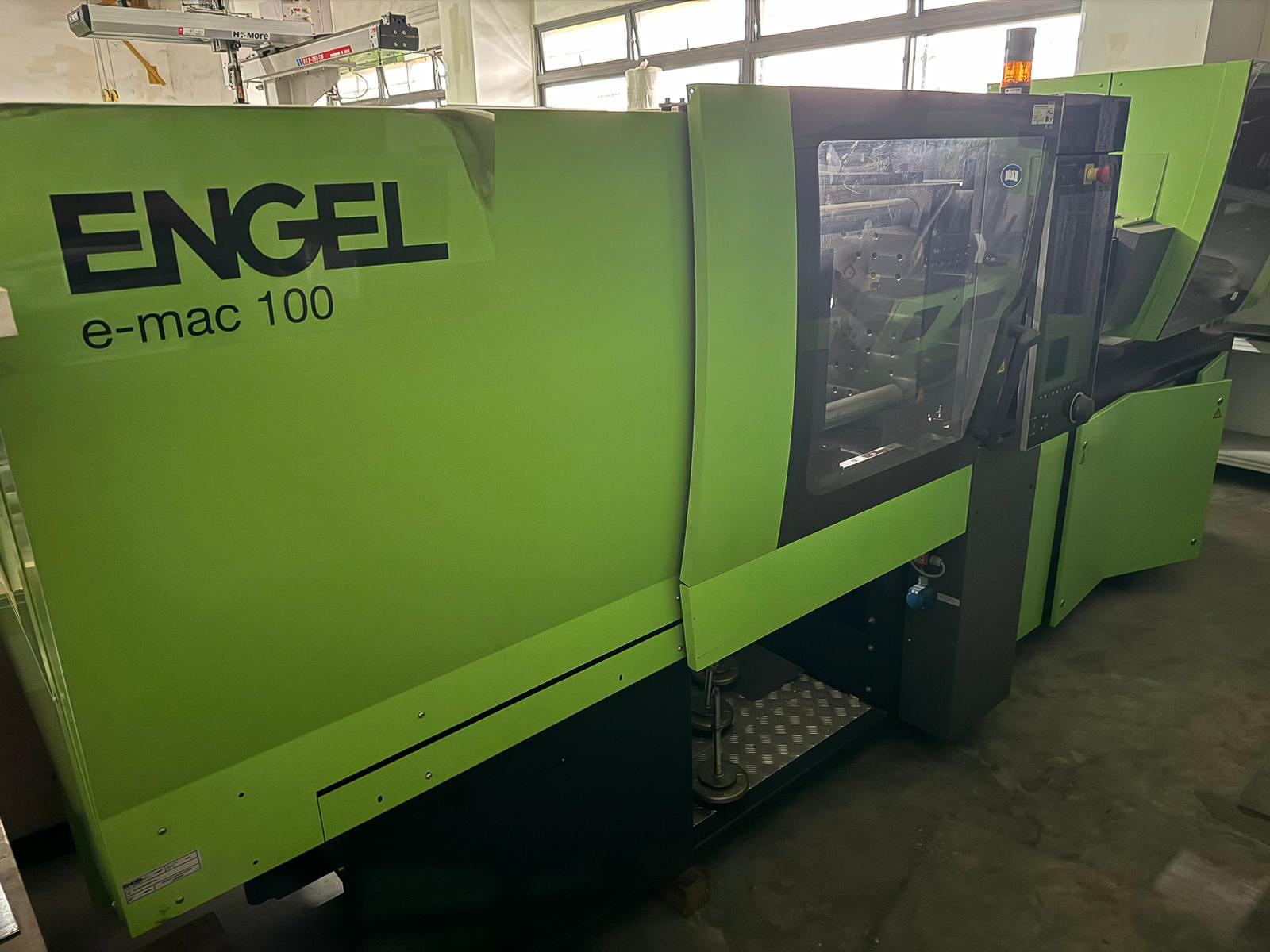

E-MAC 440 / 100 PRO

100t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2016
Availability	Sold
ID	10991

Clamping force	1.000 kN
Daylight between platens max	800 mm
Distance between tie-bars (h x v)	460 x 410 mm
Ejector force	22 kN
Injection pressure	2.000 bar
Injection rate	224 cm³/s
Injection volume	220 cm³
Mould height max	450 mm
Mould height min	150 mm
Nozzle stroke / force max.	305 / 28 mm / kN
Operating hours	33.100
Platen size (h x v)	650 x 600 mm
Screw diameter	40 mm
Screw L/D ratio	20
Screw speed	420 rpm
Shot weight max	202 g

No videos available

ENGEL E-MAC 440 / 100 PRO Official Catalogue	View PDF
