Sold

ENGEL

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

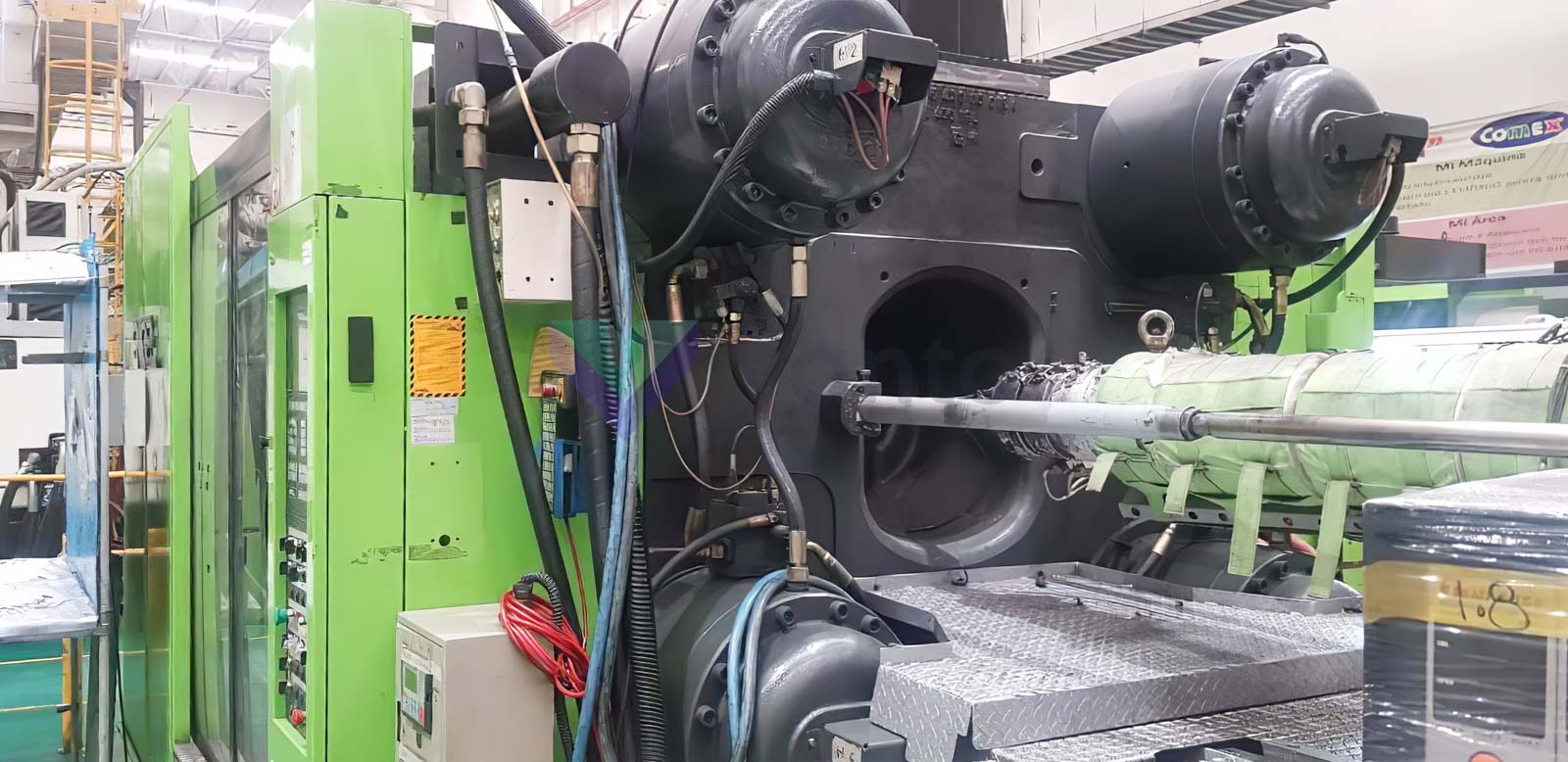

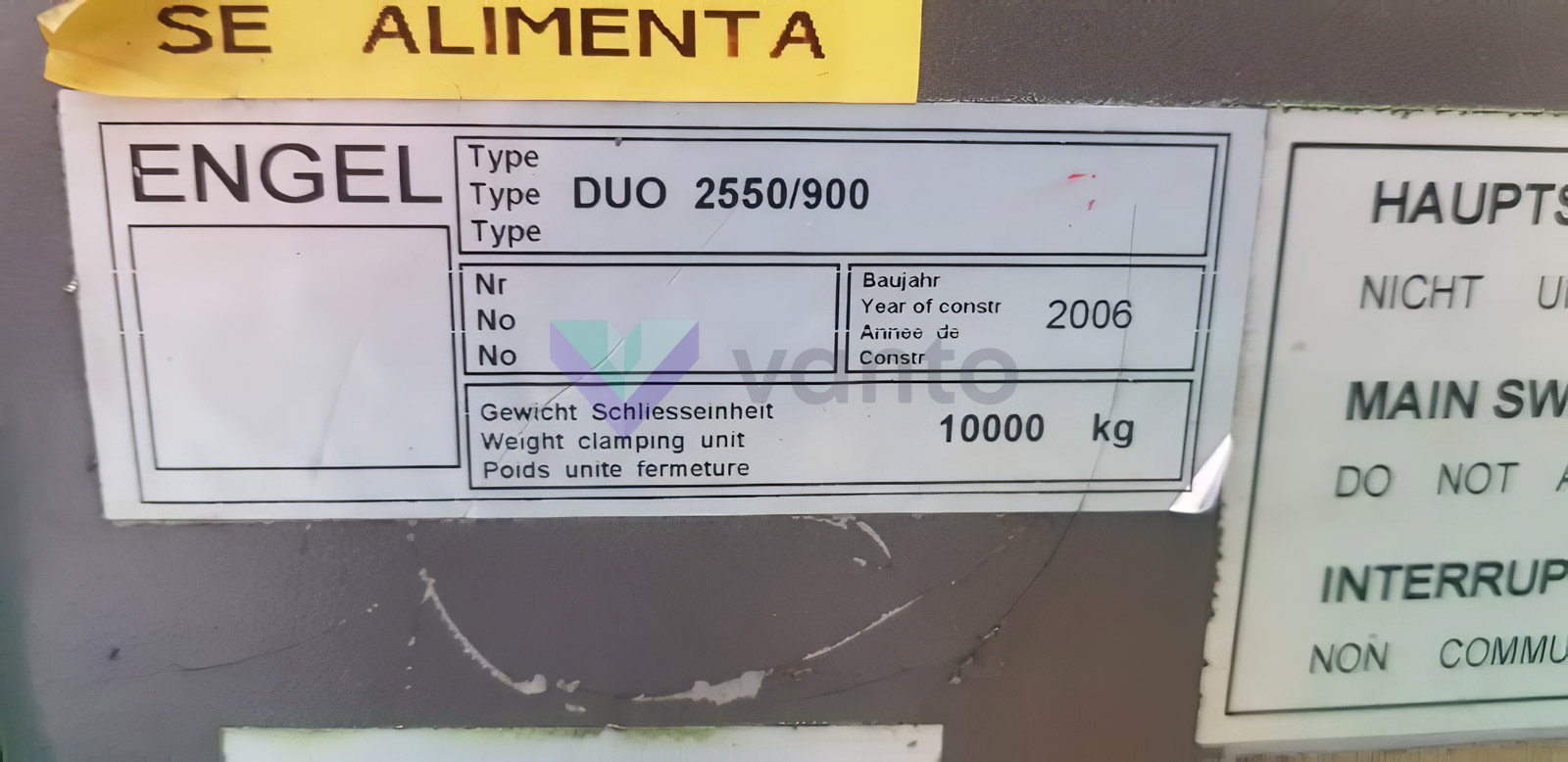

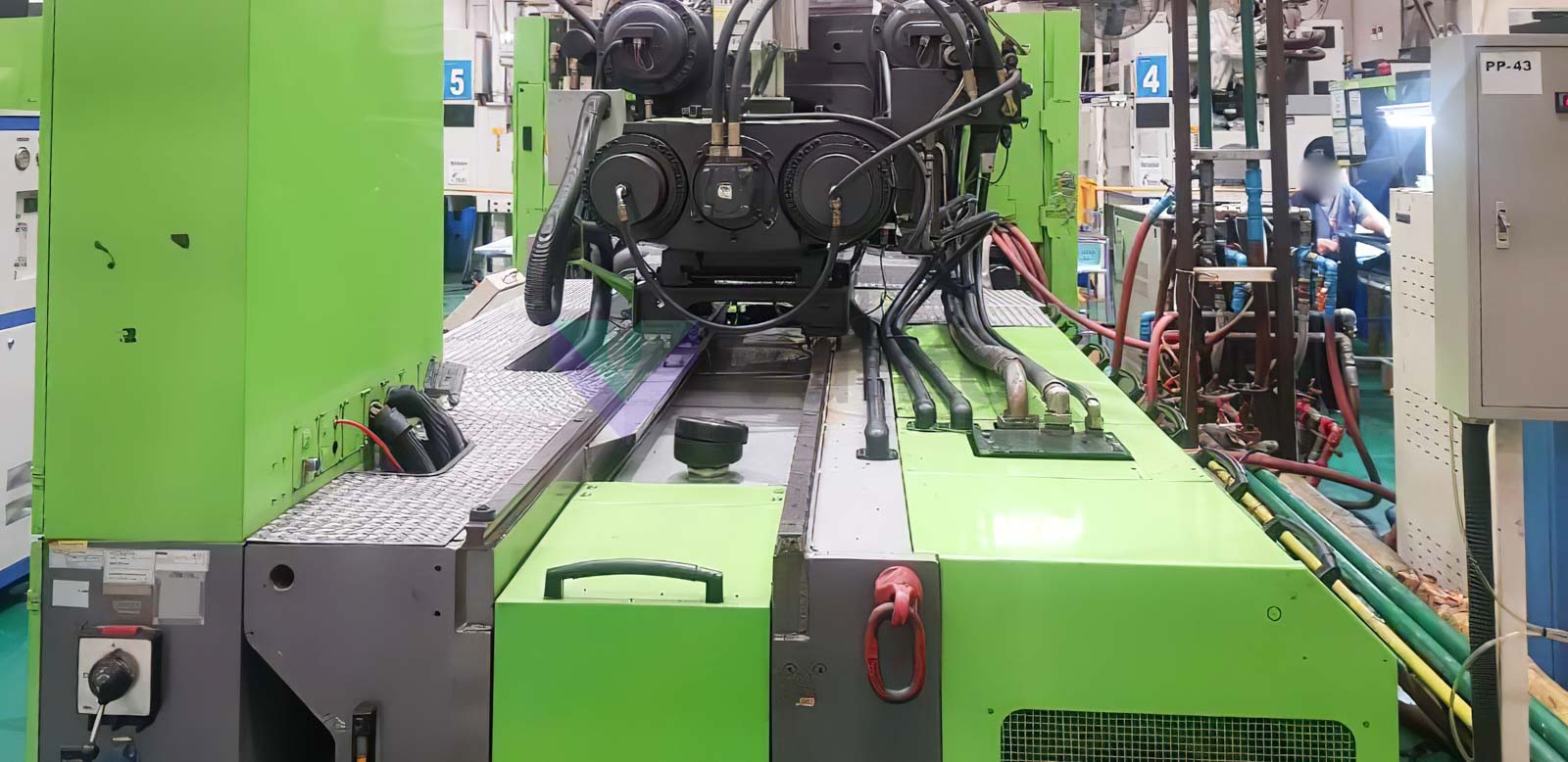

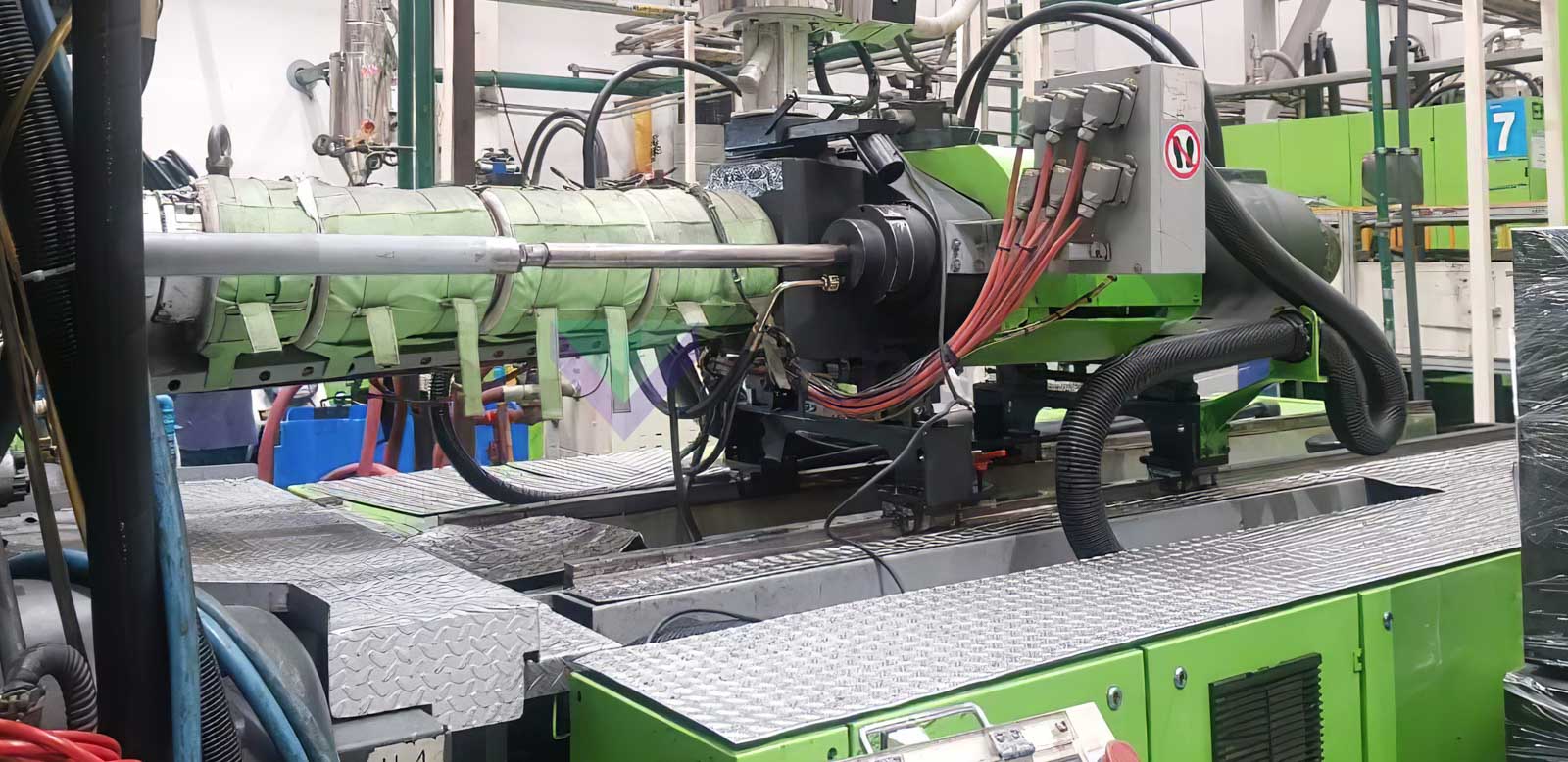

DUO 2550 / 900

900t injection molding machine

Category	750 to 999t Injection moulding machines
Condition	Used
Year	2006
Availability	Sold
ID	10368

Air Valves	2
Cascades / Sequential valve gates	yes
Clamping force	9.000 kN

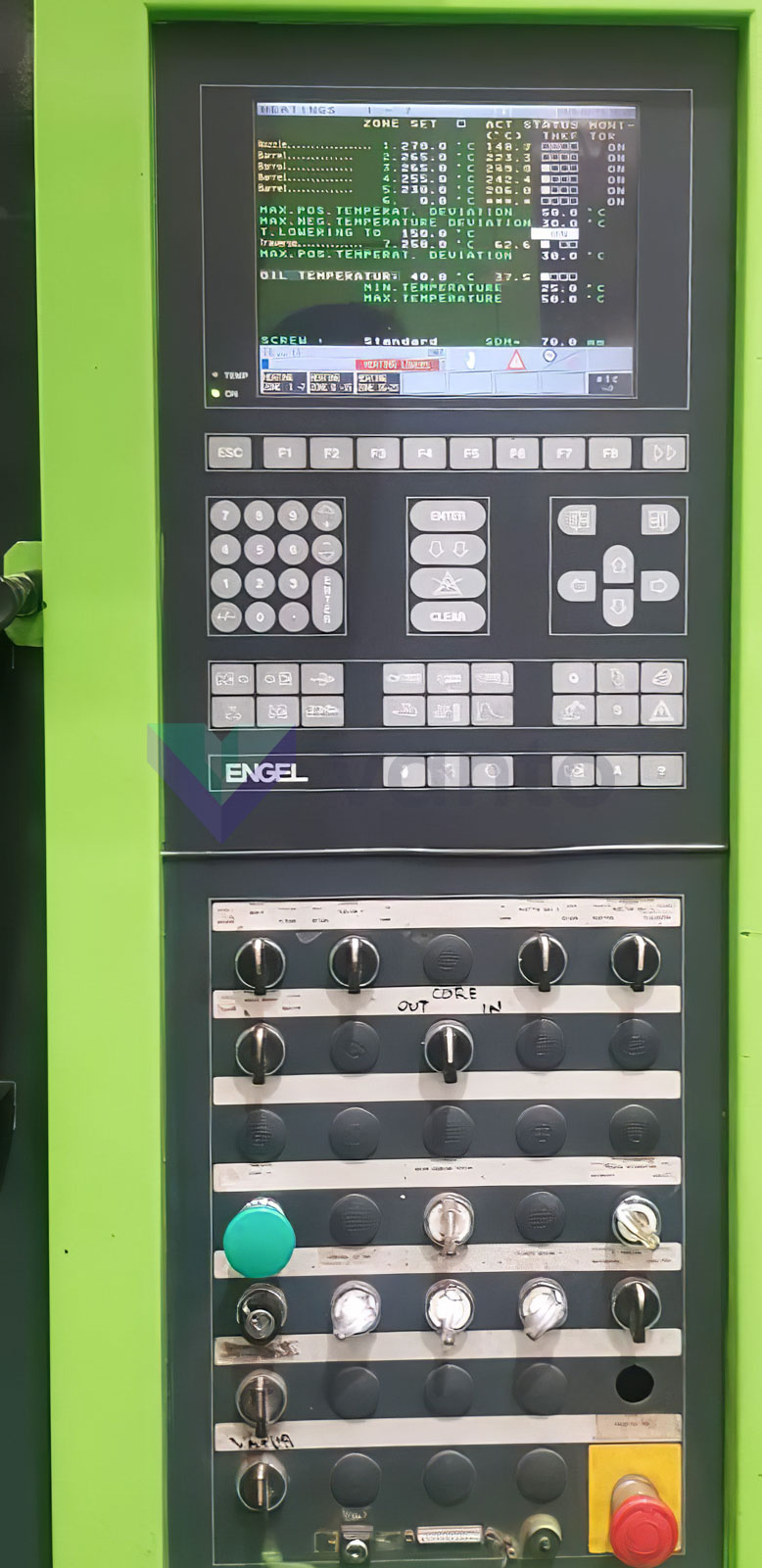

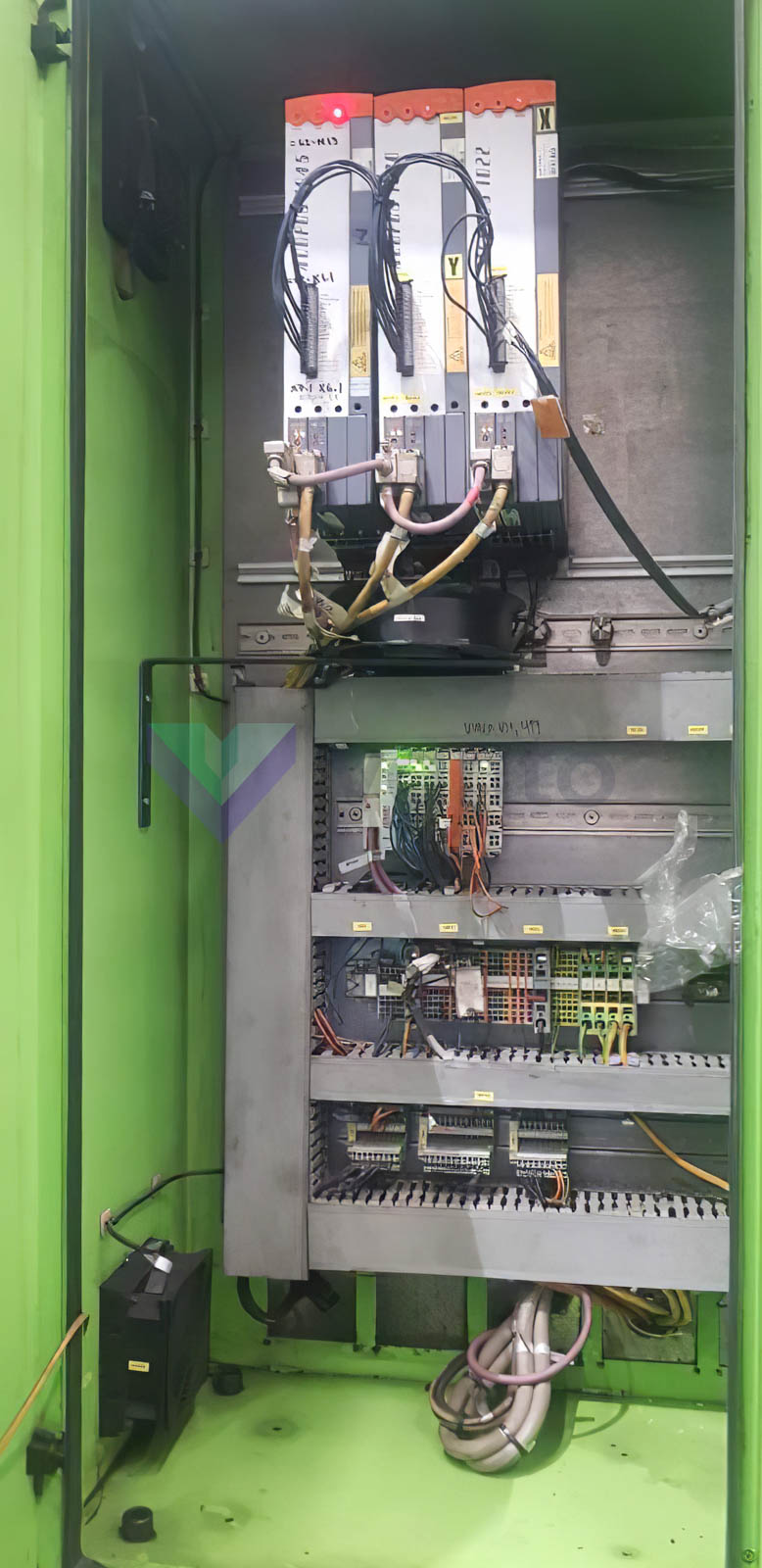

Control	CC100
Core pulls	yes
Daylight between platens max	2.100 mm
Dimensions (long x wide x high)	9.200 x 3.200 x 2.400 mm
Distance between tie-bars (h x v)	1.170 x 1.000 mm
Ejector stroke / force max.	300 / 180 mm / kN
Heating zones	7
Injection pressure	2.140 bar
Injection rate	366 cm³/s
Injection volume	1.193 cm³
Mold opening force	1.600 kN
Mould height max	1.100 mm
Mould height min	500 mm
Mould opening stroke max	1.600 mm
Nozzle stroke / force max.	650 / mm / kN
Oil tank capacity	1.000 l

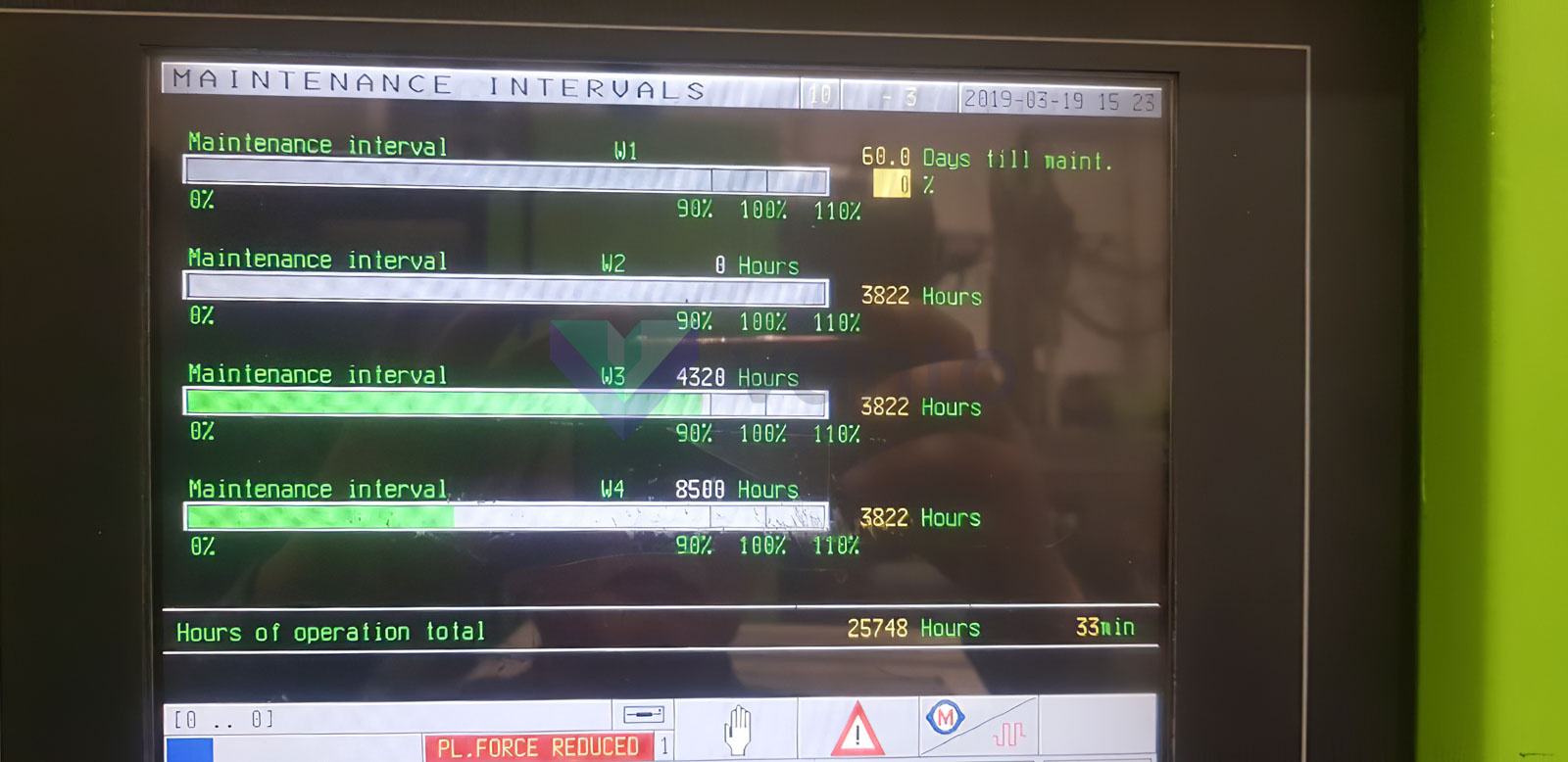

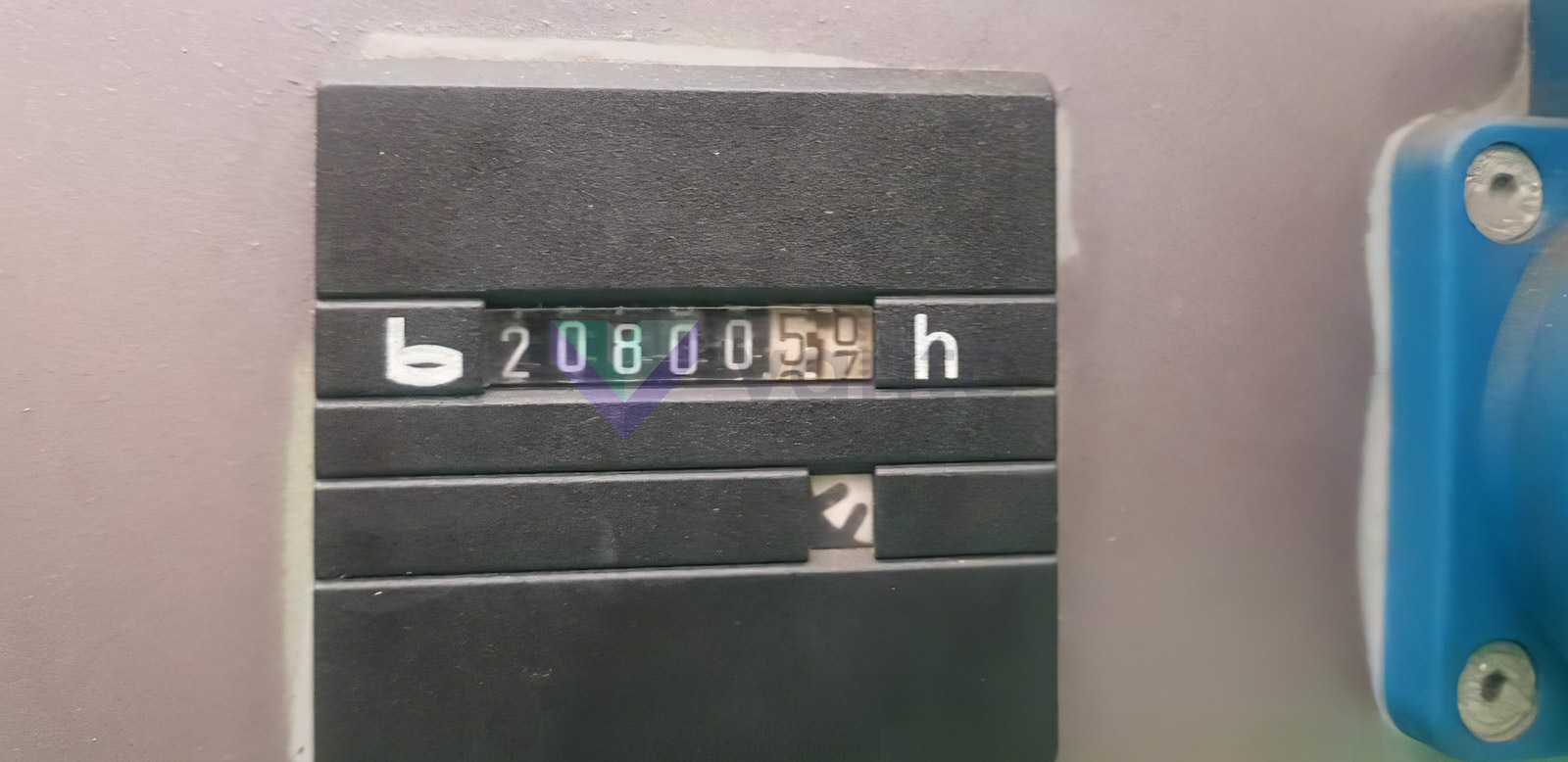

Operating hours	31.111
Platen size (h x v)	1.650 x 1.470 mm
Power: installed max	90 kW
Screw diameter	70 mm
Screw L/D ratio	24
Screw speed	244 rpm
Shot weight max	1.098 g
Weight	28.000 kg
