ENGEL

DUO 1800 / 350

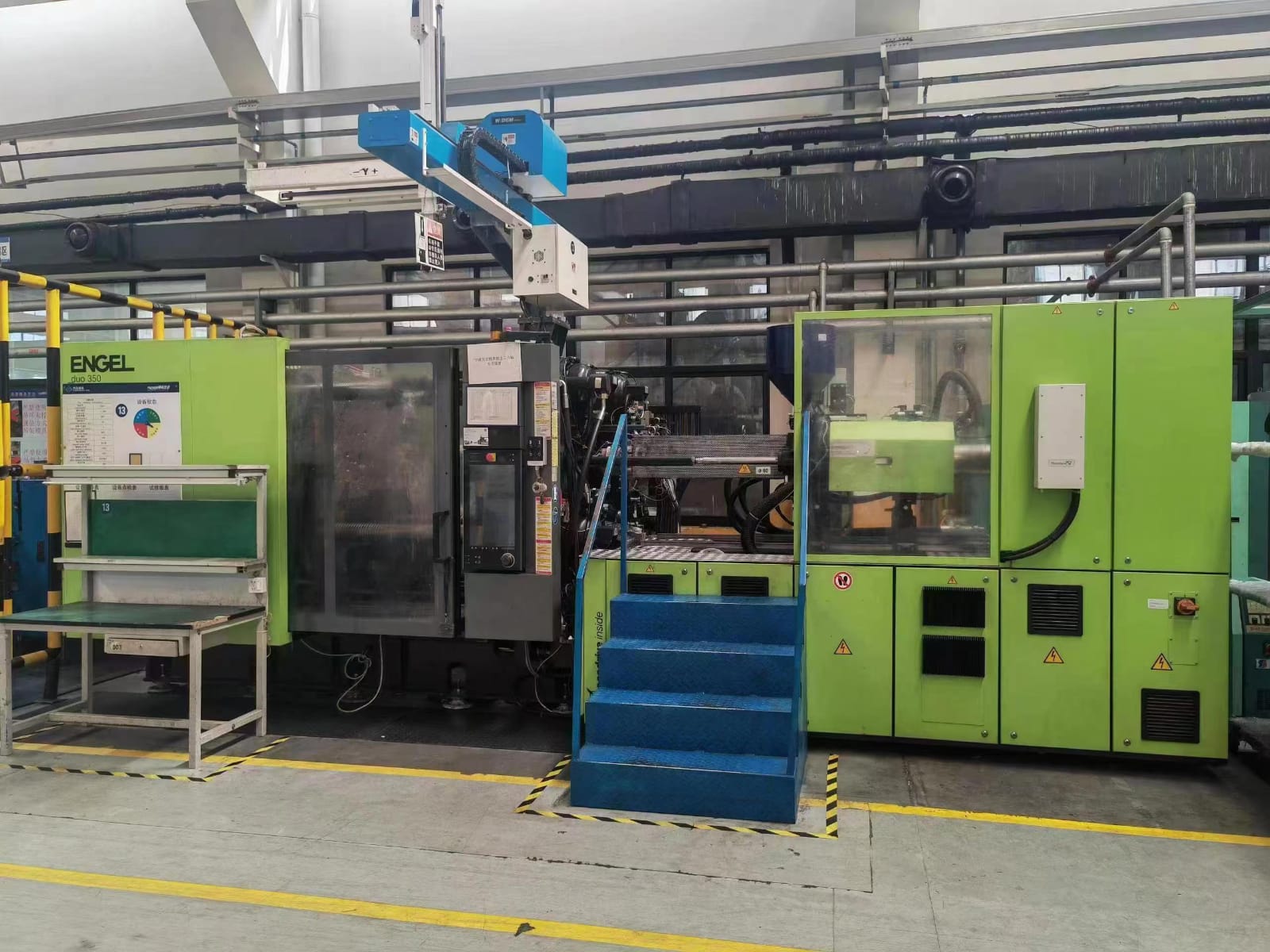

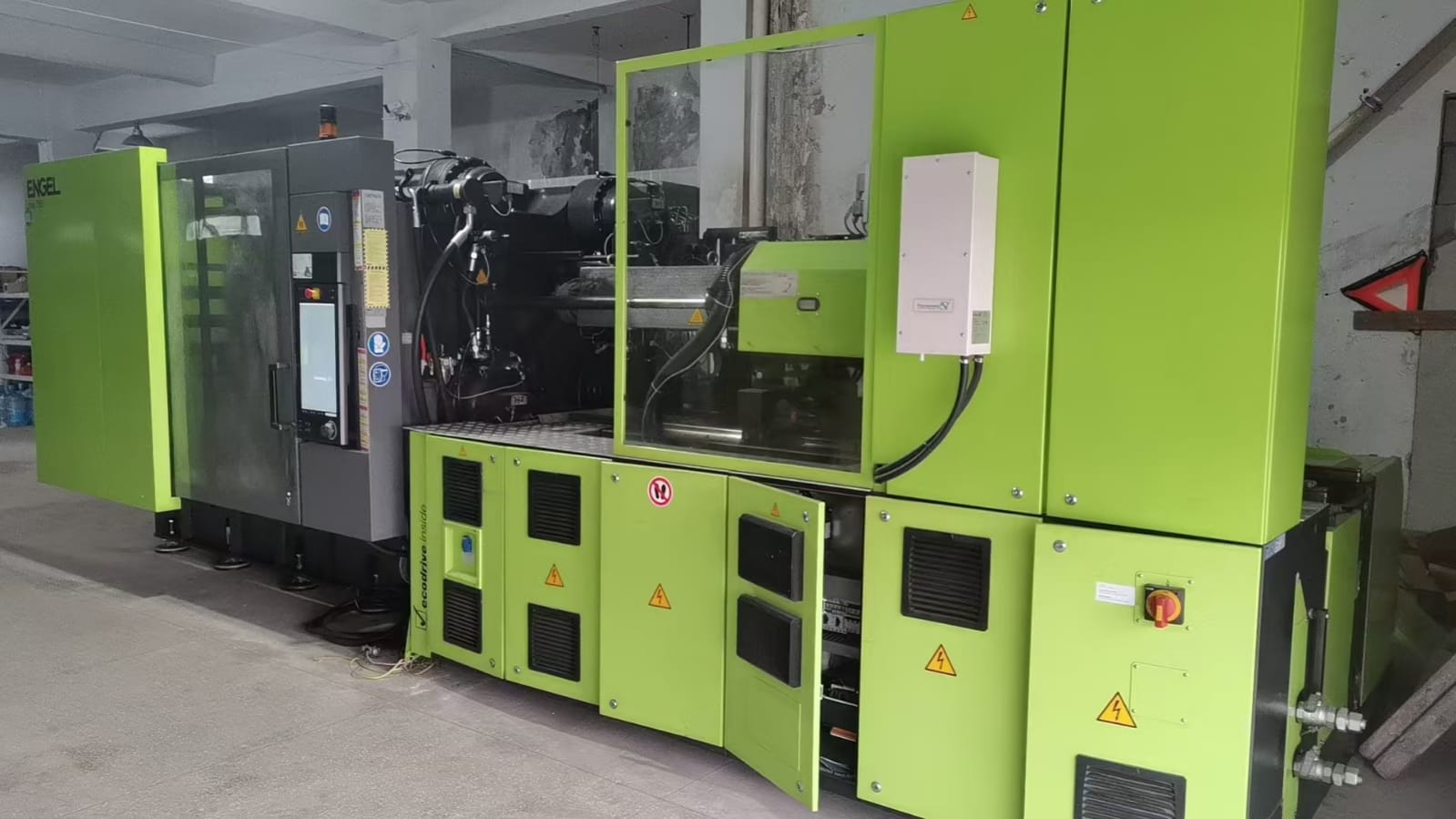

350t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2015
Availability	Available
ID	11133

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Clamping force

0kN

Clamping force	4.500 kN
Daylight between platens max	1.300 mm
Dimensions (long x wide x high)	7.500 x 2.200 x 2.500 mm
Ejector force	83 kN
Heating zones	5
Injection pressure	2.360 (max) / 1.960 bar
Injection rate	283 cm³/s
Injection volume	763 cm³
Mould height min	350 mm
Mould opening stroke max	950 mm
Nozzle stroke / force max.	110 mm / kN
Nozzle stroke max	500 mm
Oil tank capacity	980 l
Platen size (h x v)	1.200 x 1.100 mm
Screw diameter	60 mm
Screw L/D ratio	20
Screw speed	226 rpm
Shot weight max	956 g
Weight	24 kg

No videos available

There are no available documents
