ENGEL

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

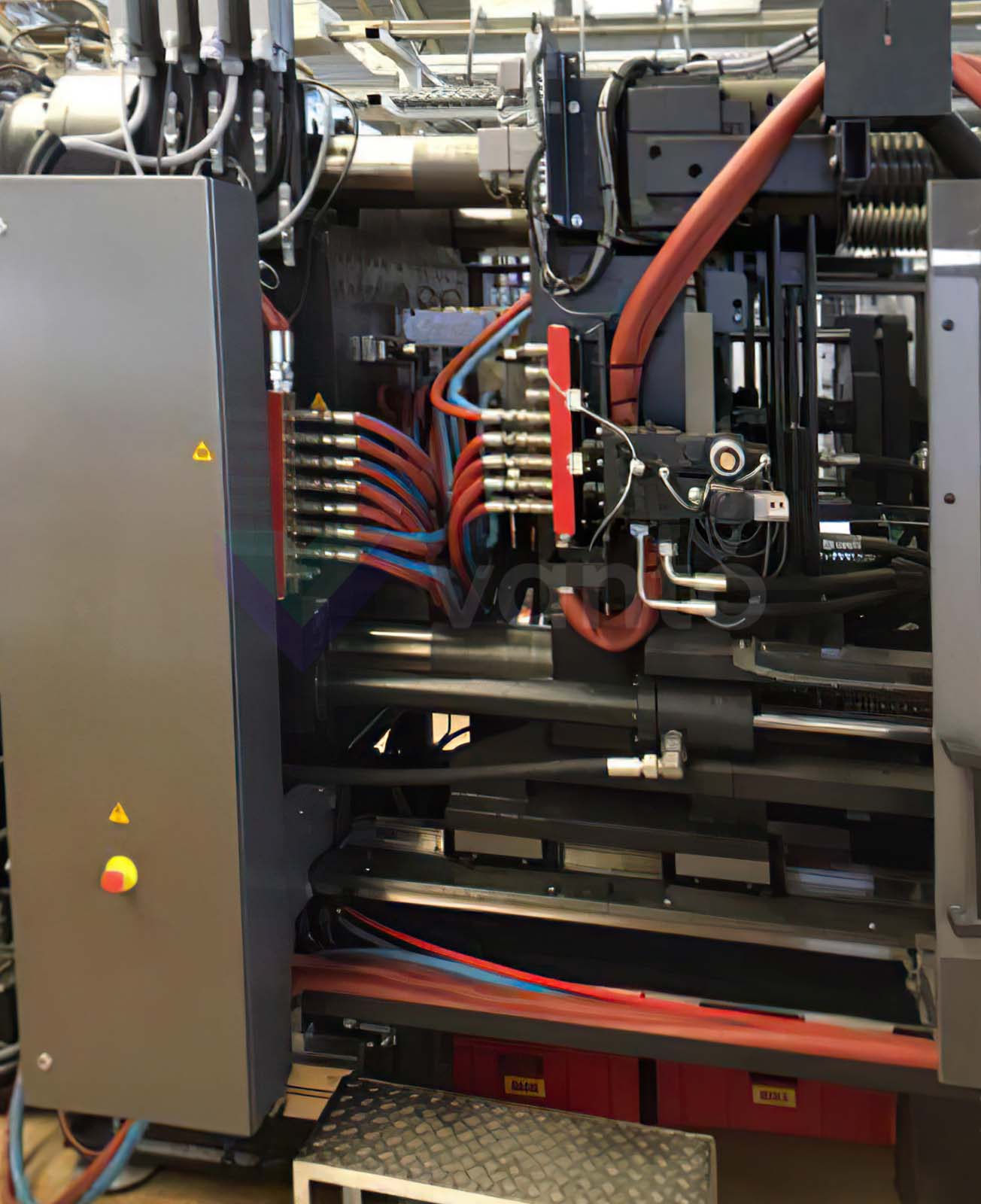

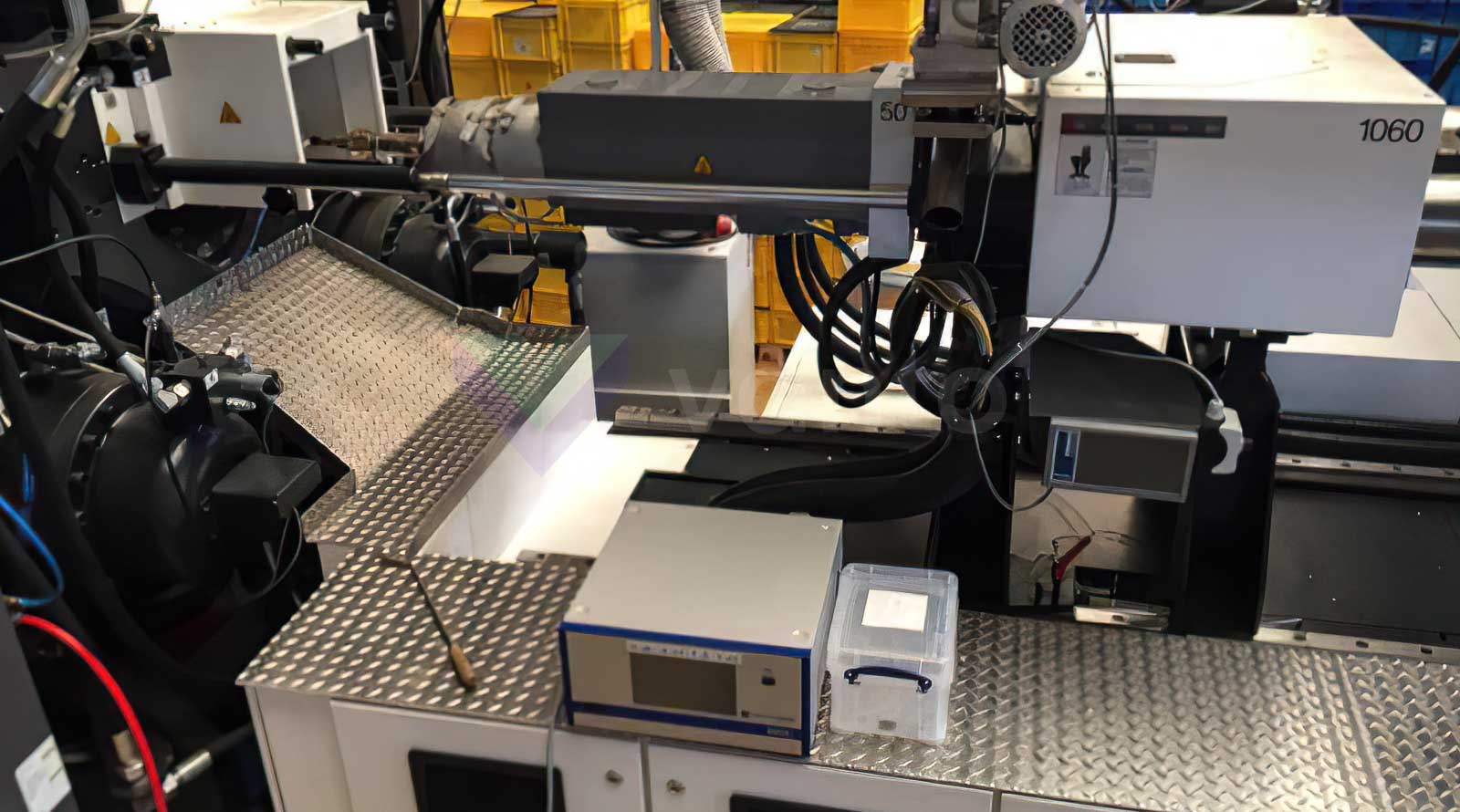

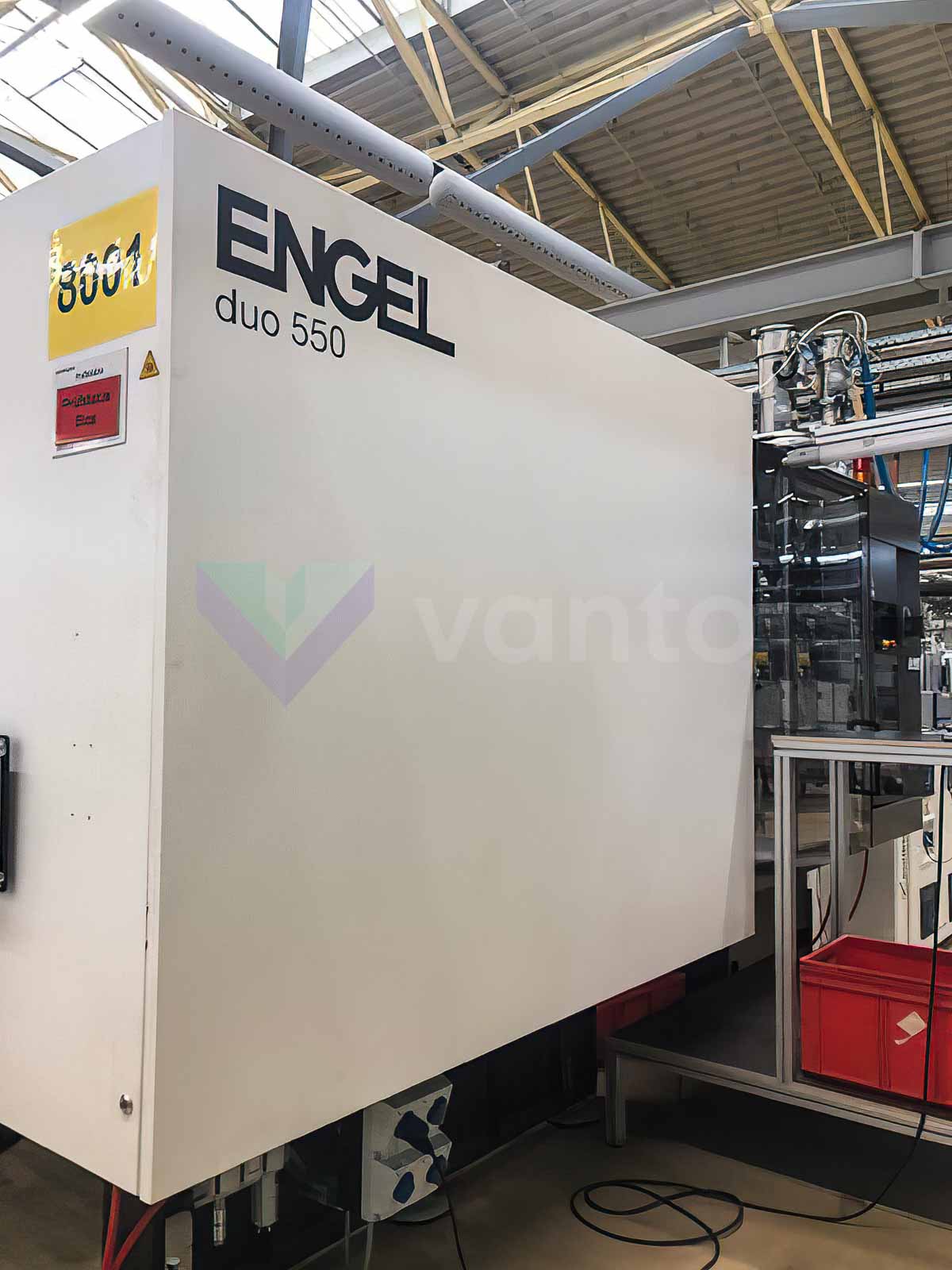

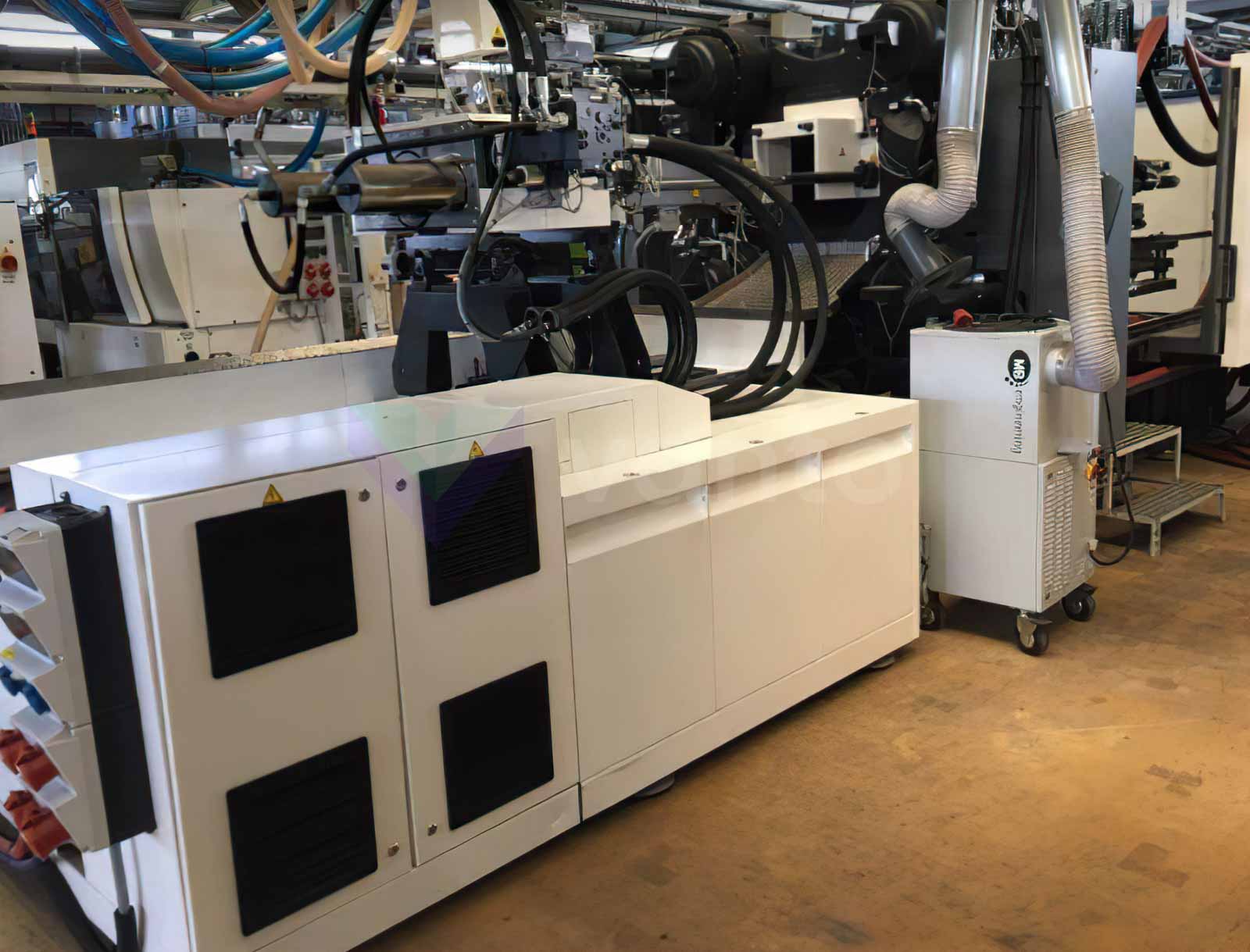

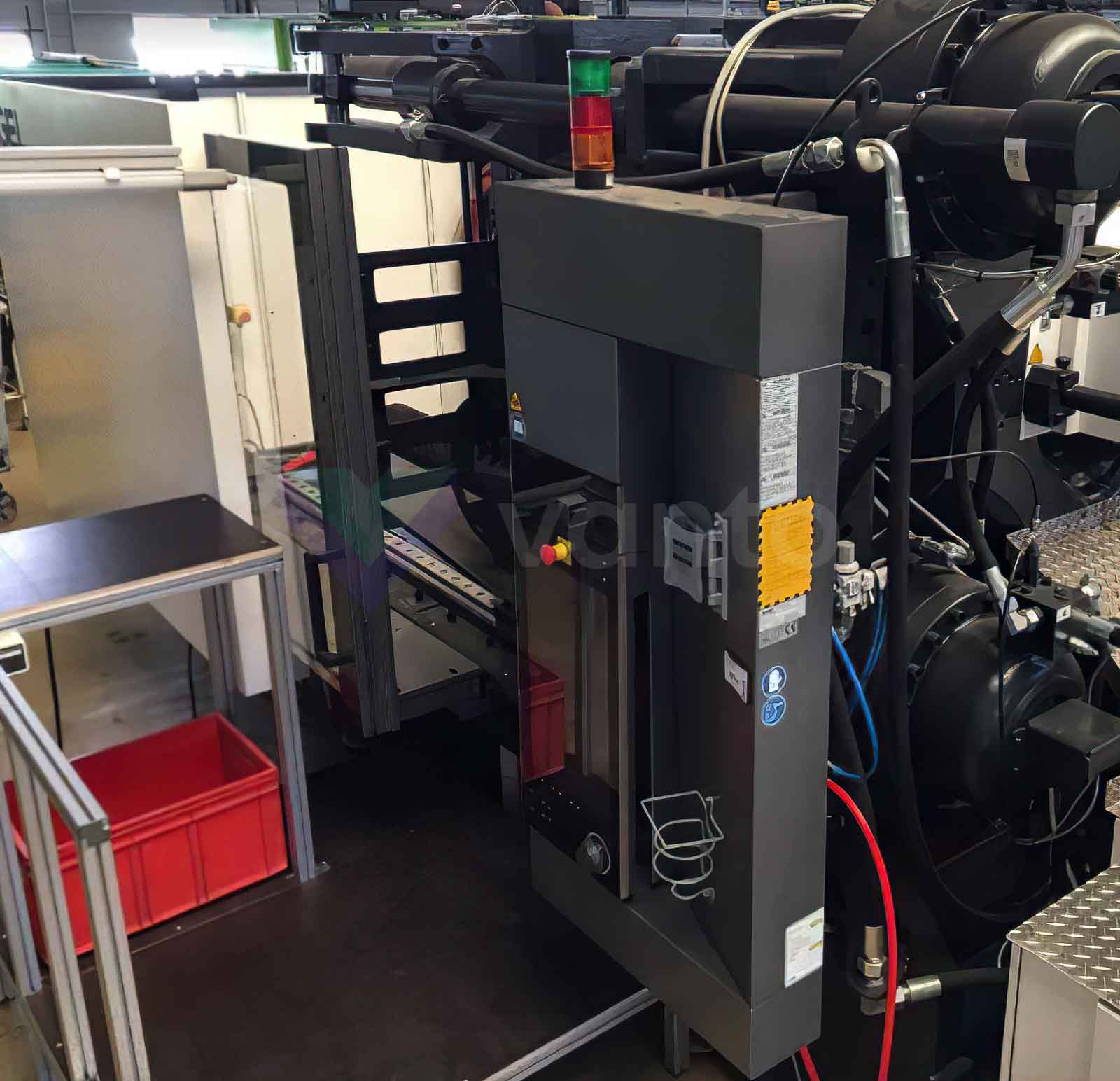

DUO 1060 / 550

550t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2018
Availability	Sold
ID	10525

Clamping force

0kN

Clamping force	5.500 kN
Daylight between platens max	1.750 mm
Dimensions (long x wide x high)	8.100 x 2.700 x 2.300 mm
Distance between tie-bars (h x v)	1.030 x 910 mm
Ejector stroke / force max.	250 / 95 mm / kN
Injection pressure	1.540 / 2.000 bar
Injection rate	278 cm³/s
Injection volume	523 cm³
Mold opening force	440 kN
Mould height max	950 mm
Mould height min	400 mm
Mould opening stroke max	1.350 mm
Mould opening stroke max	1.550 mm
Oil tank capacity	500 l
Operating hours	1.000
Platen size (h x v)	1.420 x 1.370 mm
Power: installed max	74 kW
Screw diameter	55 mm
Screw L/D ratio	20 / 24
Screw speed	275 / 435 rpm
Weight	17.000 + 9.200 kg
