DOOSAN

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

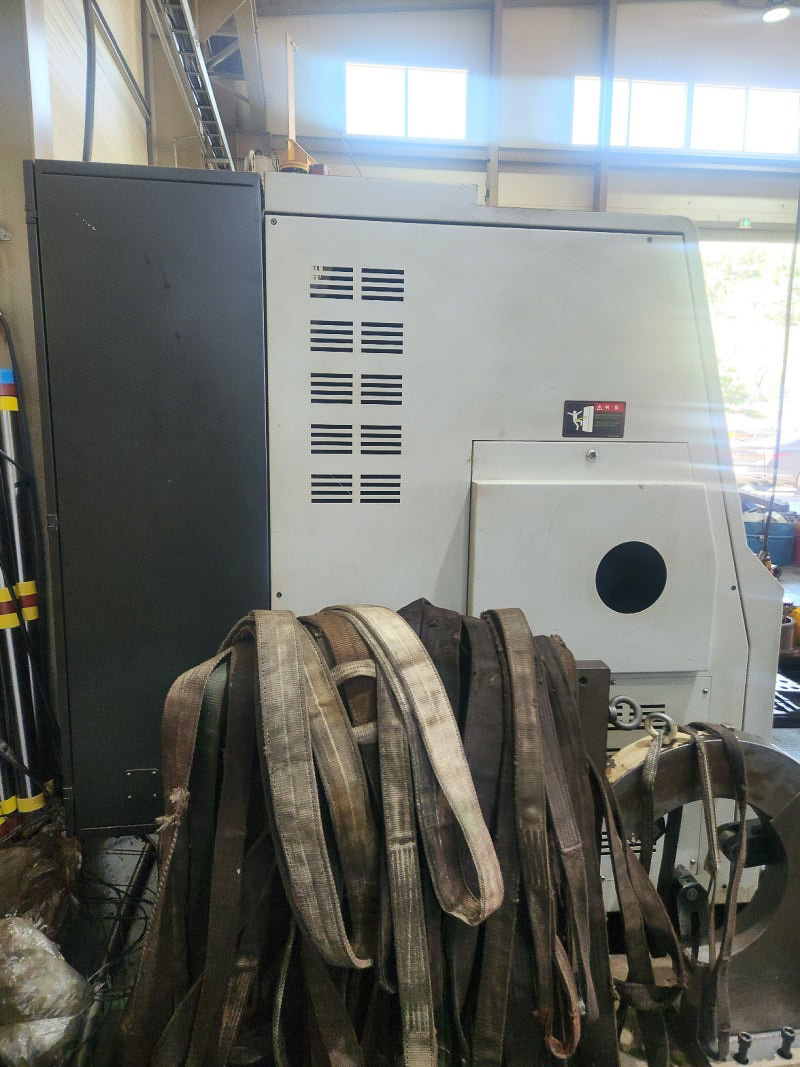

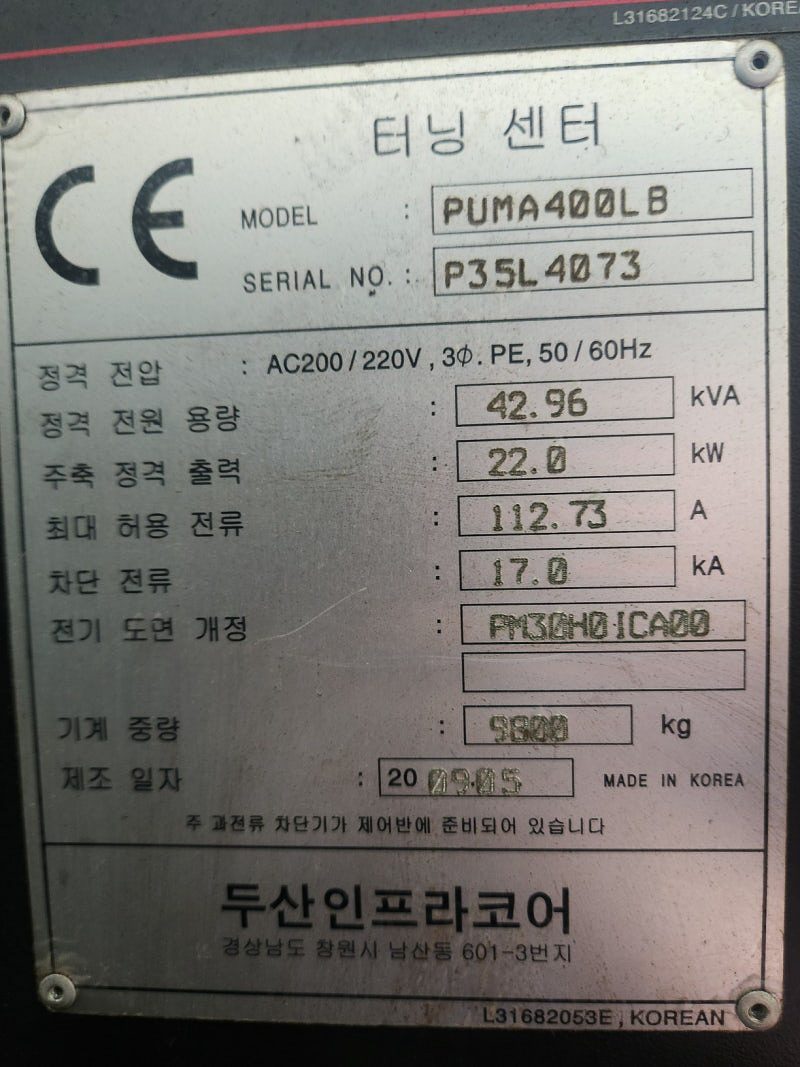

PUMA 400LB

CNC lathe

Category	CNC Lathe
Condition	Used
Year	2009
Availability	Available
ID	11146

Isaac Mateo

+34 932 711 191

+34 652 098 501

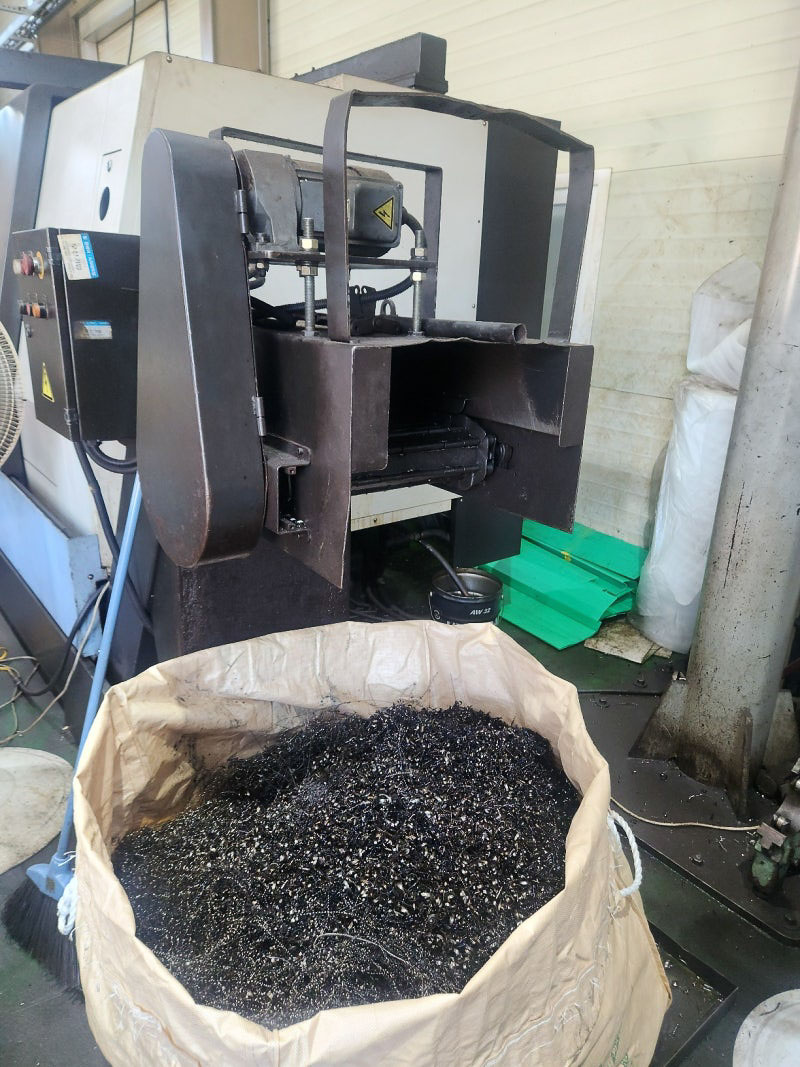

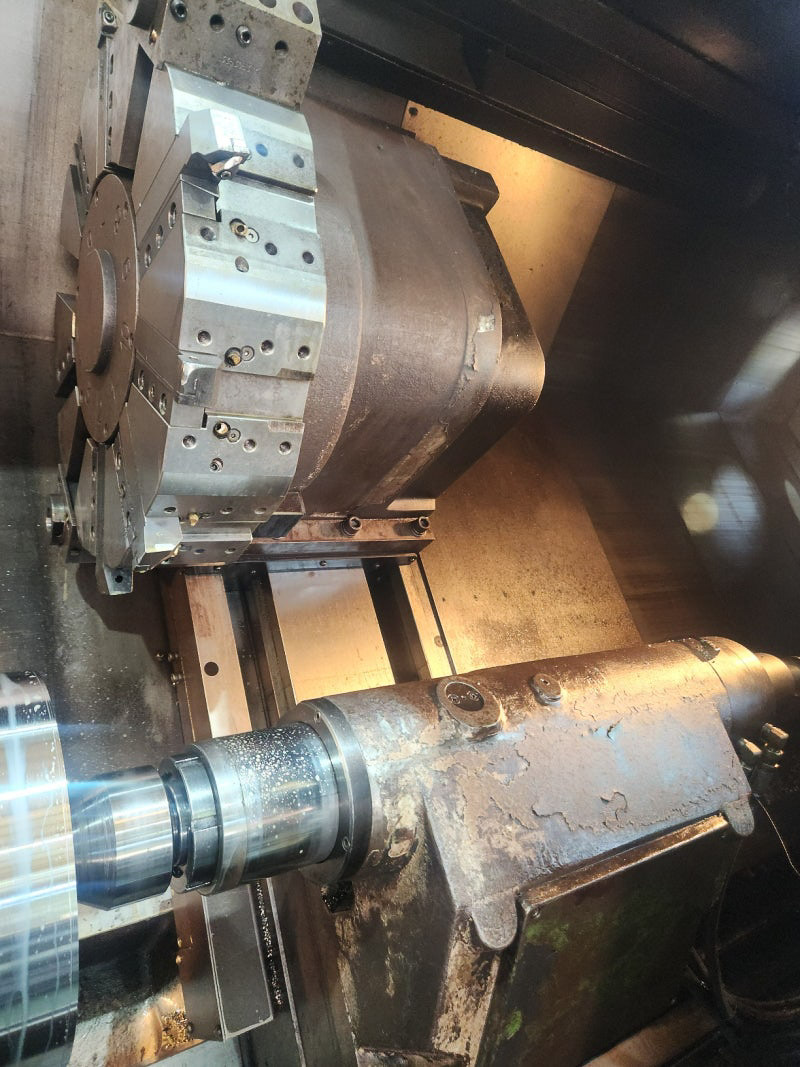

15Inch, Long Type, Fanuc System, Tail Stock, Chip Conveyor

Axes	2 (X=362 / Z=2.155)
Bar pitch	60 mm

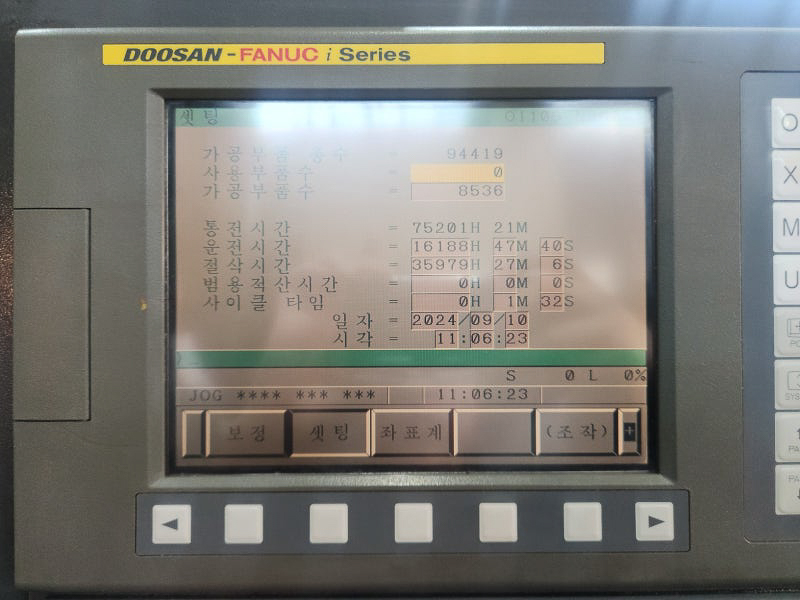

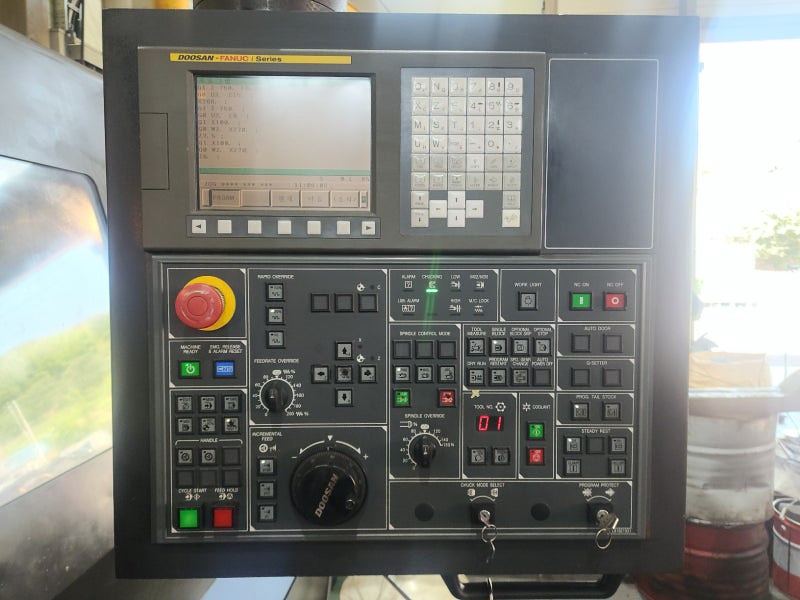

Control	FANUC 32i
Cutting feed rate (X x Z)	500/500 mm / min
Dimensions (long x wide x high)	4.222 x 2.179 x 2.250 mm
Indexing time	0,25 seg
Main spindle bore	132 mm
Main spindle nose	A2 #11
Max. length	1.043 mm
Max. rapid traverse (X x Y x Z)	629,9/787,4 mm / min
Max. spindle speed	2.000 rpm
Maximum tool diameter ø	550 mm

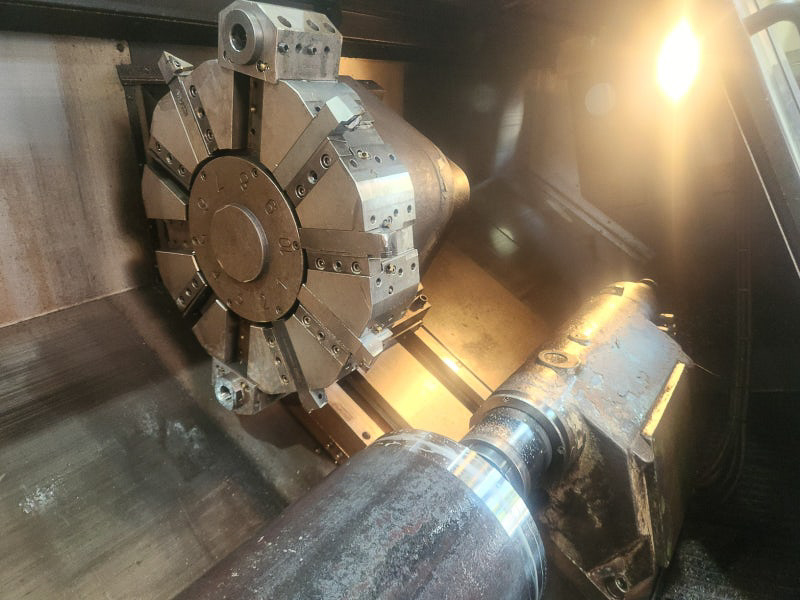

Number of positions	10 #
Power of driven tool	26 kW
Spindle power	22/26 kW
Sub spindle speed	2.000 rpm
Sub-spindle nose	180
Tilting on bed	770 mm
Tilting on carriage	590 mm
Tool magazine capacity	0,4 #
Travel (X x Z)	362 x 1.105 mm
Weight	8.200 t
Weight	10.500 t

No videos available

There are no available documents
