BMB

KW650-3450

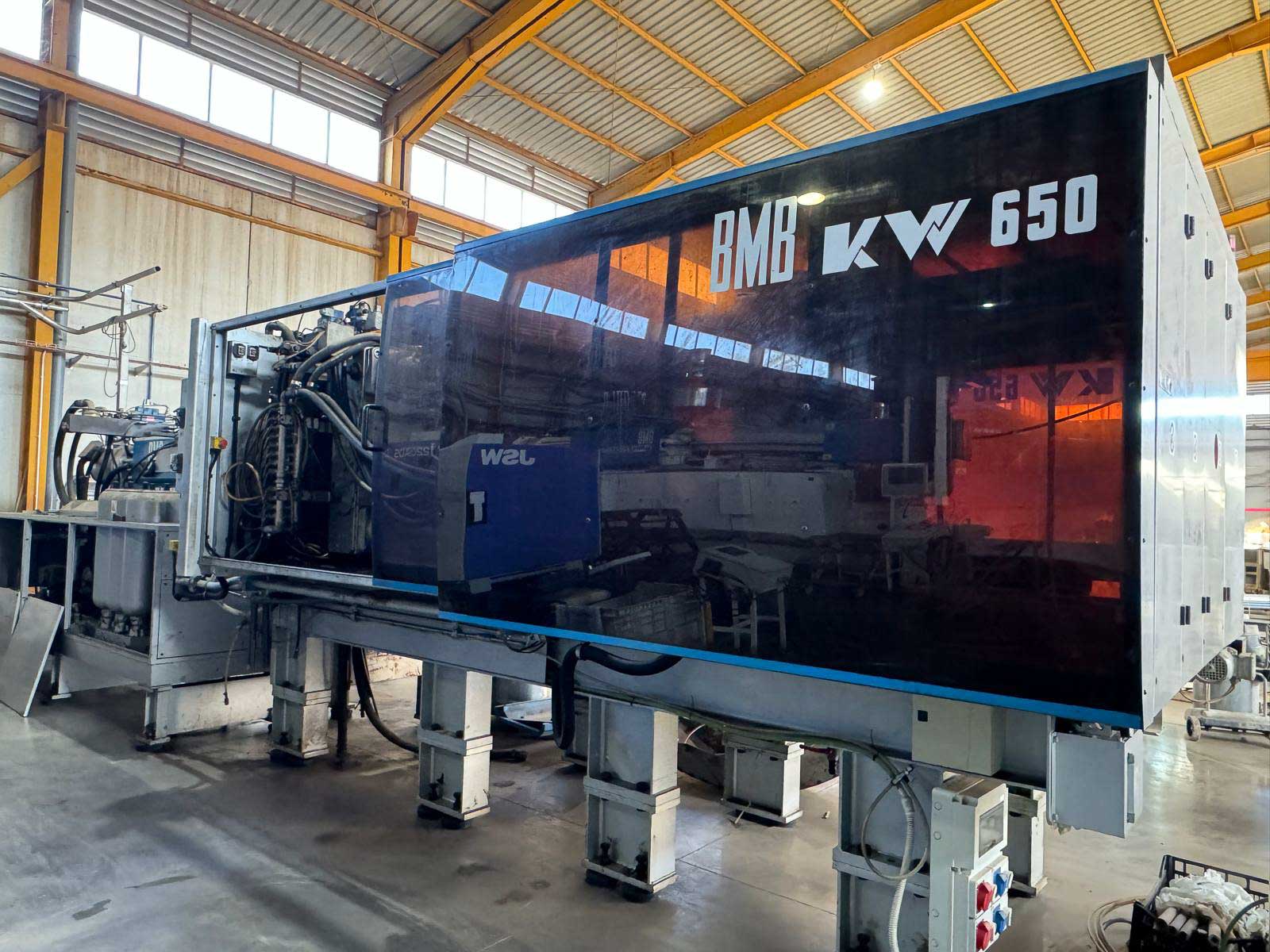

650t injection molding machine

Category	500 to 749t Injection moulding machines
Condition	Used
Year	2006
Availability	Available
ID	11073

|

Clamping force	6.500 kN
Dimensions (long x wide x high)	9.780 x 2.595 x 2.920 mm
Distance between tie-bars (h x v)	860 x 760 mm
Ejector force	650 kN
Injection rate	2.900 cm³/s
Injection volume	1.960 cm³
Mould height max	1.100 mm
Mould height min	450 mm
Platen size (h x v)	1.310 x 1.210 mm
Screw diameter	80 mm
Screw L/D ratio	23 L/D
Weight	33.000 kg
