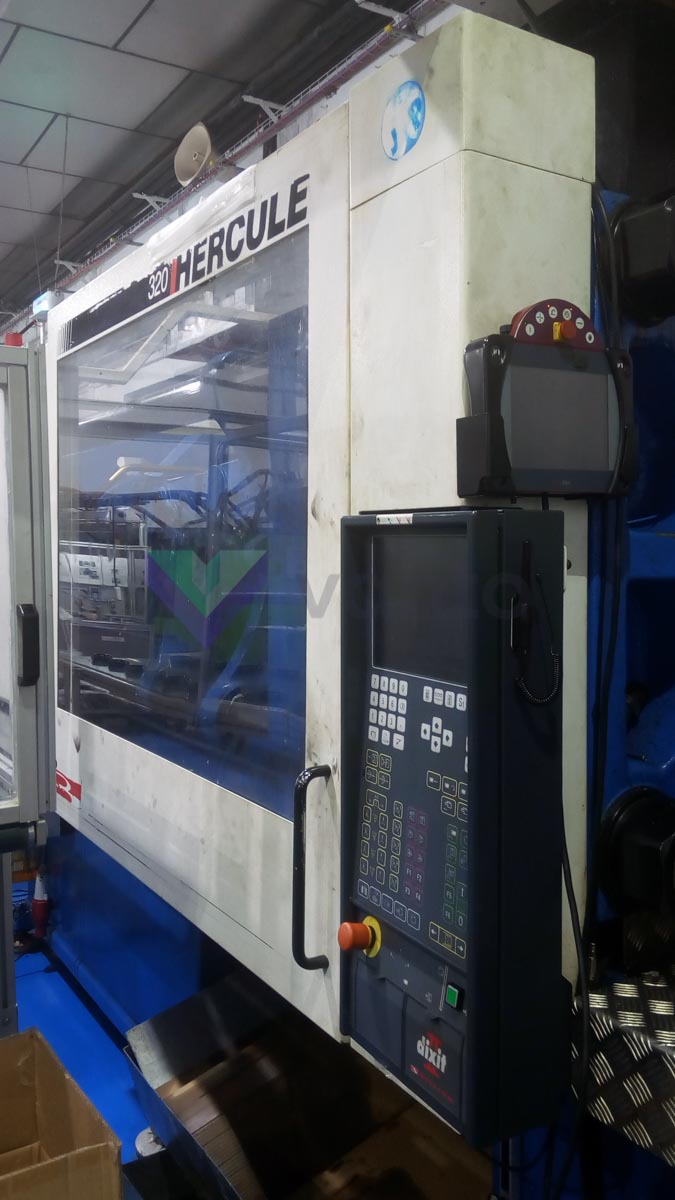

BILLION

H2000/320T GP HERCULE

320t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2003
Availability	Sold
ID	10310

Clamping force

0kN

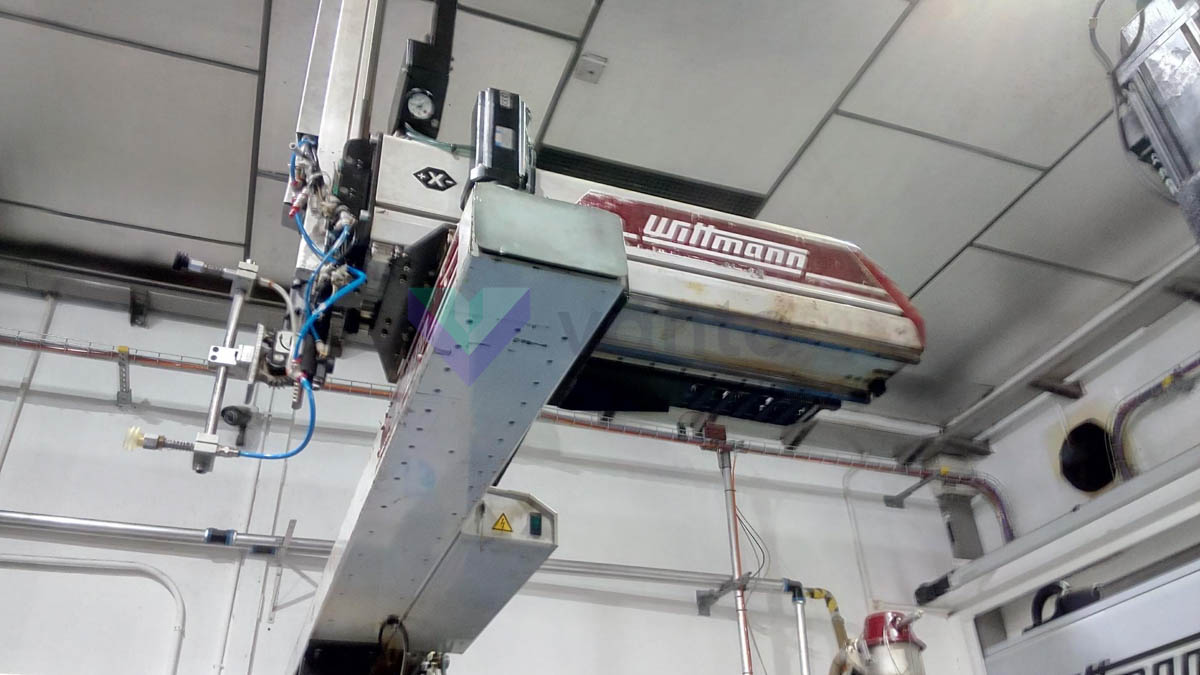

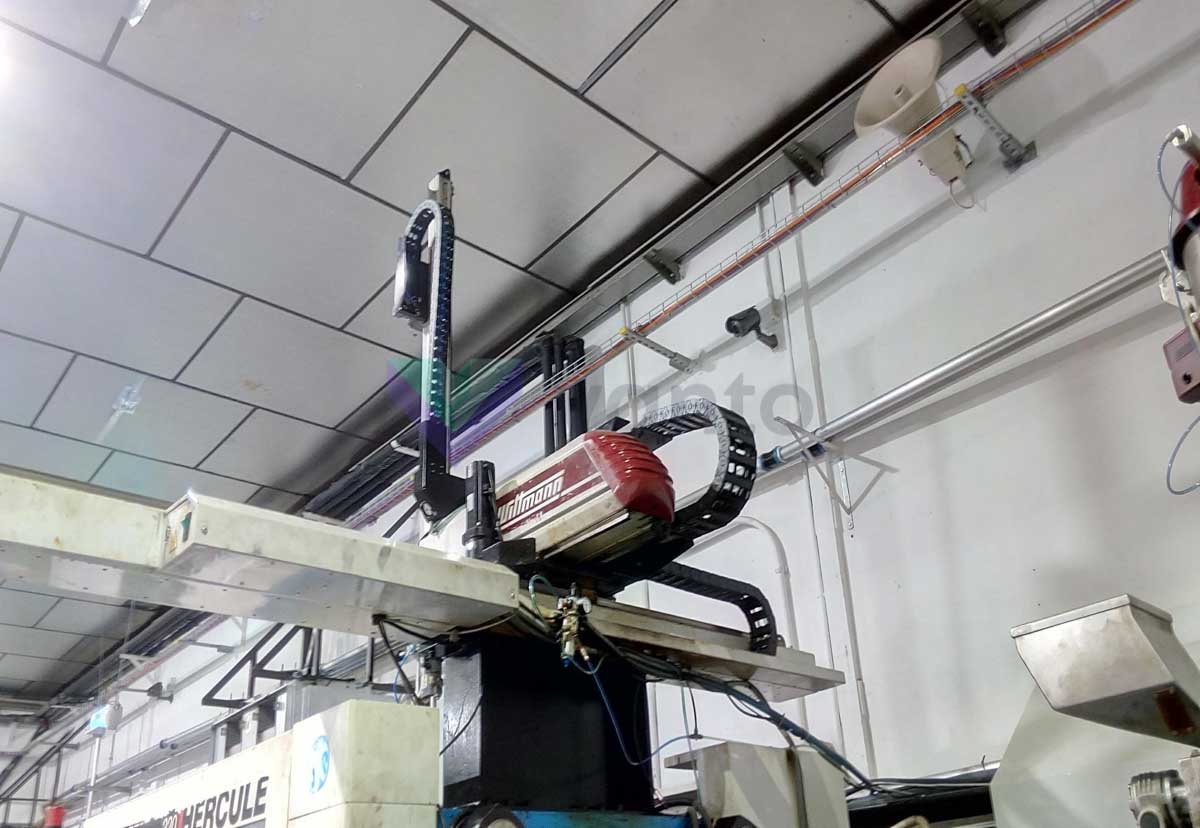

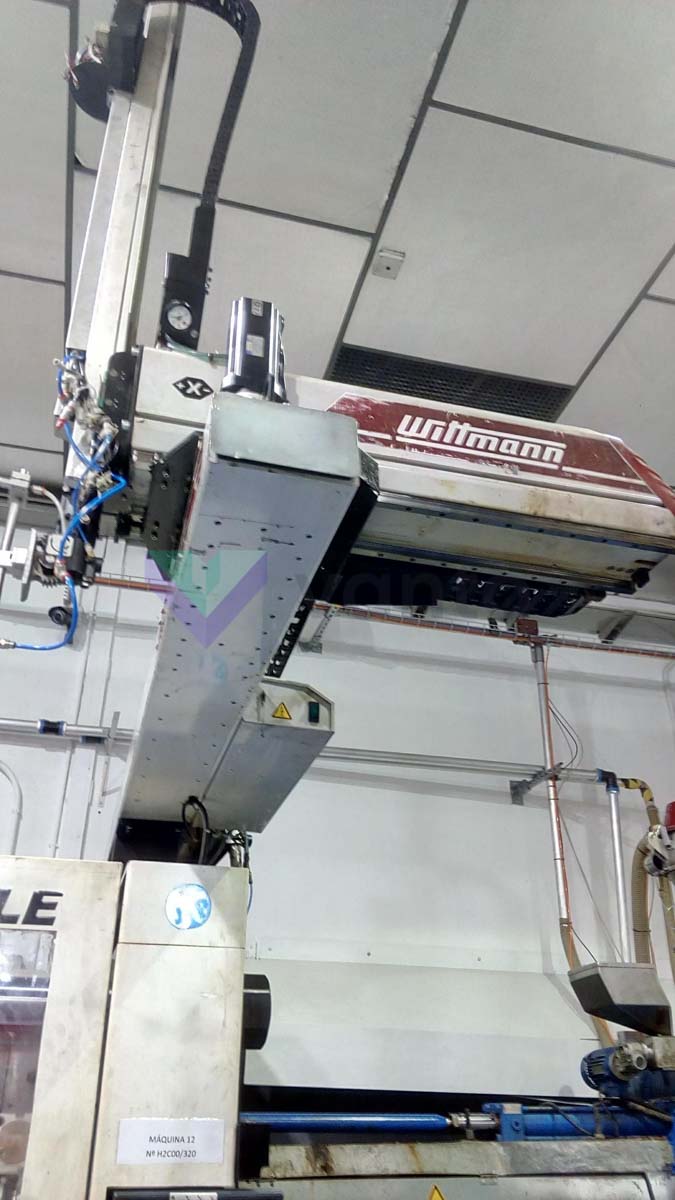

including WITTMAN W 721 C Robot

Air Valves	n/a
Cascades / Sequential valve gates	n/a
Clamping force	3.200 kN
Core pulls	n/a
Daylight between platens max	1.340 mm
Distance between tie-bars (h x v)	735 x 735 mm
Injection pressure	1.822 bar
Injection rate	845 cm³/s
Injection volume	1.097 cm³
Mould height max	680 mm
Mould height min	320 mm
Mould opening stroke max	680 mm
Nozzle stroke / force max.	82 mm / kN

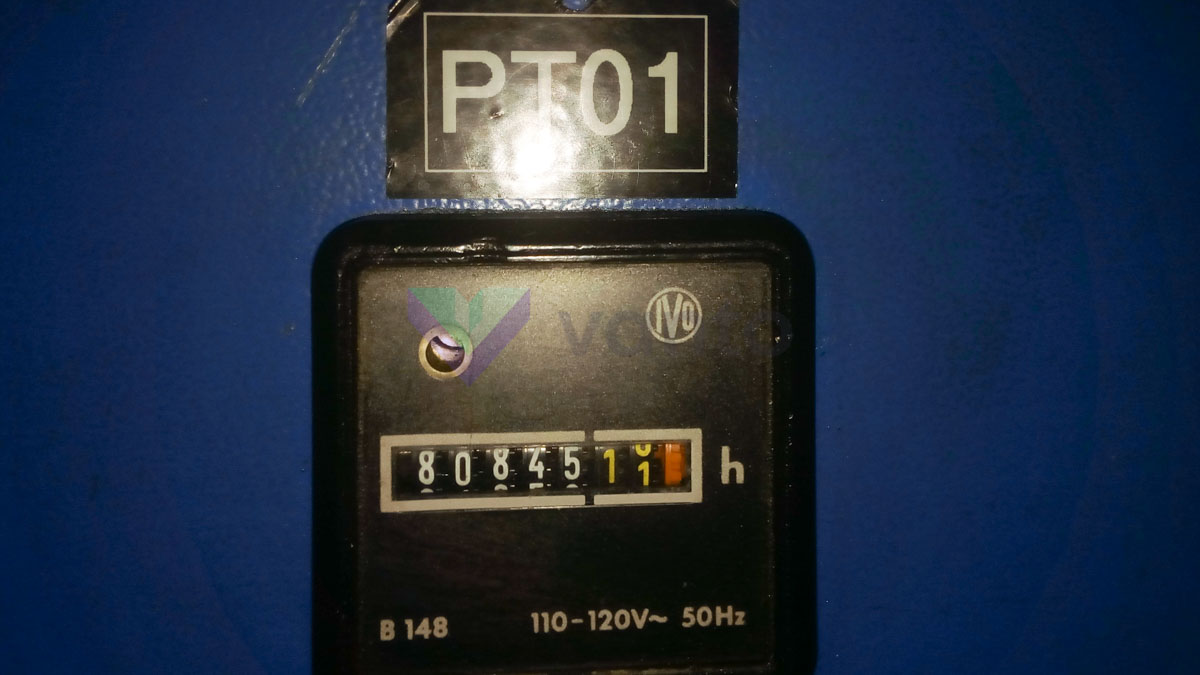

Operating hours	82.200
Platen size (h x v)	1.045 x 1045 mm
Screw diameter	70 mm
Screw L/D ratio	23,1
Screw speed	200 rpm
