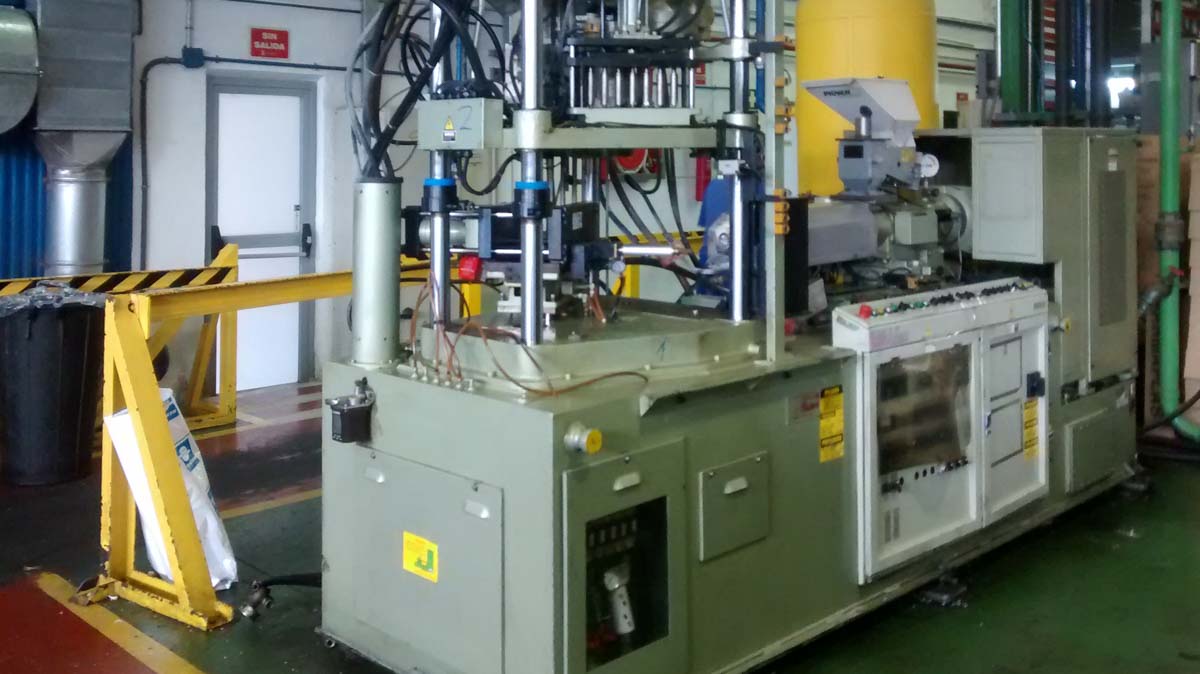

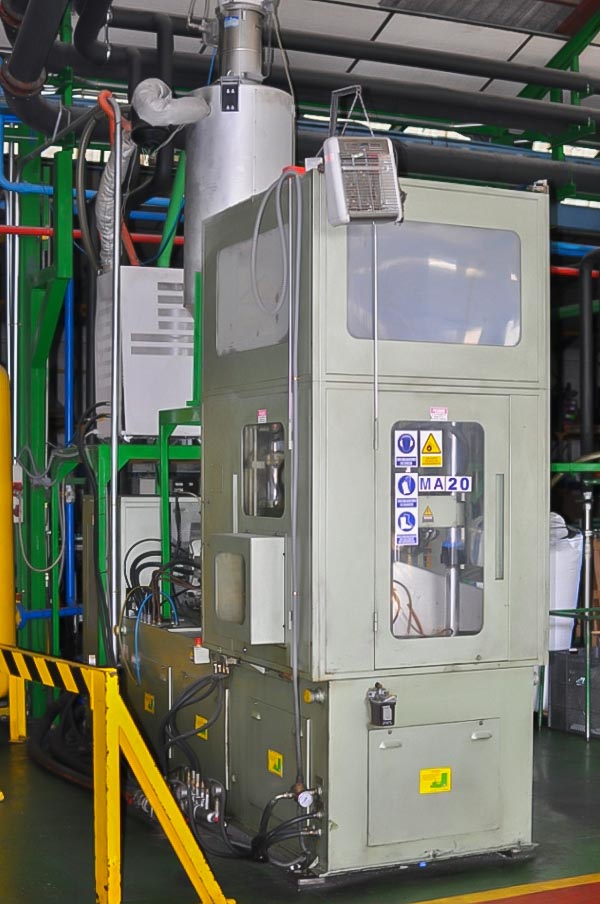

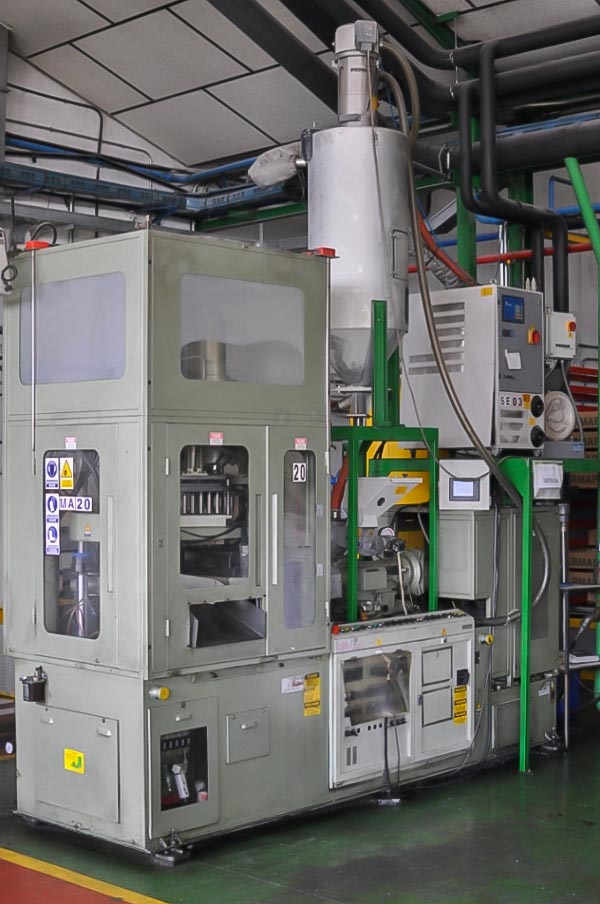

AOKI

Injection unit*3: 5.4 OZ in line screw Pump motor: 11/4 S. motor 3.7/4 kW/pole Heater capacity (barrel and hot runner): 4.65/3.49 kW Amount of hydraulic oil: 240 l. Number of products: 2-4-6-8*2 Mouth diameter (E): 47-34-24-12 Body diameter (BD): 60-60-40-25 Height (H)*1: 150-150-150-80 Approx. capacity (CC): 300-250-170-35 Dimensions aprox.: Length = 3530 mm., Width = 1140 mm., Height = 2860 mm. (Volume aprox. = 11.51 m3). Weight = 4000 Kg.
