PEGA 357

CNC punching machine

Category	Punching machines
Condition	Used
Year	1989
Availability	Sold
ID	11039

Control type	AMADAN 04P-C
Dimensions (long x wide x high)	3.775 x 4.500 x 2.1730 mm
Material thickness (punching) max	6,35 mm
Material thickness max	6,35 mm
Max. workpiece weight	100 kg

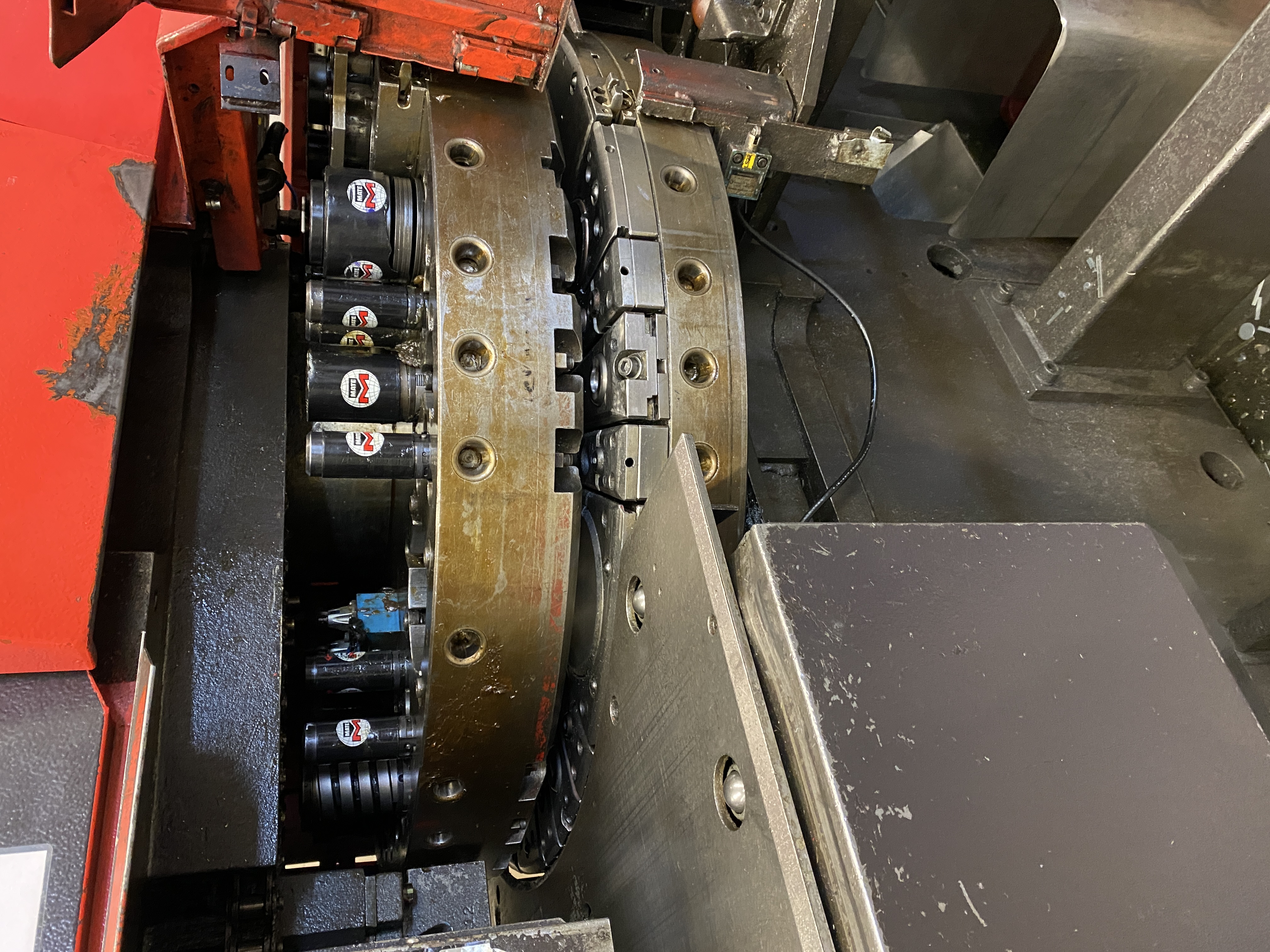

Number of turret stations (pcs)	45 + (2) Index

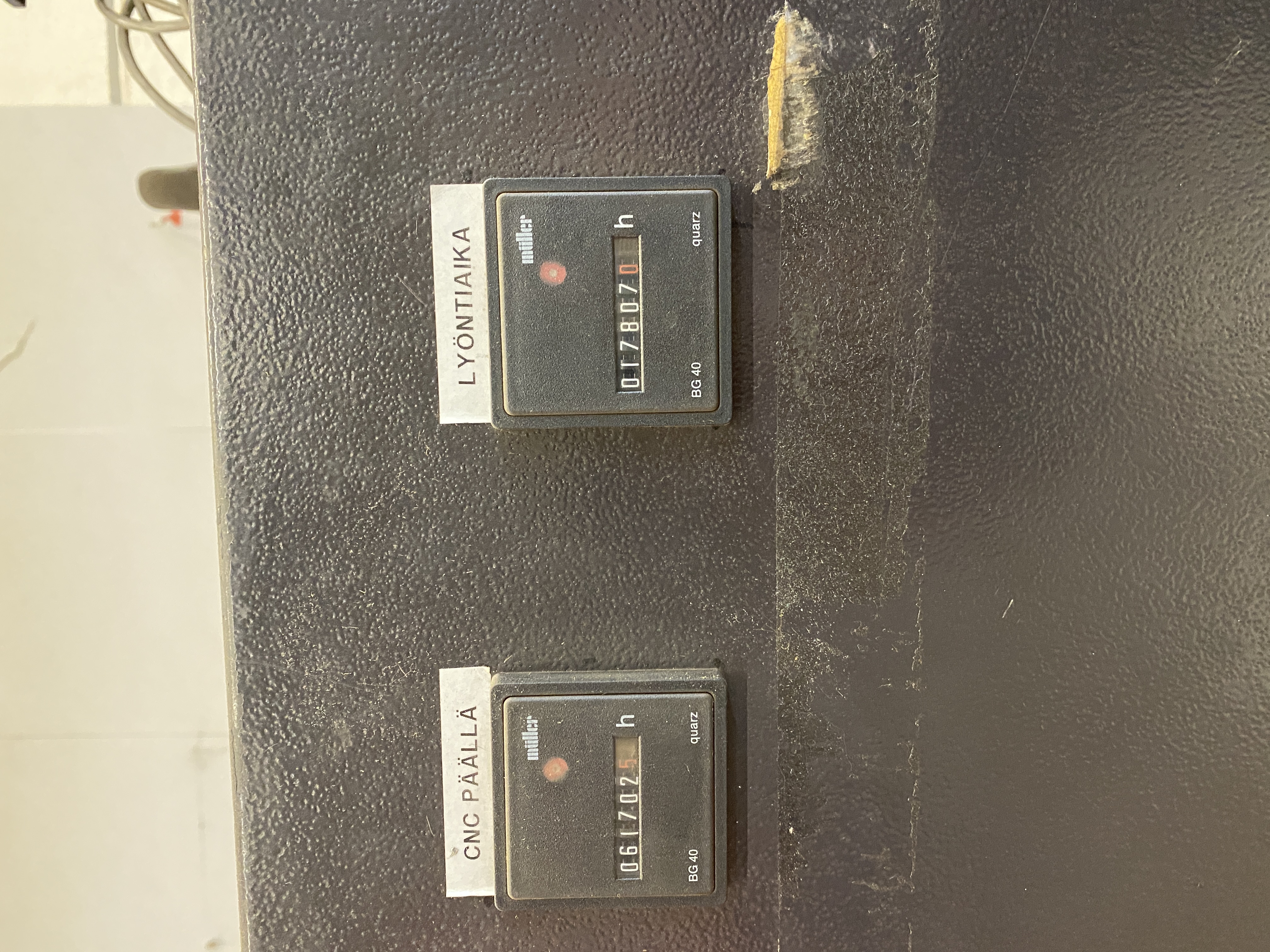

Operating hours	17.807

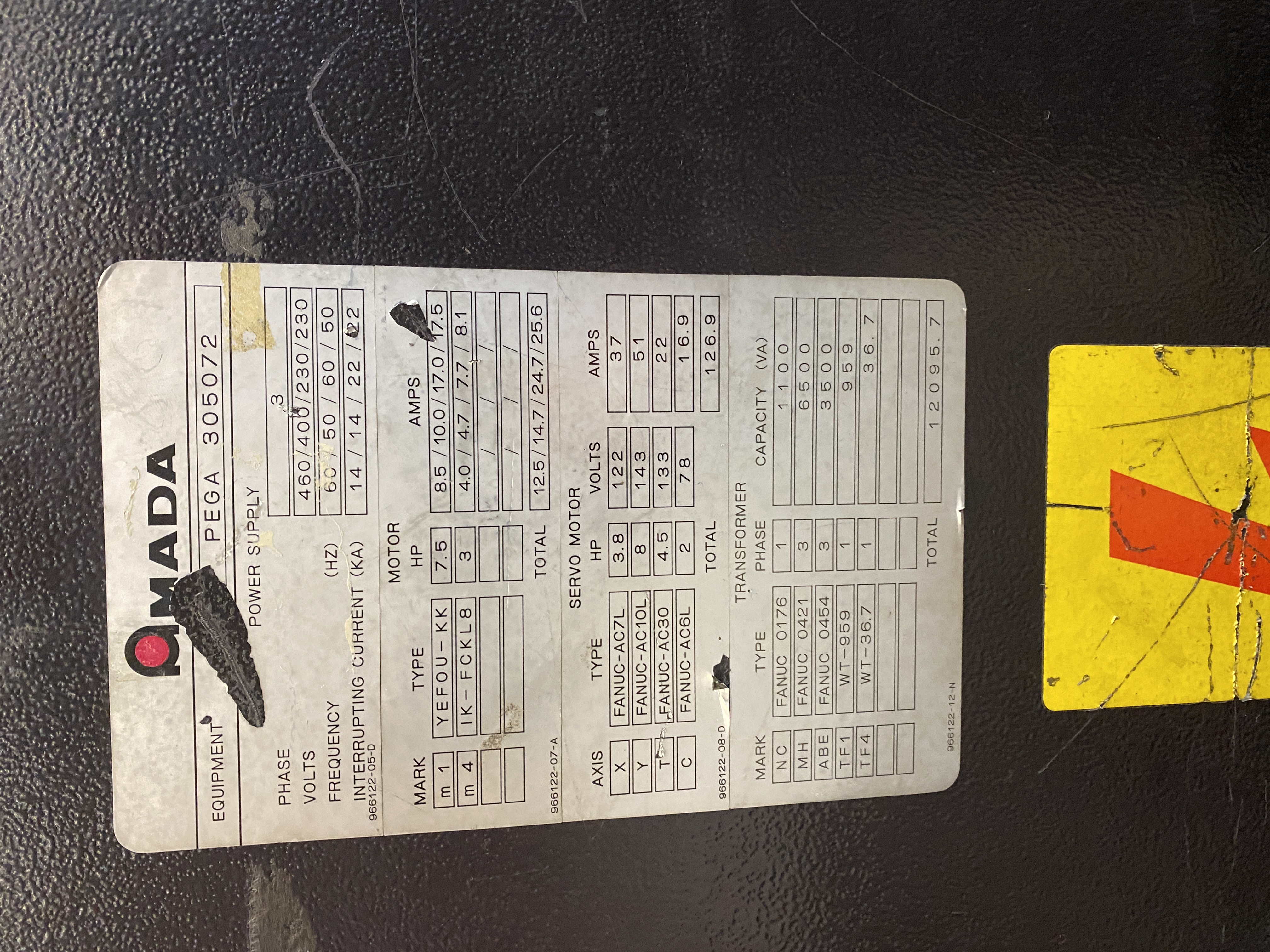

Power supply	18 kVA
Punch diameter max	114,3 mm
Punching force	300 kN
Weight	11.650 kg
Working area max	1.270 x 3.660 mm

There are no available documents
